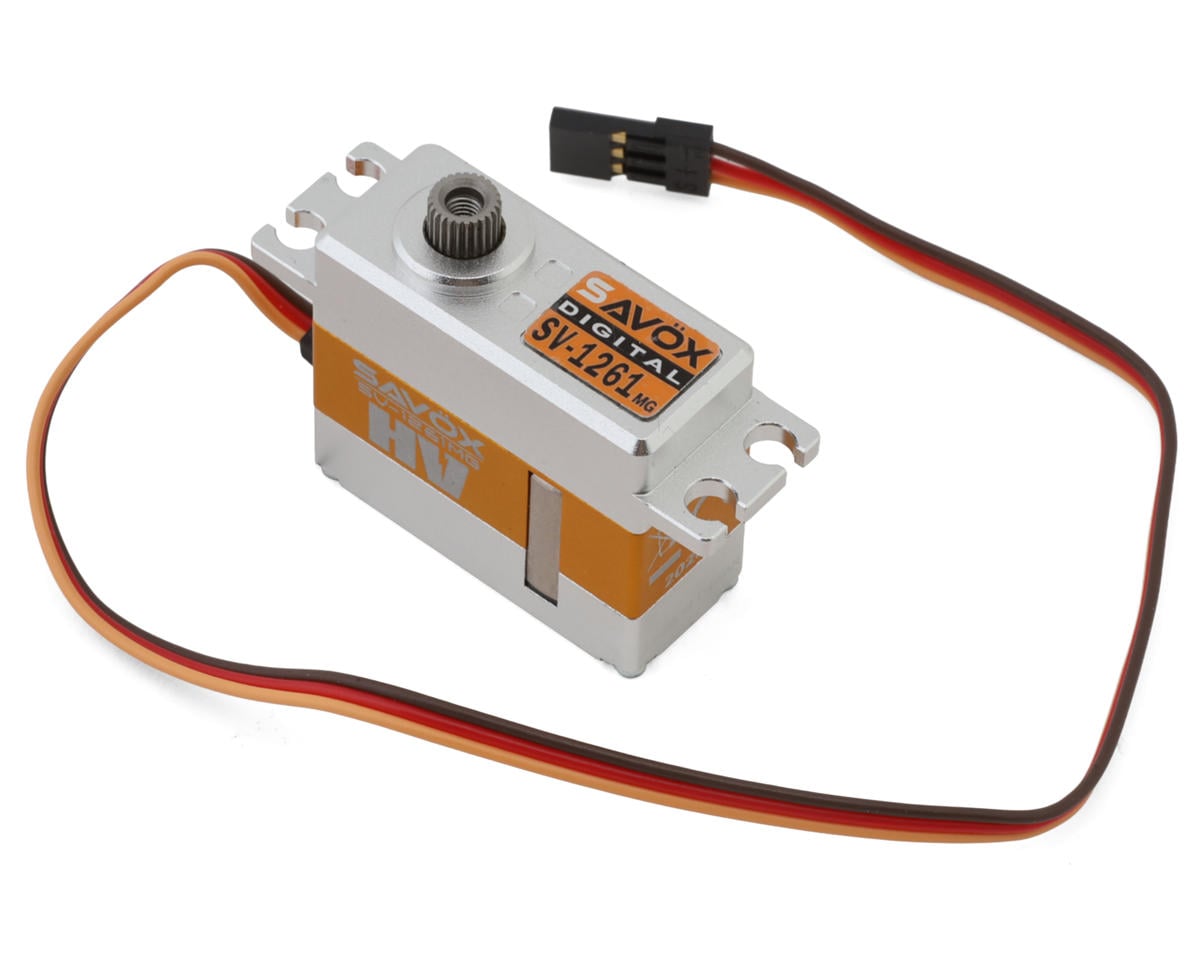

Savox SV-1261MG Aluminum Mini "High Torque" Digital Servo (High Voltage)

The Savox SV-1261MG is a compact mini digital servo with a full aluminum case, metal gear train, and high-voltage operation. It delivers 277oz-in (20.0kg-cm) of dynamic torque at 7.4V with an operating speed of .095 sec/60°.

Features

• High-voltage operation from 6.0-8.4V
• Metal gear train
• Full aluminum case design
• Coreless motor
• 25T output shaft spline
• Compact mini servo size

Specifications

• Application: Mini
• Input Voltage: 6.0-8.4V
• Operating Speed @ 6.0V: 0.12 sec/60°
• Operating Speed @ 7.4V: .095 sec/60°
• Dynamic Torque @ 6.0V: 208oz-in (15.0kg-cm)
• Dynamic Torque @ 7.4V: 277oz-in (20.0kg-cm)
• Gear Material: Metal
• Motor Type: Coreless
• Output Shaft Spline: 25T
• Dimensions: 1.38x0.59x1.21in (35x15x30.7mm)
• Weight: 1.4oz (40g)

Includes

• (1) SV-1261MG Aluminum Mini "High Torque" Digital Servo (High Voltage)

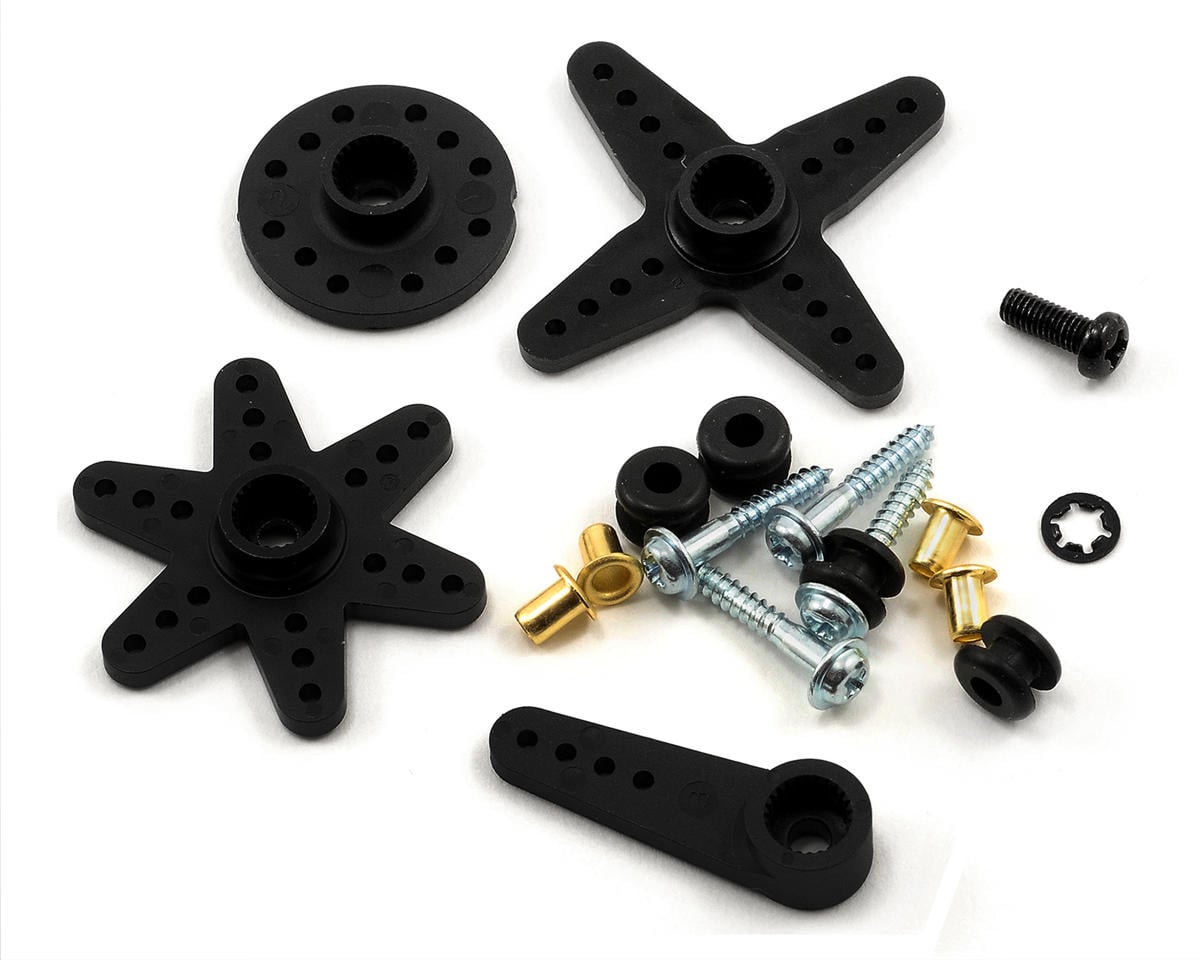

• Servo Horns & Accessories
