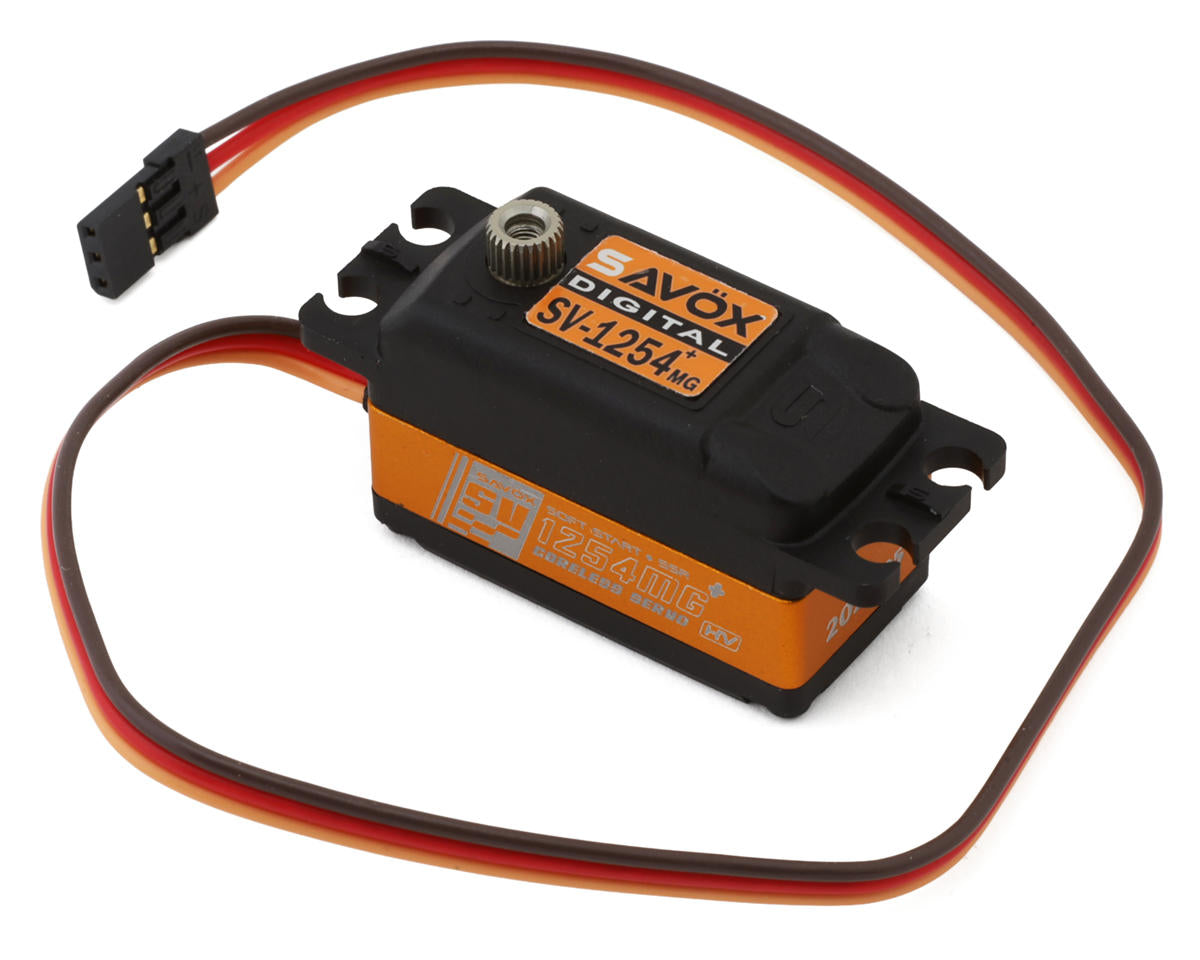

Savox SV-1254MGP Hybrid "High Speed" Low Profile Digital Steel Gear Servo

The Savox SV-1254MGP Hybrid "High Speed" Low Profile Digital Steel Gear Servo combines a compact low-profile design with high-voltage capability, a coreless motor, and a steel gear train. Its hybrid case includes an aluminum middle section for heat dissipation, while Plus-series features include Soft Start and Sanwa SSR compatibility.

Features

• Low profile design suited for tighter chassis spaces
• Steel gear train built for durability and long-term reliability
• Hybrid case with aluminum middle section for heat dissipation
• Brushed coreless motor supporting fast transit performance
• Soft Start function included as part of the Plus series
• Sanwa SSR compatibility for improved radio response
• High-voltage capable
• 250oz-in (18kg-cm) dynamic torque at 8.4V

Includes

• (1) SV-1254MGP Hybrid "High Speed" Low Profile Digital Steel Gear Servo
• Servo Horns & Accessories

Specifications

• Application: 1/10
• Input Voltage: 7.4-8.4V
• Operating Speed @ 7.4V: 0.085 sec/60°
• Operating Speed @ 8.4V: 0.075 sec/60°
• Dynamic Torque @ 7.4V: 208.3oz-in (15kg-cm)
• Dynamic Torque @ 8.4V: 250oz-in (18kg-cm)
• Gear Material: Steel
• Motor Type: Brushed - Coreless
• Output Shaft: 25T
• Dimensions: 1.61x0.8x1in (40.8x20.2x25.4mm)
• Weight: 1.62oz (46g)
