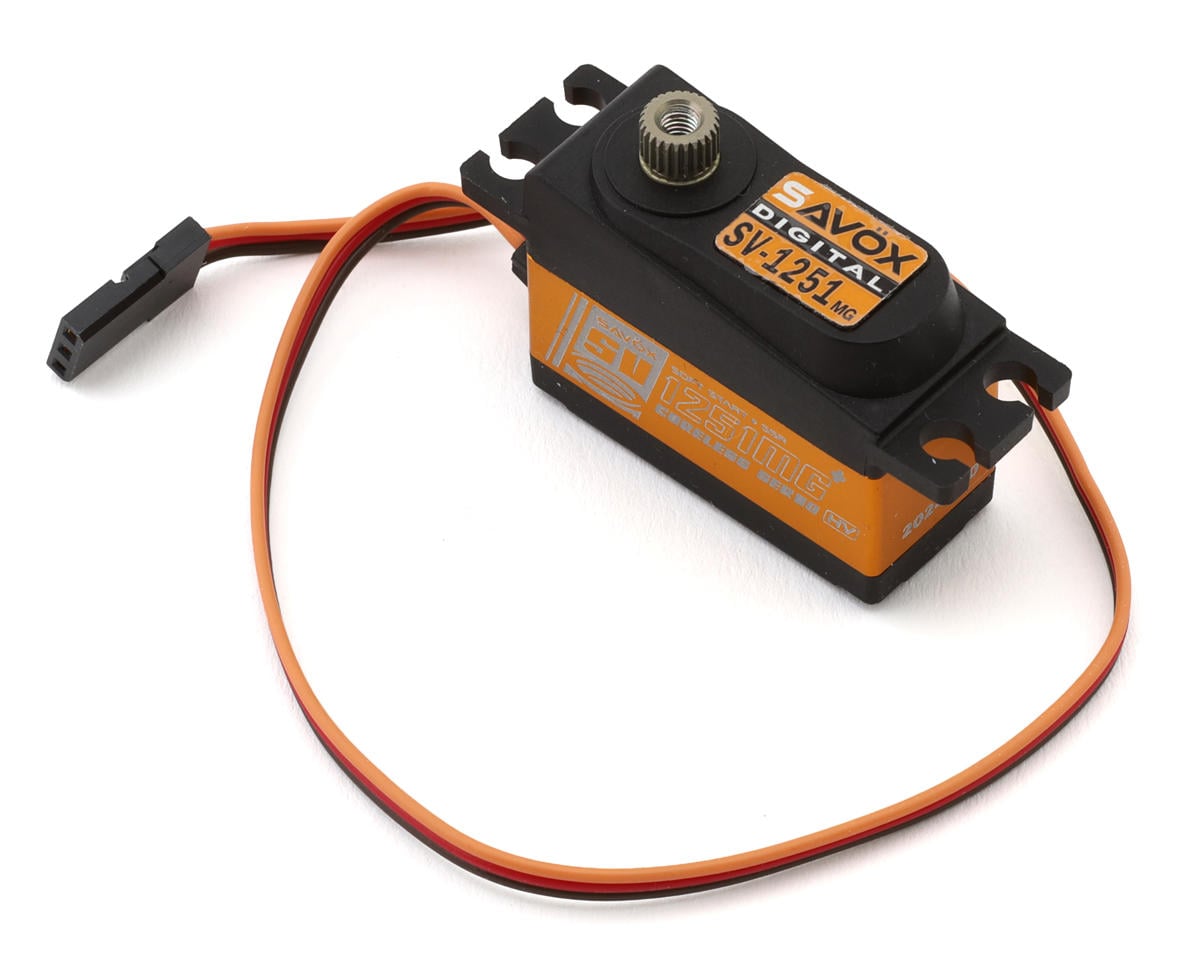

Savox SV-1251MGP Hybrid Low Profile Digital "High Speed" Mini Metal Gear Servo

The Savox SV-1251MGP is a low-profile digital mini servo designed for 1/12 racing. It combines high-speed response, a metal geartrain, dual precision ball bearings, and high-voltage operation up to 8.4V.

Features

• Operating speed of 0.11 sec/60° at 6.0V, 0.095 sec/60° at 7.4V, and 0.085 sec/60° at 8.4V
• Dynamic torque up to 138.9oz-in (10kg-cm) at 8.4V
• Metal gears and full steel geartrain
• Dual precision ball bearings
• Aluminum middle case improves cooling efficiency
• Low-profile design for compact 1/12 scale setups
• Savox Original Line "Plus" series with Soft Start and Sanwa SSR support

Specifications

• Application: 1/12 Racing
• Input Voltage: 6.0-8.4V
• Dynamic Torque @ 6.0V: 69.4oz-in (5kg-cm)
• Dynamic Torque @ 7.4V: 111.1oz-in (8kg-cm)
• Dynamic Torque @ 8.4V: 138.9oz-in (10kg-cm)
• Gear Material: Metal
• Motor Type: Brushed
• Output Shaft Spline: 25T
• Dimensions: 1.37x0.59x1.14in (35x15x29.2mm)
• Weight: 1.04oz (29.6g)

Includes

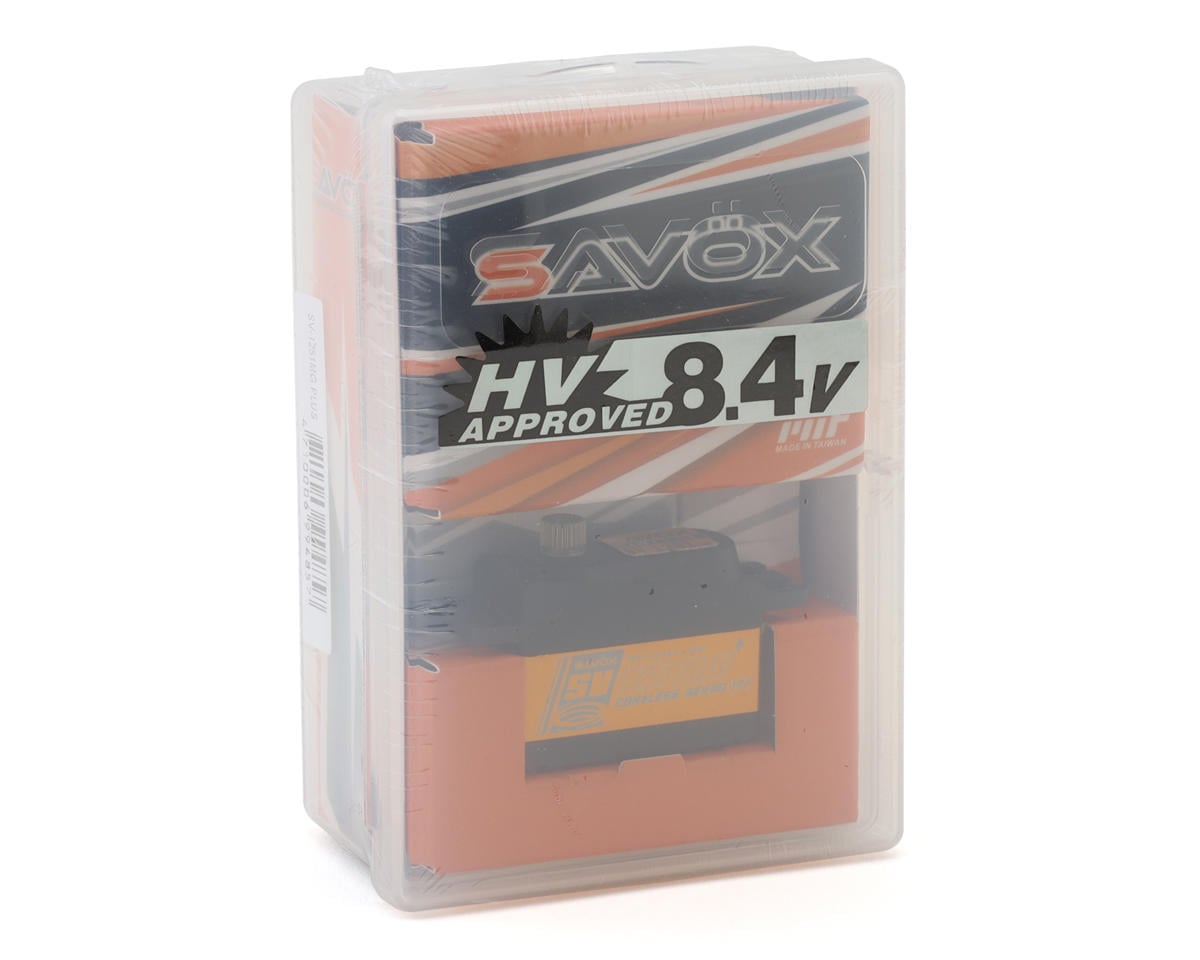

• (1) SV-1251MGP Low Profile Digital "High Speed" Metal Gear Mini Servo (HV)

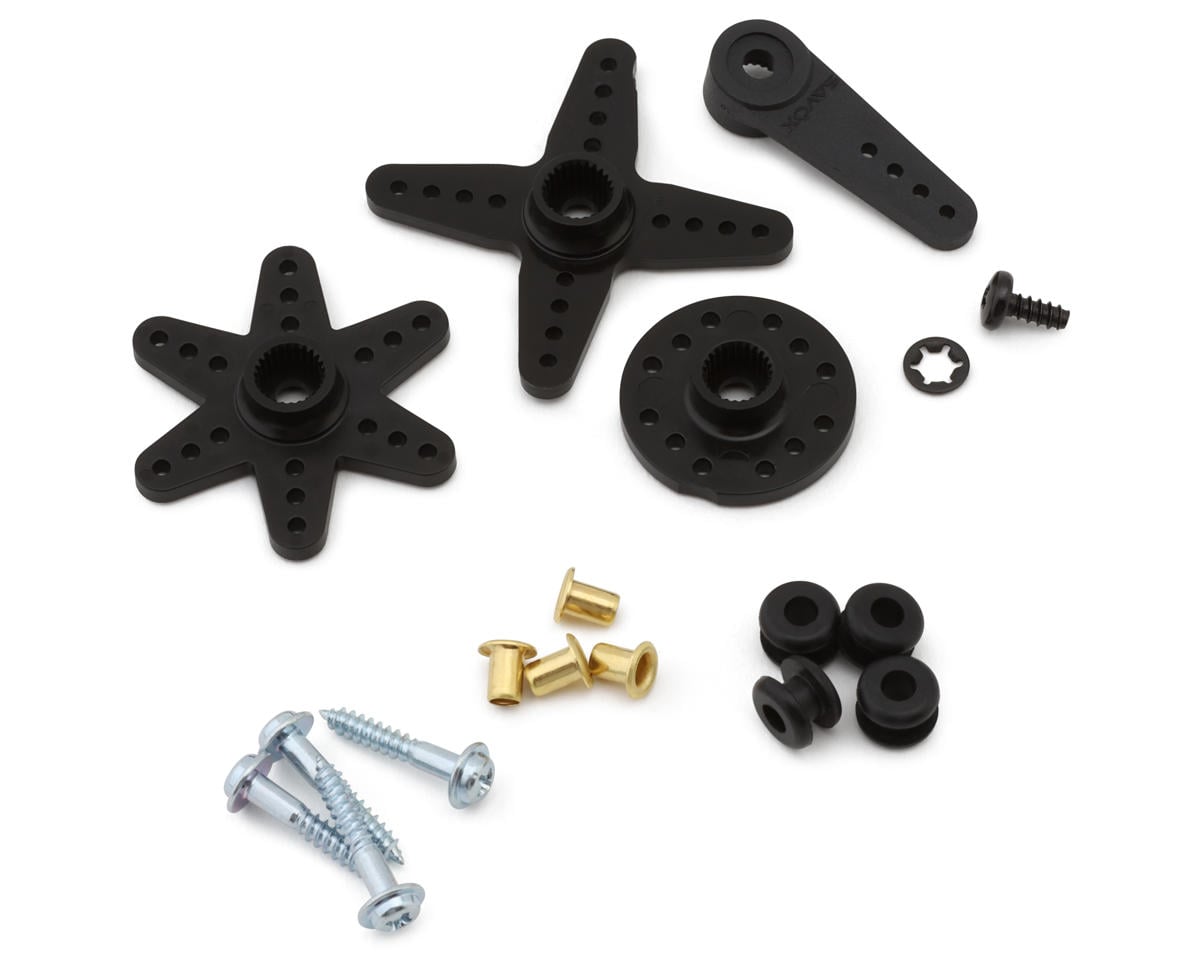

• Composite Servo Horns & Accessories
