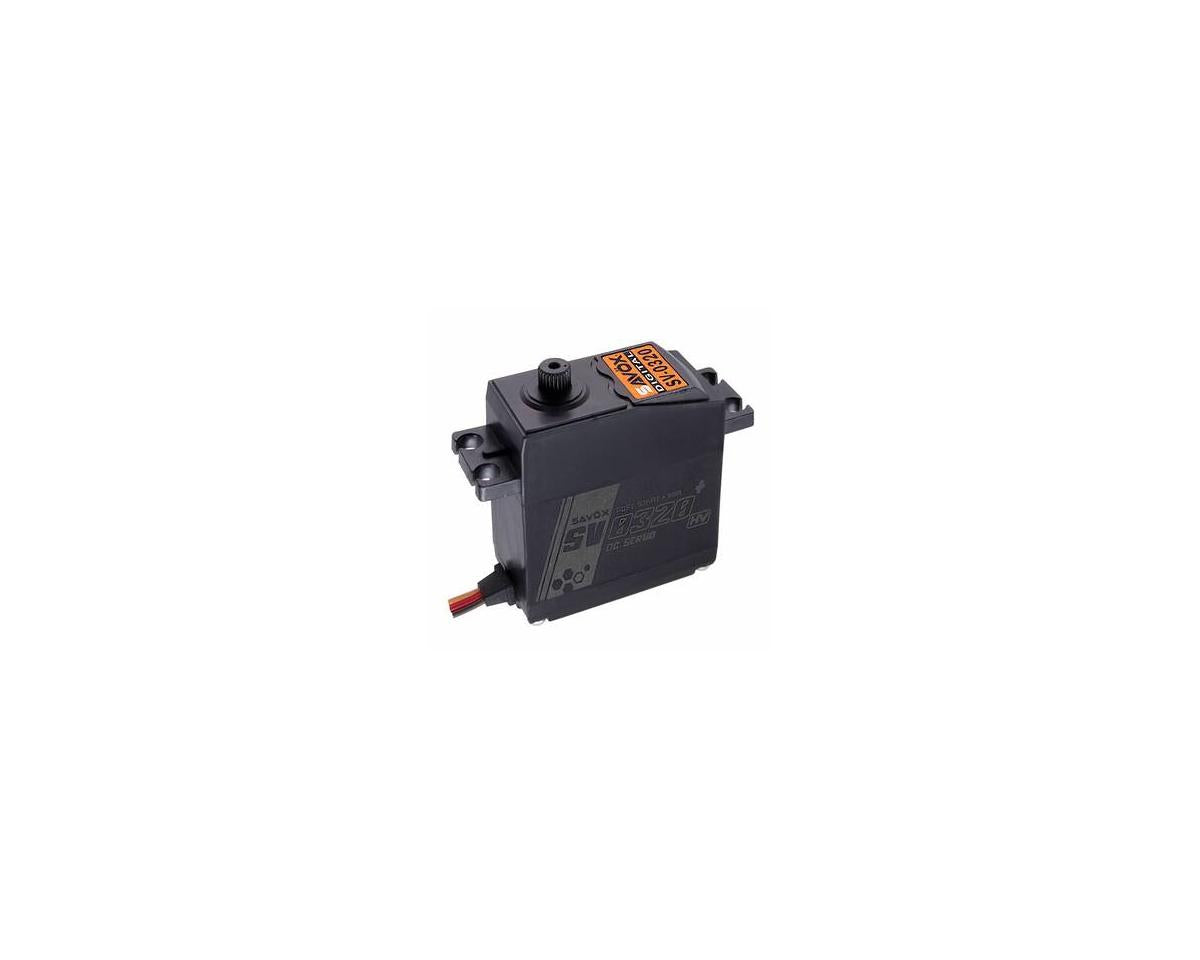

Savox SV-0320P Digital Standard Servo (High Voltage)

The Savox SV-0320P is a high-voltage digital standard servo for 1/10 on-road and off-road RC applications. It features smooth operation, Soft Start technology, plastic gears, and a brushed motor.

Features

• Digital standard servo for everyday RC use
• 6-7.4V input voltage
• Soft Start technology for smooth servo movement
• Plastic gears
• 25T output shaft spline
• Dynamic torque up to 83.3oz-in (6kg-cm) at 7.4V
• Operating speed of 0.065 sec/60° at 7.4V
• Weight: 1.62oz (46g)

Specifications

• Application: 1/10 On-Road & Off-Read
• Input Voltage: 6-7.4V
• Operating Speed @ 6.0V: sec/60°
• Operating Speed @ 7.4V: 0.065 sec/60°
• Dynamic Torque @ 6.0V: 62.5oz-in (4.5kg-cm)
• Dynamic Torque @ 7.4V: 83.3oz-in (6kg-cm)
• Gear Material: Plastic
• Motor Type: Brushed
• Output Shaft Spline: 25T
• Dimensions: 1.60x0.78x1.45in (40.7x20x37mm)
• Weight: 1.62oz (46g)

Includes

• (1) SV-0320P Digital Standard Servo (High Voltage)
• Composite Servo Horns & Accessories
