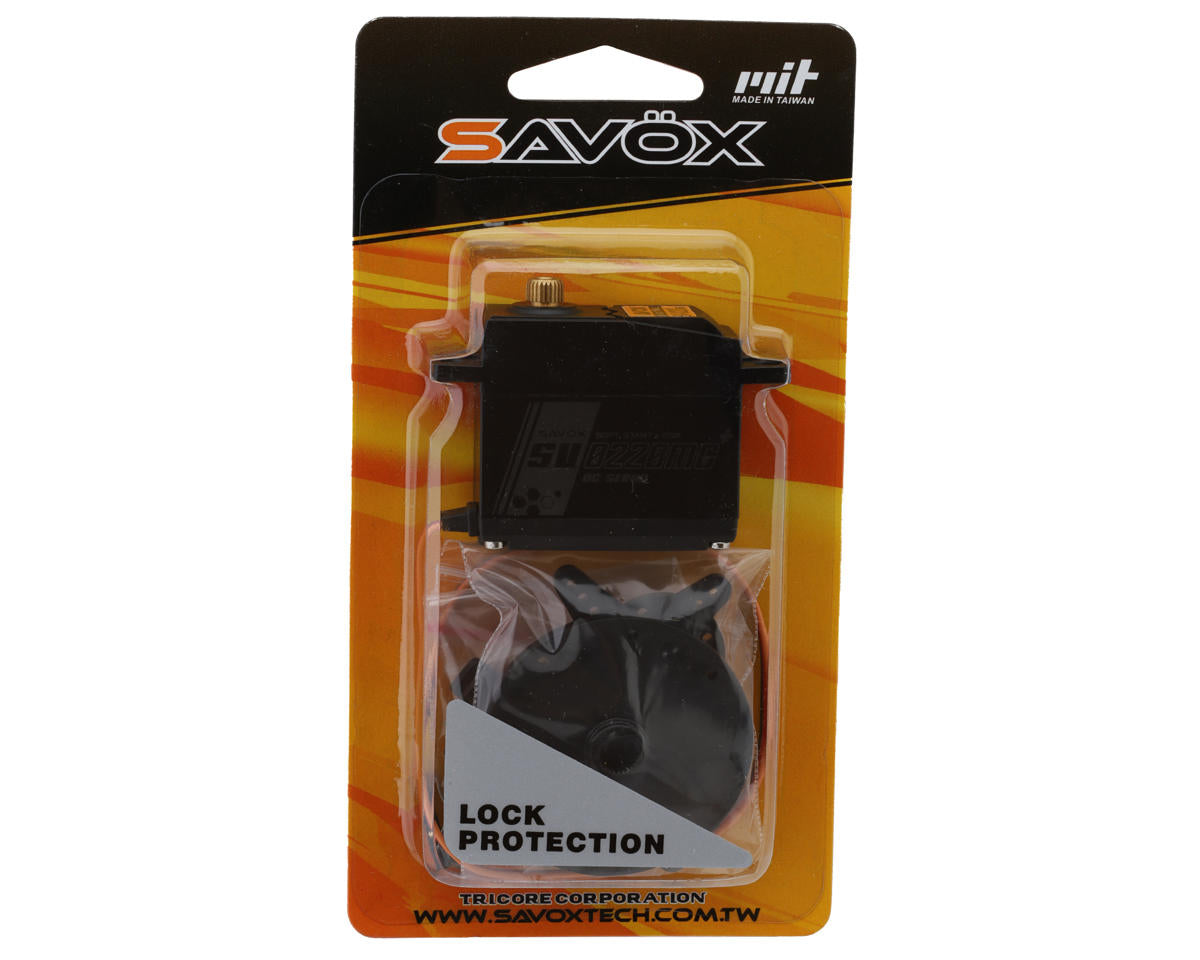

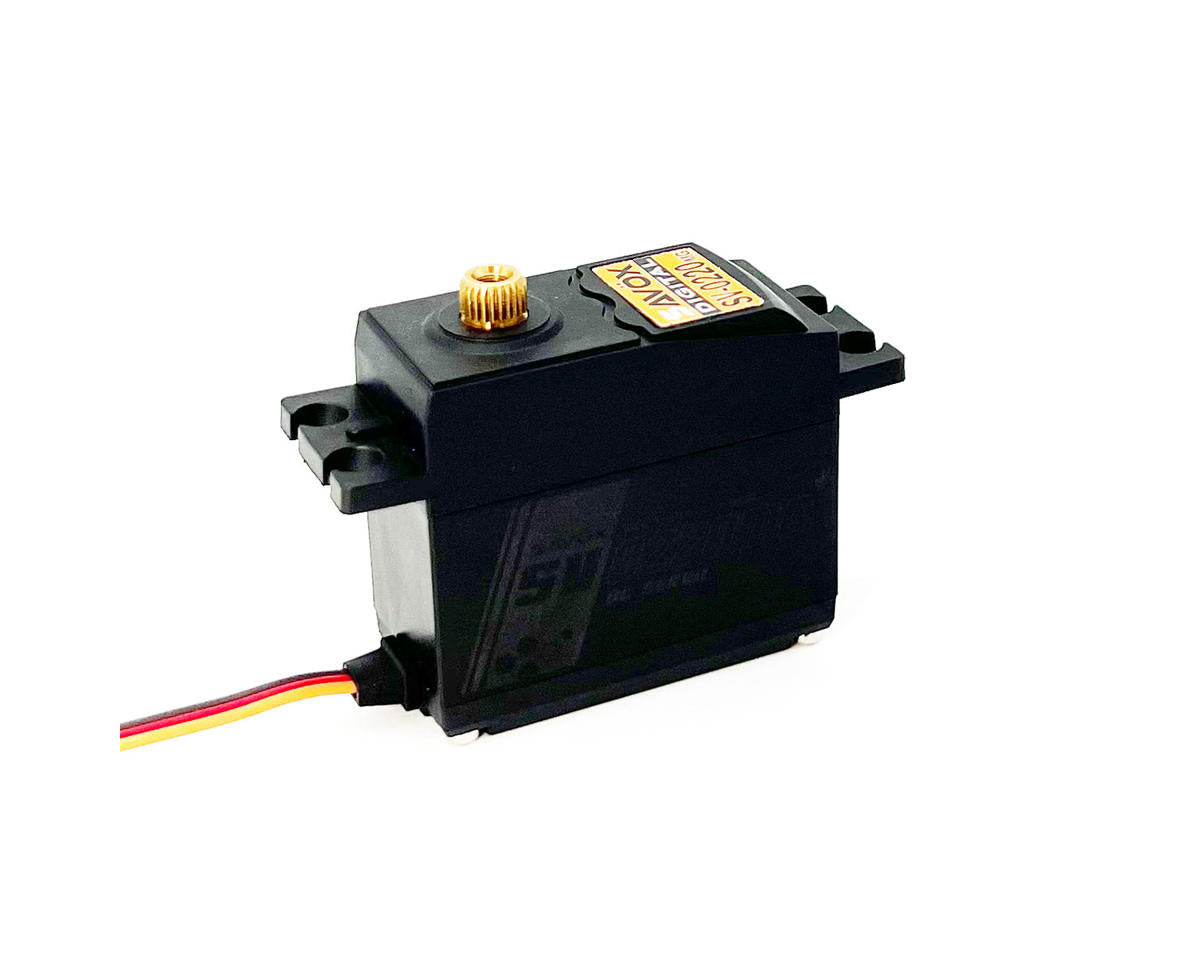

Savox SV-0220MGP Standard Digital Metal Gear Servo (High Voltage)

The Savox SV-0220MGP is a standard-size digital servo with a metal gear train, high-voltage operation, Soft Start, and Sanwa SSR compatibility. Designed for 1/10 and aircraft applications, it provides precise control in a versatile RC installation.

Features

• Standard-size digital metal gear servo
• Durable metal gear train
• Supports 6.0-7.4V operation
• Soft Start function for smooth initial movement
• Sanwa SSR compatible
• 25T output shaft
• Brushed motor

Specifications

• Application: 1/10 & Aircraft
• Input Voltage: 6.0-7.4V
• Operating Speed @ 6.0V: 0.16 sec/60°
• Operating Speed @ 7.4V: 0.13 sec/60°
• Dynamic Torque @ 6.0V: 90.3oz-in (6.5kg-cm)
• Dynamic Torque @ 7.4V: 111.1oz-in (8kg-cm)
• Gear Material: Metal
• Motor Type: Brushed
• Output Shaft: 25T
• Dimensions: 1.6x0.79x1.46in (40.7x20x37mm)
• Weight: 2.08oz (59g)

Includes

• (1) SV-0220MGP Standard Digital Metal Gear Servo

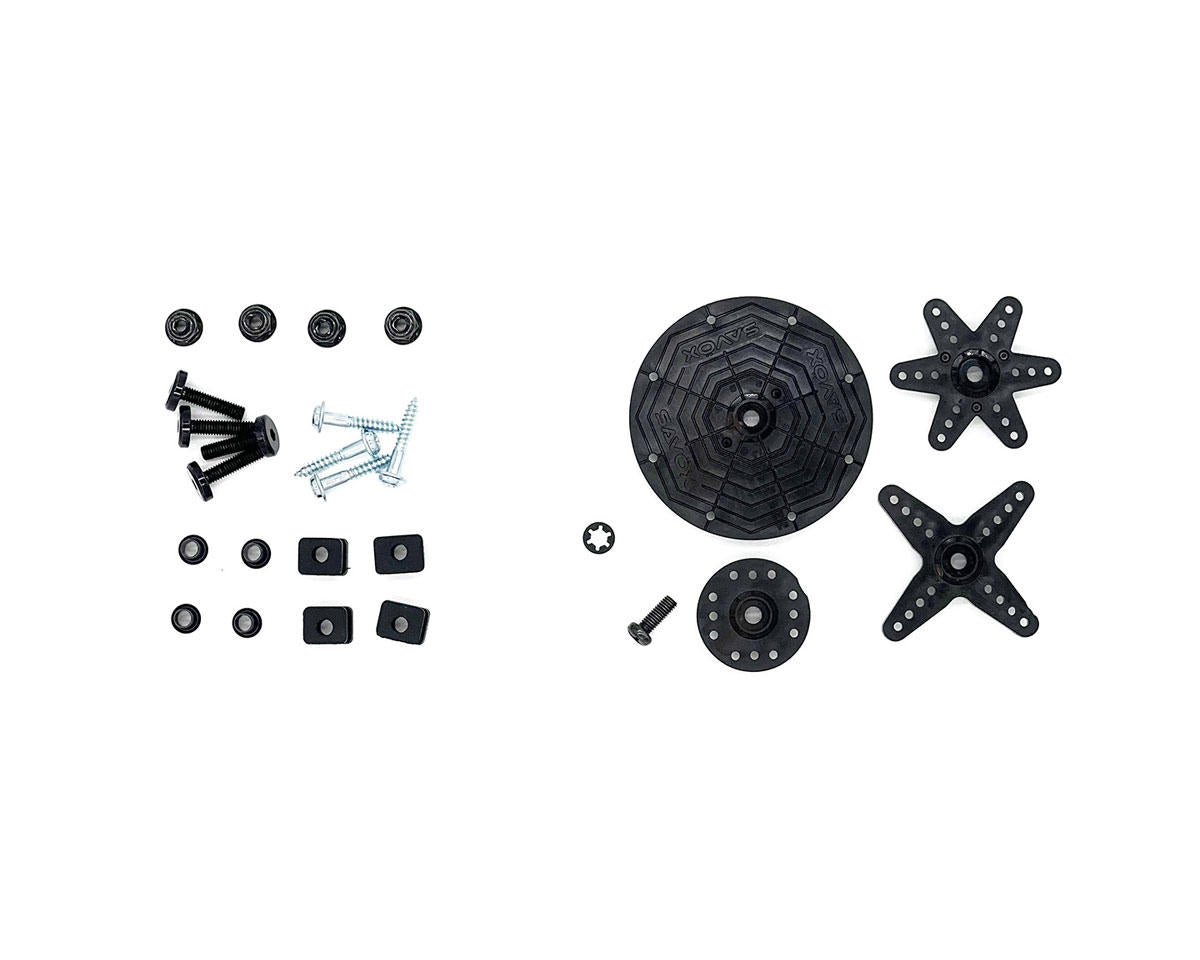

• Servo Horns & Accessories
