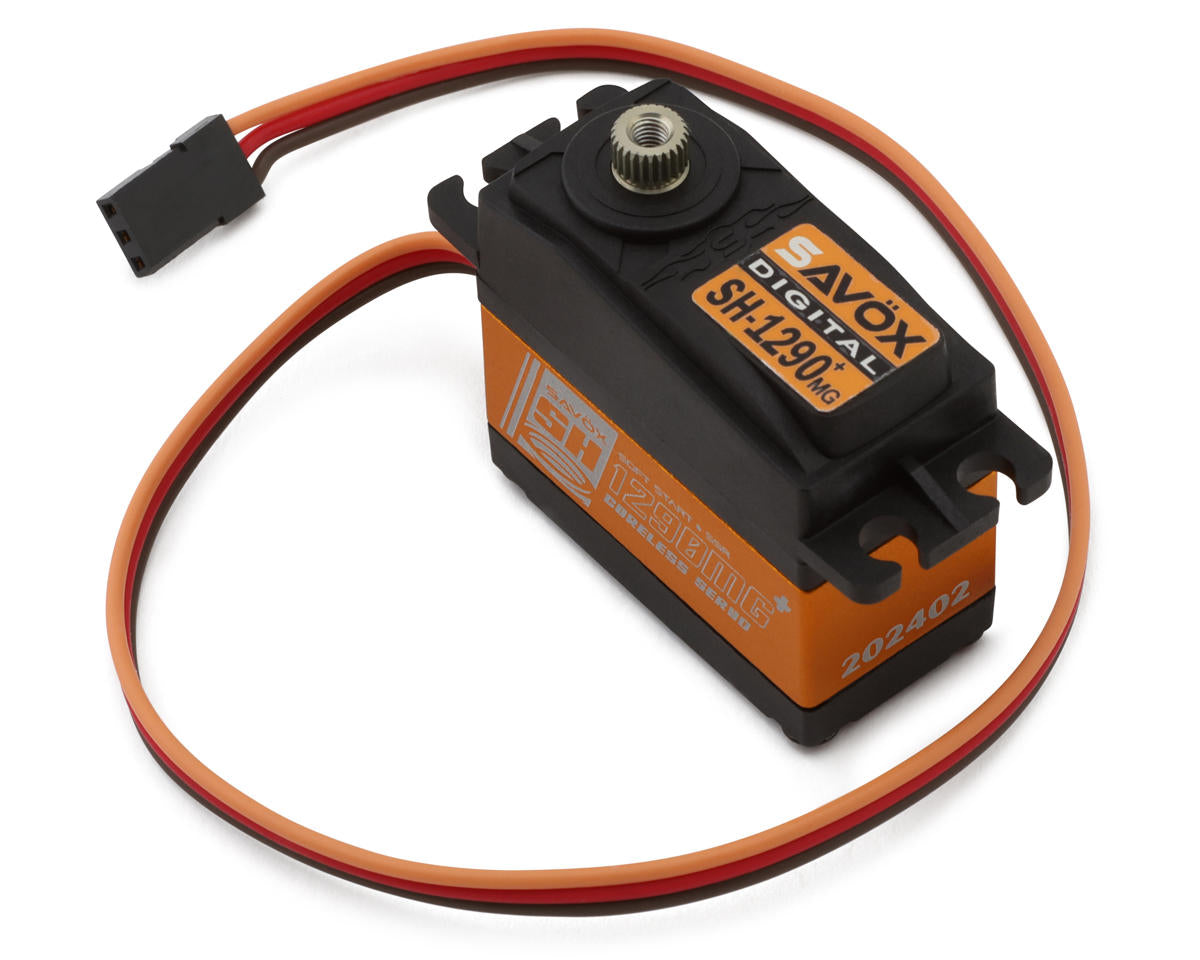

Savox SH-1290MGP Digital Metal Gear "Ultra Speed" Tail Servo

The Savox SH-1290MGP Digital Metal Gear "Ultra Speed" Tail Servo is designed for fast rudder response on 500, 600, and 700 class helicopters. It features a metal gear train, dual ball bearing support, an aluminum middle case, Soft Start, and Sanwa SSR compatibility.

Features

• Ultra-fast response for quick control
• Durable metal gear train
• Soft Start and Sanwa SSR compatibility
• Aluminum middle case for cooler operation
• Dual ball bearing support
• Suitable for rudder applications on 500, 600, and 700 class helicopters

Specifications

• Input Voltage: 4.8-6V
• Speed: @4.8V: 0.06sec/60° @6V: 0.05sec/60°
• Torque: @4.8V: 55.5oz-in @6V: 69.4oz-in
• Pulse/Frequency: -
• Motor Type: Coreless
• Output Shaft: 25T
• Gear Material: Metal
• Dimensions: 1.59x0.8x1.46in (40.3x20.2x37.2mm)
• Servo Lead Length: -
• Weight: 1.99oz (56.4g)

Includes

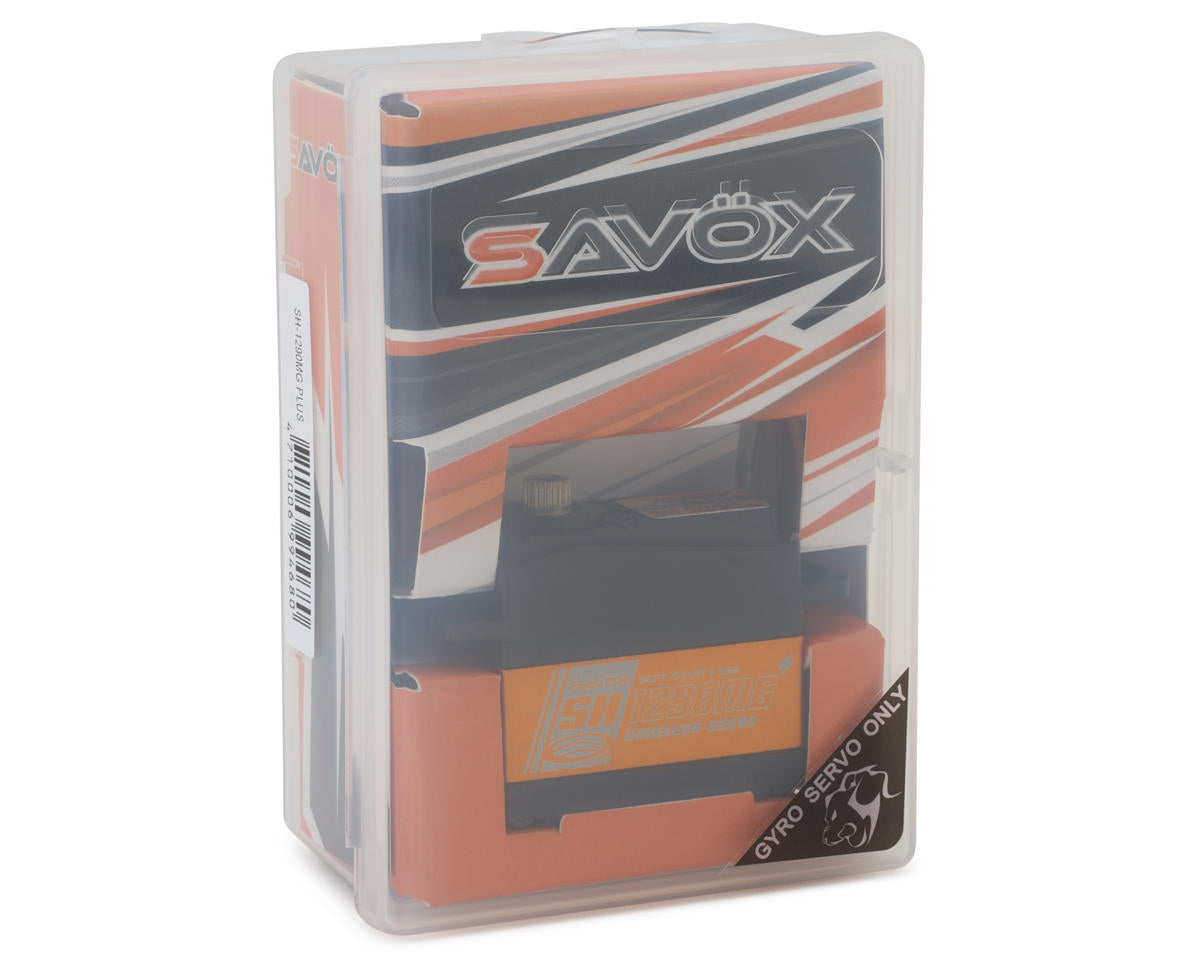

• (1) SH-1290MGP Digital Metal Gear "Ultra Speed" Tail Servo
• (4) Composite Servo Horns
• Mounting Hardware
