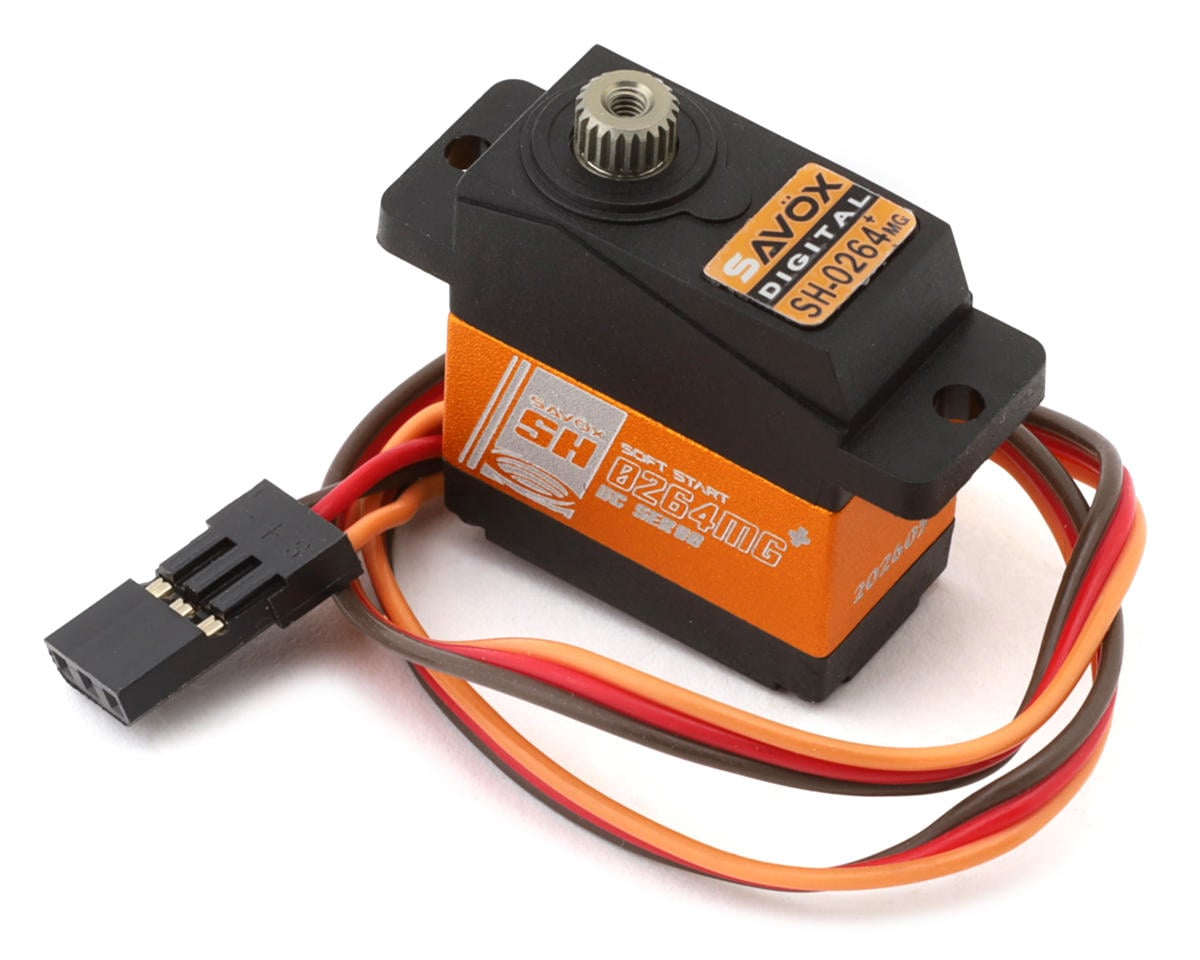

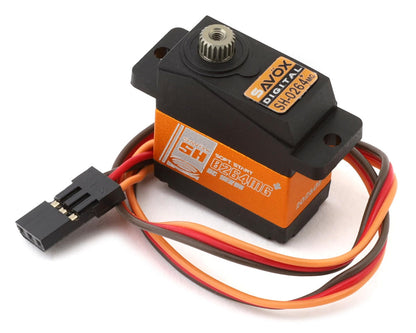

Savox SH-0264MGP Hybrid "Super Speed" Digital Micro Servo

The Savox SH-0264MGP Hybrid “Super Speed” Digital Micro Servo is a compact micro servo designed for small aircraft and 450-size helicopters. It features digital performance, a metal gear train, an aluminum middle case, dual ball bearings, Soft Start functionality, and Sanwa SSR compatibility.

Features

• Operating speed of 0.06 sec/60° at 6.0V
• Digital servo performance
• Metal gear train
• Aluminum middle case for cooling
• Dual ball bearing support
• Soft Start functionality
• Sanwa SSR compatibility
• 21T output shaft spline

Specifications

• Application: Micro
• Input Voltage: 4.8-6.0V
• Operating Speed @ 4.8V: 0.08 sec/60°
• Operating Speed @ 6.0V: 0.06 sec/60°
• Dynamic Torque @ 4.8V: 11.1oz-in (0.8kg-cm)
• Dynamic Torque @ 6.0V: 16.7oz-in (1.2kg-cm)
• Gear Material: Metal
• Motor Type: Brushed
• Output Shaft Spline: 21T
• Dimensions: 0.90x0.47x1in (22.8x12x25.4mm)
• Weight: 0.53oz (15g)

Includes

• (1) SH-0264MGP Hybrid “Super Speed” Digital Micro Servo
• Servo Horns & Accessories
