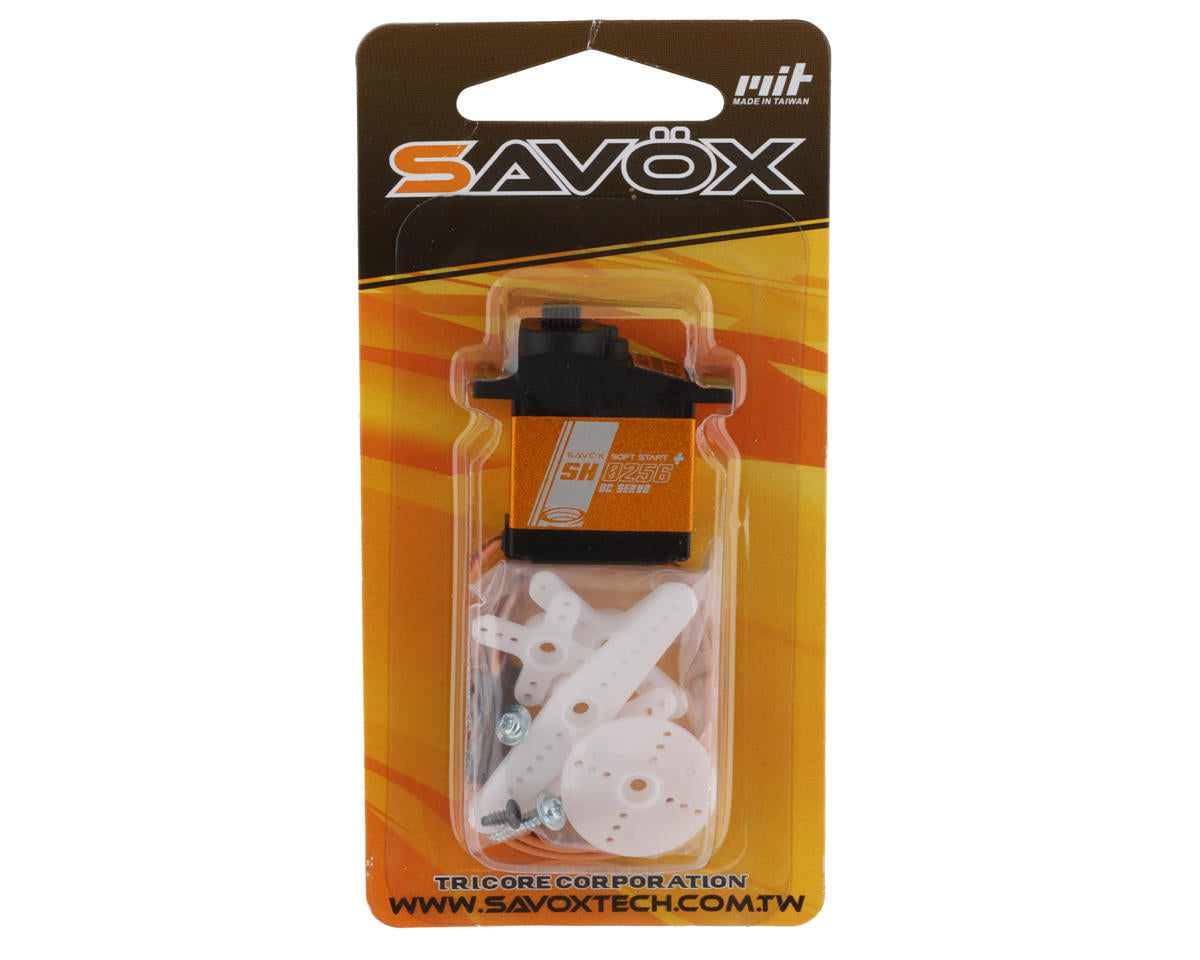

Savox SH-0256P Hybrid "Super Torque" Micro Digital Servo

The Savox SH-0256P Hybrid "Super Torque" Micro Digital Servo delivers up to 63.9 oz-in (4.6kg-cm) of dynamic torque at 6.0V in a compact micro-servo design. Its hybrid plastic and metal gear train, aluminum middle case, Soft Start function, and Sanwa SSR compatibility support precise control in small aircraft and 450 helicopters.

Features

• Super torque output for micro servo applications
• Dynamic torque up to 63.9 oz-in at 6.0V
• Hybrid plastic and metal gear train
• Aluminum middle case for cooling
• Compact micro servo size
• Soft Start functionality
• Sanwa SSR compatibility
• Lightweight design at 15.8g
• Smooth and precise digital control
• Ideal for small aircraft and 450 helicopters

Specifications

• Application: Micro
• Input Voltage: 4.8-6.0V
• Operating Speed @ 4.8V: 0.21 sec/60°
• Operating Speed @ 6.0V: .16 sec/60°
• Dynamic Torque @ 4.8V: 54.2oz-in (3.9kg-cm)
• Dynamic Torque @ 6.0V: 63.9oz-in (4.6kg-cm)
• Gear Material: Metal
• Motor Type: Brushed
• Output Shaft Spline: 21T
• Dimensions: 0.9x0.47x1.16in (22.8x12x29.4mm)
• Weight: 0.56oz (15.8g)

Includes

• (1) SH-0256P Hybrid "Super Torque" Micro Digital Servo
• Servo Horns & Accessories
