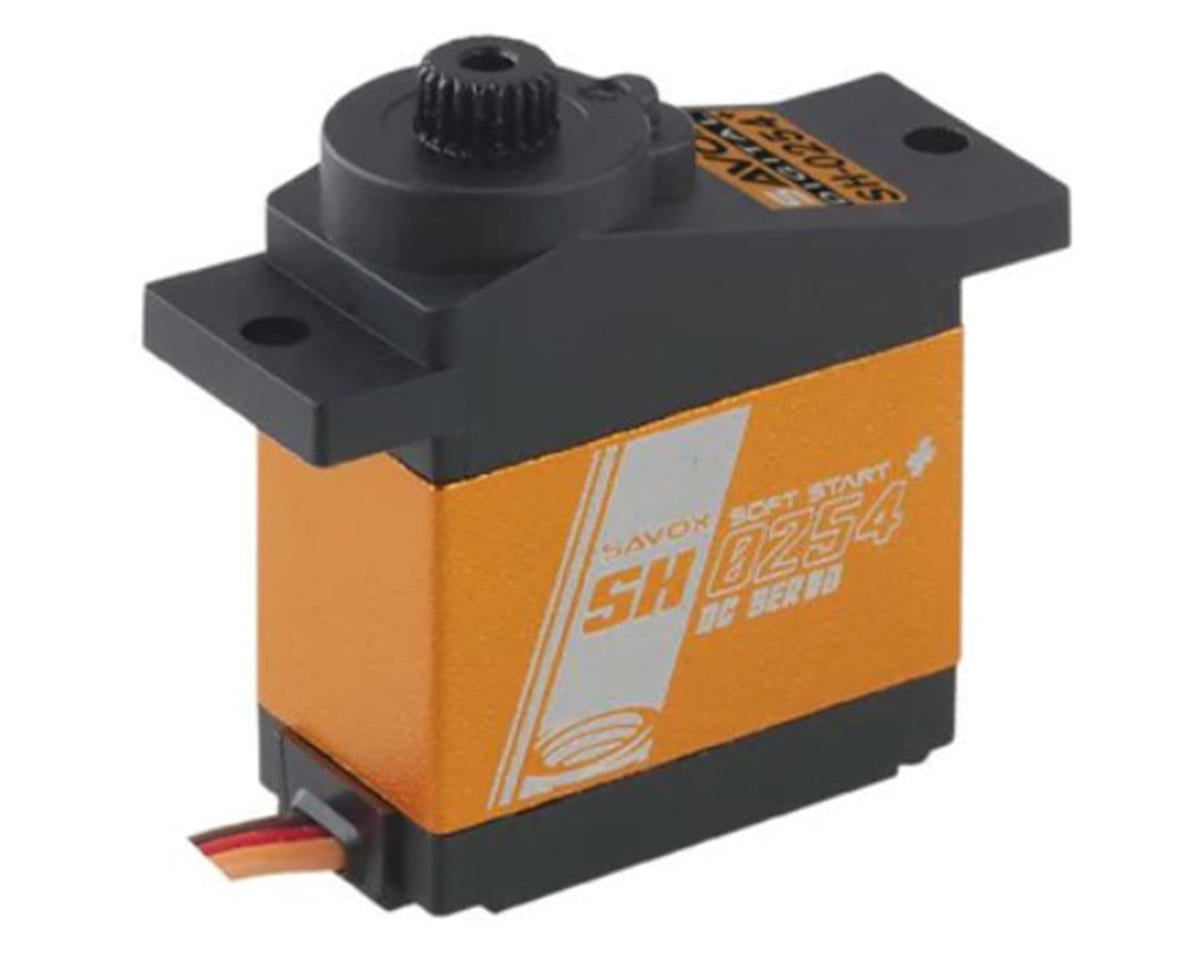

Savox SH-0254P Hybrid Digital "High Torque" Micro Servo

The Savox SH-0254P Hybrid Digital "High Torque" Micro Servo combines a hybrid aluminum composite case with metal/composite gears for compact RC applications. Soft Start and Sanwa SSR-compatible electronics support controlled, smooth digital operation.

Features

• High torque micro performance
• Hybrid aluminum composite case
• Metal/composite hybrid gears
• Soft Start function
• Sanwa SSR-compatible electronics
• 21T output shaft spline
• Brushed motor

Specifications

• Application: Micro
• Input Voltage: 4.8-6.0V
• Operating Speed @ 4.8V: 0.16 sec/60°
• Operating Speed @ 6.0V: 0.13 sec/60°
• Dynamic Torque @ 4.8V: 43.1oz-in (3.1kg-cm)
• Dynamic Torque @ 6.0V: 54.2oz-in (3.9kg-cm)
• Gear Material: Metal/Composite
• Motor Type: Brushed
• Output Shaft Spline: 21T
• Dimensions: 0.9x0.47x1.16in (22.8x12x29.4mm)
• Weight: 0.56oz (15.8g)

Includes

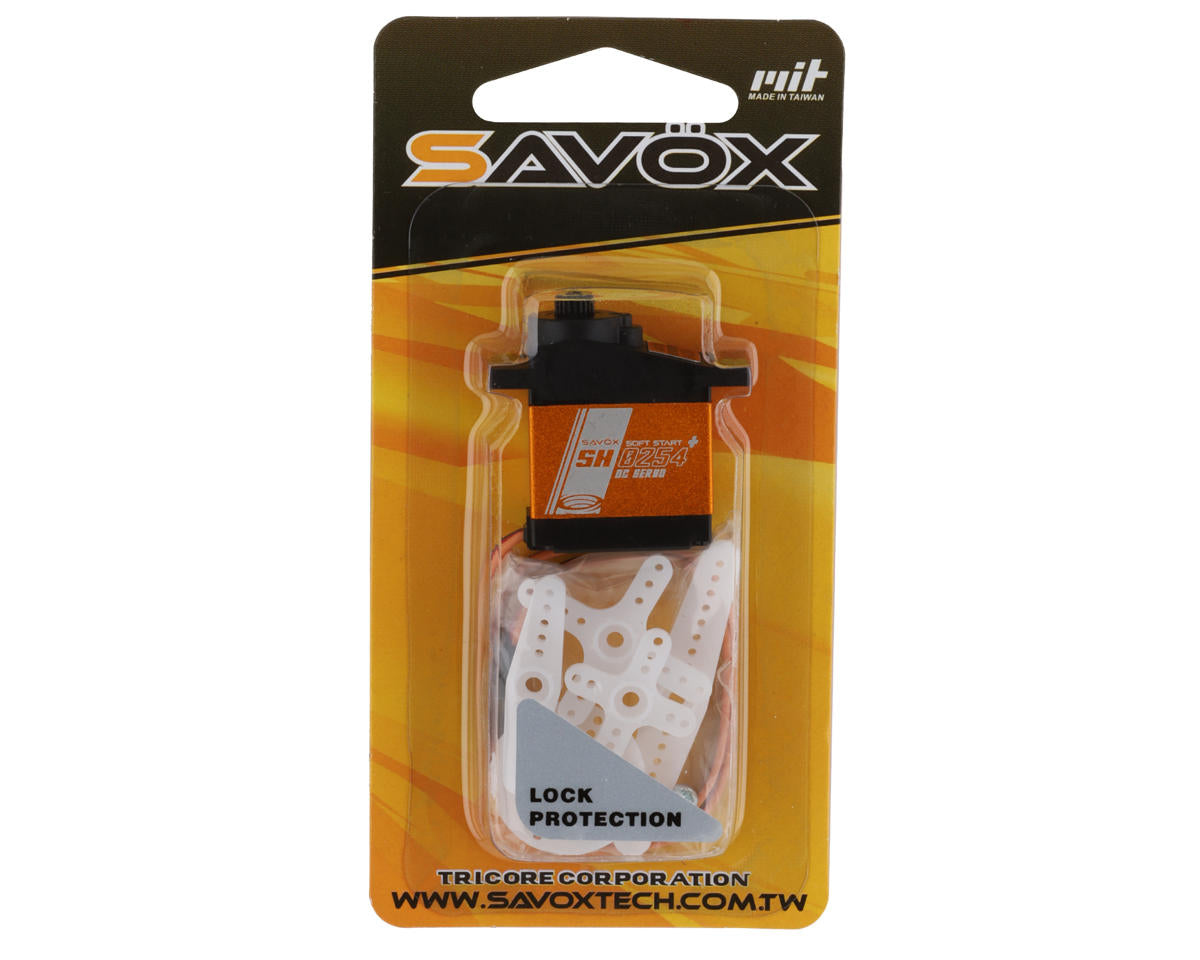

• (1) SH-0254P Hybrid Digital "High Torque" Micro Servo
• Servo Horns & Accessories
