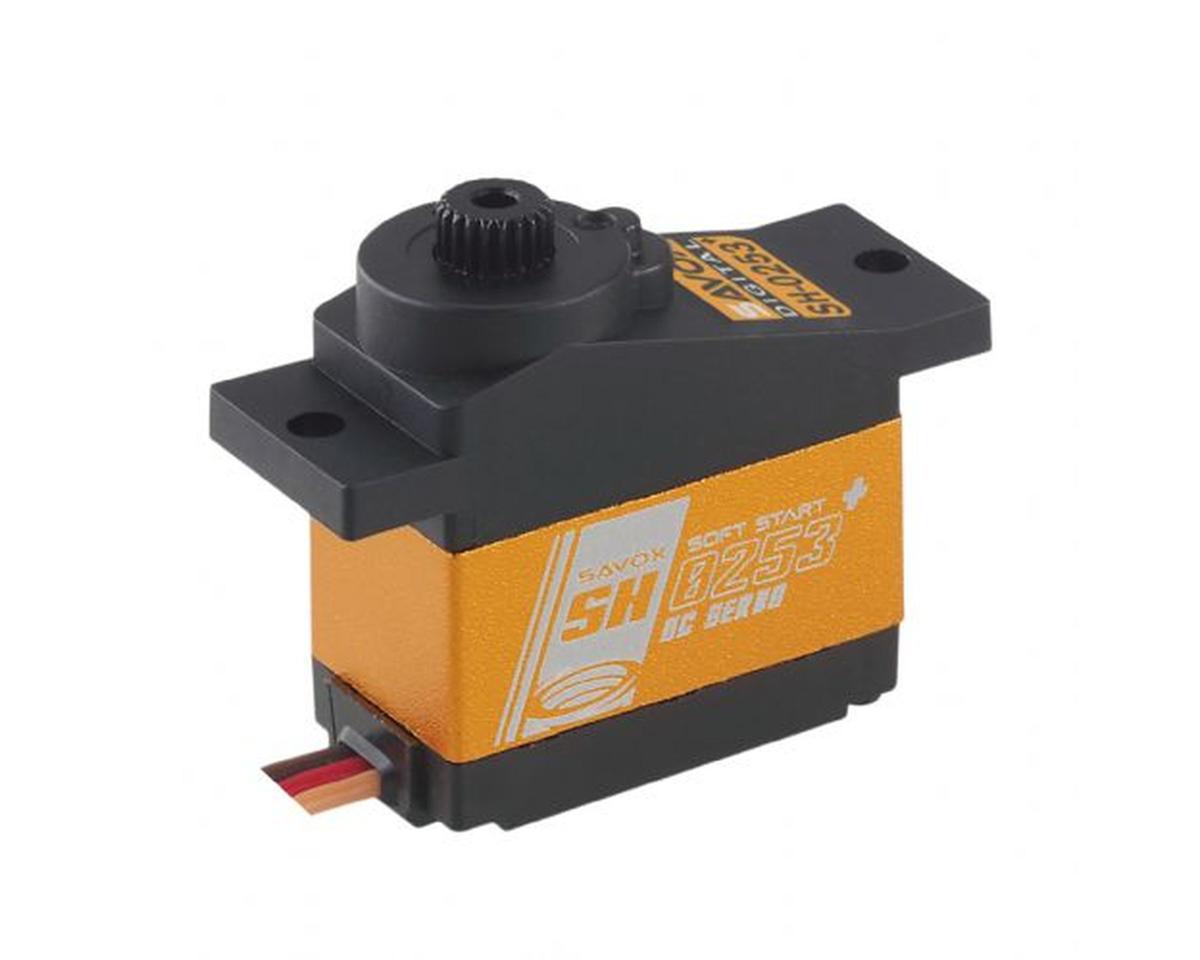

Savox SH-0253P Digital "High Speed" Brushed Micro Servo

The Savox SH-0253P Digital "High Speed" Brushed Micro Servo combines digital control with a compact design for small planes and 450-size helicopters. It features Soft Start functionality, Sanwa SSR compatibility, an aluminum middle case, and a combination of plastic and metal gears.

Features

• Soft Start functionality for smoother operation
• Sanwa SSR compatibility
• Aluminum middle case for cooler operating temperatures
• Plastic and metal gear construction
• Digital control
• Compact micro design

Specifications

• Input Voltage: 4.8-6V
• Speed: @4.8V: 0.13sec/60°; @6V: 0.09sec/60°
• Torque: @4.8V: 25oz-in; @6V: 30.6oz-in
• Pulse/Frequency: -
• Motor Type: Brushed
• Output Shaft: 21T
• Gear Material: Plastic and Metal
• Dimensions: 0.9x0.47x1in (22.8x12x25.4mm)
• Servo Lead Length: 9.84in (250mm)
• Weight: 0.48oz (13.6g)

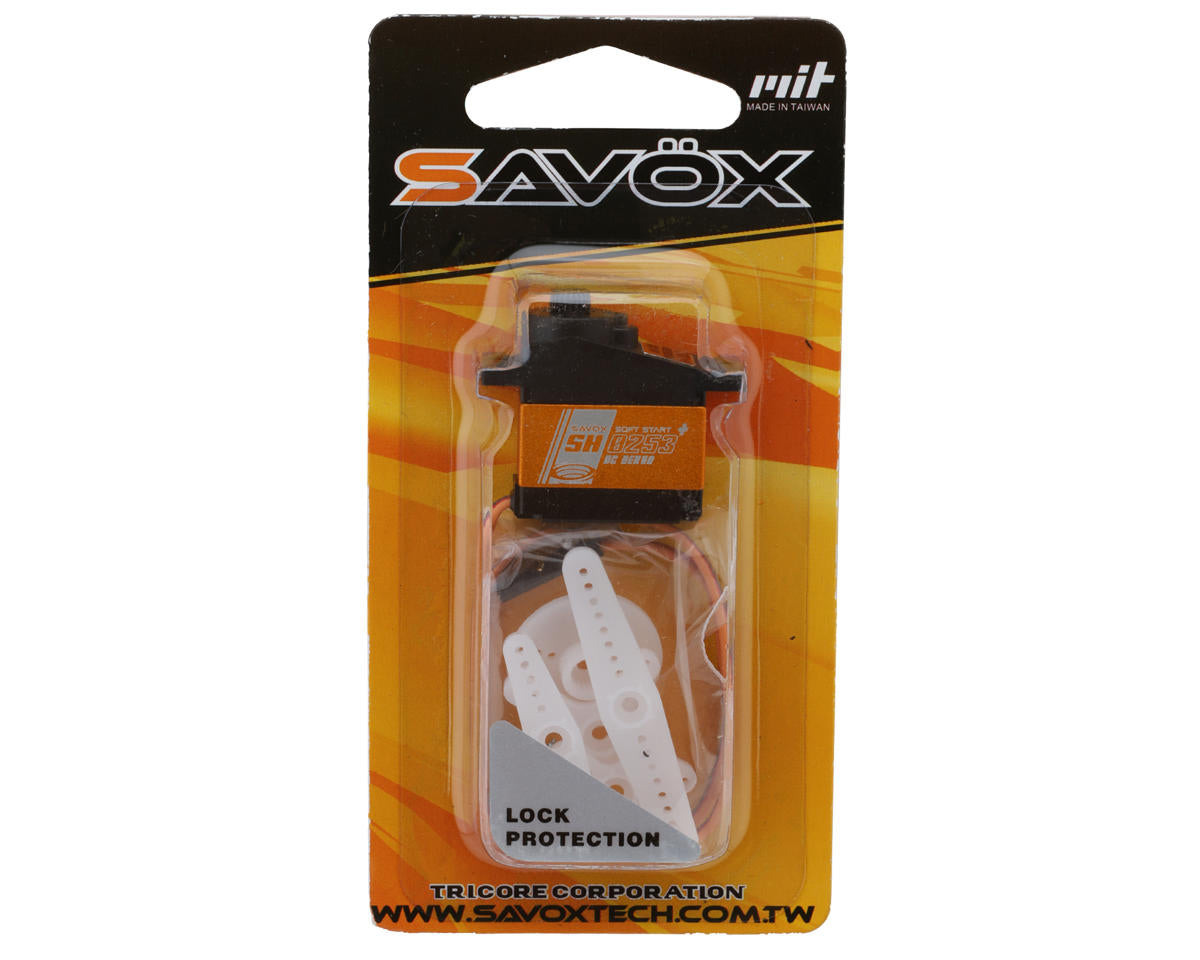

Includes

• (1) SH-0253P Digital "High Speed" Brushed Micro Servo
• (5) Composite Servo Horns
• Mounting Hardware
