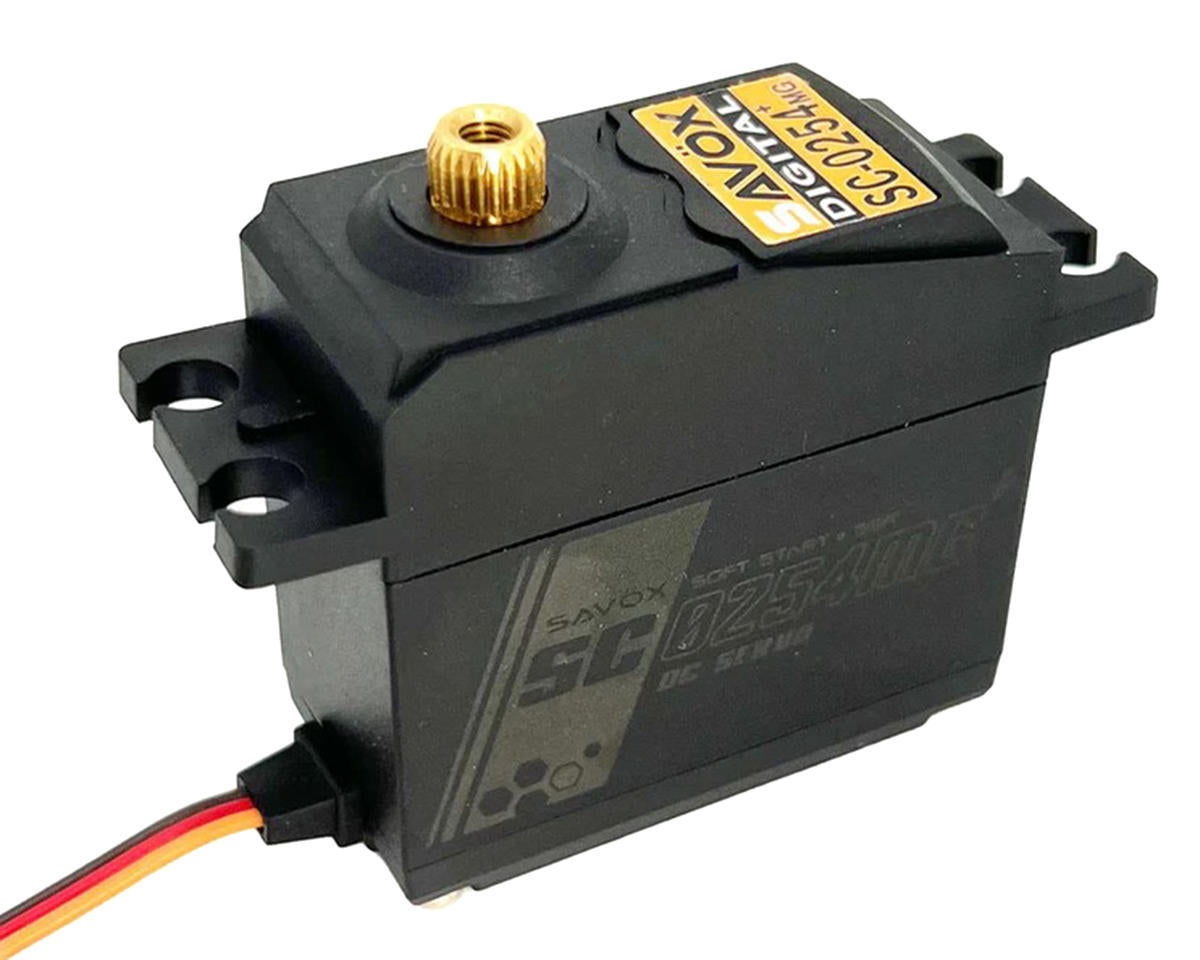

Savox SC0254MGP Standard Digital Metal Gear Servo

The Savox SC0254MGP Standard Digital Metal Gear Servo combines a metal gear train with digital control for 30-60 size aircraft and select car applications. It delivers 100oz-in (7.2kg-cm) of dynamic torque at 6.0V and features Soft Start plus Sanwa SSR compatibility.

Features

• Metal gear train for long-term durability
• Higher torque output than standard servos
• Digital control for smooth, precise movement
• Soft Start function included in the Plus series
• Sanwa SSR compatibility
• Standard-size upgrade for plastic-geared servos
• Suitable for 30-60 size aircraft platforms
• Works well in select car applications

Specifications

• Application: 30-60 Size Aircraft
• Input Voltage: 4.8-6.0V
• Operating Speed @ 4.8V: 0.19 sec/60°
• Operating Speed @ 6.0V: 0.14 sec/60°
• Dynamic Torque @ 4.8V: 86.1oz-in (6.9kg-cm)
• Dynamic Torque @ 6.0V: 100oz-in (7.2kg-cm)
• Gear Material: Metal
• Motor Type: Brushed
• Output Shaft: 25T

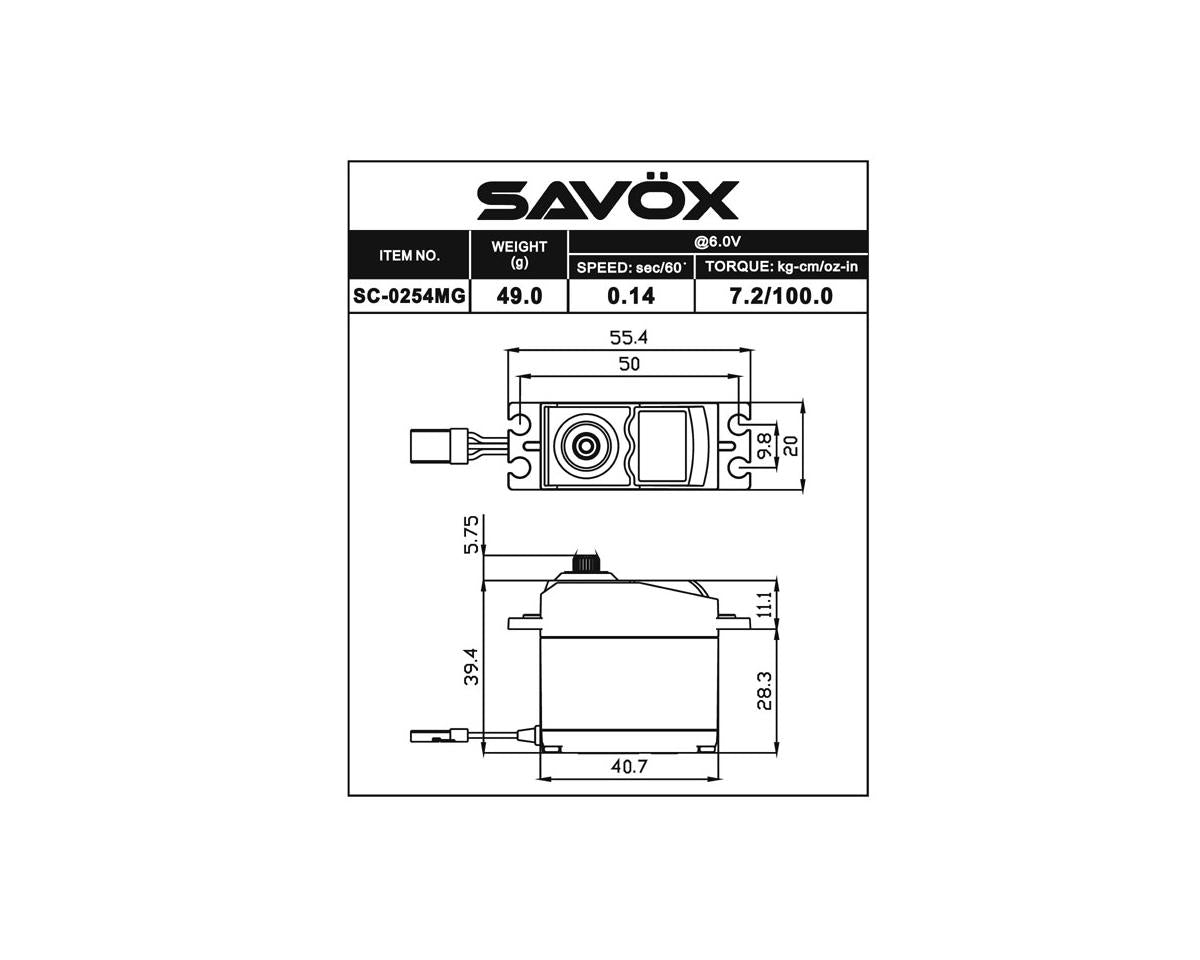

• Dimensions: 1.6x0.77x1.55in (40.7x19.6x39.4mm)
• Weight: 1.73oz (49g)

Includes

• (1) SC0254MGP Standard Digital Metal Gear Servo

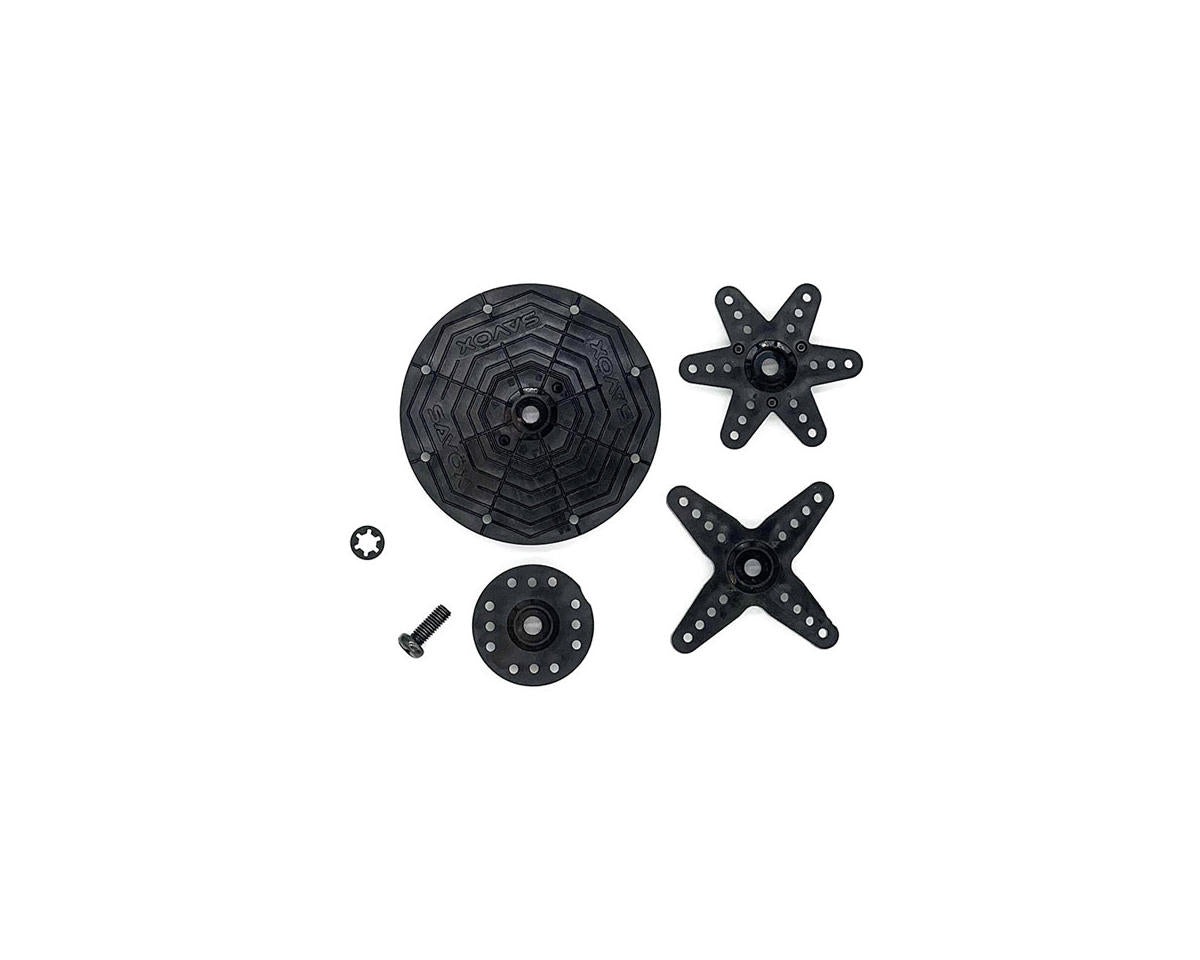

• Servo Horns & Accessories
