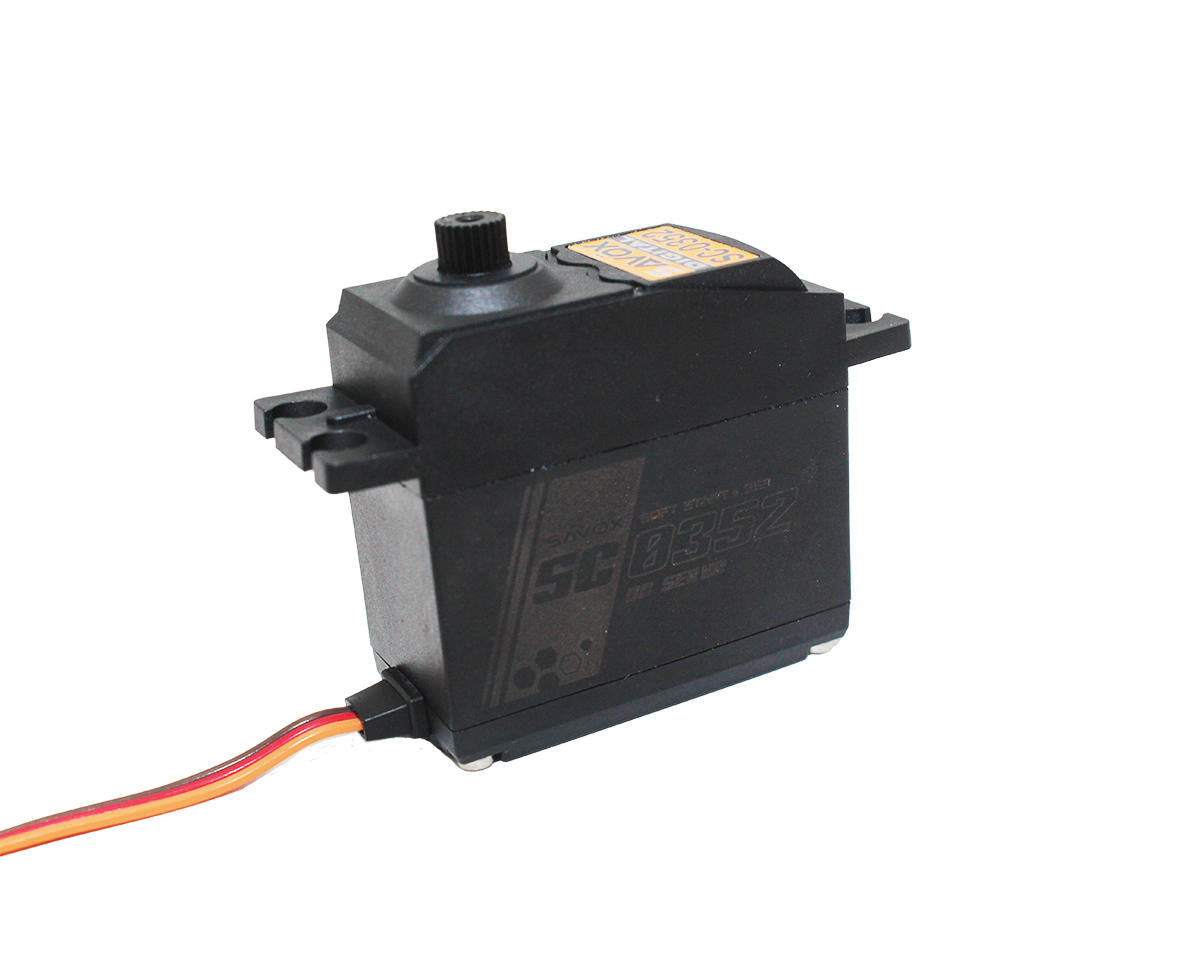

Savox SC-0352P Standard Plastic Gear Digital Servo

The Savox SC-0352P is a standard-size digital servo for 1/10 applications, offering dual ball bearing support, digital precision control, and up to 90.3oz-in (6.5kg-cm) of dynamic torque at 6.0V.

Features

• Standard size digital servo
• Plastic gear train construction
• Dual ball bearing support
• Smooth and quiet operation
• Soft Start functionality
• Sanwa SSR compatibility
• 25T output shaft spline

Specifications

• Application: 1/10
• Input Voltage: 4.8-6.0V
• Operating Speed @ 4.8V: 0.14 sec/60°
• Operating Speed @ 6.0V: .11 sec/60°
• Dynamic Torque @ 4.8V: 58.3oz-in (4.2kg-cm)
• Dynamic Torque @ 6.0V: 90.3oz-in (6.5kg-cm)
• Gear Material: Metal
• Motor Type: Coreless
• Output Shaft Spline: 25T
• Dimensions: 1.6x0.79x1.55in (40.7x20x39.4mm)
• Weight: 1.48oz (42g)

Includes

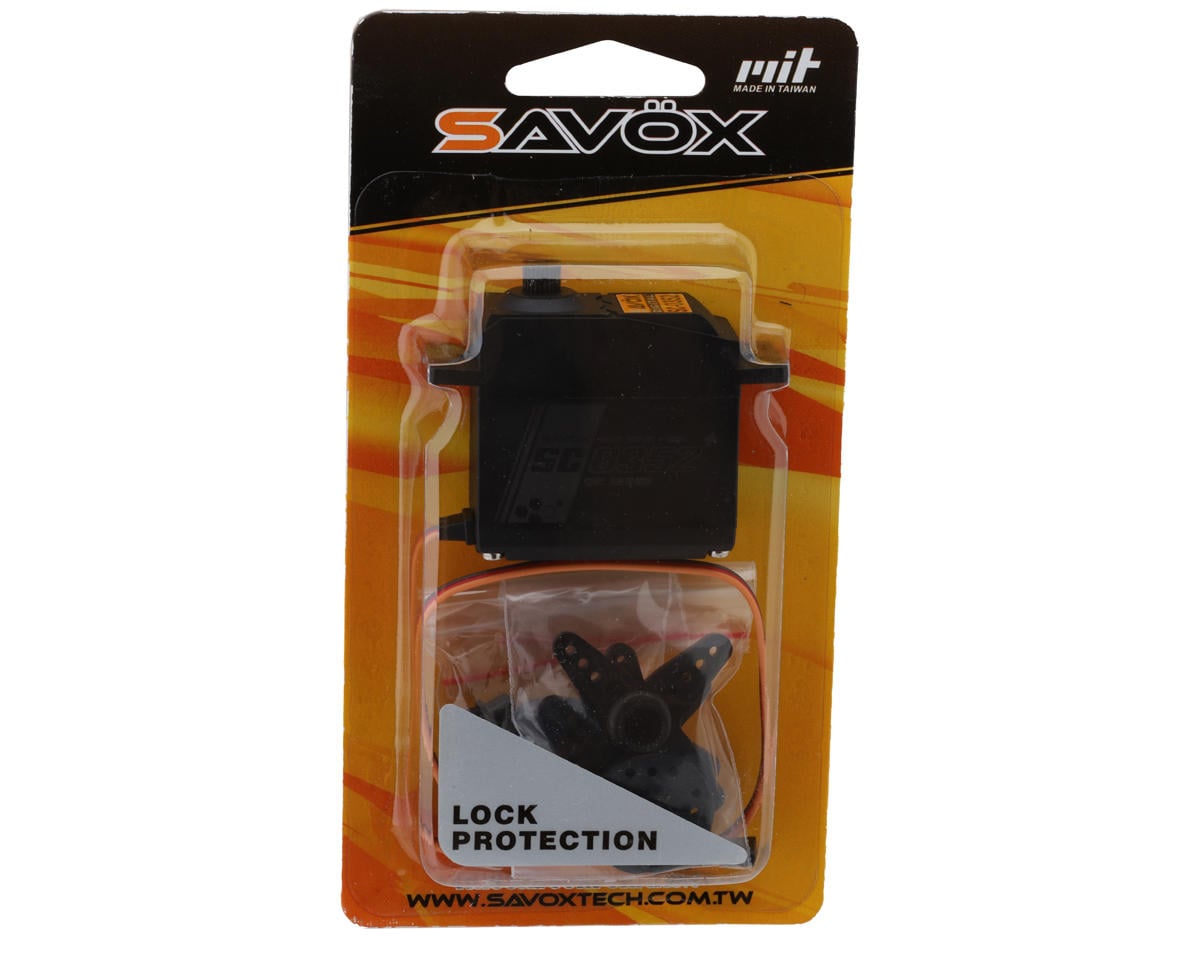

• (1) SC-0352P Standard Plastic Gear Digital Servo
• Servo Horns & Accessories
