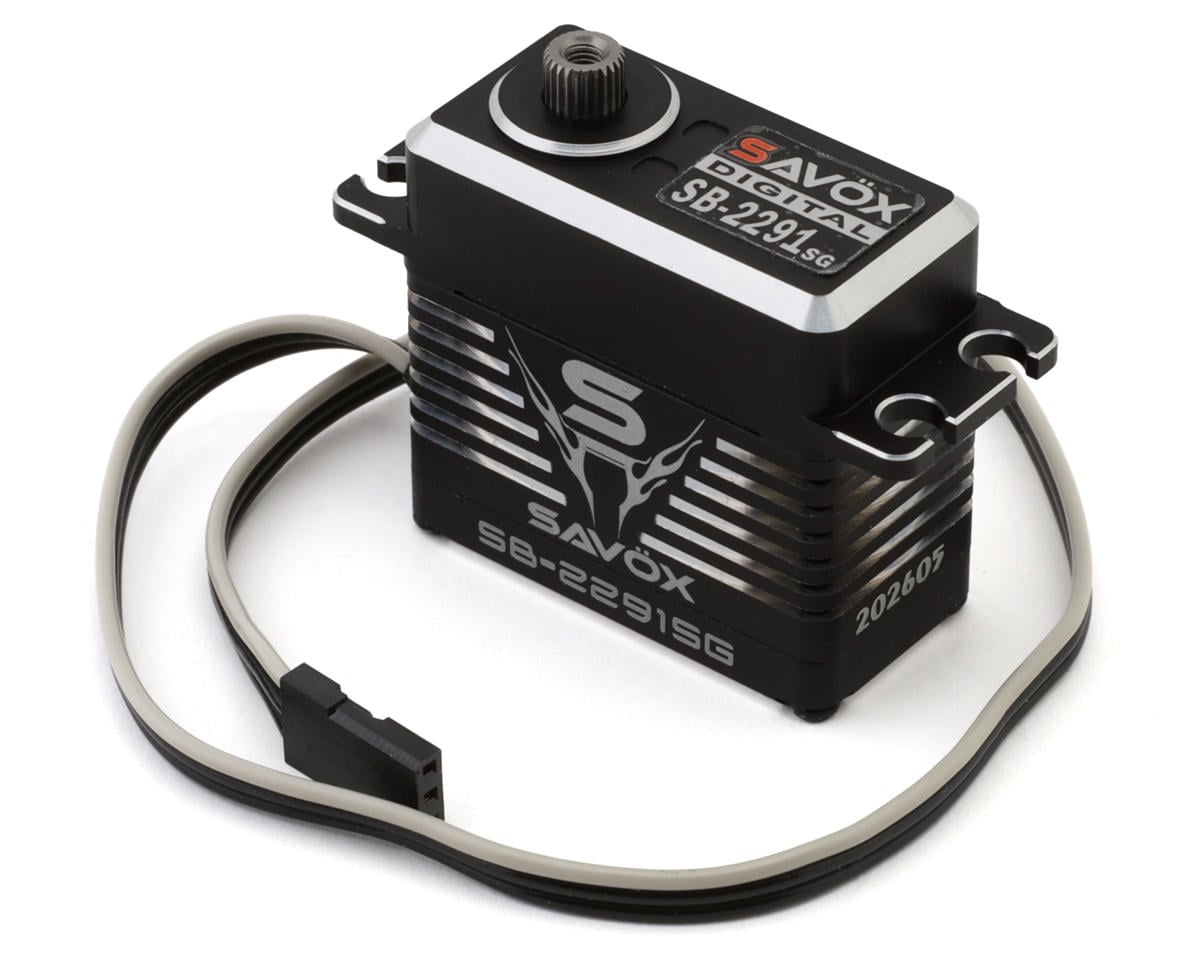

Savox SB-2291SG Aluminum "Monster Speed" Brushless Steel Gear Servo (HV)

The Savox SB-2291SG Aluminum "Monster Speed" Brushless Steel Gear Servo (HV) features a full aluminum case, brushless motor, hardened steel gears, and three precision ball bearings. Its high-voltage operation supports fast response and strong torque for 1/10 to 1/8 on-road and off-road racing applications.

Features

• Ultra-fast 0.042 sec/60° speed at 8.4V
• Brushless motor for smooth, efficient performance
• Brushless technology provides up to 35% more power than competing servos
• Full aluminum case for strength and heat dissipation
• Hardened steel gear train
• Three precision ball bearings
• High-voltage compatibility
• 25T output shaft spline

Specifications

• Application: 1/10 to 1/8 On-Road & Off-Road Racing
• Input Voltage: 6-8.4V
• Operating Speed @ 7.4V: 0.05 sec/60°
• Operating Speed @ 8.4V: 0.04 sec/60°
• Dynamic Torque @ 7.4V: 250oz-in (18kg-cm)
• Dynamic Torque @ 8.4V: 347oz-in (25kg-cm)
• Gear Material: Steel
• Motor Type: Brushless
• Output Shaft Spline: 25T
• Dimensions: 1.59x0.8x1.52in (40.3x20.2x38.7mm)
• Weight: 3.1oz (79g)

Includes

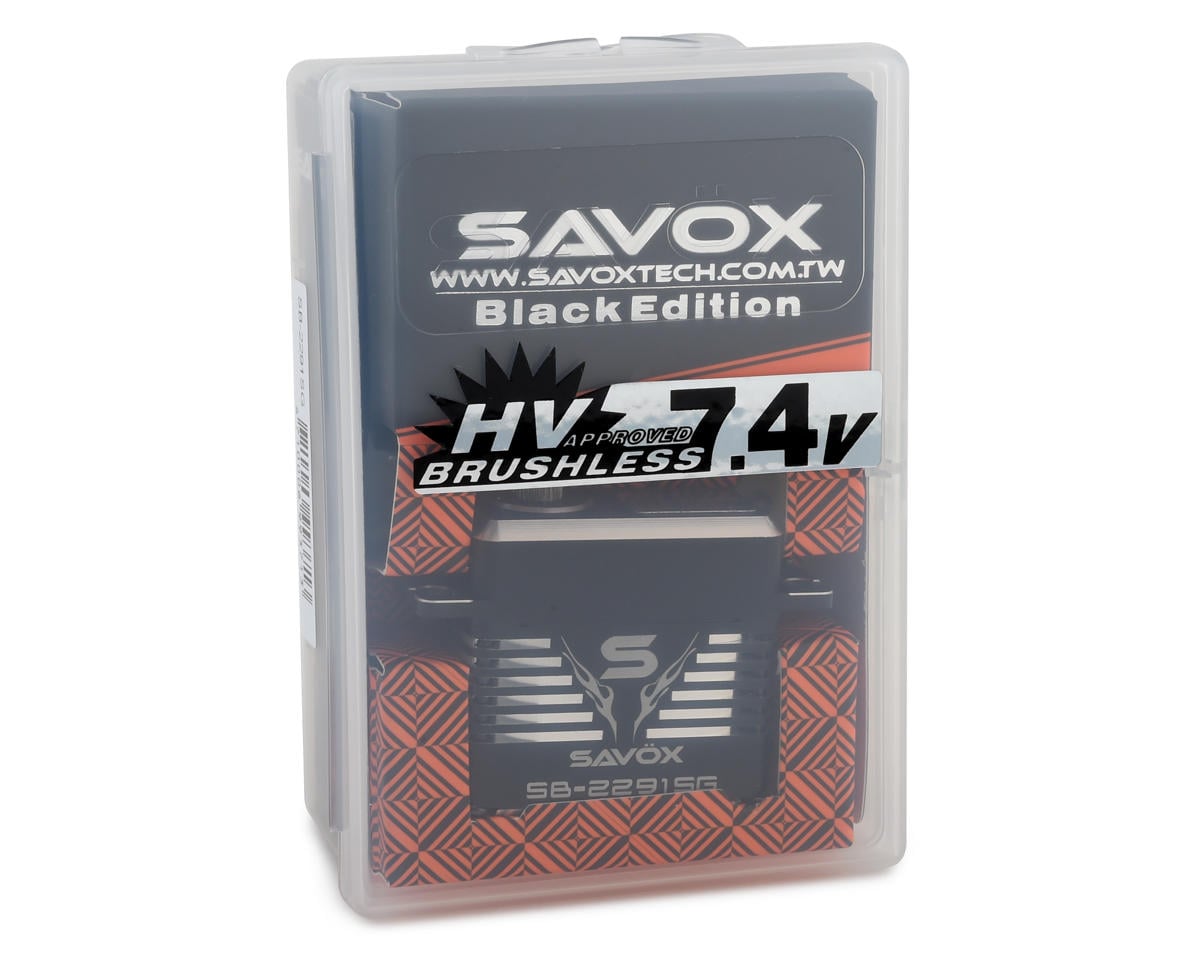

• (1) SB-2291SG Aluminum "Monster Speed" Brushless Steel Gear Servo (HV) (Black Edition)

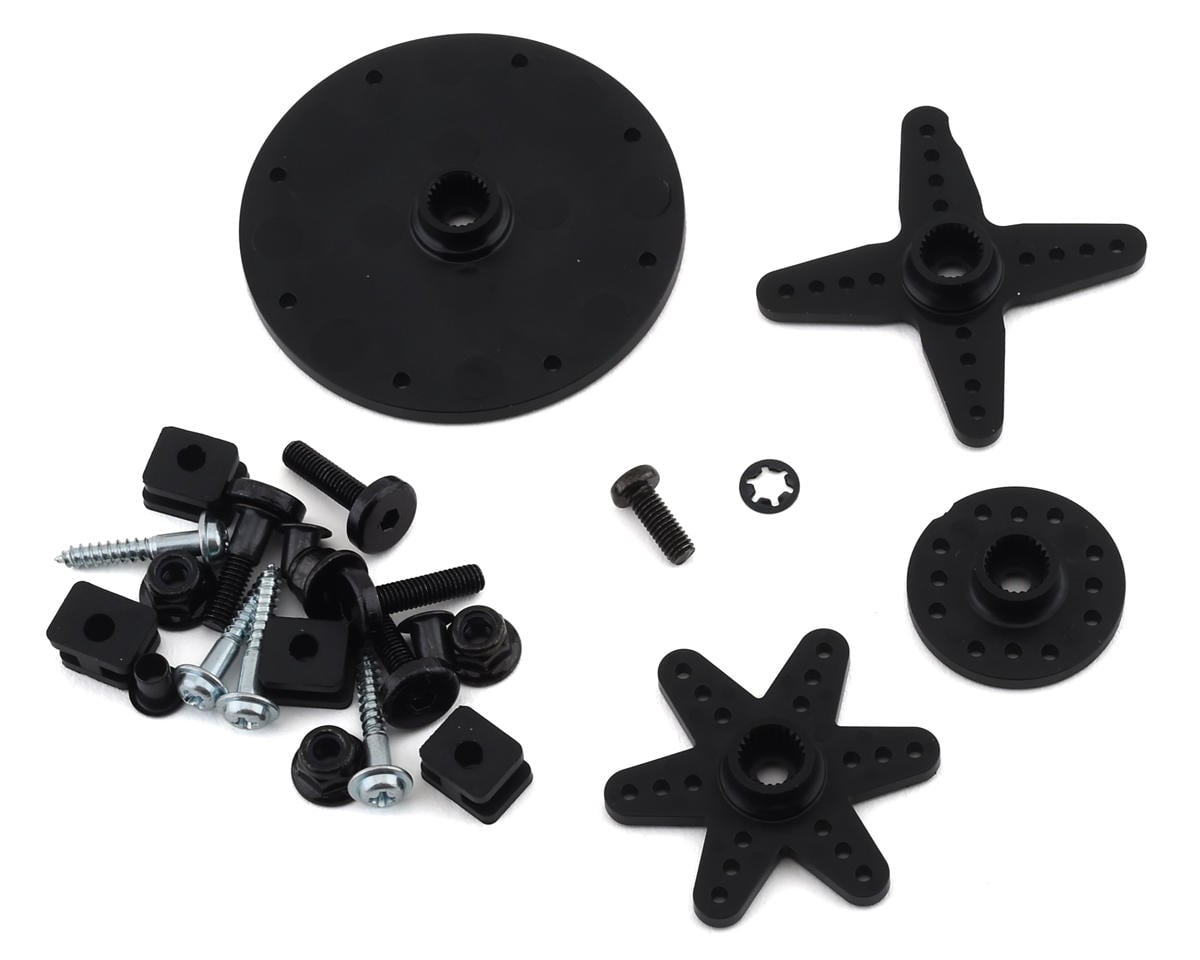

• Composite Servo Horns & Accessories
