Savox SB-2280SGP Aluminum "Monster Torque" Brushless Steel Gear Servo

The Savox SB-2280SGP Aluminum "Monster Torque" Brushless Steel Gear Servo delivers up to 833.2 oz-in of dynamic torque at 8.4V. Its high-voltage input range, brushless motor, 12-bit 4096 resolution, metal gear train, and aluminum case suit demanding RC applications.

Features

• Extreme torque output up to 833.2 oz-in
• High-voltage (HV) compatible
• Brushless motor design
• 12-bit 4096 resolution technology
• Durable steel gear train
• Aluminum case construction
• 0.12 sec/60° operating speed at 8.4V
• Soft Start functionality
• Sanwa SSR compatibility
• Application: 1/10-1/8

Specifications

• Input Voltage: 6.0-8.4V
• Operating Speed @ 6.0V: 0.17 sec/60°
• Operating Speed @ 8.4V: .12 sec/60°
• Dynamic Torque @ 6.0V: 555.5oz-in (40.0kg-cm)
• Dynamic Torque @ 8.4V: 833.2oz-in (60.0kg-cm)
• Gear Material: Metal
• Motor Type: Brushless
• Output Shaft Spline: 25T
• Dimensions: 1.57x0.80x1.52in (40.3x20.2x38.7mm)
• Weight: 2.93oz (83g)

Includes

• (1) SB-2280SGP Aluminum "Monster Torque" Brushless Steel Gear Servo

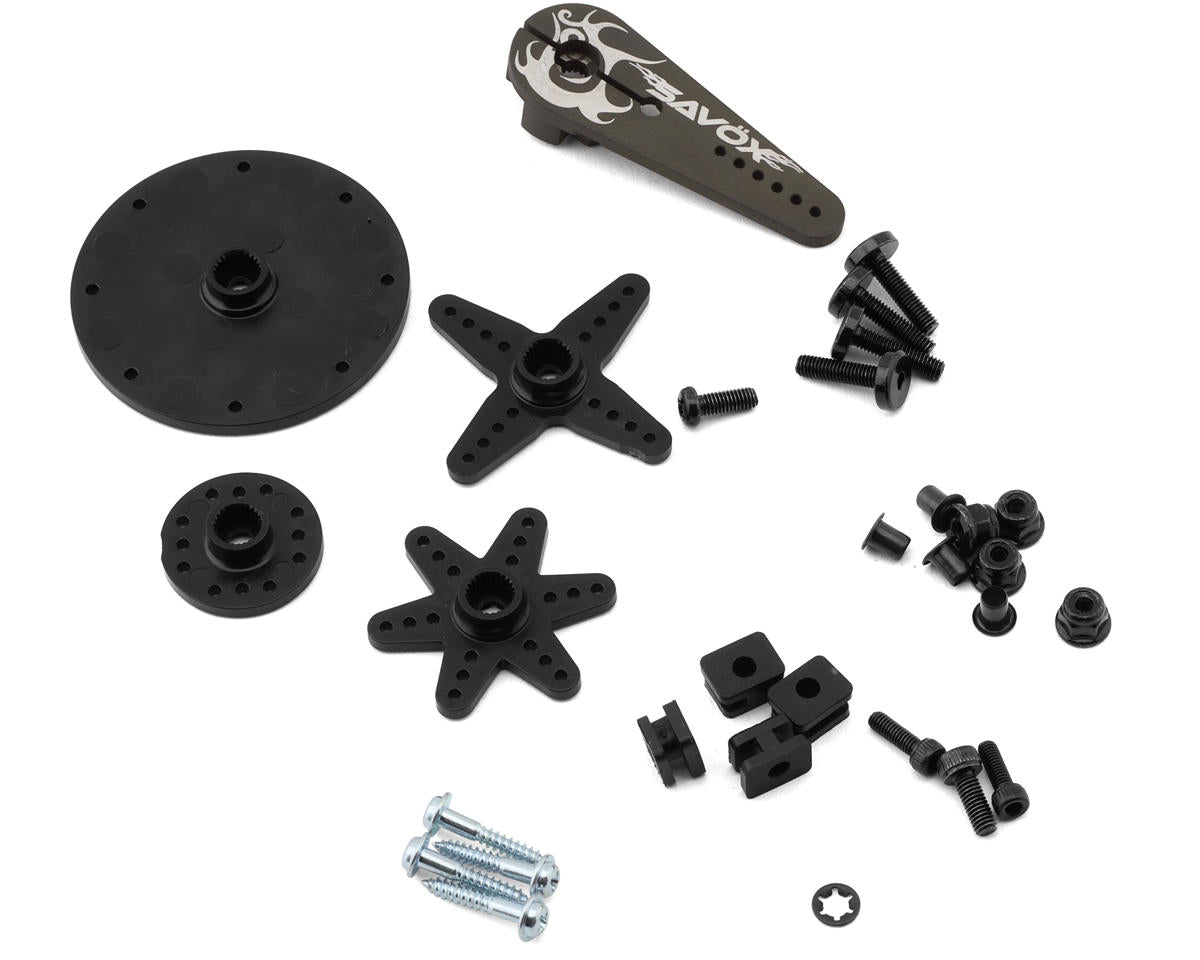

• Servo Horns & Accessories
