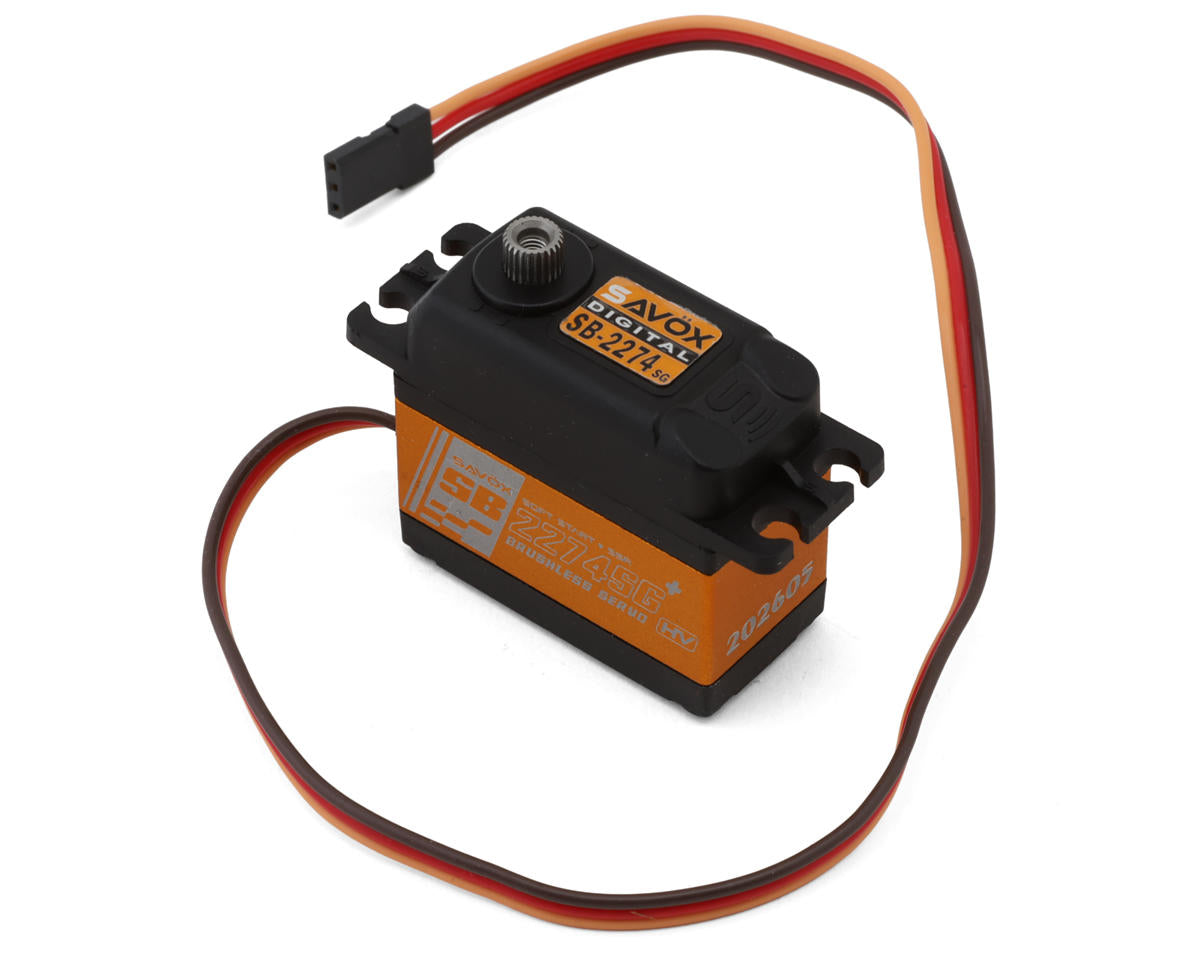

Savox SB-2274SGP Hybrid "High Speed" Brushless Steel Gear Servo (High Voltage)

The Savox SB-2274SGP High Speed Brushless Steel Gear Servo delivers high-voltage performance for 1/10 and 1/8 off-road applications. It combines a brushless motor, steel gear train, 12-bit (4096) resolution, Soft Start technology, and Sanwa SSR compatibility.

Features

• High-voltage operation supports 6.0V to 8.4V power systems
• Brushless motor delivers smooth and efficient performance
• Steel gear train provides strength and durability
• 12-bit (4096) resolution for precise steering control
• Operating speed reaches 0.07 sec/60° at 8.4V
• Dynamic torque reaches 416.6 oz-in (9kg-cm) at 8.4V
• Soft Start technology provides smooth, controlled movement
• Sanwa SSR compatibility supports advanced servo tuning

Specifications

• Application: 1/10 & 1/8 Off-Road
• Input Voltage: 6-8.4V
• Operating Speed @ 6.0V: 0.105 sec/60°
• Operating Speed @ 7.4V: 0.08 sec/60°
• Operating Speed @ 8.4V: 0.07 sec/60°
• Dynamic Torque @ 6.0V: 277.7oz-in (7kg-cm)
• Dynamic Torque @ 7.4V: 347.2oz-in (9kg-cm)
• Dynamic Torque @ 8.4V: 416.6oz-in (9kg-cm)
• Gear Material: Steel
• Motor Type: Brushless
• Output Shaft Spline: 25T
• Dimensions: 1.59x0.8x1.52in (40.3x20.2x38.7mm)
• Weight: 2.43oz (69g)

Includes

• (1) SB-2274SGP "High Speed" Brushless Steel Gear Servo (High Voltage)

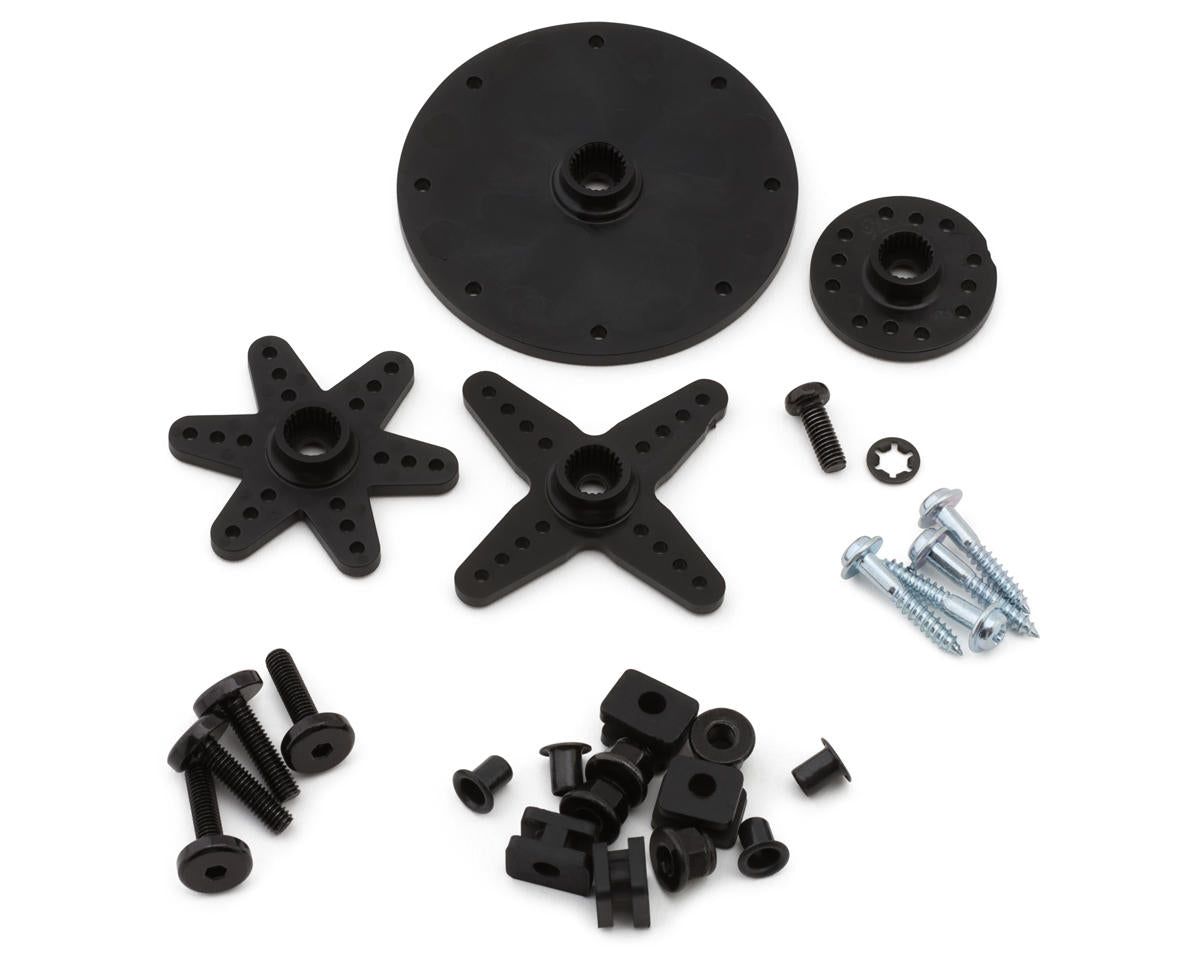

• Composite Servo Horns & Accessories
