Savox SB-2274SG Black Edition Hybrid "High Speed" Brushless Steel Gear Digital

The Savox SB-2274SG Black Edition is a high-voltage brushless digital servo with a steel geartrain, dual ball bearing supported output shaft, and ultra-high 12-bit (4096) resolution. Its fast response and metal gear construction make it suitable for 1/10 and 1/8 buggies, as well as large scale aircraft.

Features

• Ultra-high 12-bit (4096) resolution
• Operating speed of 0.08sec/60° at 7.4V
• Dynamic torque of 347.2oz-in (40 kg-cm) at 7.4V
• Brushless motor for smooth operation and efficiency
• Unique steel gear train
• Dual ball bearing supported output shaft
• Capable of HV operation
• 25T output shaft

Specifications

• Application: 1/10
• Operating Voltage: 6.0-7.4V
• Operating Speed @ 6.0V: 0.10sec/60° sec
• Operating Speed @ 7.4V: 0.08sec/60° sec
• Dynamic Torque @ 6.0V: 277.7oz-in (35 kg-cm)
• Dynamic Torque @ 7.4V: 347.2oz-in (40 kg-cm)
• Output Shaft: 25T
• Gears: Metal
• Weight: 1.4oz (41.0g)
• Dimensions: 1.6x0.7x1.4in (40.7x20.0x37.0mm)

Includes

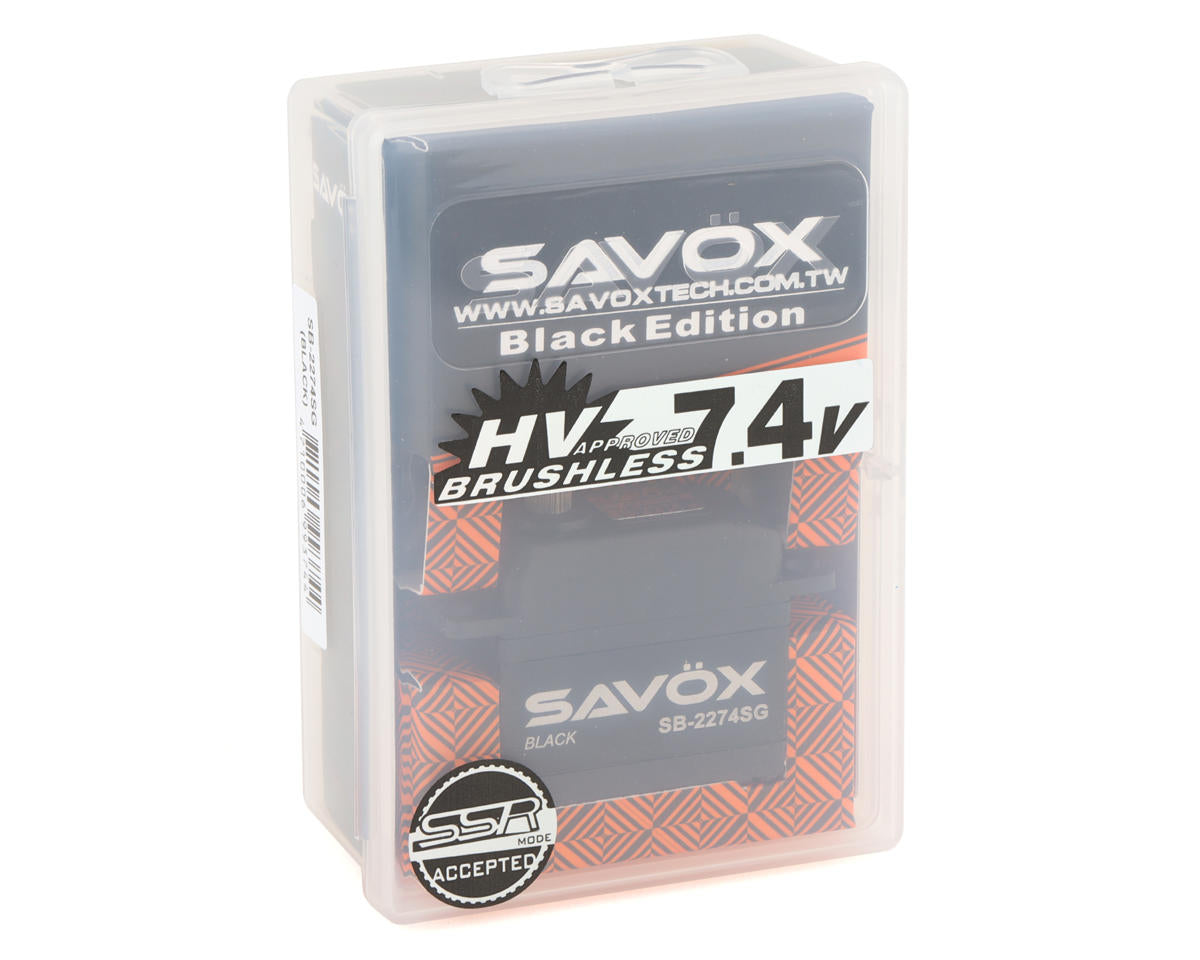

• (1) SB-2274SG Black Edition "High Speed" Brushless Steel Gear Digital Servo
