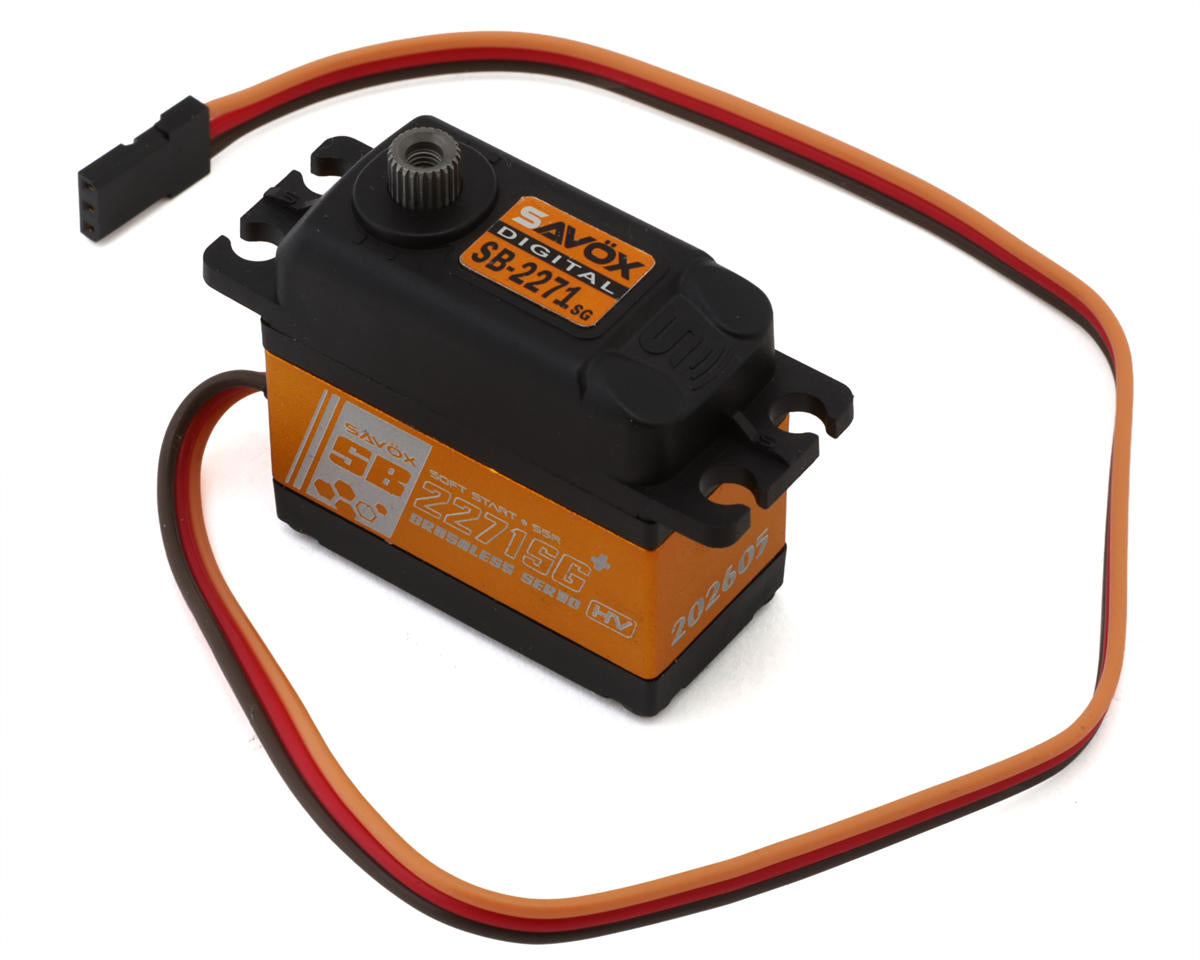

Savox SB-2271SGP Hybrid "High Speed" Brushless Steel Gear Digital Servo

The Savox SB-2271SGP is a high-voltage digital servo featuring a brushless motor, precision steel gears, and Soft Start technology. With operating speeds up to 0.065sec/60° at 7.4V and dynamic torque up to 277.7oz-in (20.0 kg-cm), it is designed for 1/10 applications and other performance-focused uses.

Features

• High-voltage servo
• Brushless motor
• Precision steel geartrain
• Soft Start technology
• Sanwa SSR compatible
• 25T output shaft
• Ultra-high 12-bit (4096) resolution

Specifications

• Application: 1/10
• Operating Voltage: 6.0-7.4V
• Operating Speed @ 6.0V: 0.085sec/60° sec
• Operating Speed @ 7.4V: 0.065sec/60° sec
• Dynamic Torque @ 6.0V: 208.3oz-in (15.0 kg-cm)
• Dynamic Torque @ 7.4V: 277.7oz-in (20.0 kg-cm)
• Motor Type: Brushless
• Output Shaft: 25T
• Gears: Steel
• Weight: 2.4oz (69g)
• Dimensions: 1.5x0.7x1.5in (40.3x20.2x38.7mm)

Includes

• (1) SB-2271SGP "High Speed" Brushless Steel Gear Digital Servo
