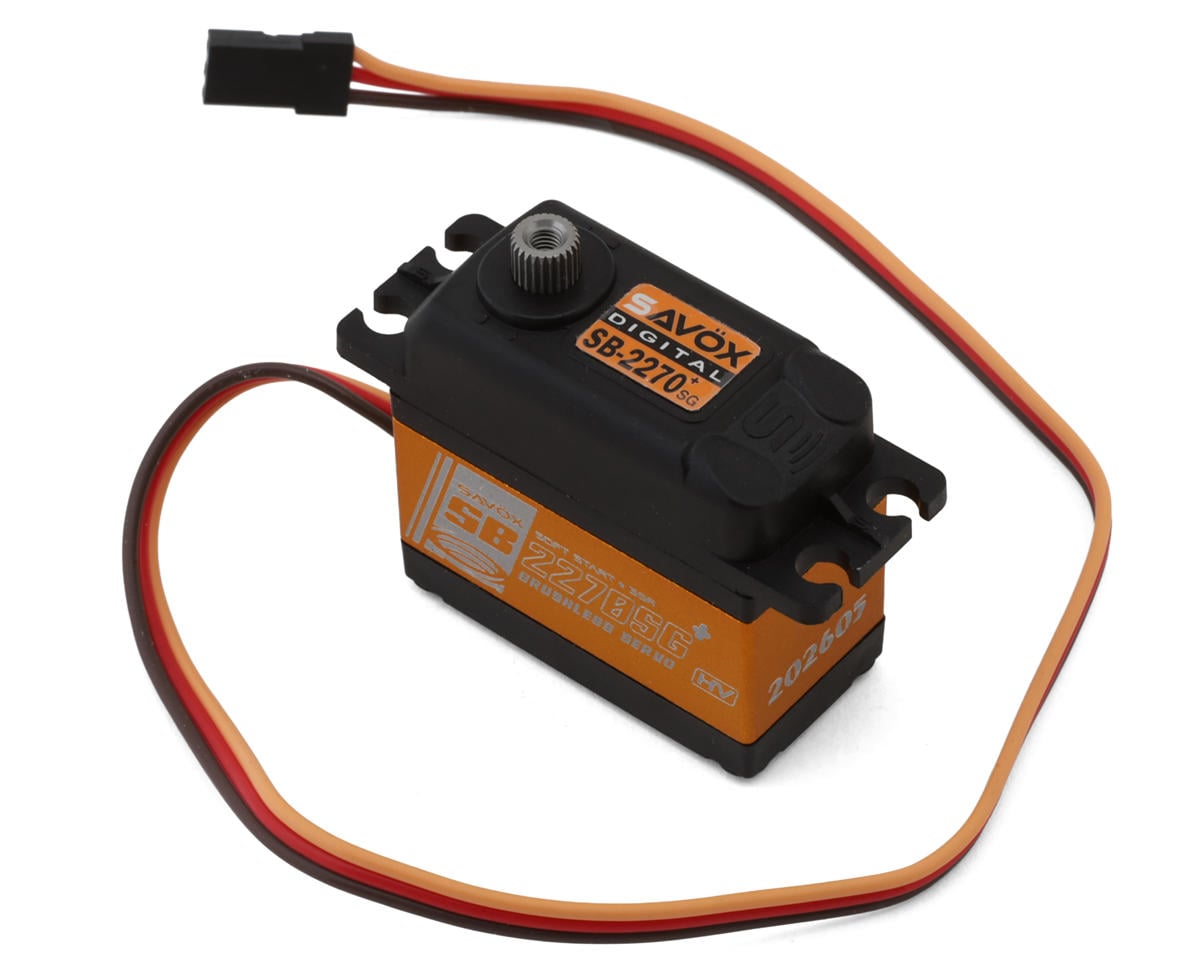

Savox SB-2270SGP Hybrid "Monster Torque" Brushless Digital Steel Gear Servo

The Savox SB-2270SGP Hybrid "Monster Torque" Brushless Digital Steel Gear Servo combines a brushless motor, steel gear train, and hybrid case for demanding 1/8 vehicles, rock crawlers, monster trucks, and large-scale aircraft control surfaces. As a Plus-series servo, it features Soft Start and Sanwa SSR compatibility.

Features

• Brushless motor designed for smooth operation and efficiency
• Steel gear train for long-life durability
• Hybrid case with an aluminum middle section for heat dissipation
• Soft Start function
• Sanwa SSR compatibility
• 25T output shaft

Specifications

• Application: 1/8 & Aircraft
• Input Voltage: 6.0-8.4V
• Operating Speed @ 6.0V: 0.15 sec/60°
• Operating Speed @ 7.4V: 0.12 sec/60°
• Operating Speed @ 8.4V: 0.11 sec/60°
• Dynamic Torque @ 6.0V: 347.2oz-in (25kg-cm)
• Dynamic Torque @ 7.4V: 555.5oz-in (40kg-cm)
• Dynamic Torque @ 8.4V: 624.9oz-in (45kg-cm)
• Gear Material: Steel
• Motor Type: Brushless
• Output Shaft: 25T
• Dimensions: 1.59x0.8x1.52in (40.3x20.2x38.7mm)
• Weight: 2.61oz (74g)

Includes

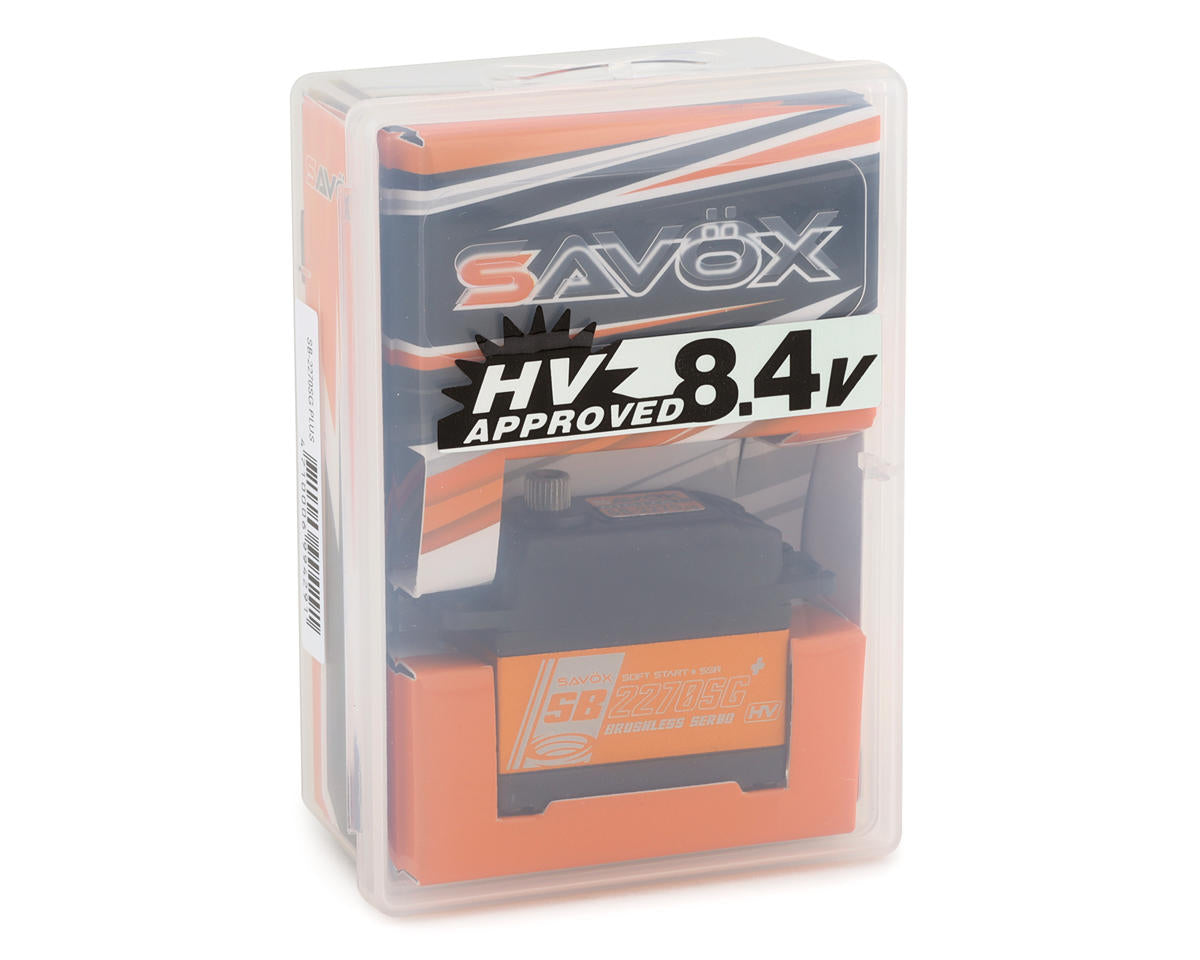

• (1) SB-2270SGP Hybrid "Monster Torque" Brushless Digital Steel Gear Servo
• Servo Horns & Accessories
