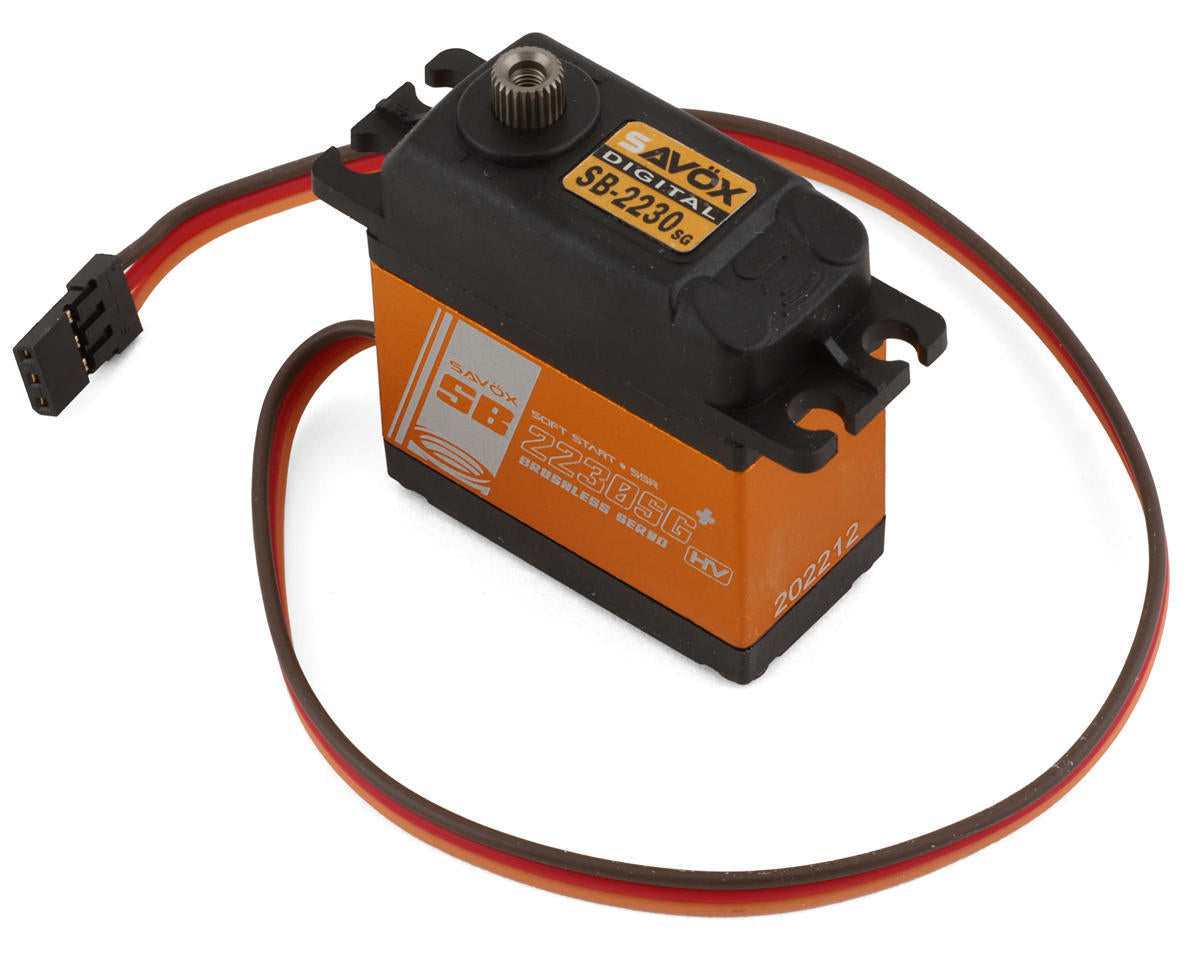

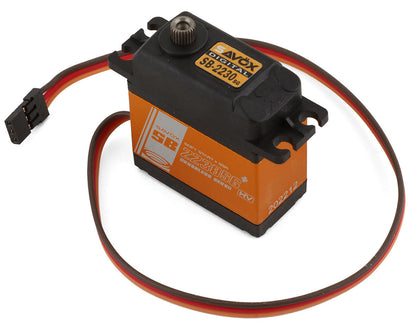

Savox SB-2230SGP Hybrid "Monster Torque" Brushless Digital Steel Gear Servo

The Savox SB-2230SGP Hybrid "Monster Torque" Brushless Digital Steel Gear Servo combines a brushless motor, steel gear train, and hybrid case with an aluminum center section for high-torque applications. Its slightly taller case supports large-scale vehicles, monster trucks, 1/8 off-road models, and aircraft.

Features

• Brushless motor
• Steel gear train
• Slightly taller case
• Hybrid case with aluminum center section
• Improved heat dissipation during extended operation
• Plus series Soft Start function
• Sanwa SSR compatibility
• 25T output shaft

Specifications

• Application: 1/8 & Aircraft
• Input Voltage: 6.0-8.4V
• Operating Speed @ 6.0V: 0.16 sec/60°
• Operating Speed @ 7.4V: 0.13 sec/60°
• Operating Speed @ 8.4V: 0.11 sec/60°
• Dynamic Torque @ 6.0V: 499.9oz-in (36kg-cm)
• Dynamic Torque @ 7.4V: 583.3oz-in (42kg-cm)
• Dynamic Torque @ 8.4V: 763.8oz-in (55kg-cm)
• Gear Material: Steel
• Motor Type: Brushless
• Output Shaft: 25T
• Dimensions: 1.59x0.8x1.77in (40.3x20.2x44.9mm)
• Weight: 2.96oz (84g)

Includes

• (1) SB-2230SGP Hybrid "Monster Torque" Brushless Digital Steel Gear Servo

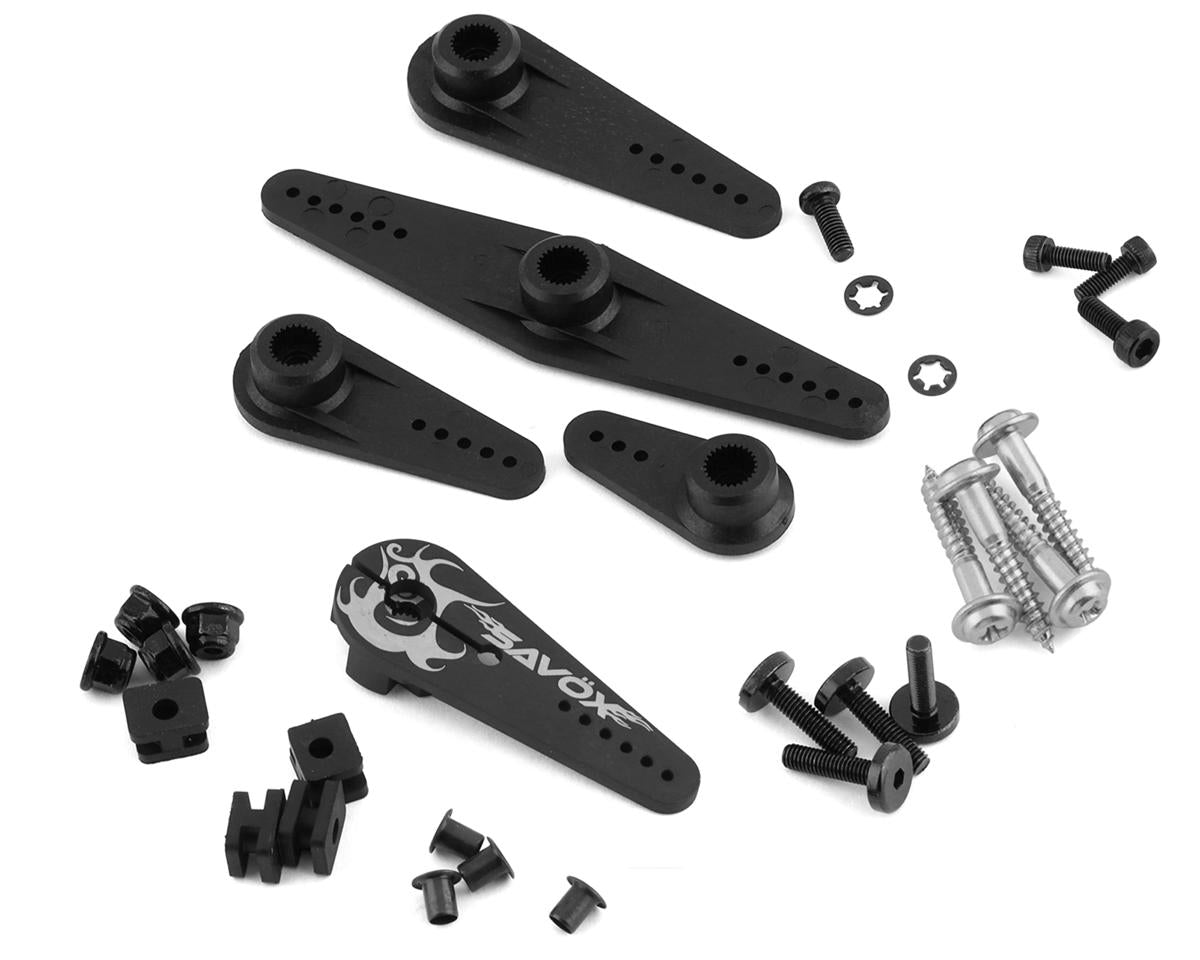

• Servo Horns & Accessories
