Savox SA-1230SGP Hybrid Tall "Monster Torque" Steel Gear Digital Servo

The Savox SA-1230SGP Hybrid Tall Digital Servo delivers up to 499.9 oz-in of dynamic torque at 6.0V for demanding steering applications. Its steel gears, Soft Start technology, and Sanwa SSR compatibility make it suited to 1/10 to 1/8 bashers or crawlers and large aircraft.

Features

• Delivers up to 499.9 oz-in of torque at 6.0V
• Designed for powerful steering without a high-voltage system
• Steel gears provide durability
• Soft Start technology ensures smooth servo movement
• Sanwa SSR compatibility
• Slightly taller case design
• Digital control for demanding RC applications

Specifications

• Application: 1/10 to 1/8 Bashers or Crawlers & Large Aircraft
• Input Voltage: 4.8-6V
• Operating Speed @ 4.8V: 0.20 sec/60°
• Operating Speed @ 6.0V: 0.16 sec/60°
• Dynamic Torque @ 4.8V: 416.6oz-in (30kg-cm)
• Dynamic Torque @ 6.0V: 499.9oz-in (36kg-cm)
• Gear Material: Steel
• Motor Type: Brushed
• Output Shaft Spline: 25T
• Dimensions: 1.59x0.8x1.76in (40.3x20.2x44.9mm)
• Weight: 2.78oz (79g)

Includes

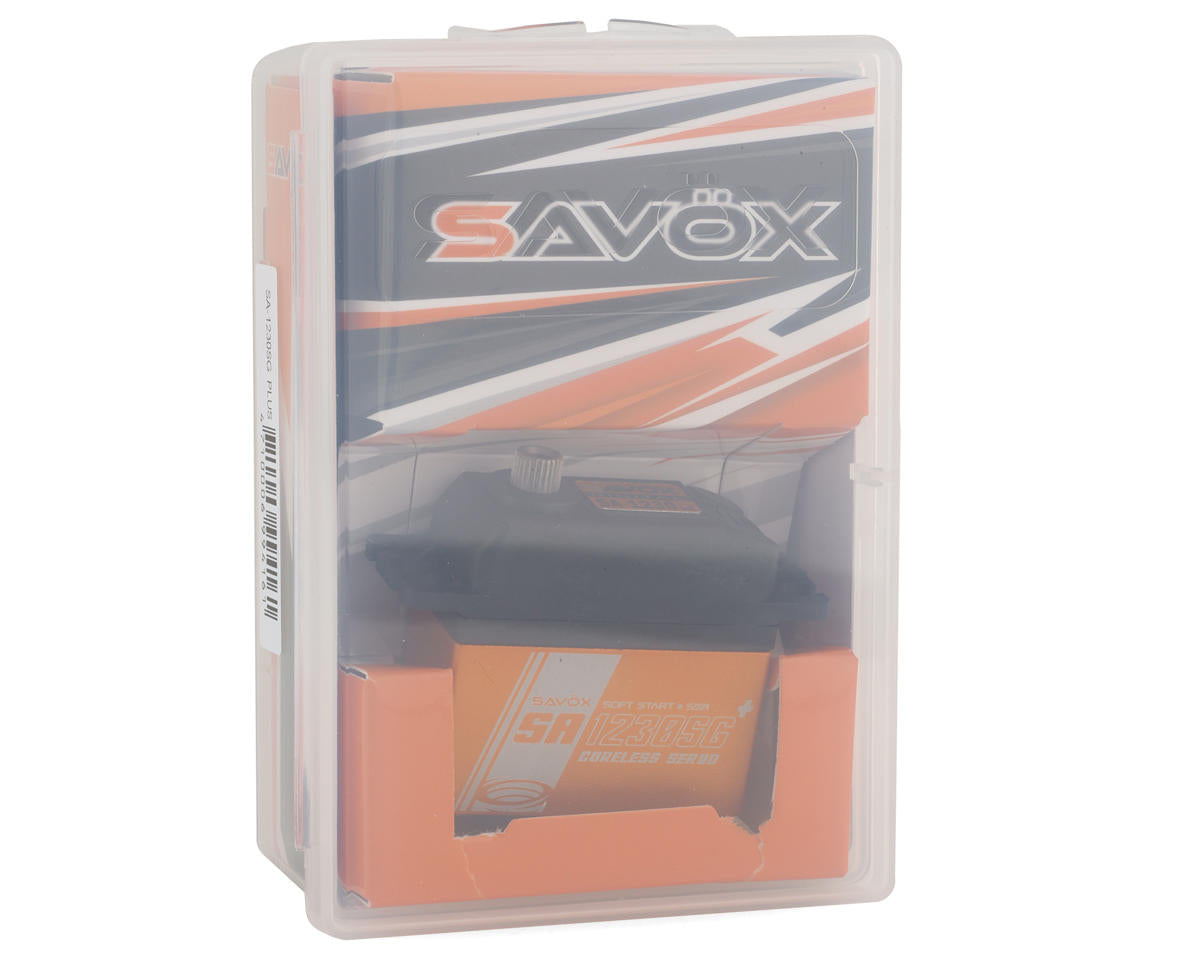

• (1) SA-1230SGP Hybrid Tall "Monster Torque" Steel Gear Digital Servo

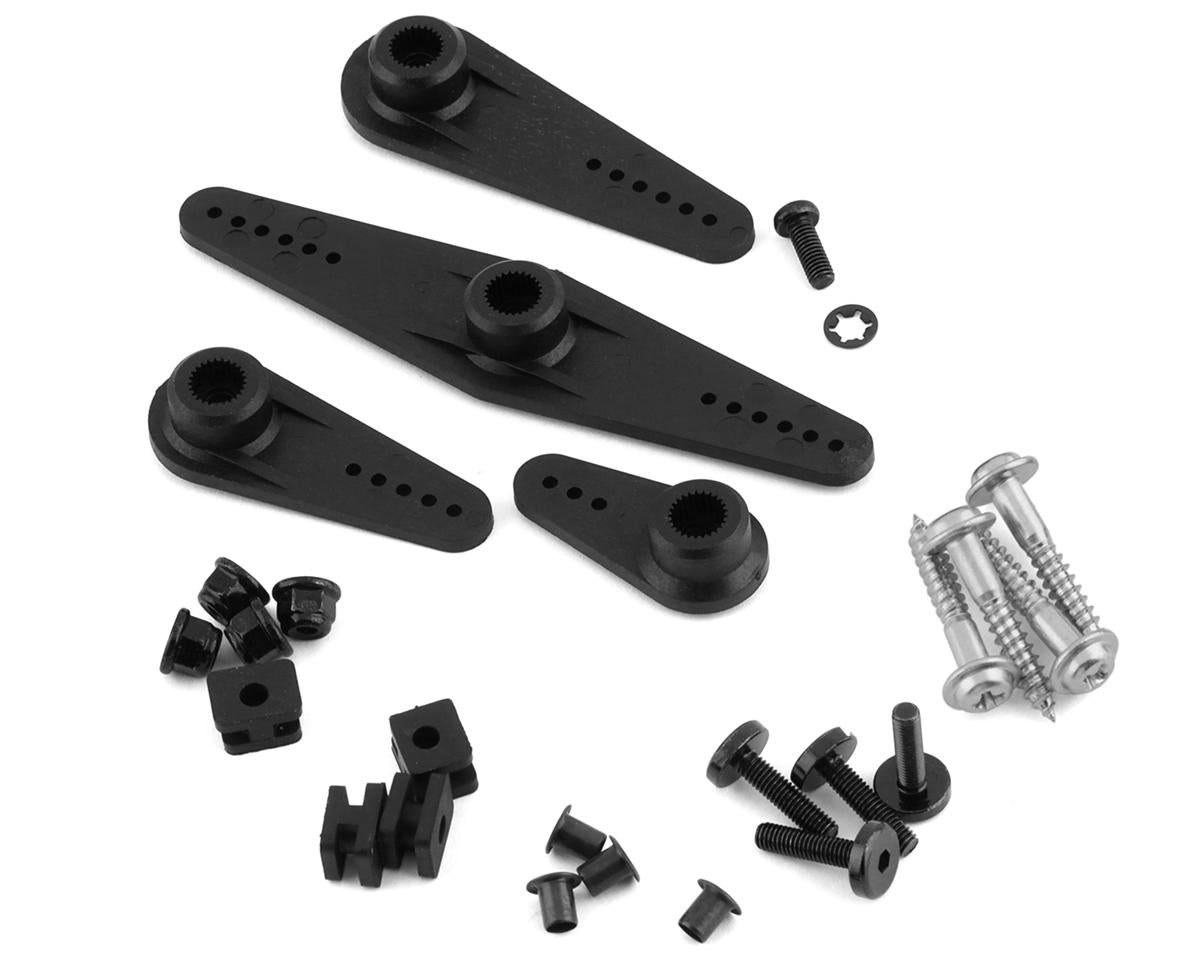

• Composite Servo Horns & Accessories
