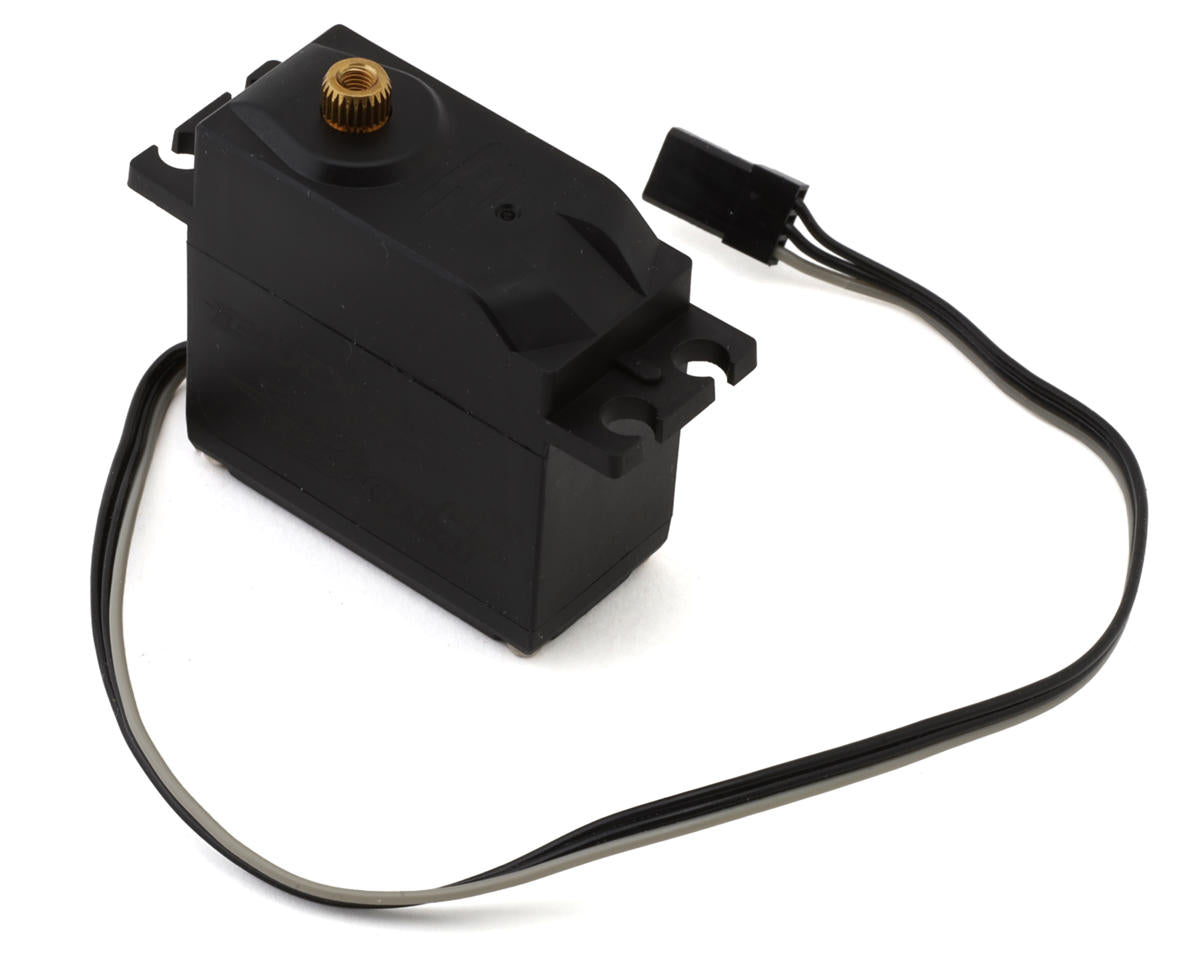

Savox B-12KG Standard Metal Gear Servo

The Savox B-12KG is a standard-size analog servo with a heavy-duty metal geartrain, dual ball bearing supported output shaft, and composite case construction. Designed for 1:10 applications, it provides up to 166.7oz-in (12kg-cm) of dynamic torque at 6.0V.

Features

• Budget-friendly analog servo design
• Heavy-duty metal geartrain
• Dynamic torque up to 166.7oz-in (12kg-cm) at 6.0V
• Standard-size servo configuration
• Dual ball bearing supported output shaft
• Durable composite case construction
• Suitable for RTR vehicles and general RC applications
• Water and dust resistant design

Specifications

• Application: 1:10
• Operating Voltage: 4.8-6.0V
• Operating Speed @ 4.8V: 0.26 sec/60°
• Operating Speed @ 6.0V: 0.23 sec/60°
• Dynamic Torque @ 4.8V: 138.8oz-in (10kg-cm)
• Dynamic Torque @ 6.0V: 166.7oz-in (12kg-cm)
• Output Shaft: 25T
• Gears: Metal
• Weight: 1.8oz (52g)

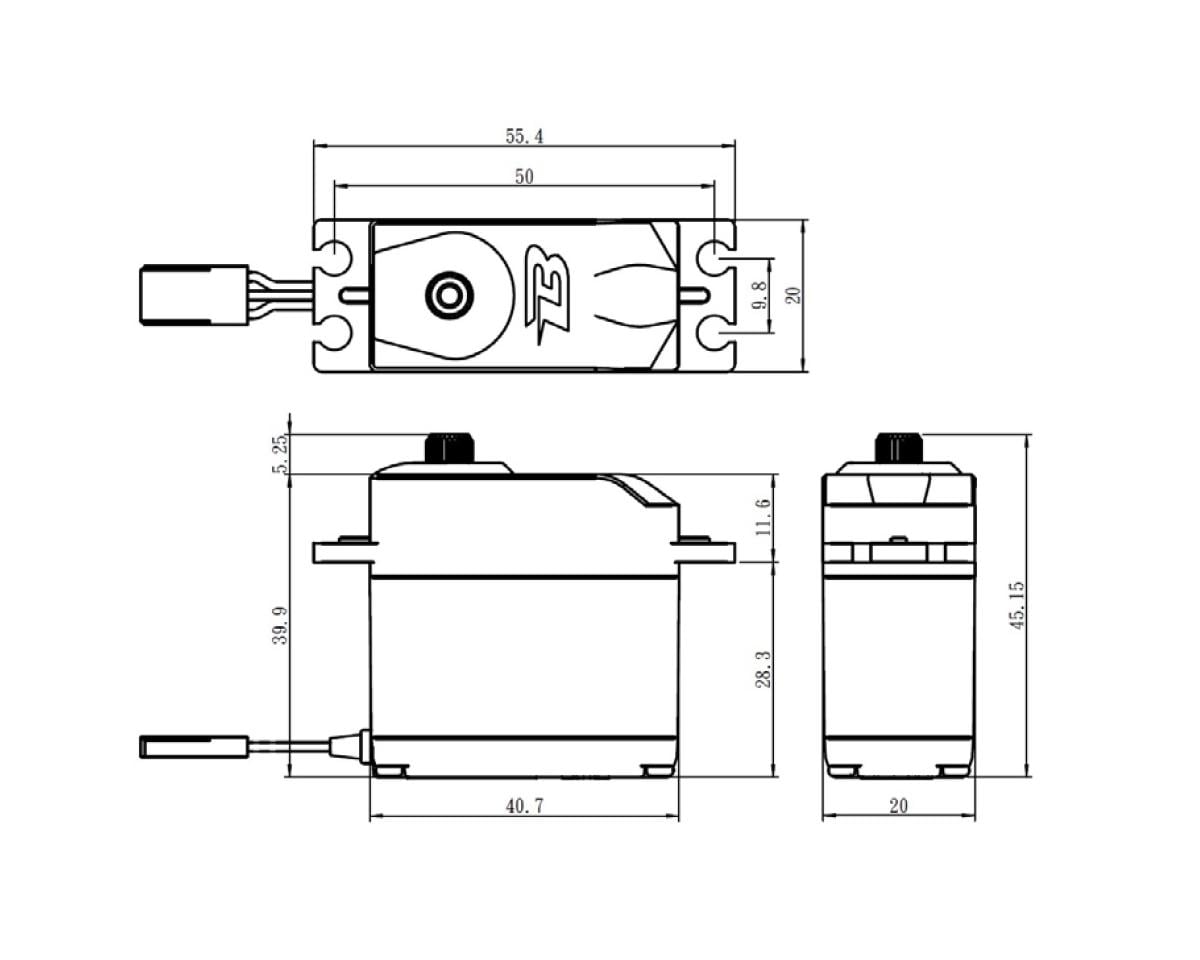

• Dimensions: 1.6x0.78x1.7in (40.7x20x45.2mm)

Includes

• (1) B-12KG Standard Metal Gear Servo

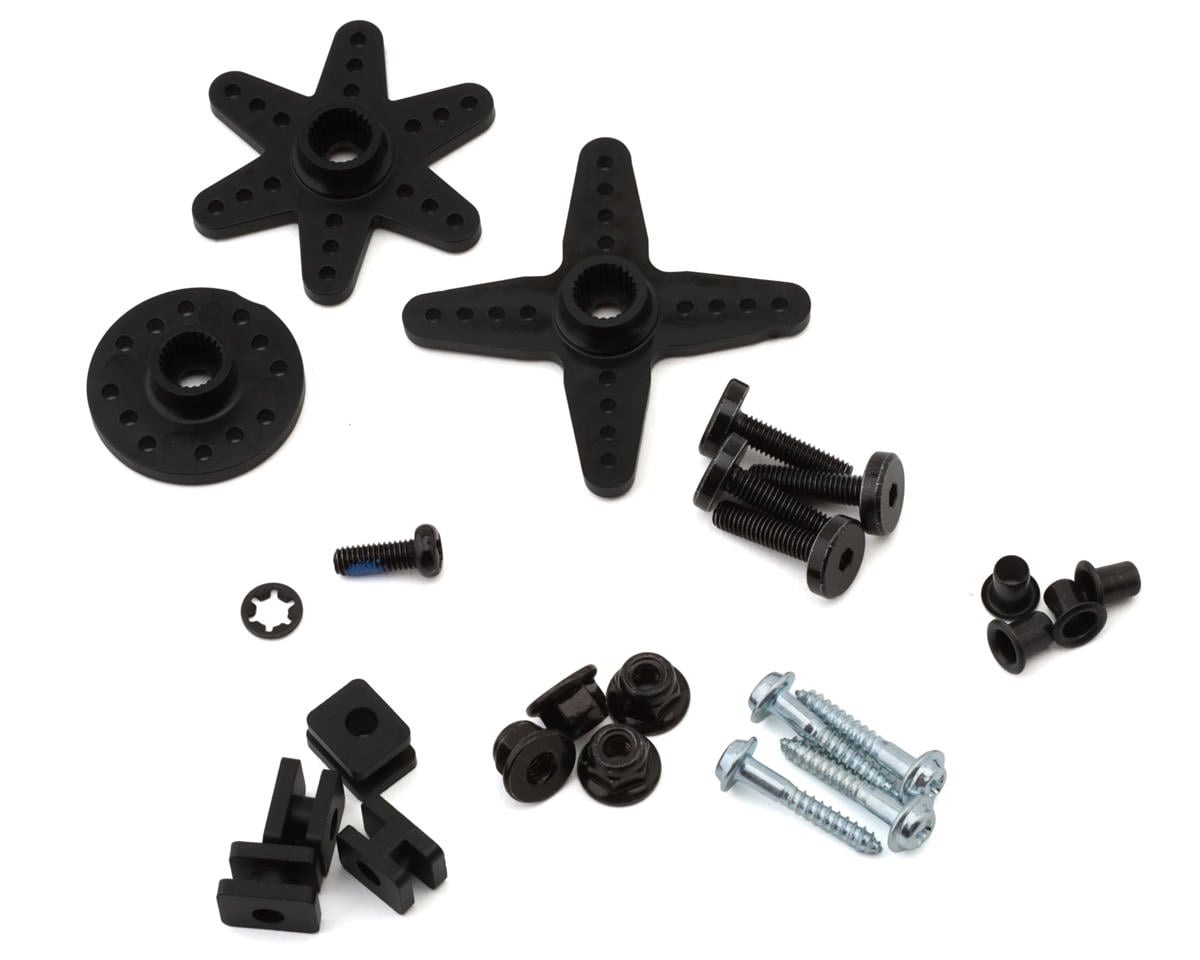

• Servo Horns & Accessories
