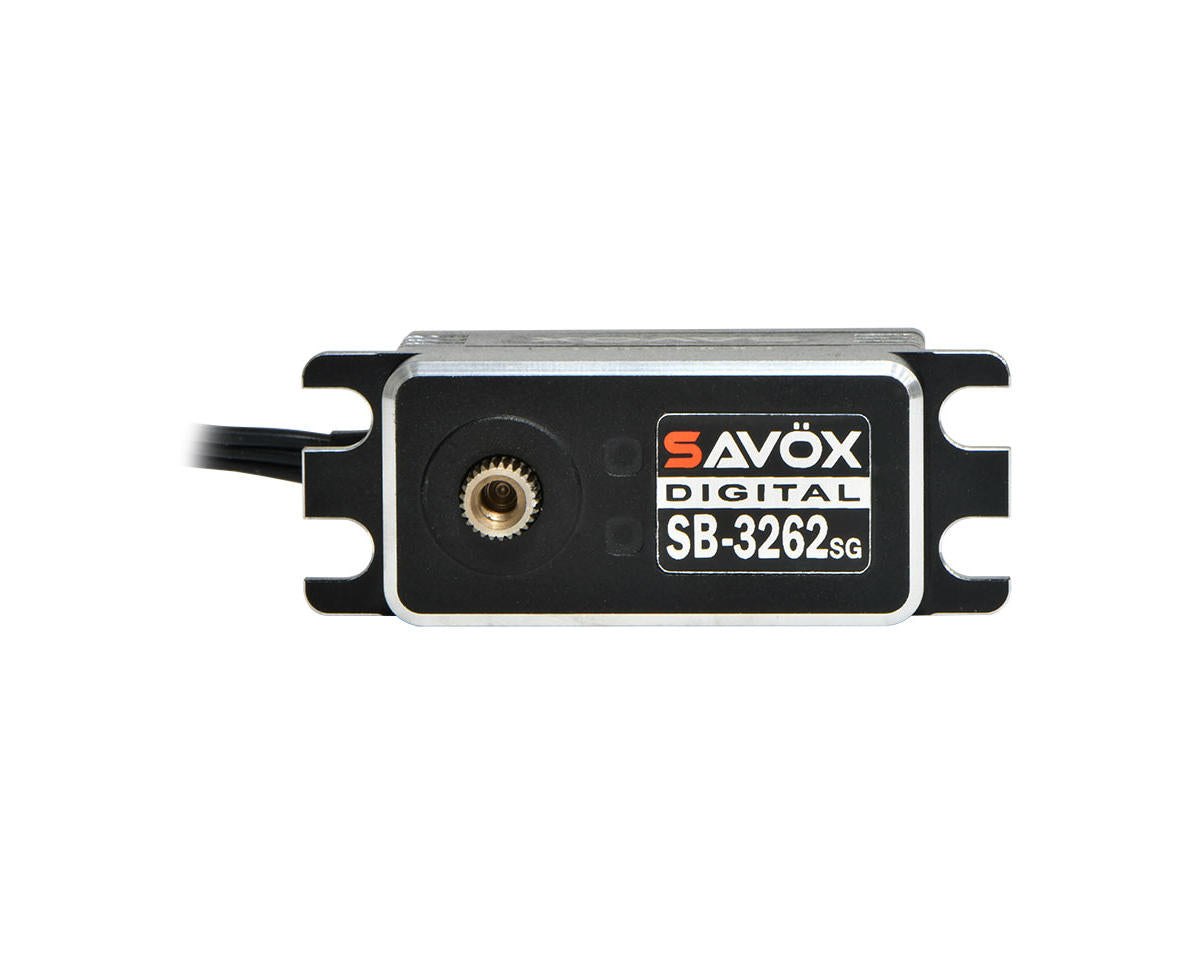

Savox 3262SG Black Edition Aluminum "High Torque" Low Profile Brushless Servo

The Savox 3262SG Black Edition is a low-profile brushless servo for 1/10 applications, combining a CNC-machined aluminum case with high torque output and water-resistant construction. Its 25T output shaft spline and compact design suit chassis layouts where space is limited.

Features

• Brushless motor design
• Dynamic torque up to 486.1 oz-in (35 kg-cm) at 8.4V
• Operating speed as quick as .065 sec/60° at 8.4V
• Low-profile compact size
• CNC-machined aluminum case
• Metal gears
• Water-resistant construction
• 25T output shaft spline

Specifications

• Application: 1/10
• Input Voltage: 6.0-8.4V
• Operating Speed @ 6.0V: 0.1 sec/60°
• Operating Speed @ 7.4V: .08 sec/60°
• Operating Speed @ 8.4V: .065 sec/60°
• Dynamic Torque @ 6.0V: 305.5 oz-in (22 kg-cm)
• Dynamic Torque @ 7.4V: 388.8 oz-in (28 kg-cm)
• Dynamic Torque @ 8.4V: 486.1 oz-in (35 kg-cm)
• Gear Material: Metal
• Motor Type: Brushless
• Output Shaft Spline: 25T
• Dimensions: 1.61x0.80x1.0in (40.8x20.2x25.4mm)
• Weight: 1.87oz (53g)

Includes

• (1) 3262SG Black Edition Aluminum "High Torque" Low Profile Brushless Servo
• Servo Horns & Accessories
