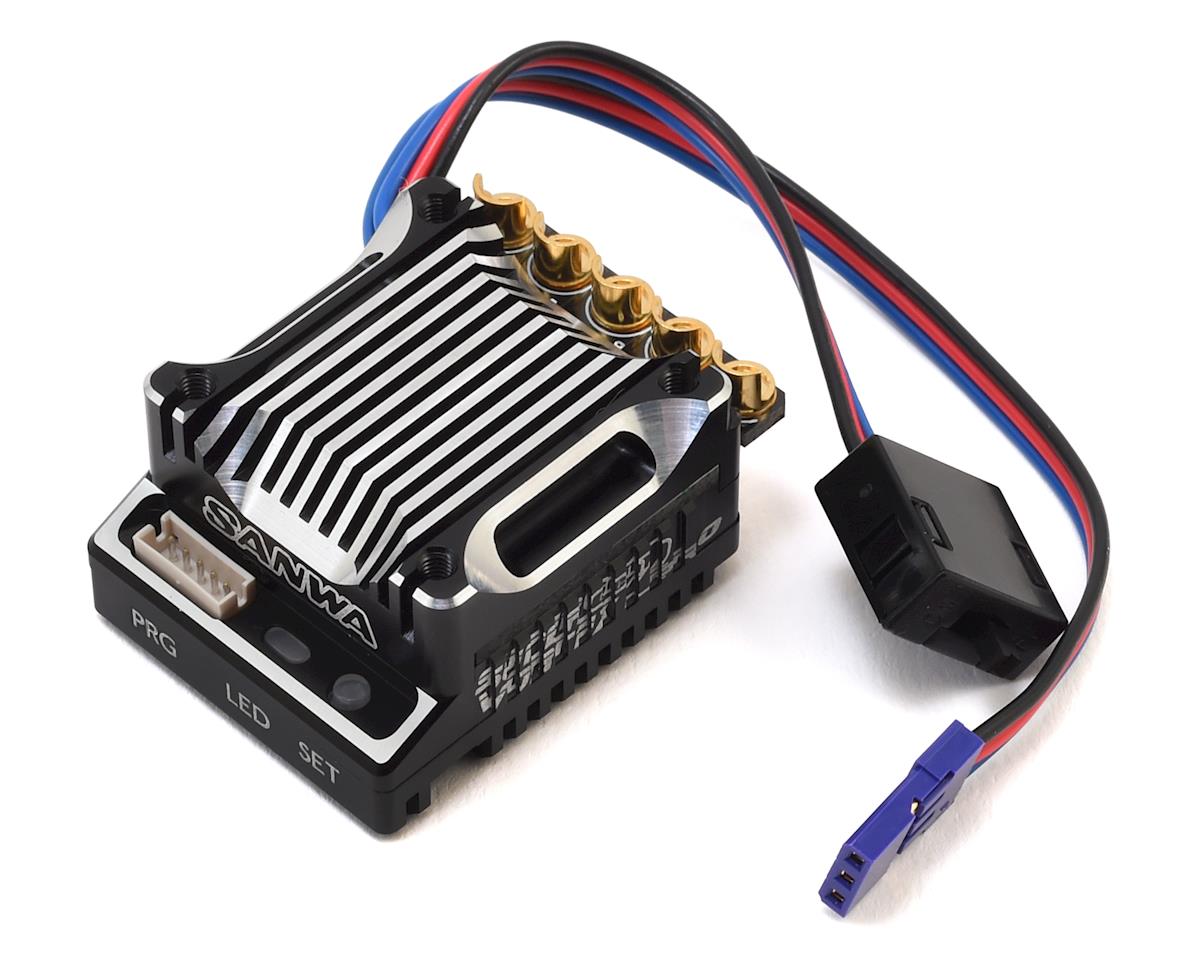

Sanwa/Airtronics Super Vortex Gen2 Pro Brushless SSL ESC

The Sanwa/Airtronics Super Vortex Gen2 Pro Brushless SSL ESC features improved circuitry, a full aluminum case, updated telemetry functions, and Sanwa Synchronized Link (SSL) capability.

Features

• Compatible with SSR
• Compatible with SSL
• Compatible with PROGRAM BOX Gen2, sold separately
• 130% output compared with Gen2 (previous model) due to revised circuit design
• CODE 10 SSL remote transmitter setting for M12S, M12S-RS, EXZES ZZ, and MT-44

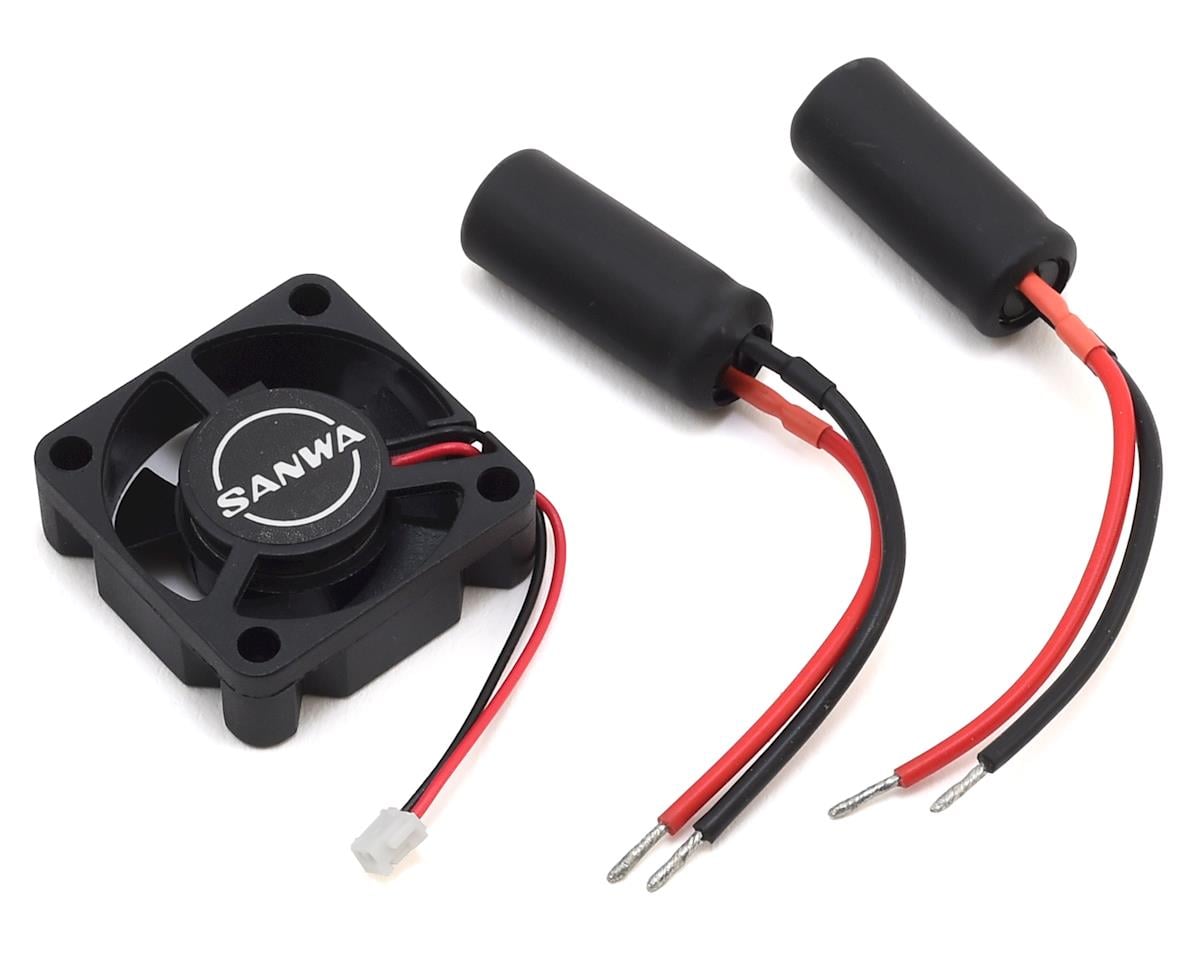

• Cooling duct for increased heat dissipation
• Firmware updates supported through Program Box Gen2
• Compatible with CODE AYX1 on EXZES Z, M12, MT-4S, and MT-S
• Using AUX1 with CODE AYX1 enables MODE 5 through MODE 9
• Compatible with CODE10 on M12S, M12S-RS, EXZES ZZ, and MT-44
• Using AUX1 with CODE10 enables MODE5 through MODE14
• Does not have a reverse motor rotation function

SSL System

When used with a SANWA M12S or Exzes ZZ transmitter, an RX-482, RX-472, or RX-47T receiver, and the SANWA SUPER VORTEX STOCK ESC, the SSL system allows ESC programming values to be changed from the transmitter using the transmitter's CODE AUX function. Supported telemetry data includes motor RPM, ESC temperature, motor temperature if supported, and battery voltage.

Specifications

• Nominal Input Voltage: 3.7V - 7.4V
• Rated Current: 1000A/Phase
• Dimensions: 32.0x36.8x20.5mm
• Total Weight: 41.7g (w/o power capacitor)

The Super Vortex Gen2 Pro firmware must be updated before use. If you use a programmer box, its firmware must also be updated.
