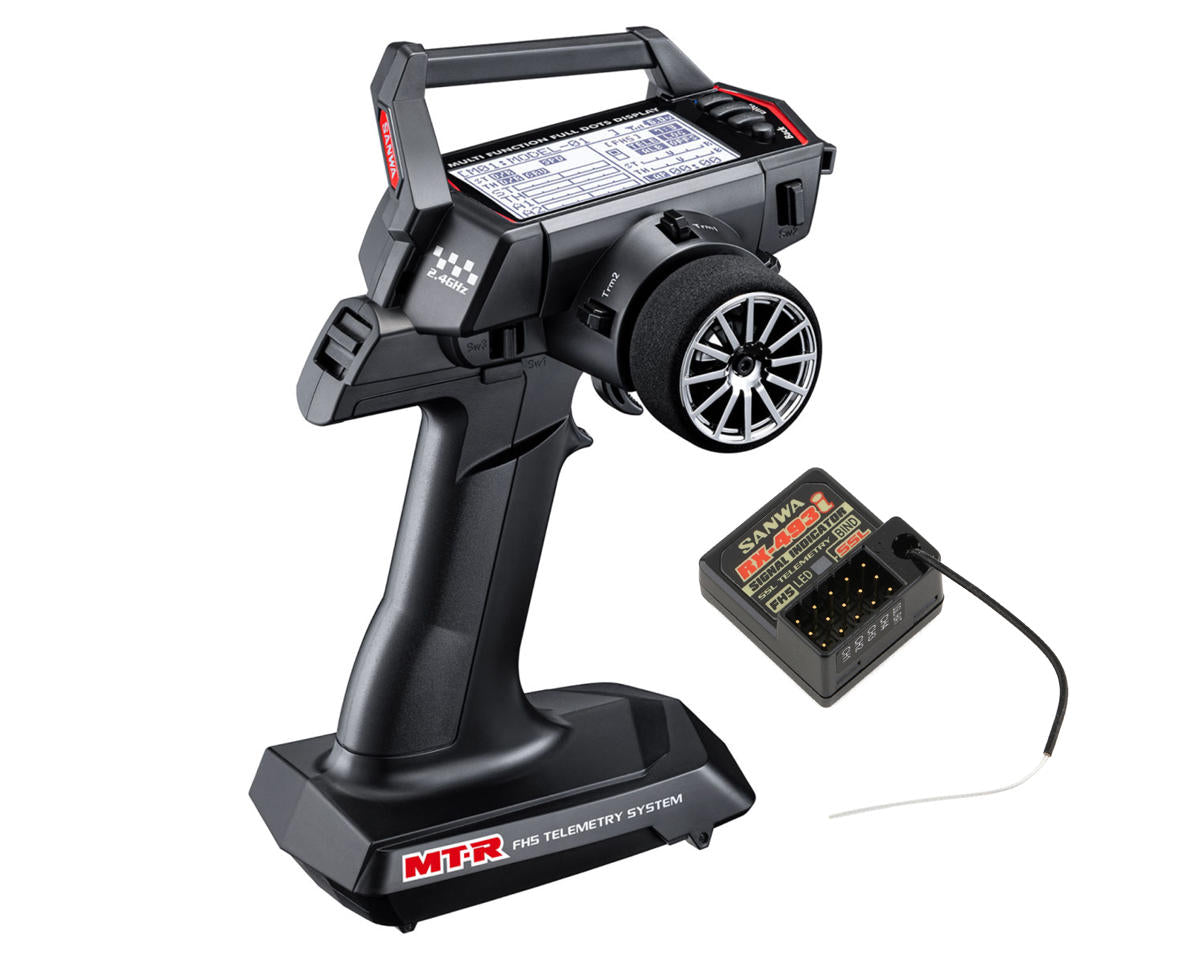

Sanwa/Airtronics MT-R FH5 4-Channel 2.4GHz Radio System

The Sanwa/Airtronics MT-R FH5 4-Channel 2.4GHz Radio System includes an RX-493i receiver and uses Sanwa Ultra Response technology with high-resolution FH5 RF mode. The transmitter requires four AA batteries and offers model management, telemetry, adjustable controls, and multiple auxiliary and mixing functions.

Features

• White LED backlight
• Large full-dot LCD monitor with 128x64-dot display
• Adjustable trigger
• Telemetry function with telemetry settings
• Dual rate and servo speed adjustment
• Servo reverse, trim, sub-trim, curve, exponential, and adjustable rate control
• Fail-safe settings for radio waves and battery
• EPA and offset adjustment
• Bind function
• Throttle type settings: 70:30 and 50:50
• Anti-lock brake
• Model name support for 10 letters
• Model memory for 20 models
• Model select, clear, and copy functions
• Timer with lap, interval, and down modes
• Logger and alert settings
• Key assignment for switches and trims
• Adjustable buzzer scale and volume
• Transmitter battery alarm
• LCD contrast and volume adjustment
• Setup wizard
• FH5 RF mode setting
• Response modes: NOR, SHR, SSR, and SUR
• Direct model select
• Aux1 and Aux2 operation type selection
• Code aux, step aux from 1 to 100, and point aux with 2 to 6 points
• 4WS mixing with front, rear, normal, and reverse settings
• MOA mixing for front-wheel-drive, 4WD, and rear-wheel-drive configurations with variable drive rate
• Aux mixing for steering and throttle

Sanwa SSL System

With compatible receivers, Super Vortex Series, SV-Plus Series, PGS Servo Series, and SGS-02 products, the Sanwa Synchronized Link system provides SSL functions through the transmitter. Adjustments can be made while driving without stopping the car.

Important Compatibility Information

• Do not use analog servos in SHR, SSR, or SUR modes.
• Digital servo series listed in the source can be used in NOR and SHR modes.
• SUR mode can be used only with PGS series servos.
• BL-FORCE, BL-SPORT, F3300, SBL-02, and SBL-03CR do not work in SHR or SSR mode; use NOR mode for these ESCs.
