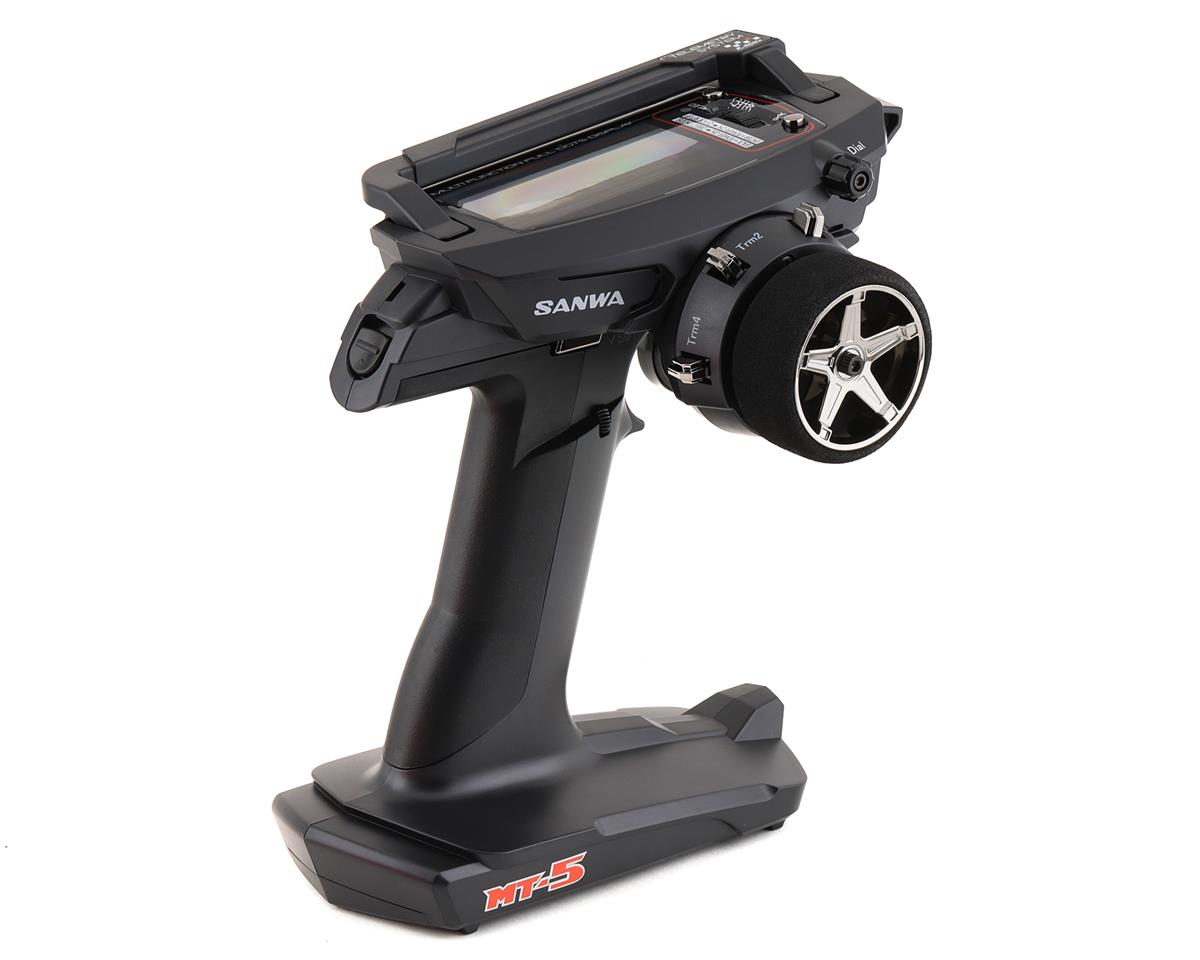

Sanwa/Airtronics MT-5 FH5 4-Channel 2.4GHz Radio System

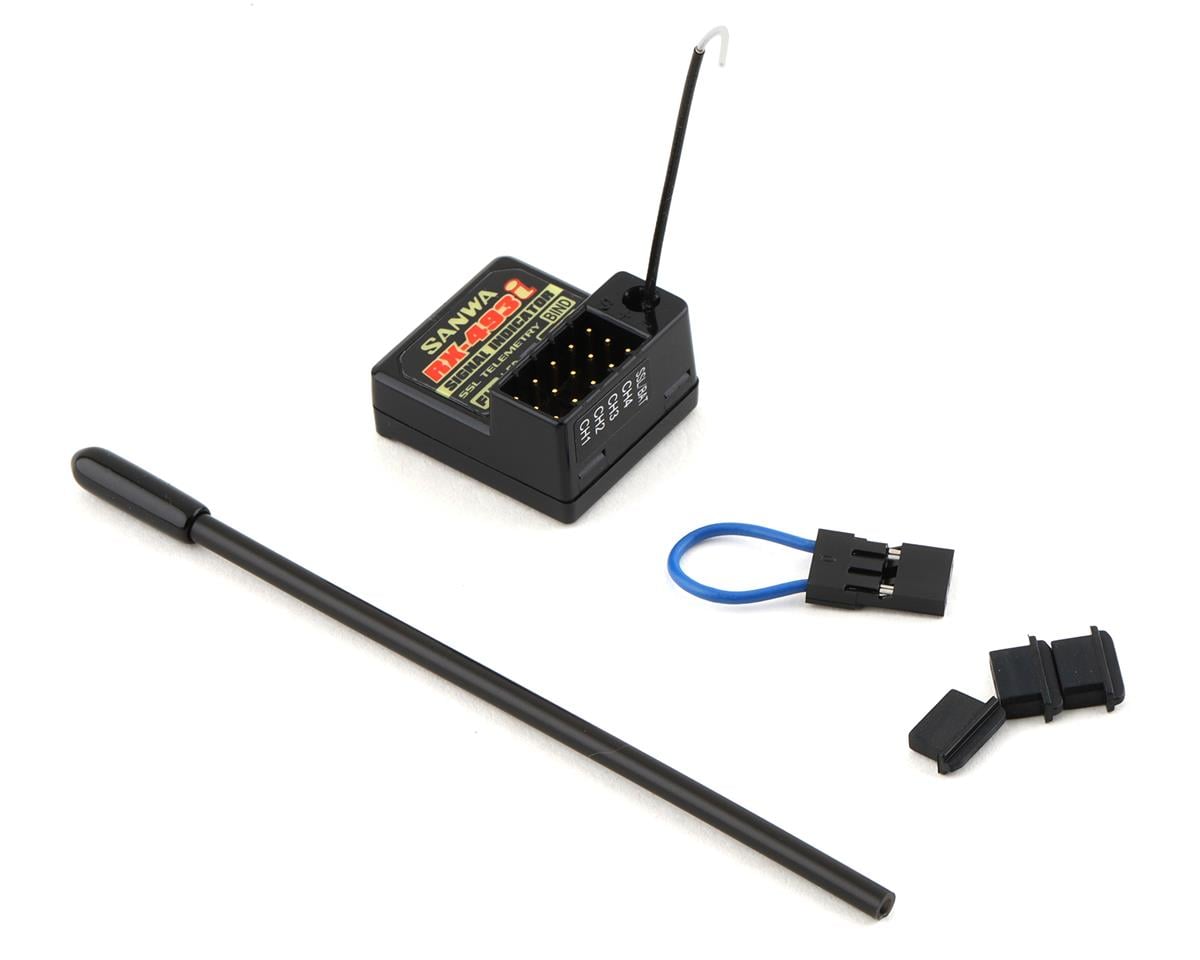

The Sanwa/Airtronics MT-5 FH5 4-Channel 2.4GHz Radio System includes an RX-493i receiver and combines FH5 RF Mode with SUR (Super Ultra Response) for a smooth control response. It features a backlit HD display, adjustable controls, telemetry functions and storage for 20 models, or up to 250 models when used with an SD card.

Features

• 4-channel 2.4GHz radio system
• FH5, FH4T and FH3 RF Mode settings
• NOR, SHR, SSR and SUR response mode settings
• Backlit large full-dot LCD monitor with white LED backlight
• Movable carrying handle and built-in antenna

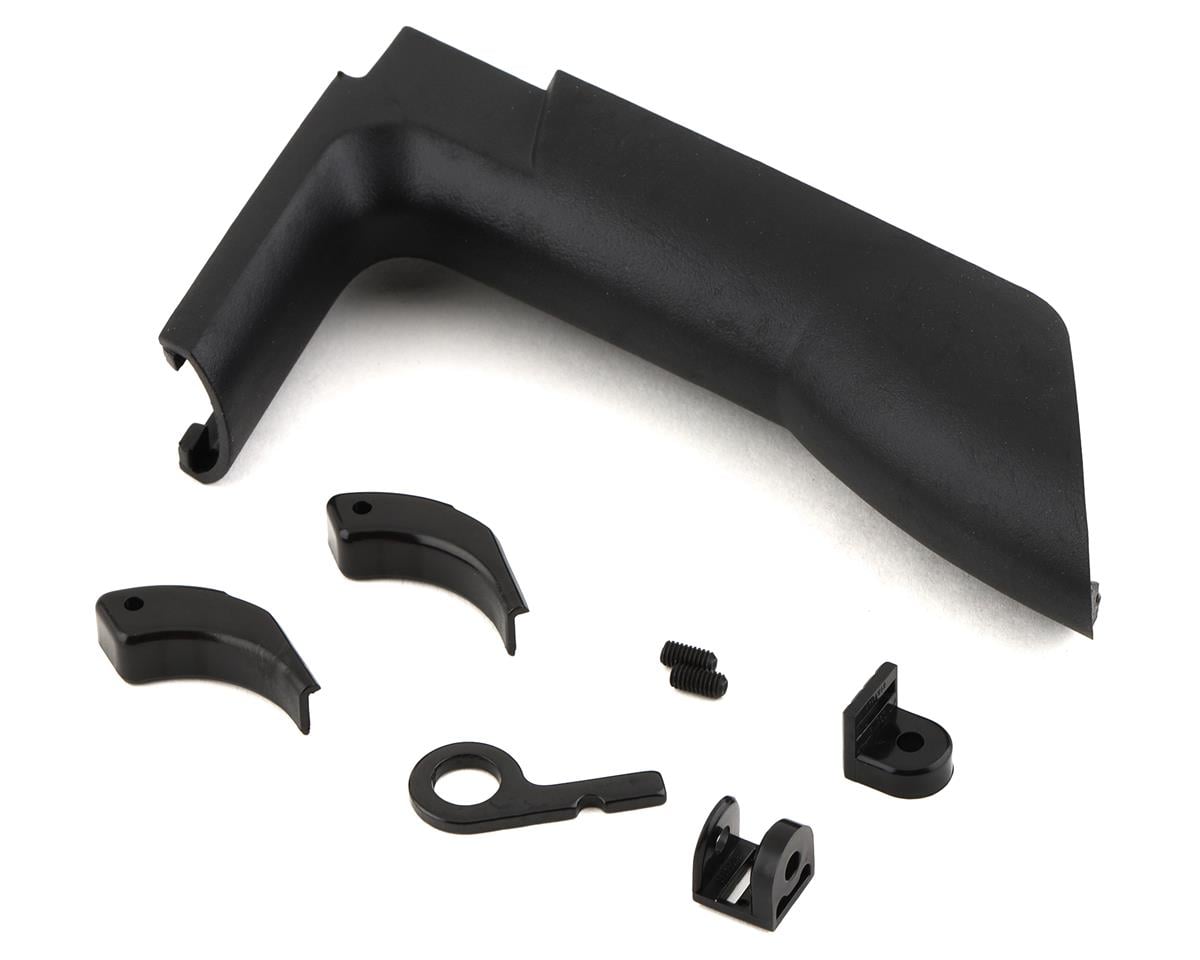

• Fully adjustable trigger, ST/TH tension adjuster and small grip pad
• Telemetry with simultaneous display of three telemetry data items
• Telemetry switch, clock, circumstance temperature display and CSV output for LOG data
• Safety Link, Racing Mode and Quick Setup Wizard
• ST/TH trim, sub-trim, servo reverse, curve, exponential and adjustable rate control
• Dual rate, end point adjuster, anti-lock brake and servo speed
• AUX1 and AUX2 movement types, 4WS mixing, MOA mixing and AUX mixing
• Fail safe for power/battery and timer settings for lap, interval and down timing
• 20-model memory; 250 models available when used with an SD card
• Power support for three "AAA" batteries or an optional 1S LiPo battery with USB charge support

Receiver Compatibility

• RX-491
• RX-492
• RX-493
• RX-493i

SSL System

With compatible receivers and devices from the Super Vortex Series, SV-Plus Series, PGS Servo Series and SGS-02, transmitter settings can be adjusted through Sanwa SSL functions while driving.

Response Mode Notes

• Do not use analog servos with SHR, SSR or SUR mode.
• SUR mode can be used only with PGS series servos.
• Digital servo compatibility includes PGS, SRG, Digital ERG and SDX series for NOR and SHR modes.
• BL-FORCE, BL-SPORT, F3300, SBL-02 and SBL-03CR do not work in SHR or SSR mode; use NOR mode with these ESCs.
