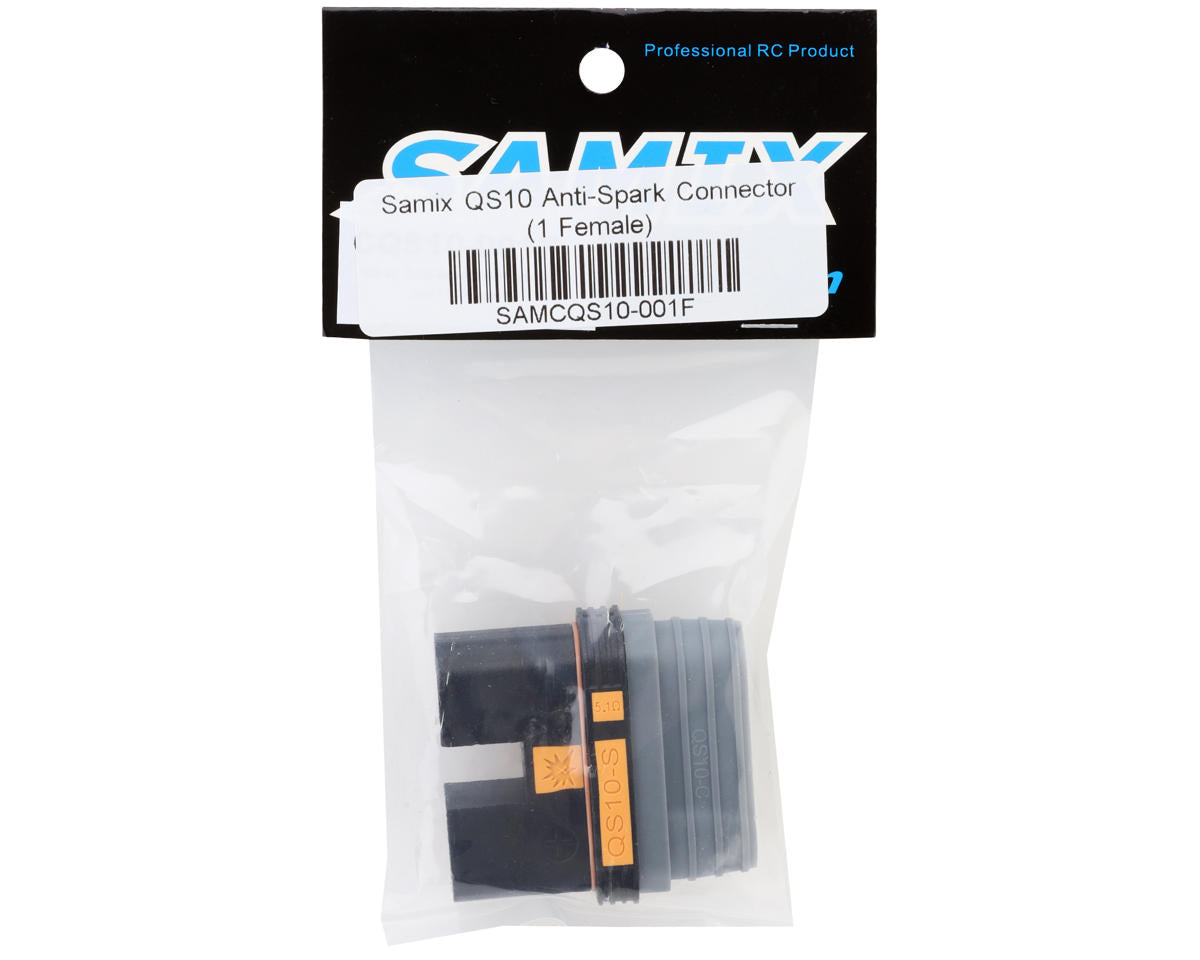

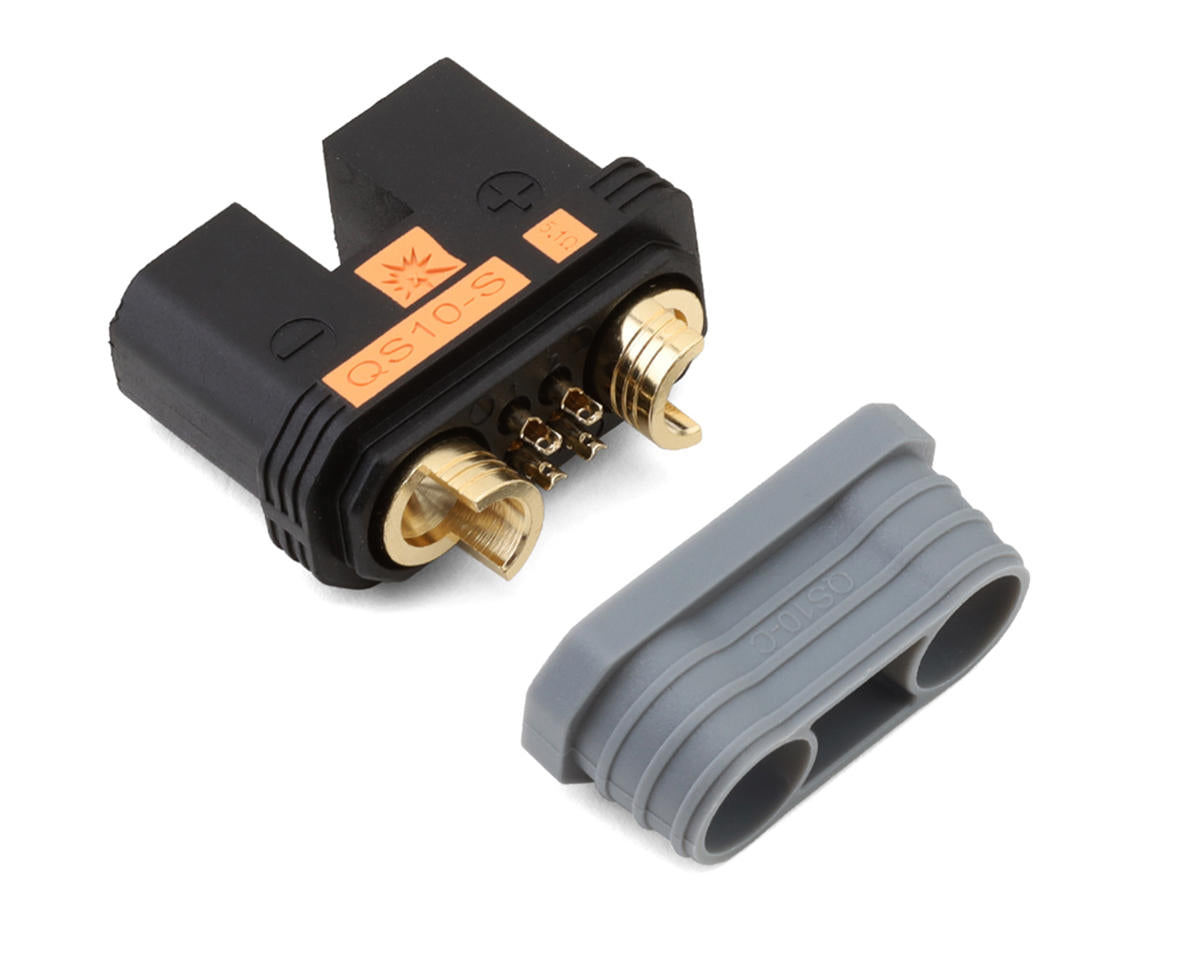

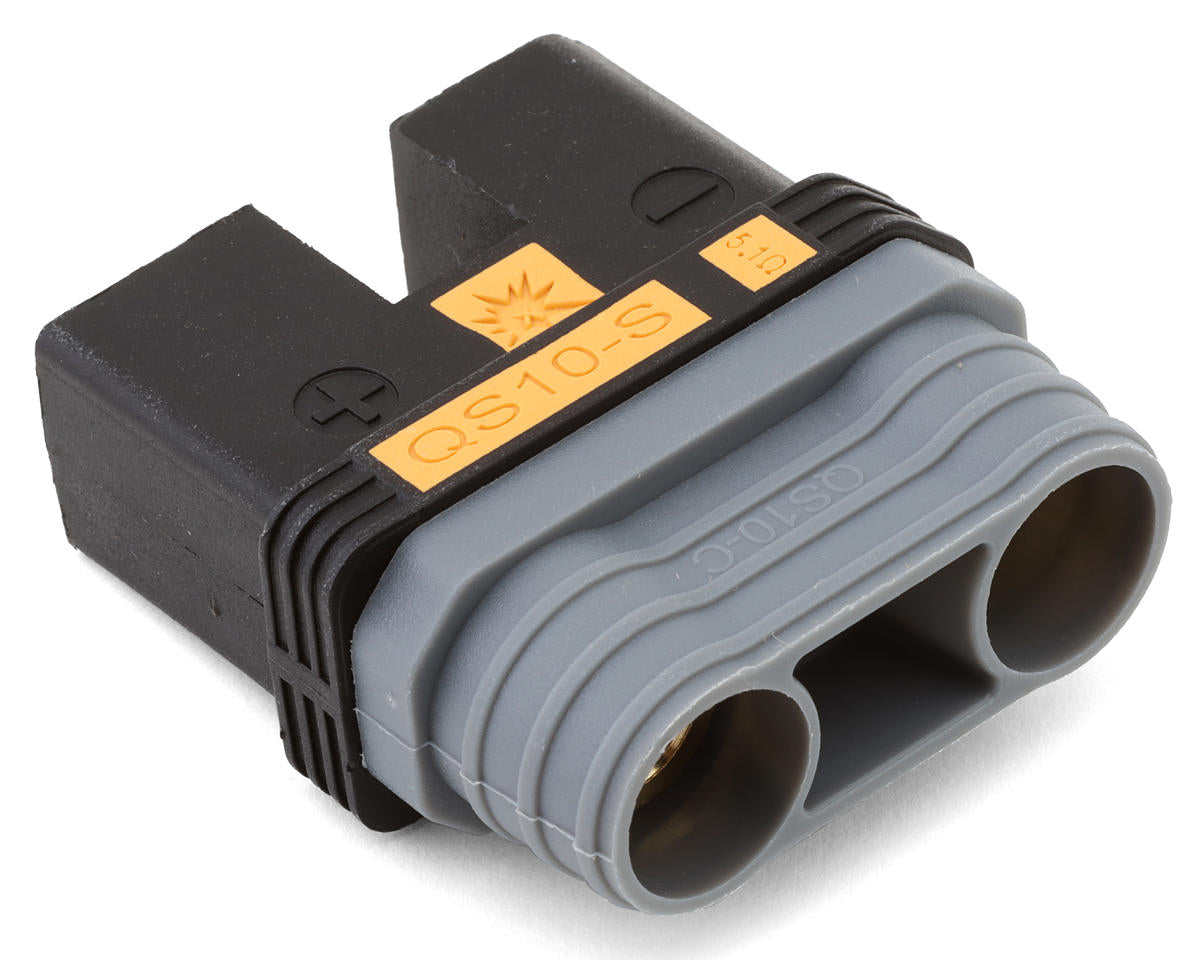

Samix QS10 Anti-Spark Connector (1 Female)

The Samix QS10 Anti-Spark Connector provides a female QS10 connection with anti-spark technology for high current and high voltage applications. It features a large 10mm gold plated bullet connector.

Features

• Anti-Spark Technology
• High Current and High Voltage Capability
• Large 10mm Gold Plated Bullet Connectors

Specifications

• Flame Retardant Rating: UL94VO
• Contact Resistance: 0.51m
• Rated Voltage: DC 750W
• Peak Current: 240A
• Constant Current: 180A
• Temperature Range: -30c to 150c
• Material: PA
• Maximum Wire Size: 4 AWG

Includes

• (1) Female QS10 Anti-Spark Connector
