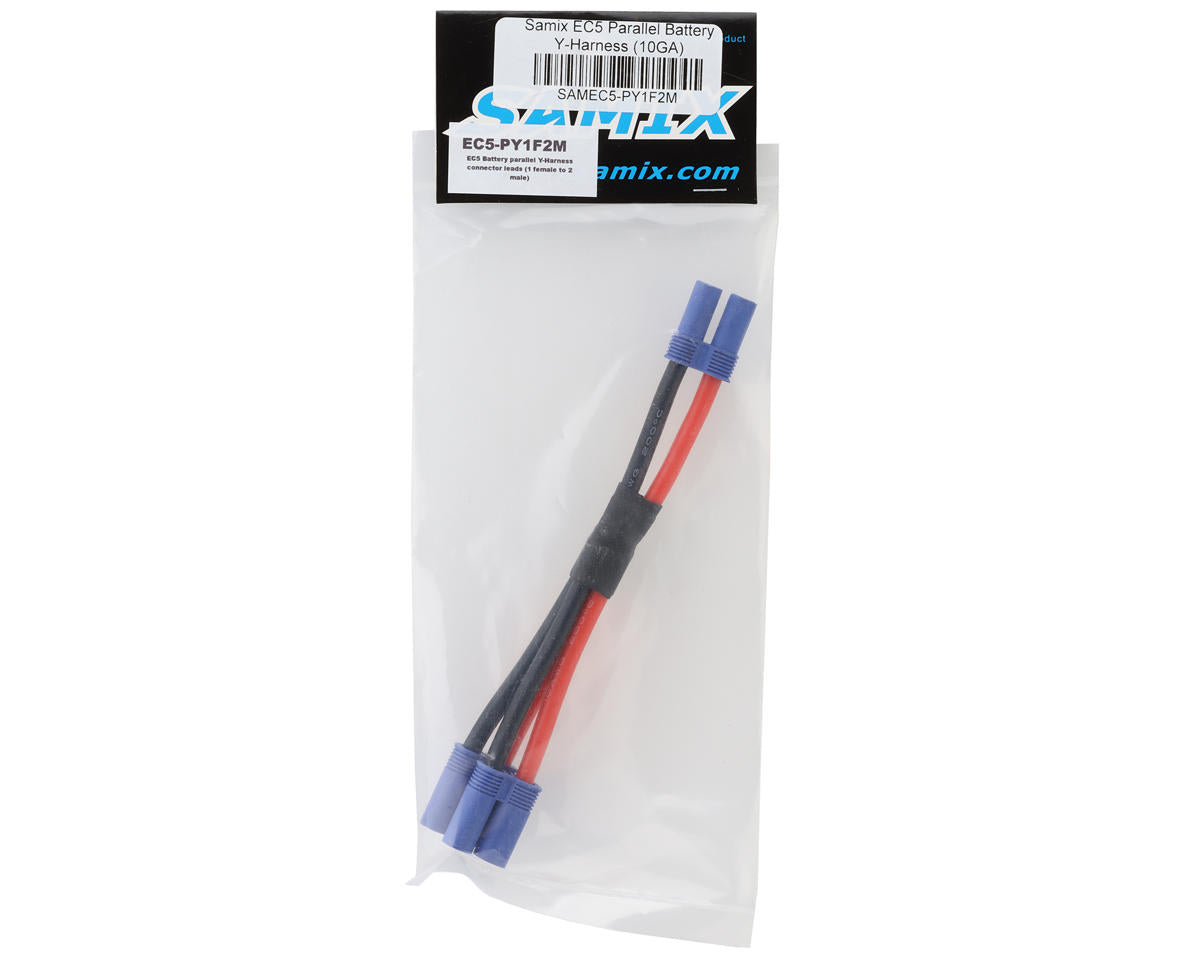

Samix EC5 Parallel Battery Y-Harness (10GA)

Connect two battery packs in parallel with the Samix EC5 Parallel Battery Y-Harness. This 10 gauge harness features one EC5 female connector and two EC5 male connectors.

Important Battery Requirements

Always use identically prepared packs with this harness. Both packs must be fully charged and properly balanced, made by the same manufacturer, have the same C rating, the same number of cells, and the same capacity. Failure to follow these requirements may damage the batteries.

For example, two 3S (11.1V) 6000mAh packs combine to provide 12,000mAh capacity while remaining at 3S (11.1V) voltage.

Package Includes

• One EC5 battery parallel Y-harness
