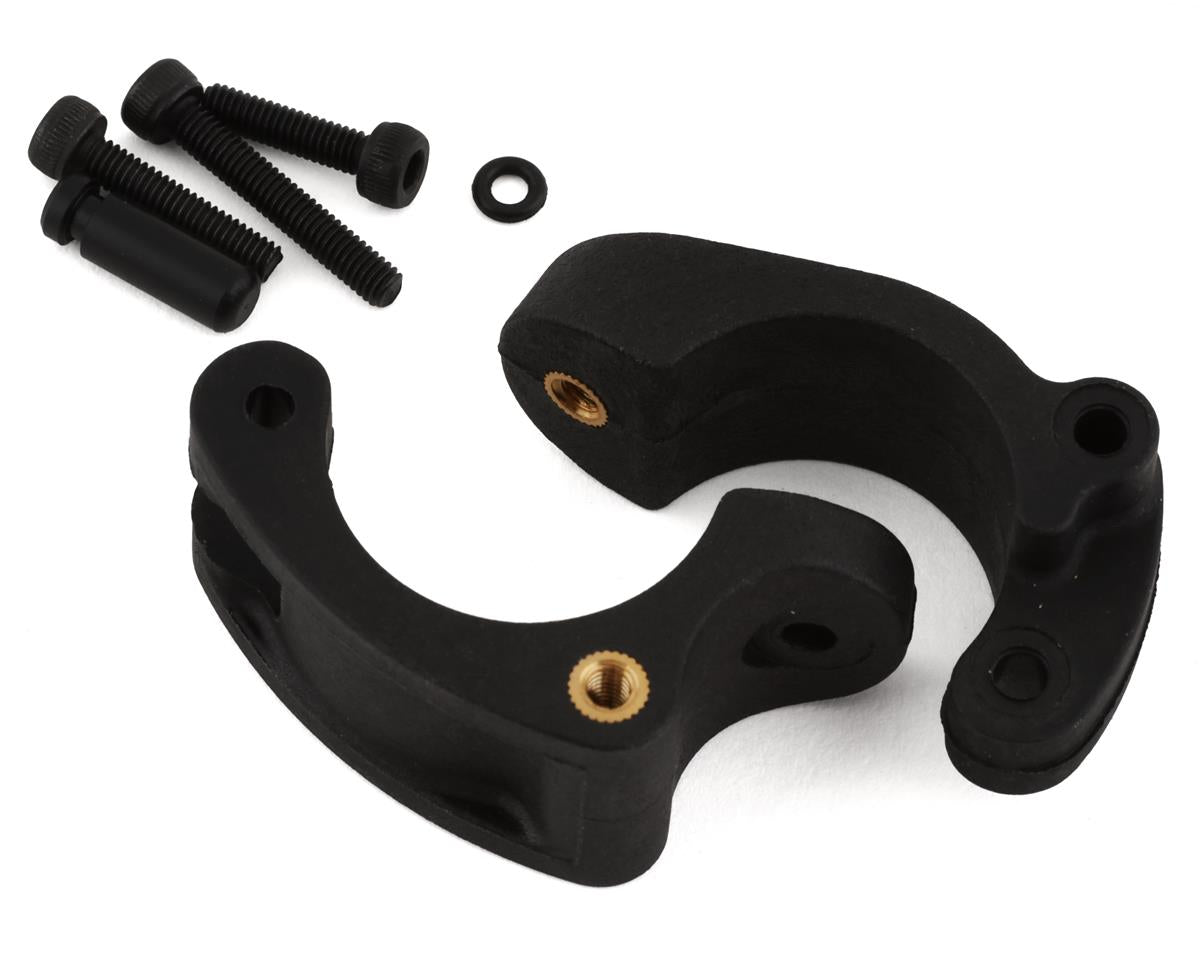

SAB Goblin Tail Boom Tension Tool (Raw 420)

The SAB Goblin Tail Boom Tension Tool is a replacement tool intended for the SAB Goblin Raw 420. It is used to tension the tail belt during installation and must be removed before flight.

Use Instructions

1. Push the plastic pad into its seat by unscrewing the 2.5x12mm screw.
2. Install the tool on the boom so it touches the H1454 clamp.
3. Tighten the 2.5x10mm screw to lock the tool onto the boom.
4. Turn the 2.5x12mm screw to tension the tail belt. This pushes the boom back and tightens the tail belt.
5. Once the correct tension is achieved, tighten the two boom clamps with the two 2.5mm screws.
6. Remove the tool before flight.

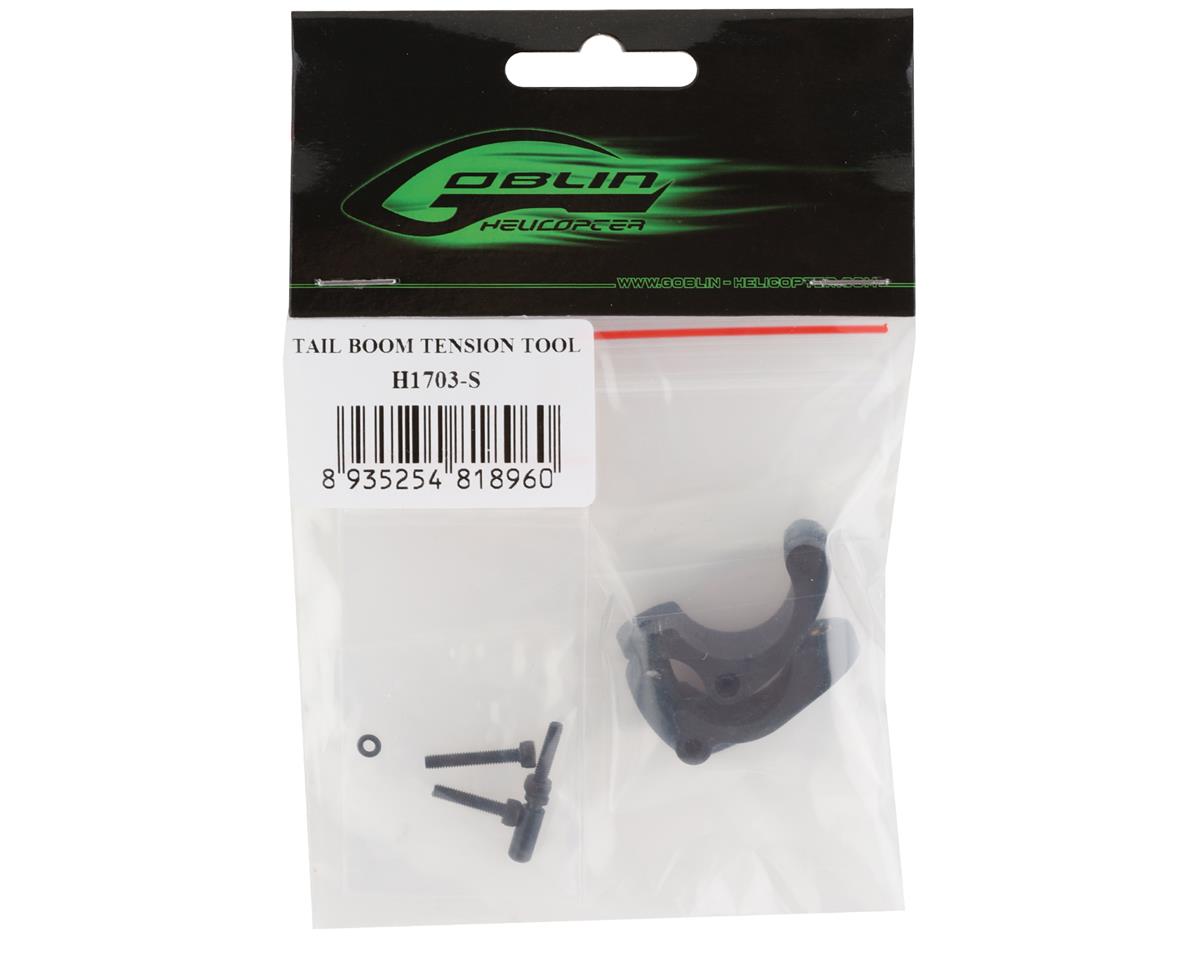

Package Contents

• One tail boom tension tool
