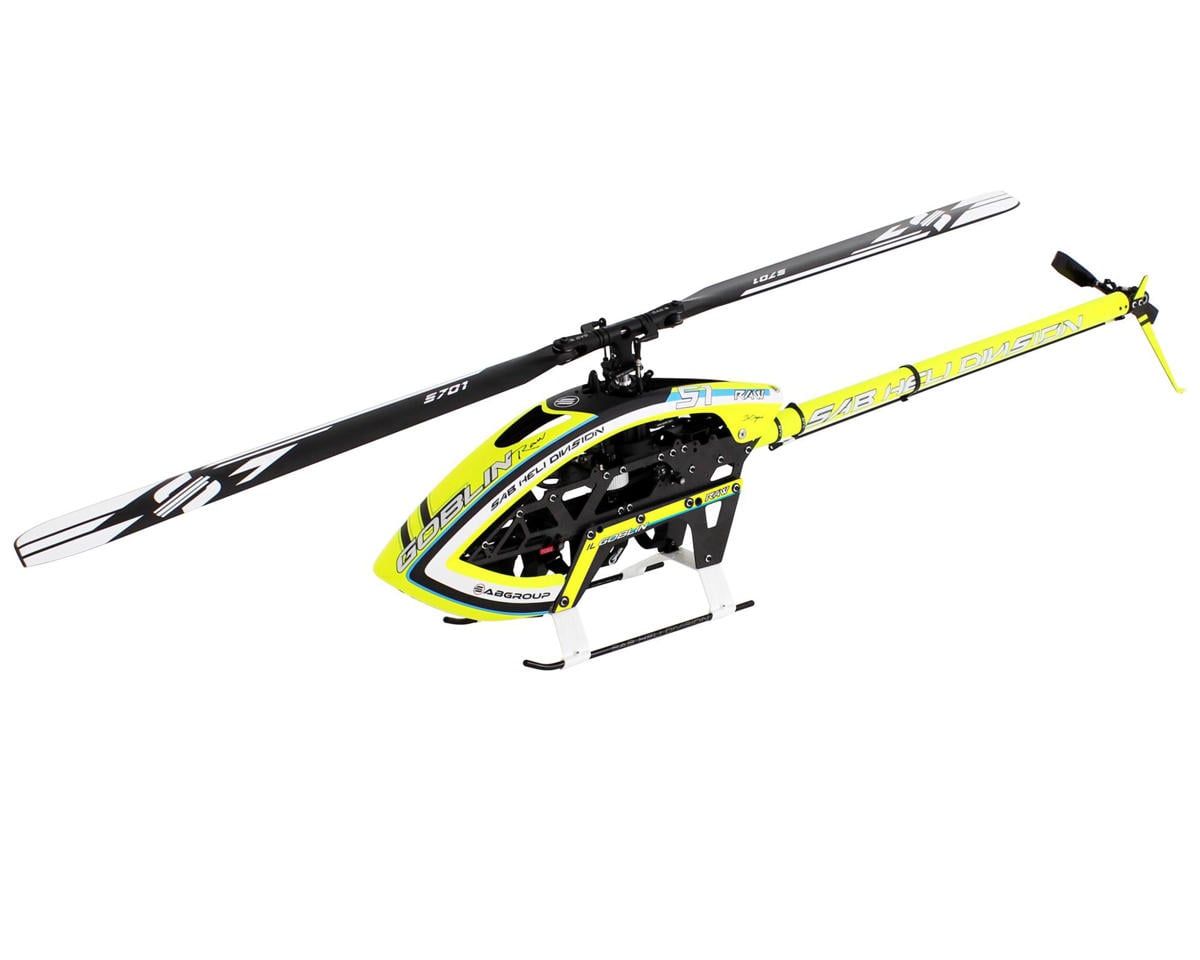

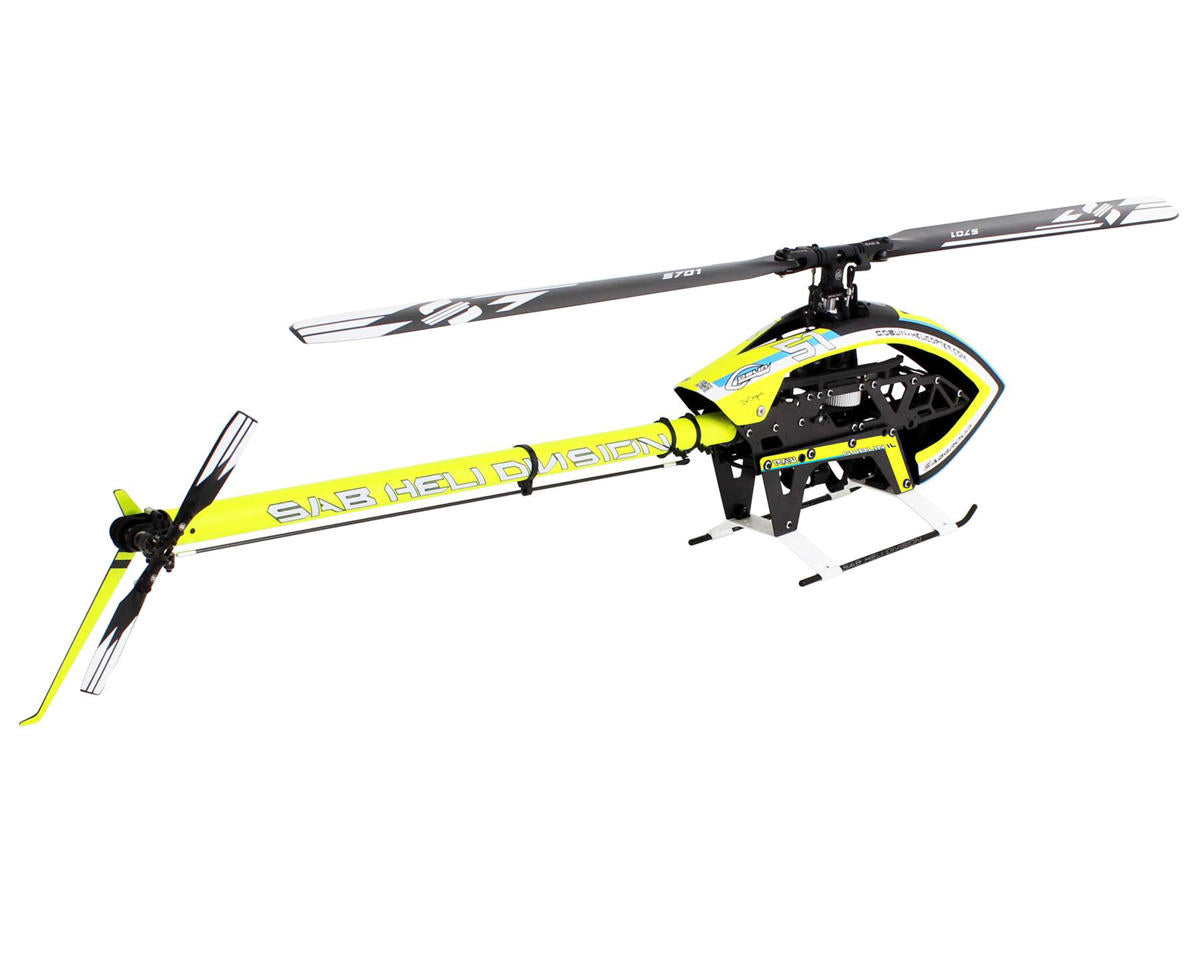

SAB Goblin ilGoblin Raw 700 Electric Helicopter Kit (Yellow)

The SAB Goblin ilGoblin Raw 700 is an electric helicopter kit featuring a redesigned transmission, updated rotor components, and convenient battery access without removing the canopy. Its color-matched S701 main blades, S105 tail blades, molded carbon tail boom, and quick-change battery tray complete the design.

Design Features

• Color-matched S701 blades
• Battery installation without canopy removal
• Updated S105 tail blades
• Molded carbon tail boom
• Quick-change battery tray
• Full-color matching

Updated Mechanical Components

• 15mm main shaft for increased rigidity
• Updated helical gears
• Redesigned one-way system
• Fast-disassembly servo mount
• Upgraded blade grip arms with an improved locking system
• Self-centering titanium washers
• Optional pivot shaft for the spindle
• 8mm tail shaft with 8x16x5 bearings
• Single-piece tail shaft and hub
• Three tail pulley sizes for tail ratio adjustments

Specifications

• Size: 700
• Front Pulley: 80T
• Tail Rotor: 26T
• Motor Pulley: 21T
• Weight: 76.8oz (2178g)
• Power Source: Electric
• Assembly Level: Kit

Includes

• (1) ilGoblin Raw Electric Helicopter Kit
• S701 Orange (700mm main blades)
• S105 Orange (105mm tail blades)
• Manual

Needed to Complete

• (1) Flybarless control system with built-in and/or external receiver
• (1) Full-range 6+ channel helicopter compatible transmitter
• (3) Standard sized cyclic servos
• (1) Standard sized tail servo
• (1) ESC (12S: 200A)C
• (1) 480/560Kv size 12S Brushless Motor
• (1) Battery (12S 4200/5500mAh)
• (1) Compatible LiPo Charger

This is an unassembled RC model kit requiring assembly, pilot-selected electronics, and other pilot-provided items. Photos of the assembled kit are for illustrative purposes only.
