SAB Goblin ILGoblin Pro 520 Electric Helicopter Kit (Orange)

The SAB Goblin ILGoblin Pro 520 Electric Helicopter Kit combines a forward-mounted tail servo layout, 520mm main blades, and a lightweight molded carbon tail boom. Its drivetrain uses a 12mm one-way bearing and 13mm motor belt, while adjustable rotor gear ratios support setup flexibility.

Features

• Includes 520mm main and 82mm tail blades
• Tail servo mounted forward for CG optimization
• Compatible with mini and standard tail servos

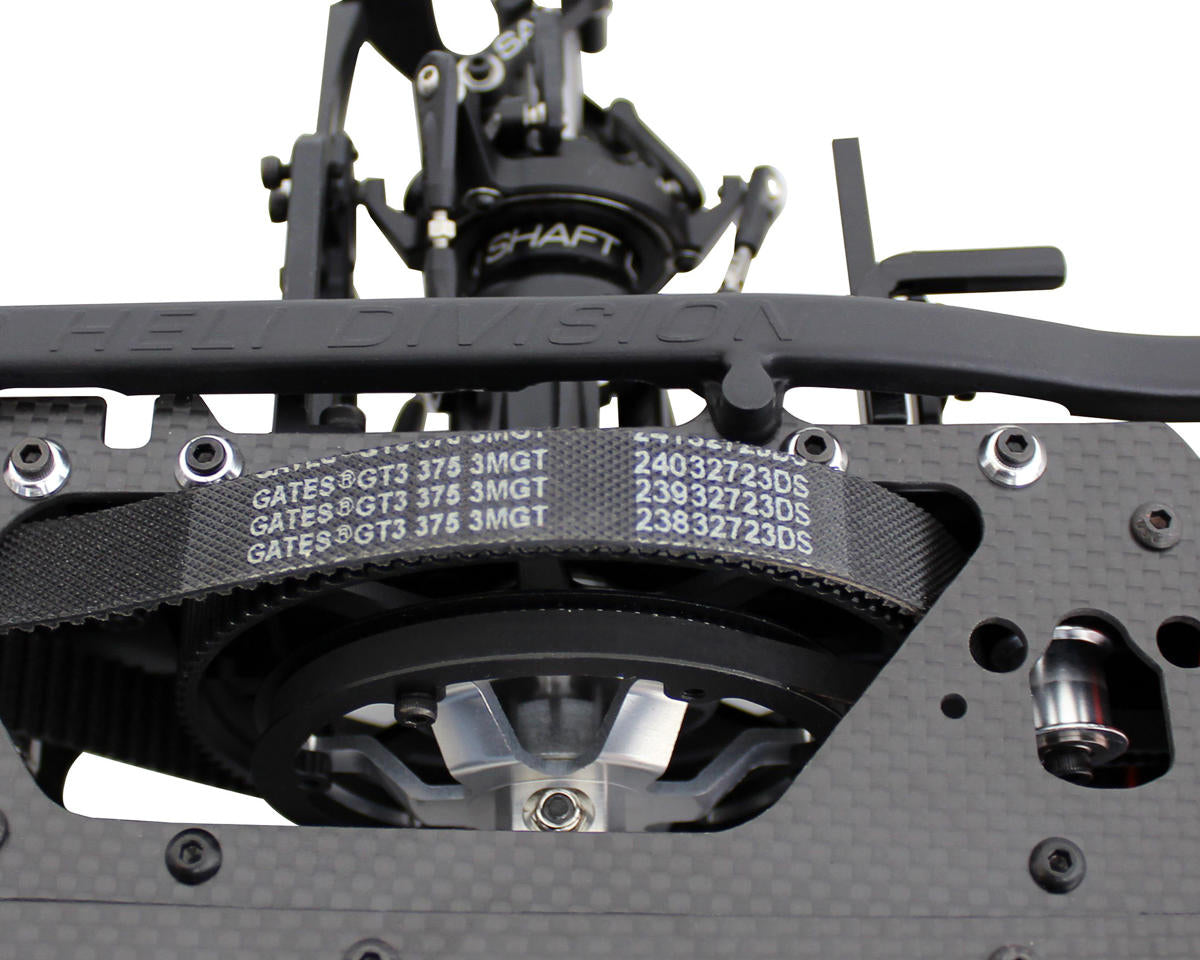

• 12mm one-way bearing and 13mm motor belt

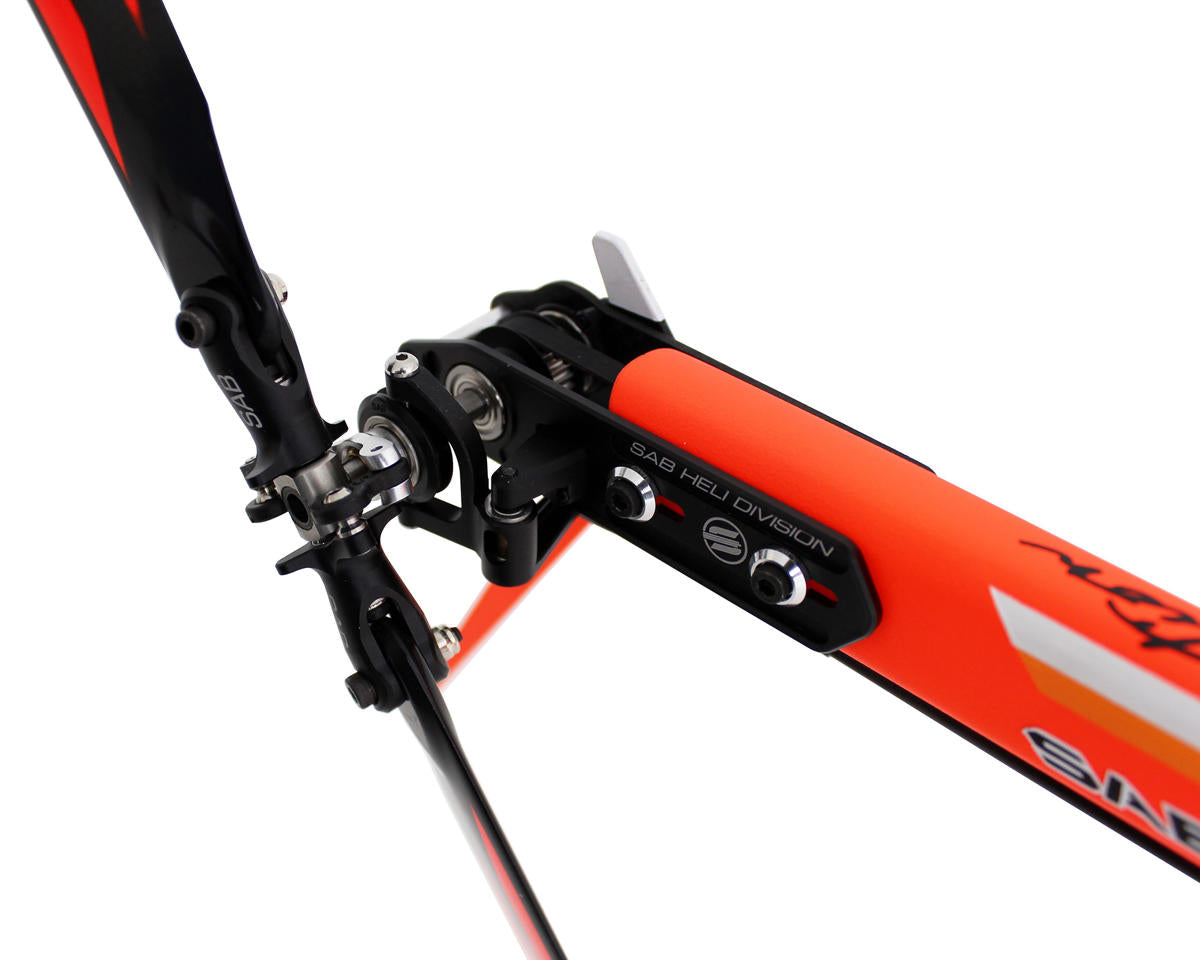

• Molded carbon tail boom weighs only 100g
• Stronger redesigned plastic ball linkage
• Adjustable main and tail rotor gear ratios
• Mini-size cyclic servo layout
• Battery tray fits packs up to 48x48x150mm
• Shared parts with Goblin Raw500 for convenience

Included

• (1) ILGoblin Pro 520 Helicopter Kit
• (2) 520mm SAB Main Blades (Orange)
• (2) 82mm SAB Tail Blades (Orange)
• (1) IL Goblin Scheme Canopy and Tail Boom
• (1) 17T Motor Pulley

Specifications

• Weight (No Electronics/Blades): 66.8oz (1894g)
• Main Rotor Diameter: 48.03in (1220mm)
• Tail Rotor Diameter: 8.74in (222mm)
• Power Type: Electric
• Completion Level: Kit

Needed to Complete

• (3) Mini Cyclic Servos
• (1) Mini Tail Servo
• (1) 6S Electronic Speed Control
• (1) 800-900kV Brushless Motor
• (1) Flybarless Gyro System
• (1) 6+ 2.4GHz Transmitter
• (1) 6+ 2.4GHz Matching Receiver
• (1) 6S 22.2V LiPo Battery 3300-4500mAh
• Misc. Building Tools (Outlined in the manual)

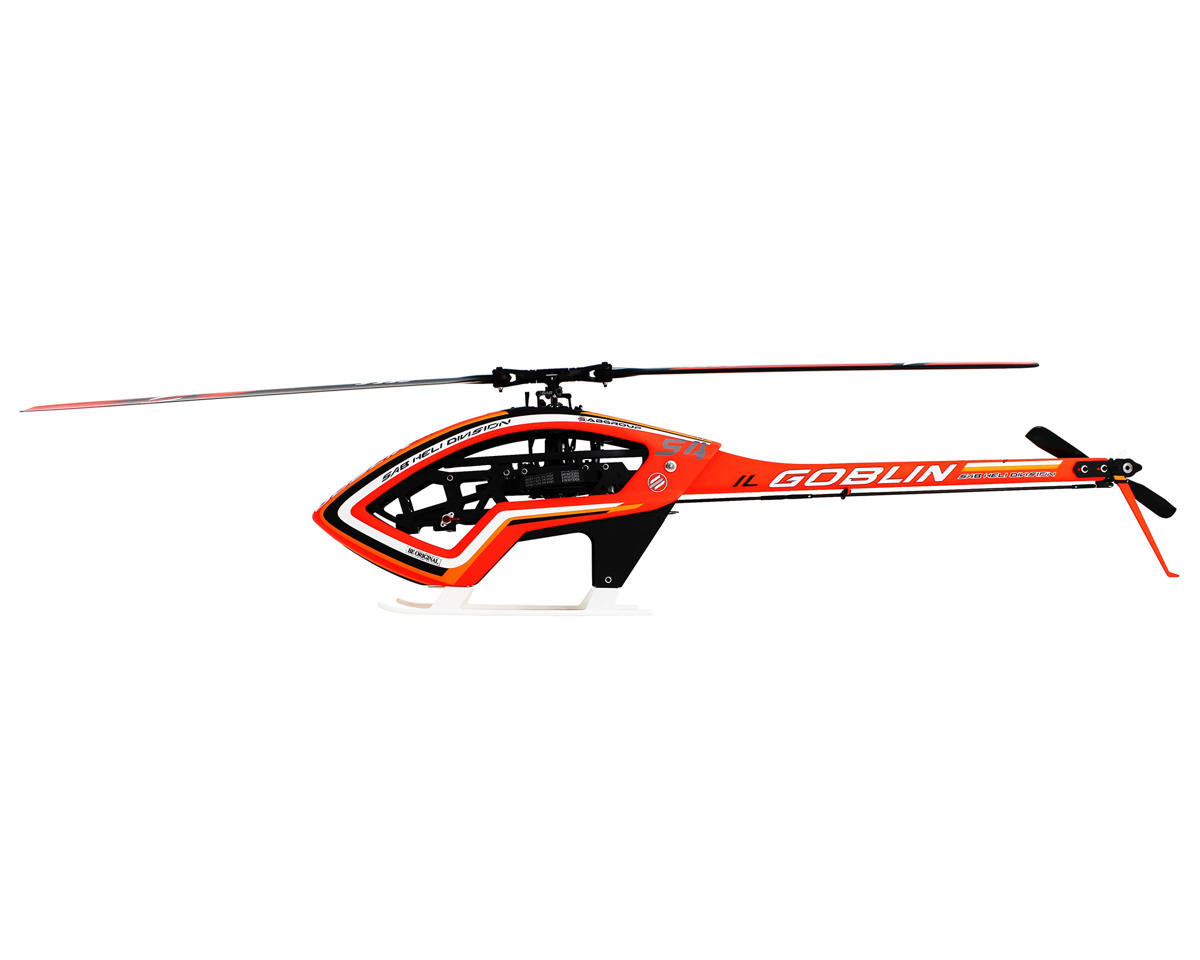

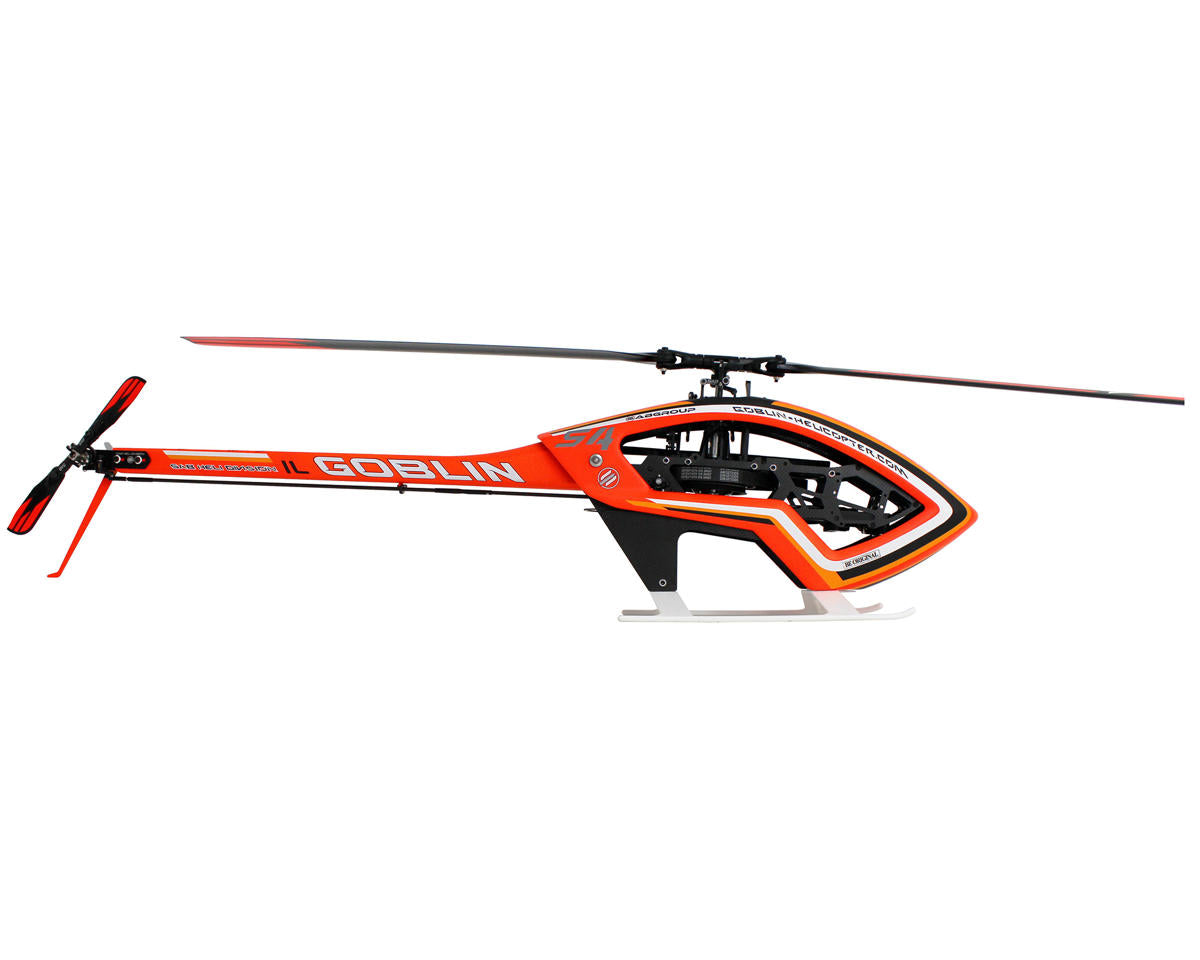

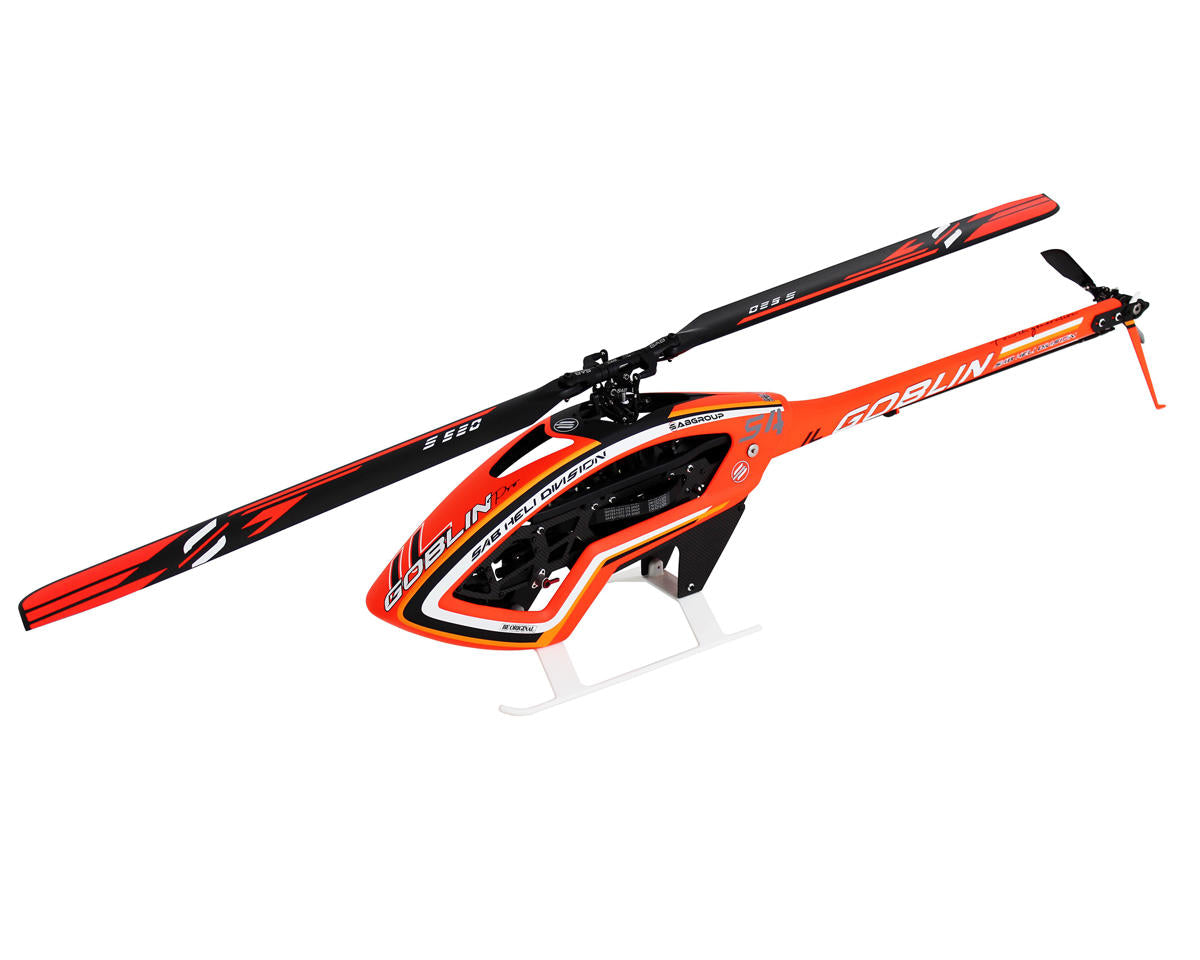

Finished kit shown in photos is for illustrative purposes only. This helicopter kit is intended for experienced RC heli fliers and requires skill and experience to assemble, set up, and fly. This heli is not a toy.
