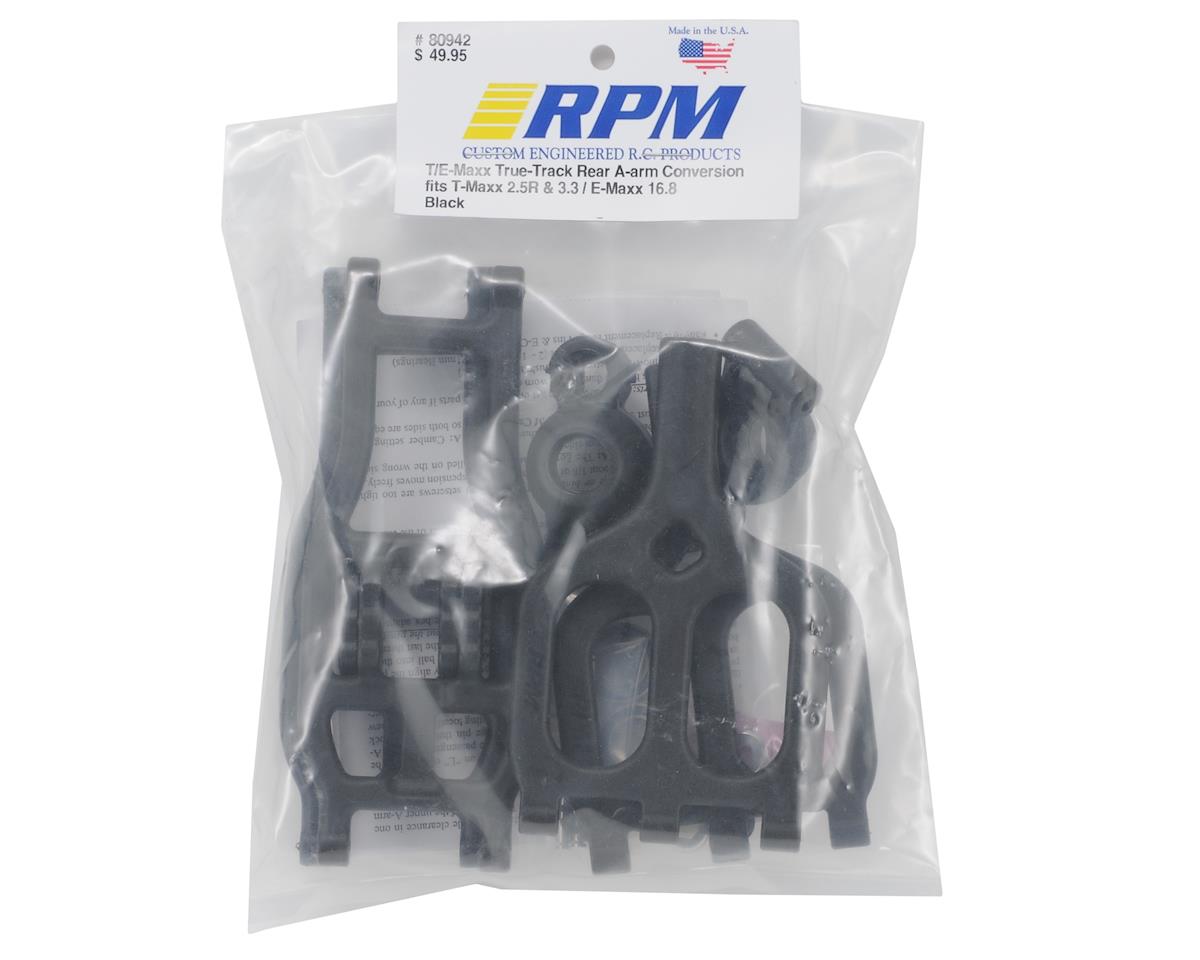

RPM True-Track Rear A-Arm Conversion for Traxxas T-Maxx/E-Maxx (Black)

The RPM True-Track Rear A-Arm Conversion is designed for Traxxas T-Maxx and E-Maxx monster trucks. It replaces the rear toe links with a fixed rear suspension setup, locking the rear toe angle at negative 1.5 degrees per side for a total rear toe of negative 3 degrees (of Toe-In).

Features

• Eliminates the rear toe link and rear bump steer.
• Retains the stock upper pivot ball in the RPM axle carrier for camber adjustments.
• Uses a 4mm diameter tool steel hinge pin in place of the lower pivot ball.
• Retains stock suspension geometry.
• Includes oversized bearings that are 3mm larger in diameter than stock, providing 2mm more bearing contact with the axle.
• Designed for rugged durability and slop free movement throughout the suspension's range of travel.

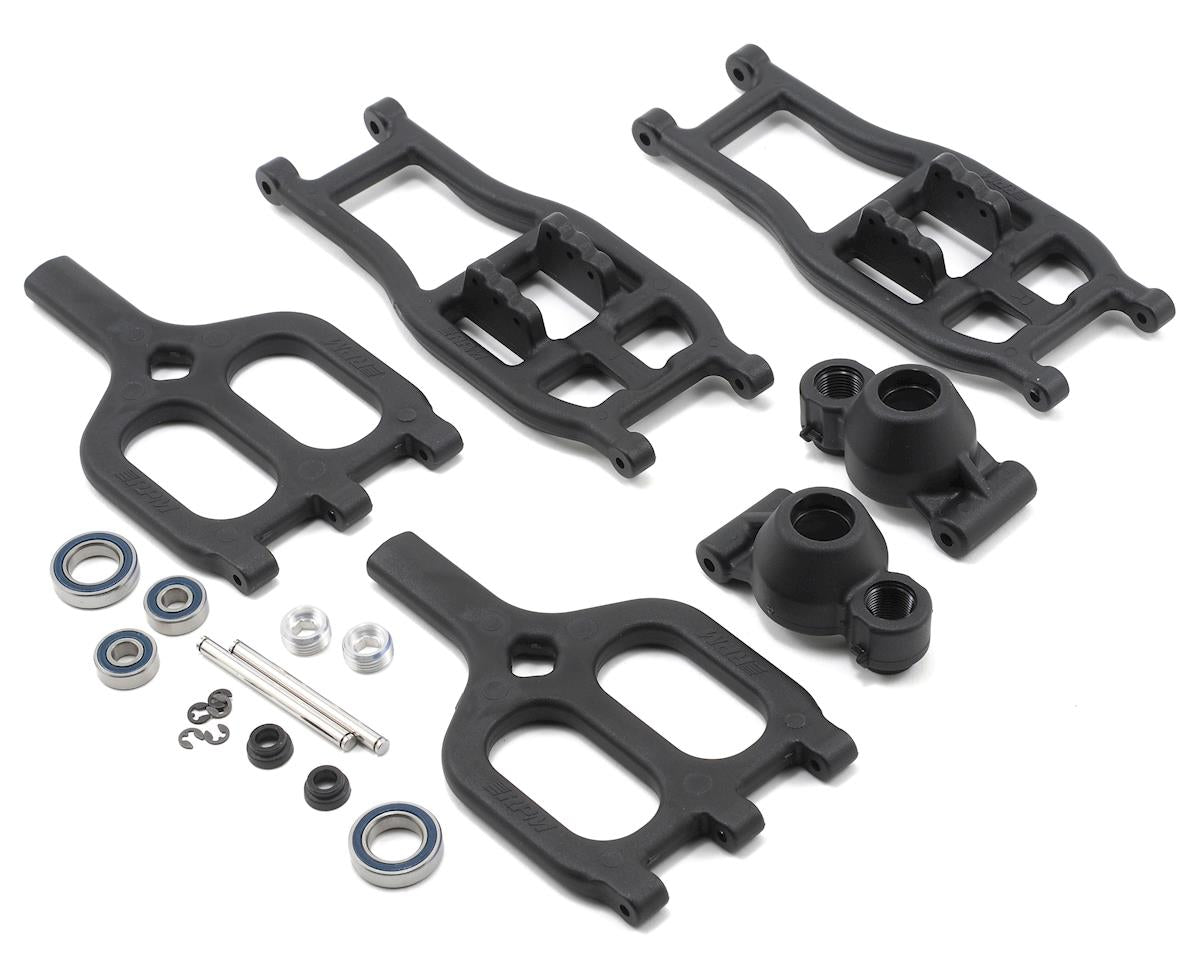

Included

• Two upper rear A-arms
• Two lower rear A-arms
• Two rear axle carriers
• Two outer 6x15mm sealed bearings
• Two inner 12x21mm sealed bearings
• Two aluminum pivot ball setscrews
• Two delrin pivot ball bushing cups
• Two 4mm diameter tool steel hinge pins
• Enough e-clips to complete the installation, with 4 minimum
