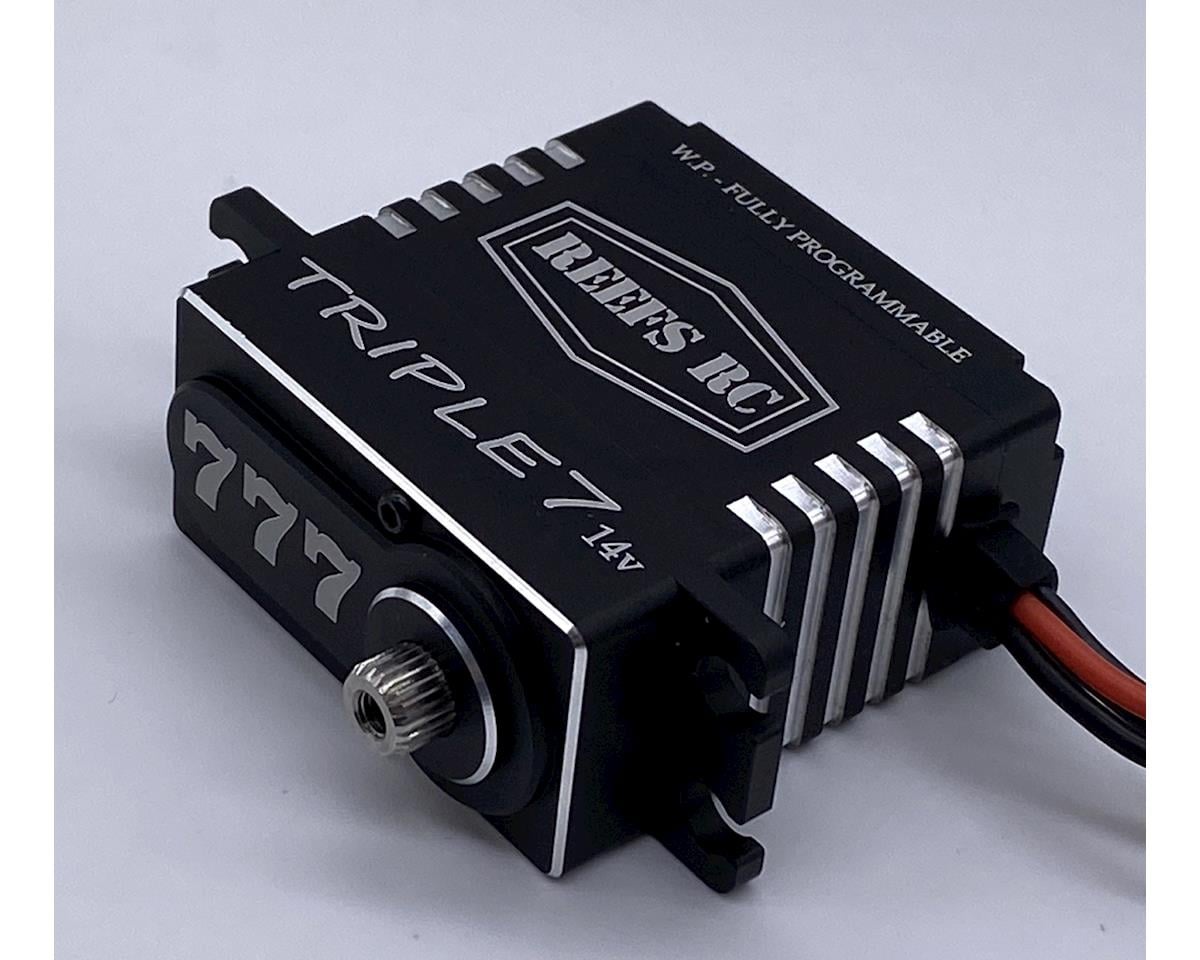

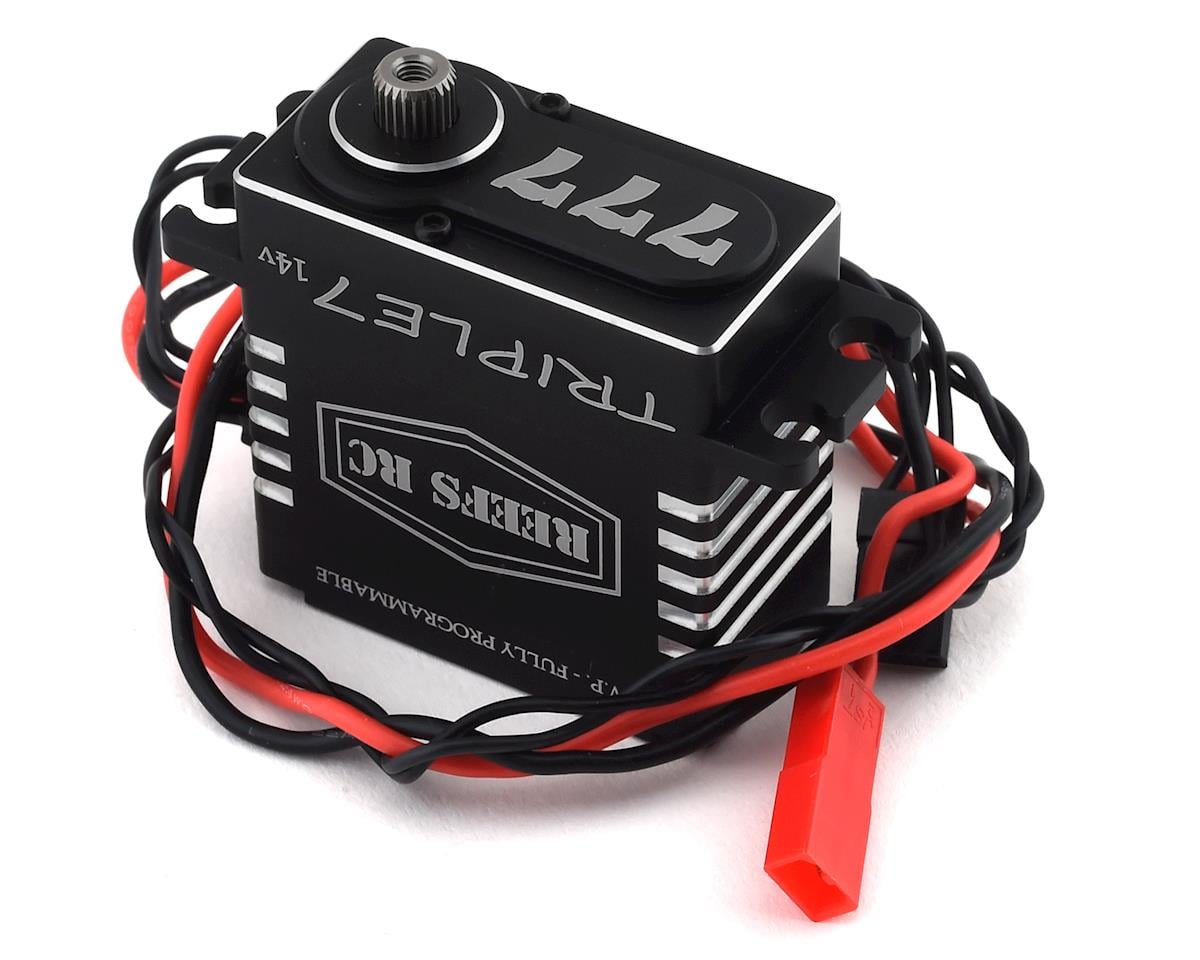

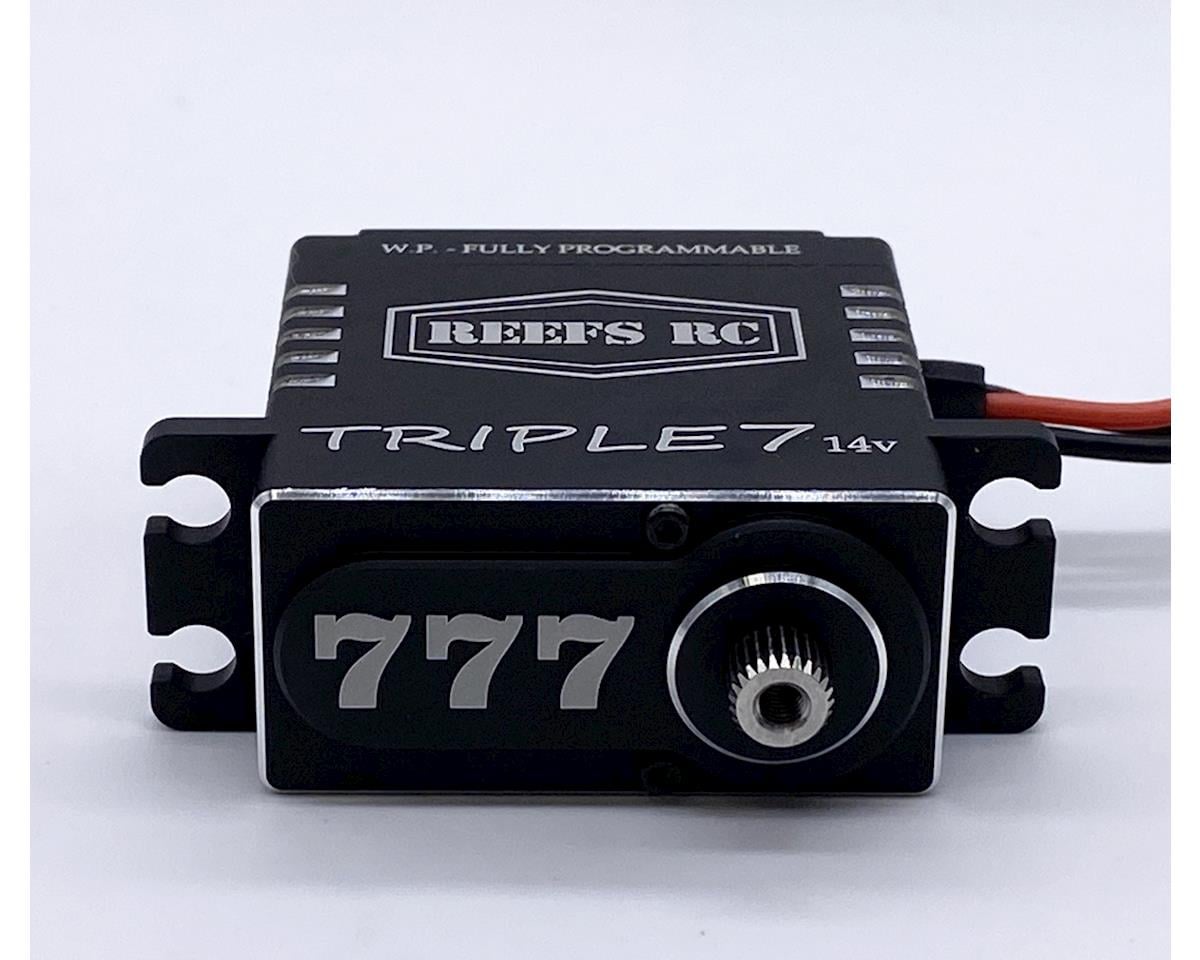

Reefs RC Triple7 14V Programable High Torque Steel Gear Digital Servo

The Reefs RC Triple7 14V Programmable High Torque Steel Gear Digital Servo combines a brushless motor, steel gears and an all-CNC aluminum casing for high torque and high-speed operation. It is fully programmable through REEFS Software using the REEFS LINK USB link, allowing adjustment of output power, servo angle, sensitivity and inversion.

Features

• Input voltage: 10V - 14V
• High torque, high speed brushless servo
• Submarine waterproof with 7 point seals
• Magnetic angle sensor
• Pulse width modulation control
• 25T spline
• Steel gears and all CNC aluminum casing
• 3 ball bearings

Specifications

• Weight: 3.12oz
• Dimensions: 1.57 x .78 x 1.63 (LWH)
• Torque: 666oz @11.1v / 700oz @12.0v / 777oz @14v
• Speed: .10sec @11.1v / .09sec @12.0v / .08sec @14v

Important Notes

• REEFS LINK (SEHREEFS64) is required for programming and is not included.
• A LiPo-Servo Connector is required. Available connectors SEHREEFS61, SEHREEFS62 and SEHREEFS63 are not included.
• Do not use over 14v. Using more than 14v will void the warranty.

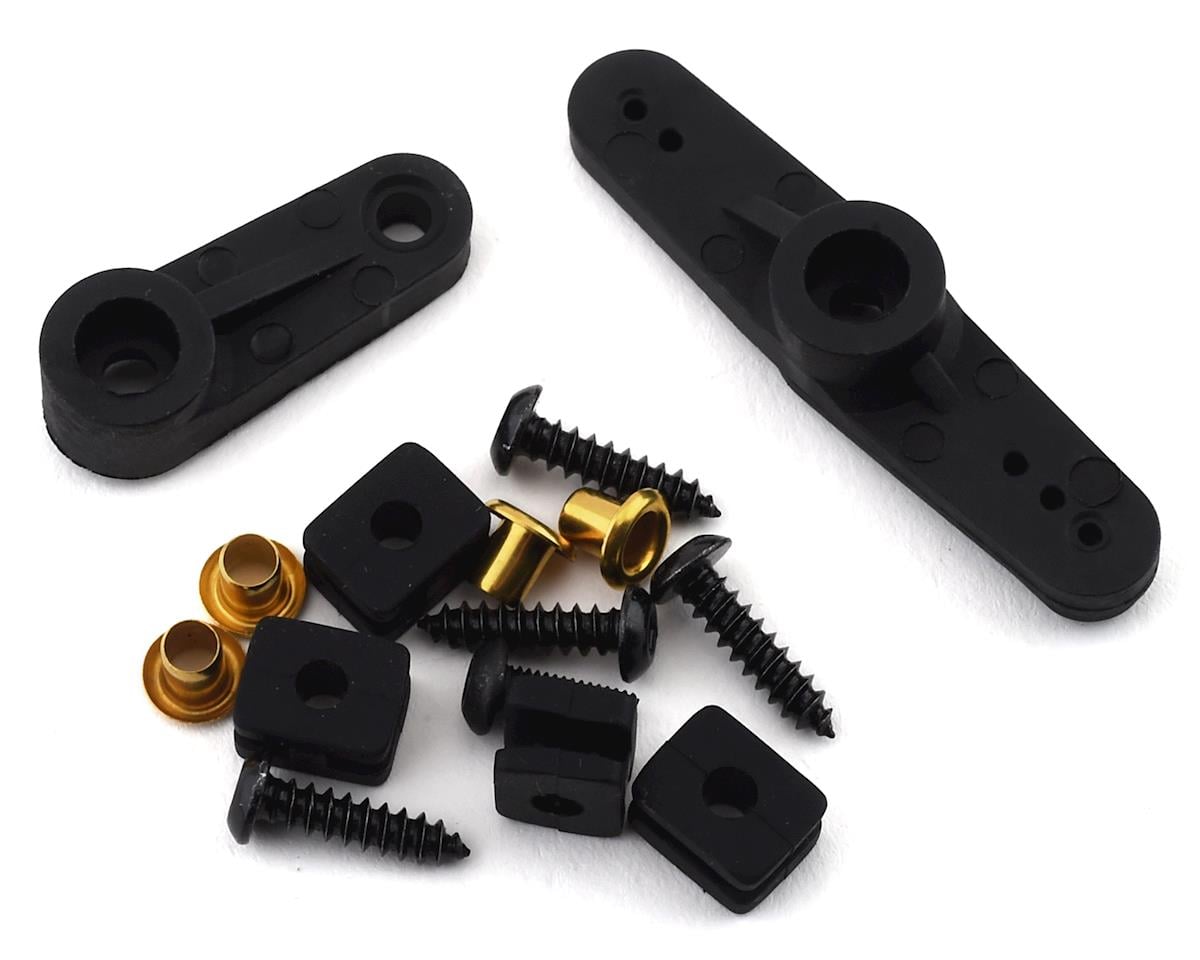

• An 8mm screw is required for the horn.
• Do not leave the servo plugged into the battery when the RC is not operating. Turn the RC car off first, then the remote.
