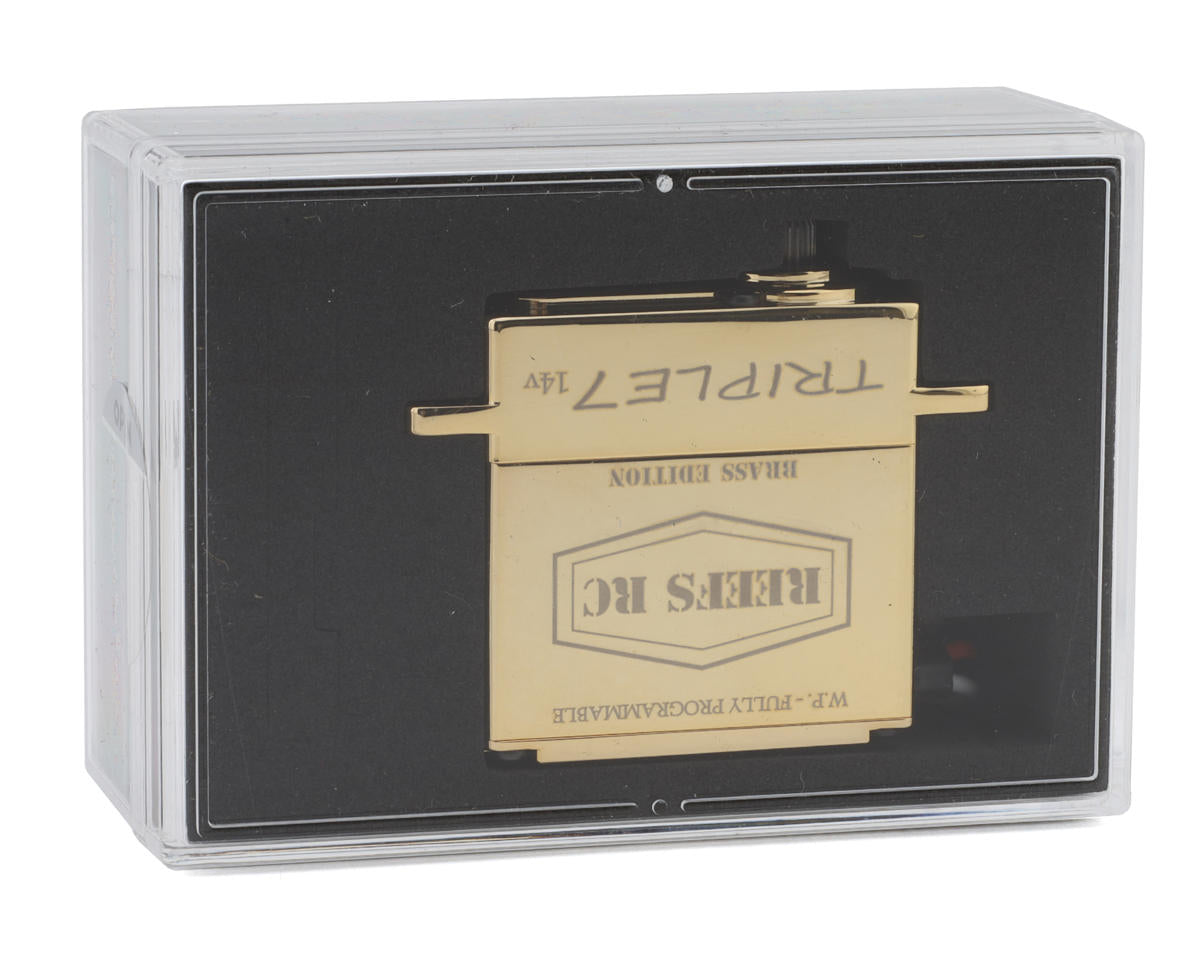

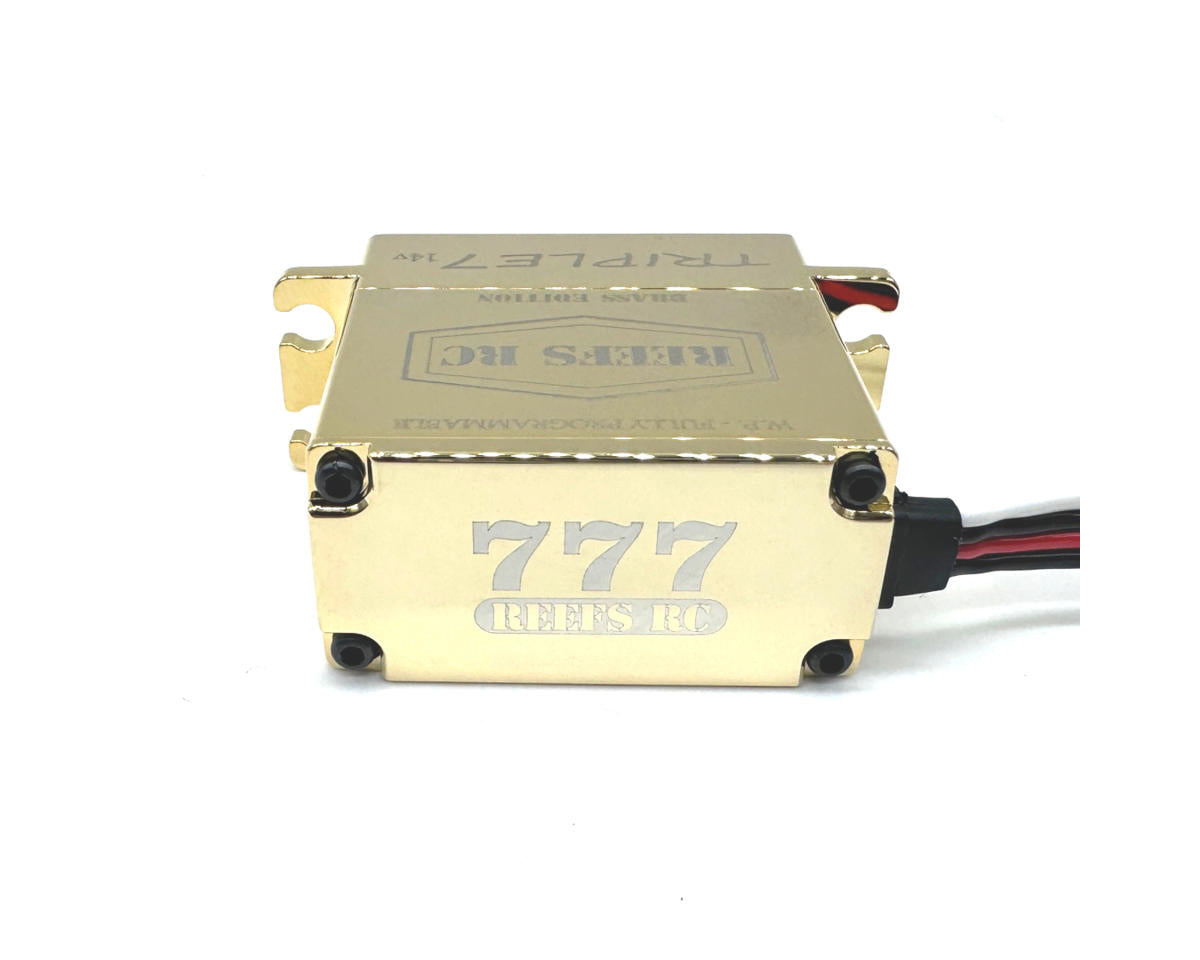

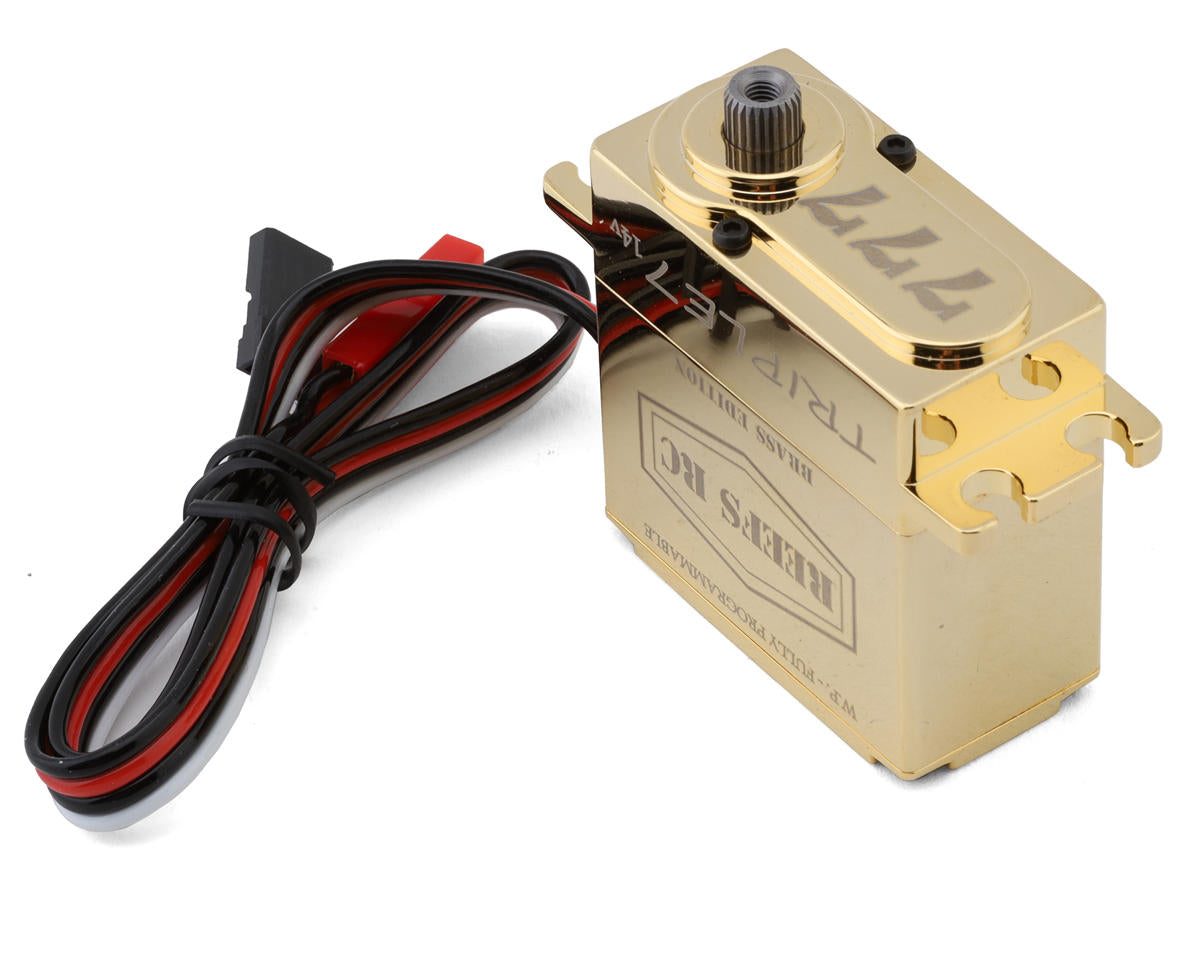

Reefs RC Triple7 14V Programable High Torque Steel Gear Digital Servo

The Reefs RC Triple7 14V Programmable High Torque Steel Gear Digital Servo features a powerful brushless motor, CNC brass casing with an "ULTRA" finish, and a magnetic angle sensor. Its "Submarine Waterproof" design uses 7 point seals, while Pulse Width Modulation control supports precise operation.

The servo is fully programmable with REEFS Software; REEFS LINK is required. It uses a 25T spline and operates from 10-14V.

Features

• Powerful brushless motor
• "Submarine Waterproof" with 7 point seals
• Magnetic angle sensor
• Pulse Width Modulation control
• CNC Brass Casing with "ULTRA" finish
• Fully Programmable with REEFS Software (REEFS LINK required)

Specifications

• Speed @11.1V: 0.10sec/60°
• Speed @12.0V: 0.09sec/60°
• Speed @14.0V: 0.08sec/60°
• Torque @11.1V: 666oz-in (47.96kg-cm)
• Torque @12.0V: 700.0oz-in (50.41kg-cm)
• Torque @14.0V: 777.0oz-in (55.95kg-cm)
• Dimensions: 1.57x0.78x1.63in (40.8x20.2x29.5mm)
• Weight: 5.65oz (160g)
• Operating Voltage: 10-14V
• Spline: 25T
• Waterproof: Yes

Includes

• (1) Triple7 14V Programable High Torque Steel Gear Digital Servo (High Voltage)(Brass Edition)

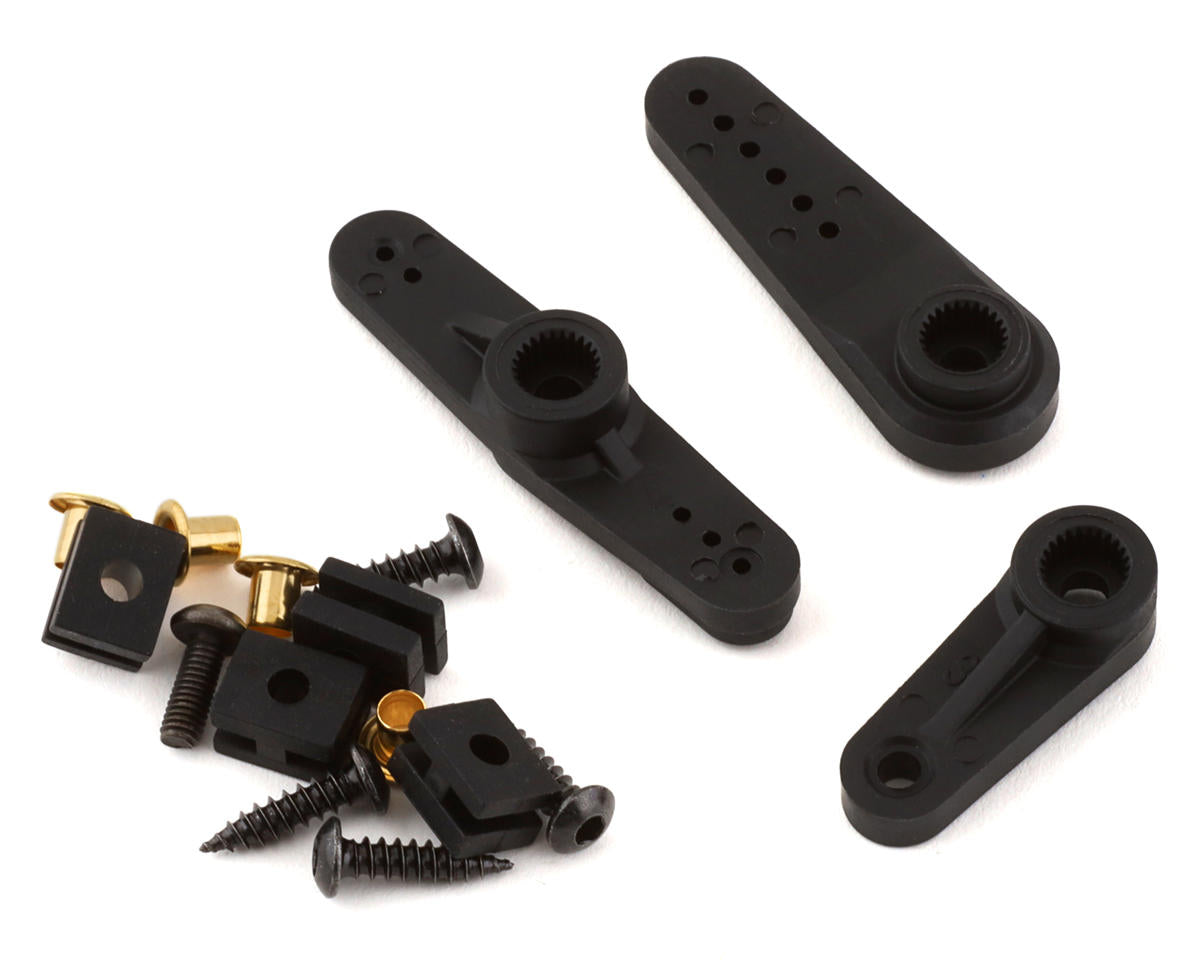

• Assorted Servo Horns and Mounting Hardware
