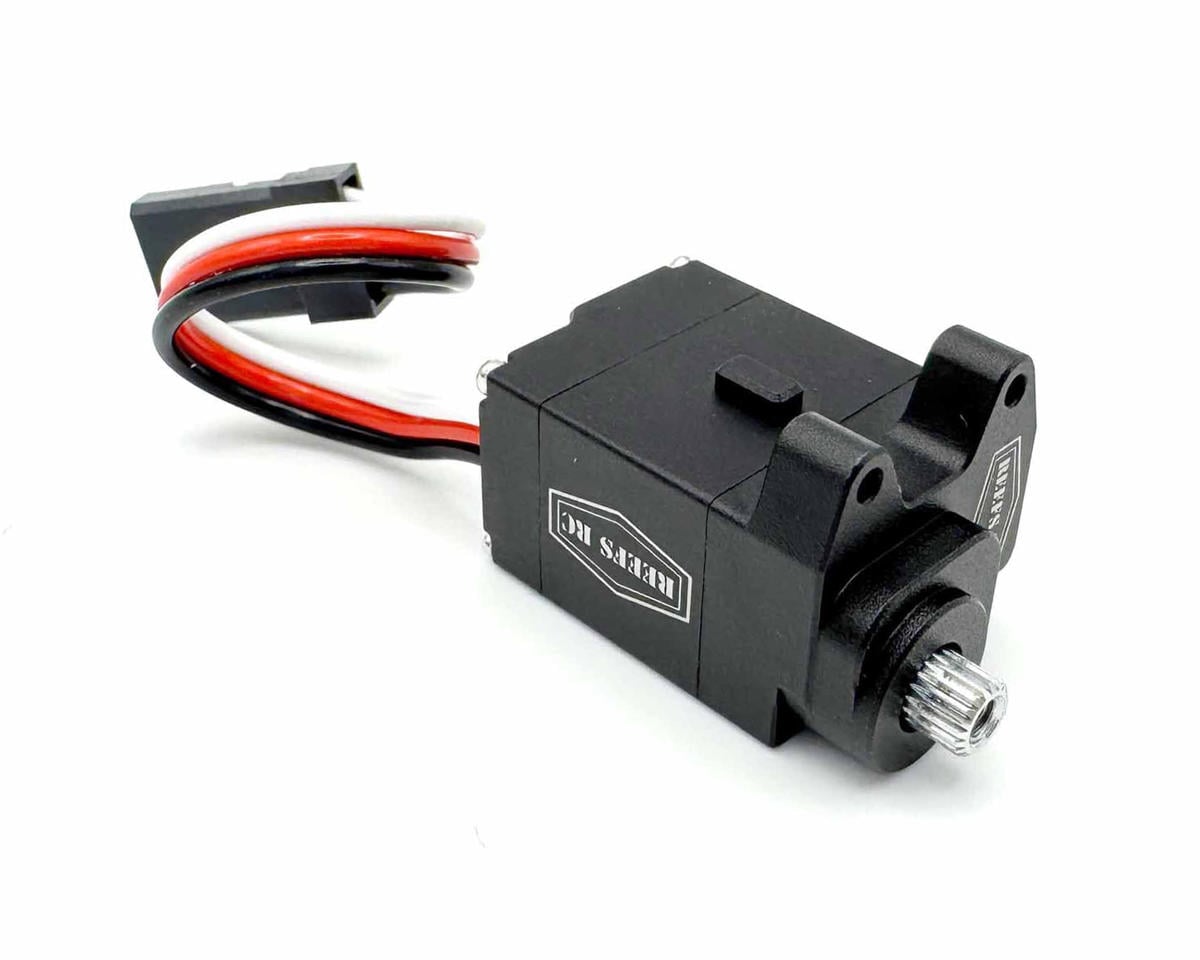

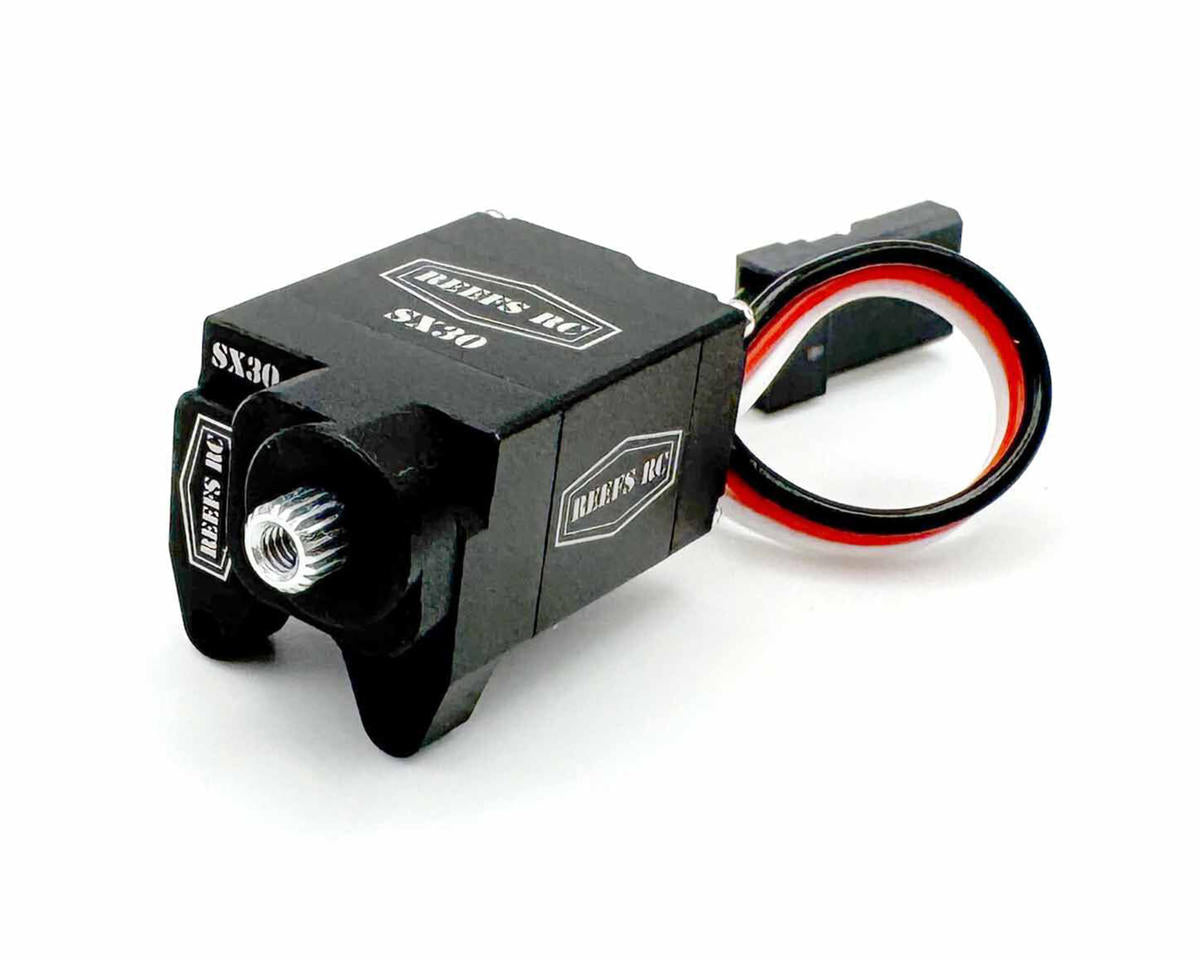

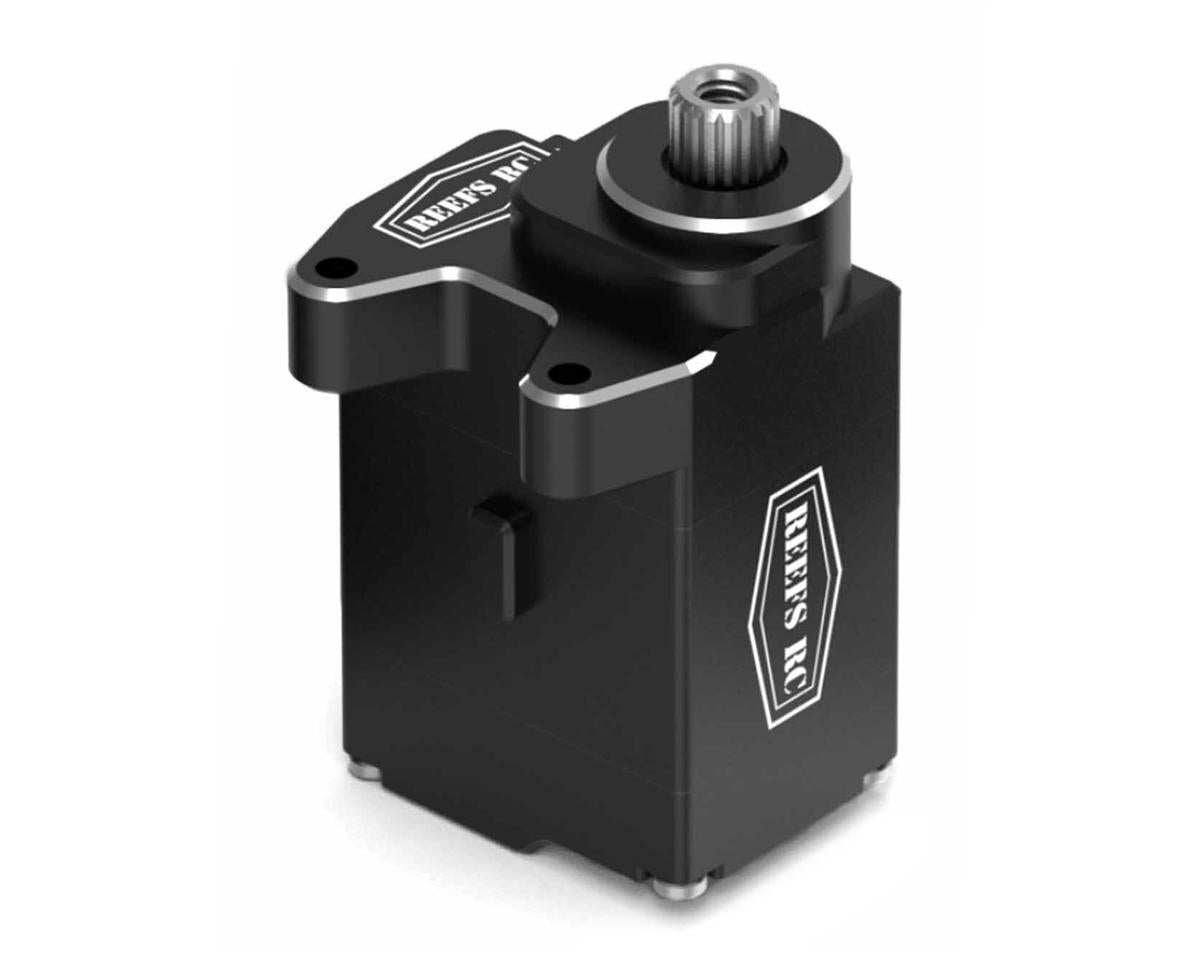

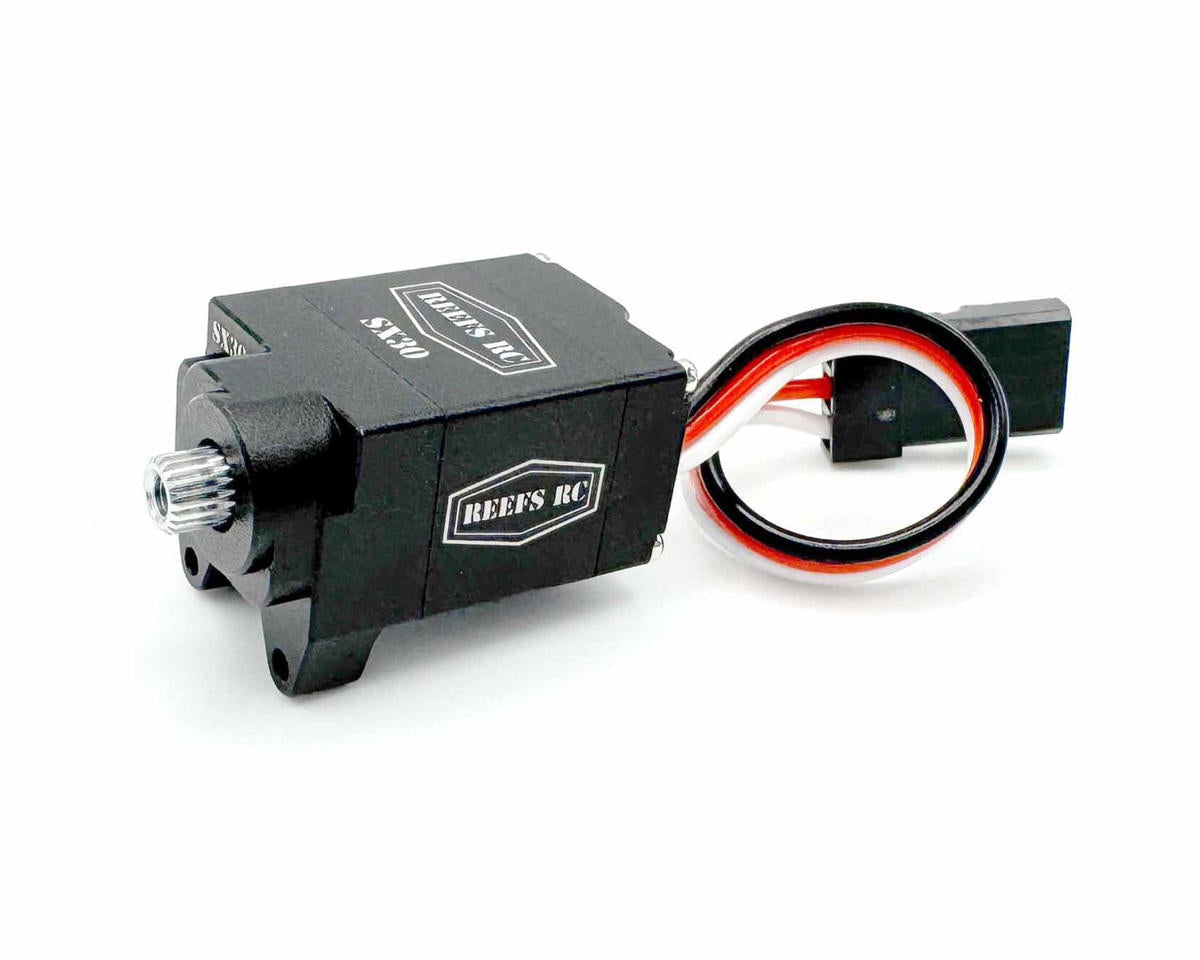

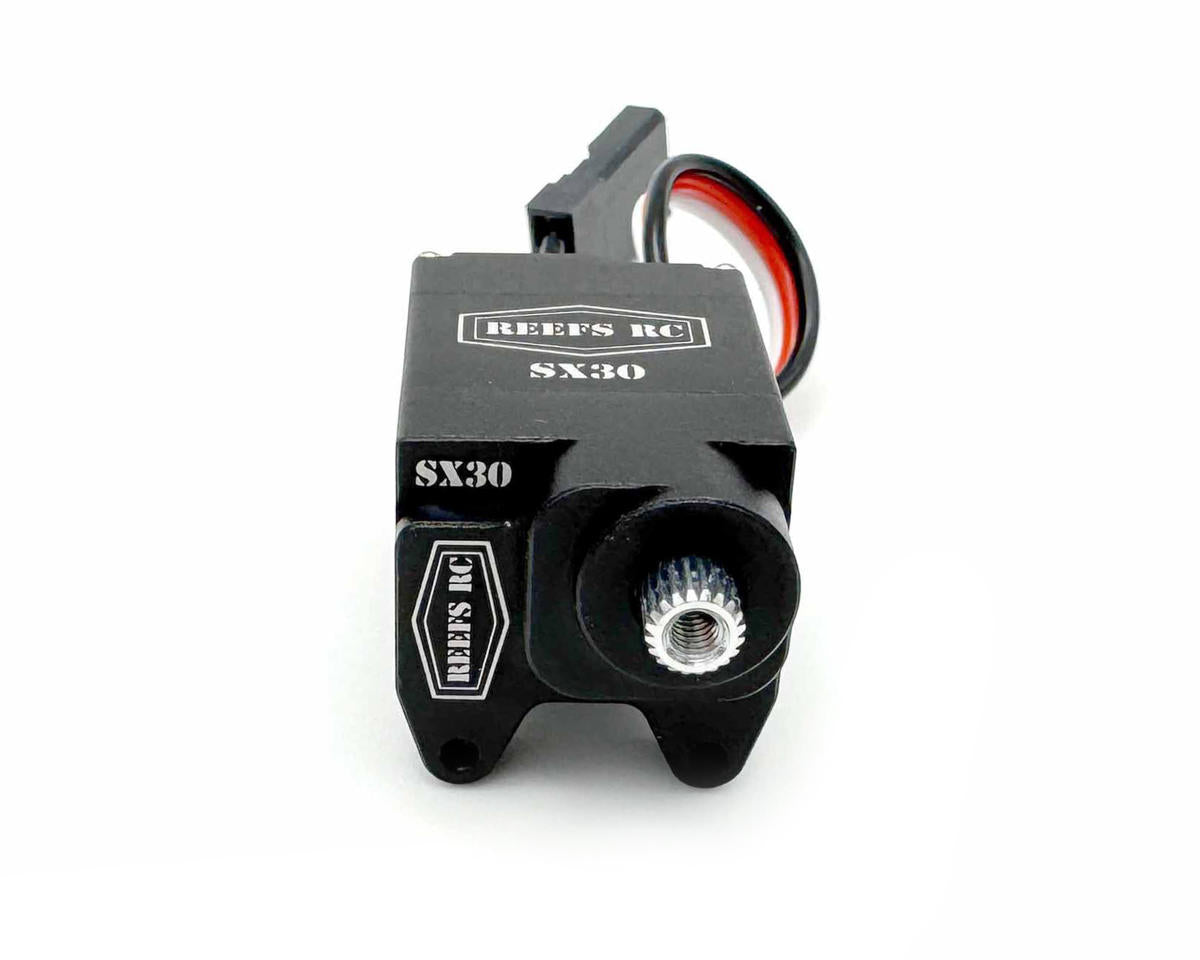

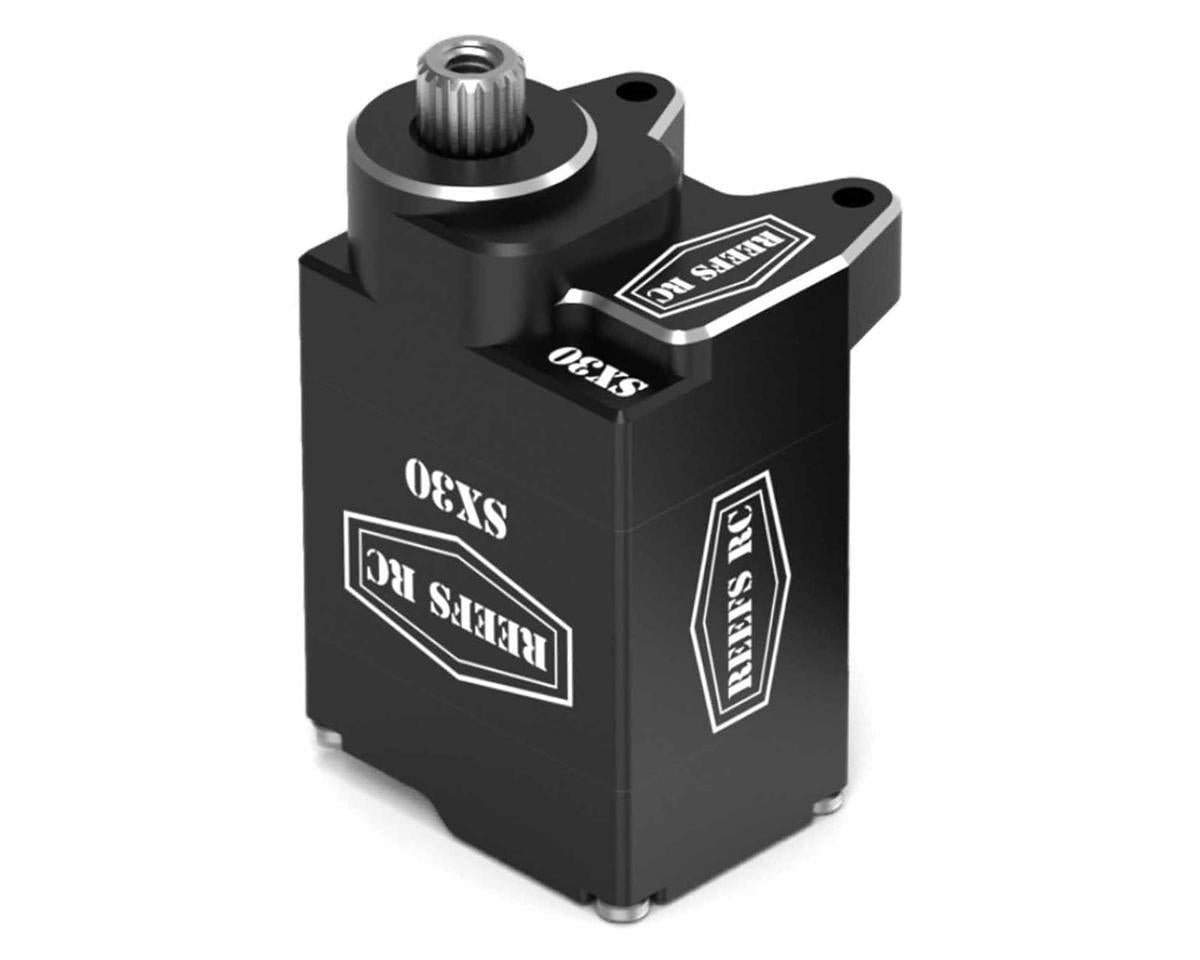

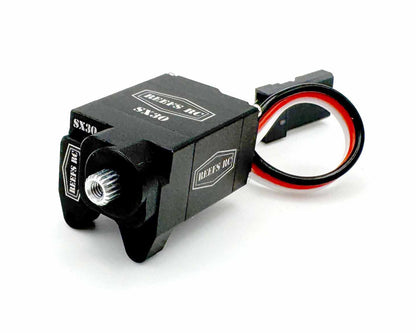

Reefs RC SX30 High Torque Metal Gear Sub Micro Servo (High Voltage)

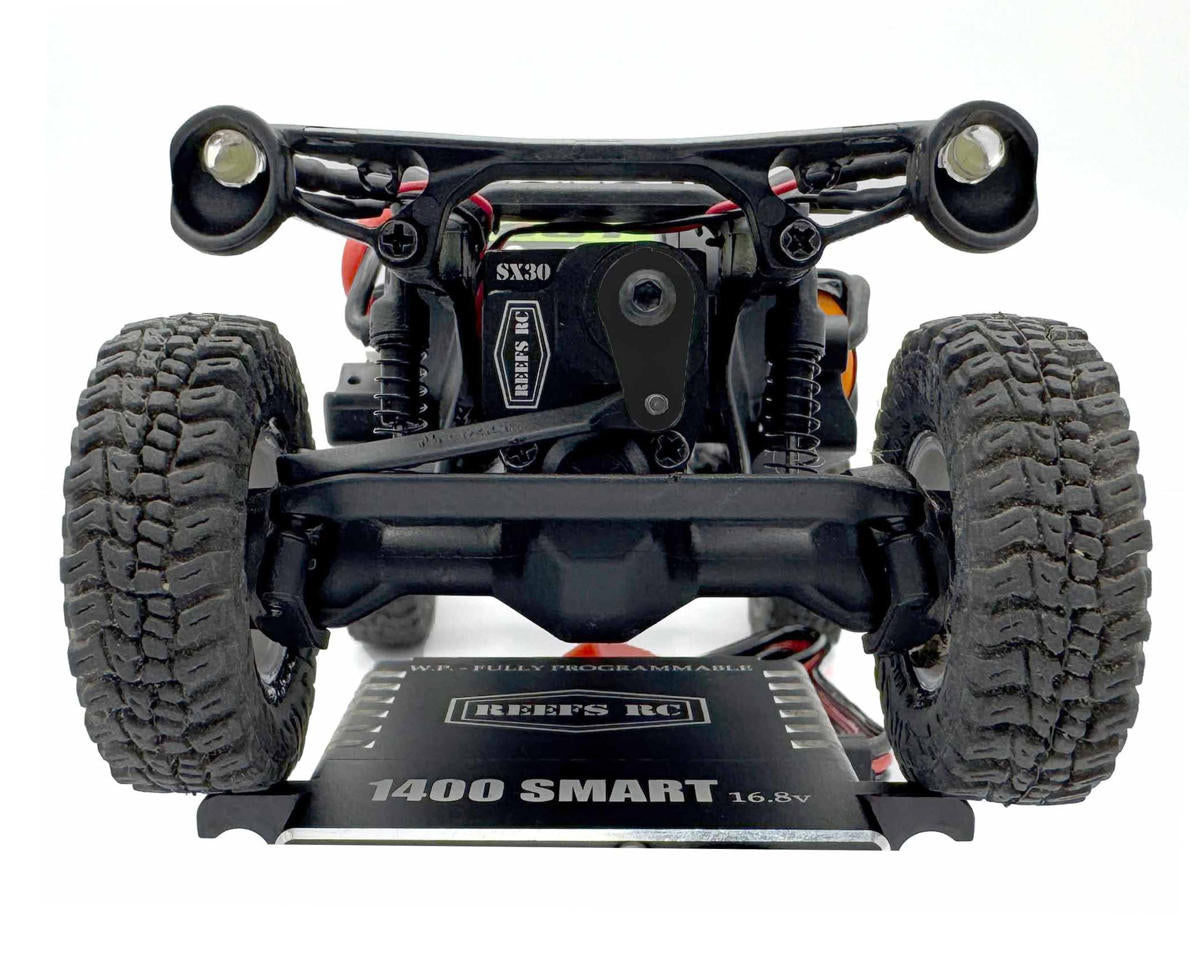

The Reefs RC SX30 is a high-torque, high-voltage sub micro servo designed as a direct drop-in fit for the Axial SCX30. It features an all-metal geartrain, machined aluminum case, pulse width modulation control, and SMART chip technology.

With 35oz-in of dynamic torque at 6.0V and added low front-end weight, the SX30 provides a durable steering upgrade for SCX30 applications. It can also be programmed with the optional REEFS LINK V2.

Features

• Direct drop-in fit for Axial SCX30
• 35oz-in torque at 6V
• All-metal gear construction
• Machined aluminum servo case
• Added low front-end weight
• Pulse width modulation control
• SMART chip technology
• Programmable with optional REEFS LINK V2

Specifications

• Application: SCX30
• Input Voltage: 6.0-8.4V
• Operating Speed @ 6.0V: 0.075sec/60°
• Operating Speed @ 7.4V: 0.066sec/60°
• Operating Speed @ 8.4V: 0.06sec/60°
• Dynamic Torque @ 6.0V: 35oz-in (2.5kg-cm)
• Dynamic Torque @ 7.4V: 39oz-in (2.8kg-cm)
• Dynamic Torque @ 8.4V: 42oz-in (3.0kg-cm)
• Pulse/Frequency: -
• Motor Type: -
• Output Shaft Spline: 20T (4.0mm)
• Gear Material: Metal
• Dimensions: 0.96x0.6x0.44in (24.4x15.2x11.1mm)
• Weight: 0.29oz (8.2g)

Includes

• (1) SX30 Sub Micro Servo
• (3) Black Nylon Servo Arms (Different Lengths)
