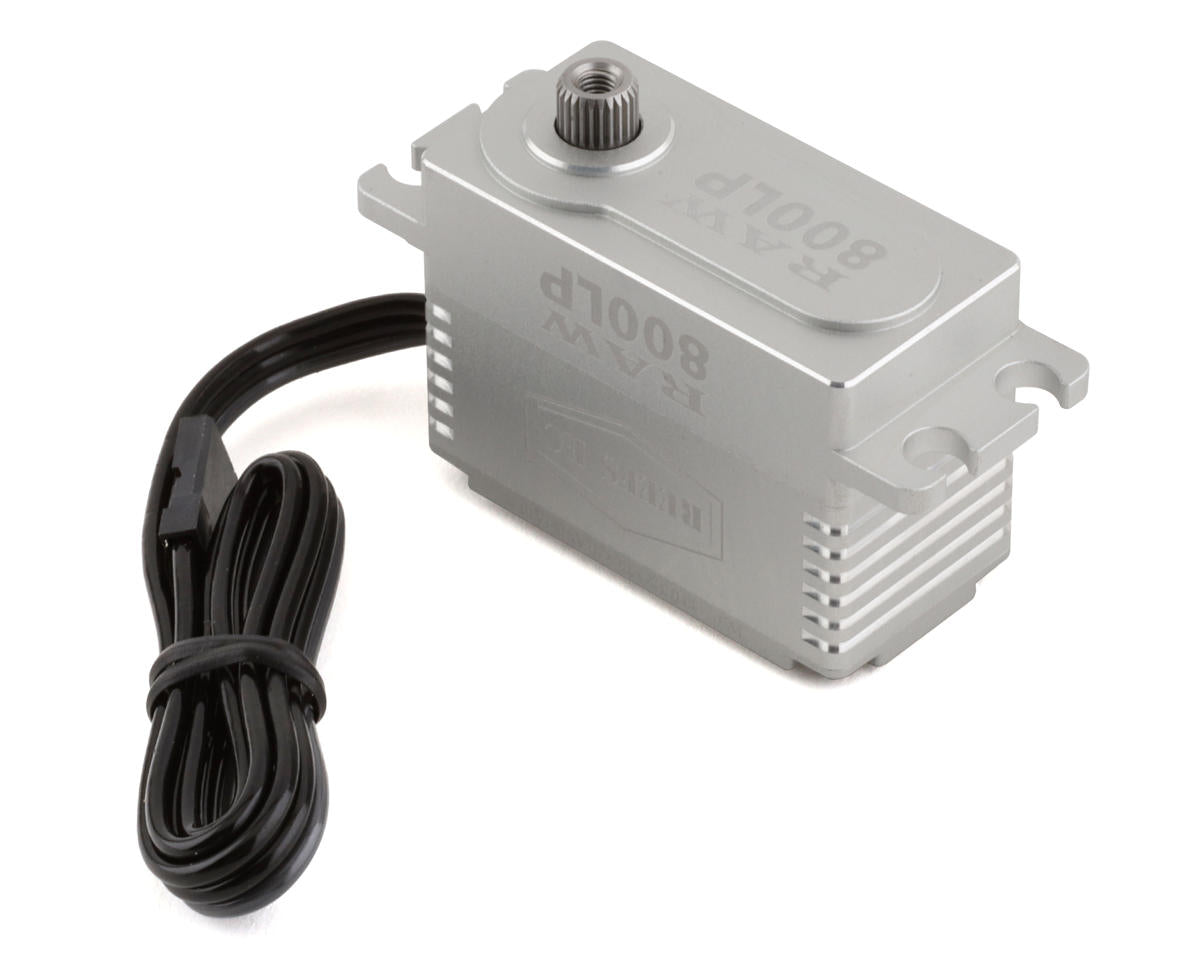

Reefs RC "RAW800LP." Digital Waterproof Brushless Servo (Silver) (High Voltage)

The Reefs RC “RAW800LP.” is a high-voltage digital waterproof brushless servo for high-torque applications. Its 7-point seal system supports waterproof operation, while the magnetic angle sensor provides precise servo movement through repeated cycles.

A CNC aluminum casing surrounds the steel internal gears and helps with heat dissipation. The servo is programmable with the Reefs Link (SEHREEFS64), sold separately.

Features

• Waterproof design with 7-point seals
• Magnetic angle sensor
• CNC aluminum case
• Steel internal gears
• Programmable with the Reefs Link (SEHREEFS64 - sold separately)

Specifications

• Internal: Steel gears / CNC aluminum casing
• Bearing type: 2BB
• Weight: 2.30oz

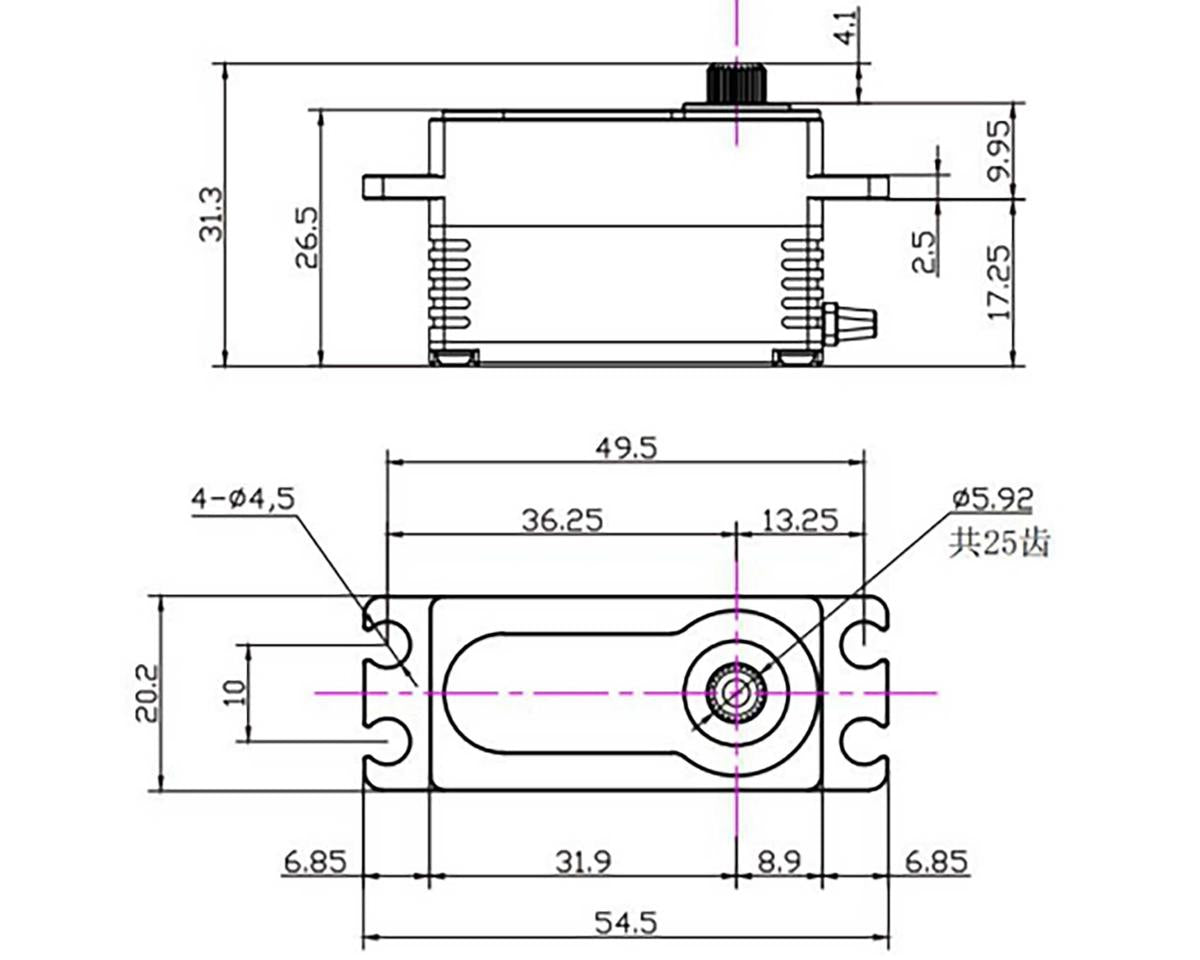

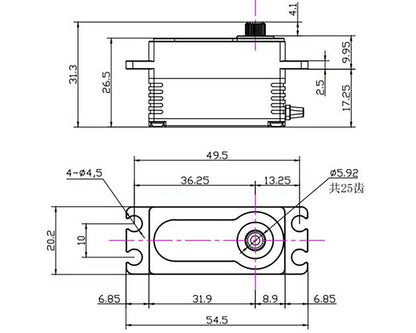

• Dimensions: 1.6 x .79 x 1.16 (40.8x20.2x29.5mm) (LWH)
• Torque: 6.0V: 635oz; 7.4V: 715oz; 8.4V: 800oz
• Speed: 6.0V: .12sec; 7.4V: .10sec; 8.4V: .09sec
• Spline: 25T
• BEC: Not Required, Recommended
