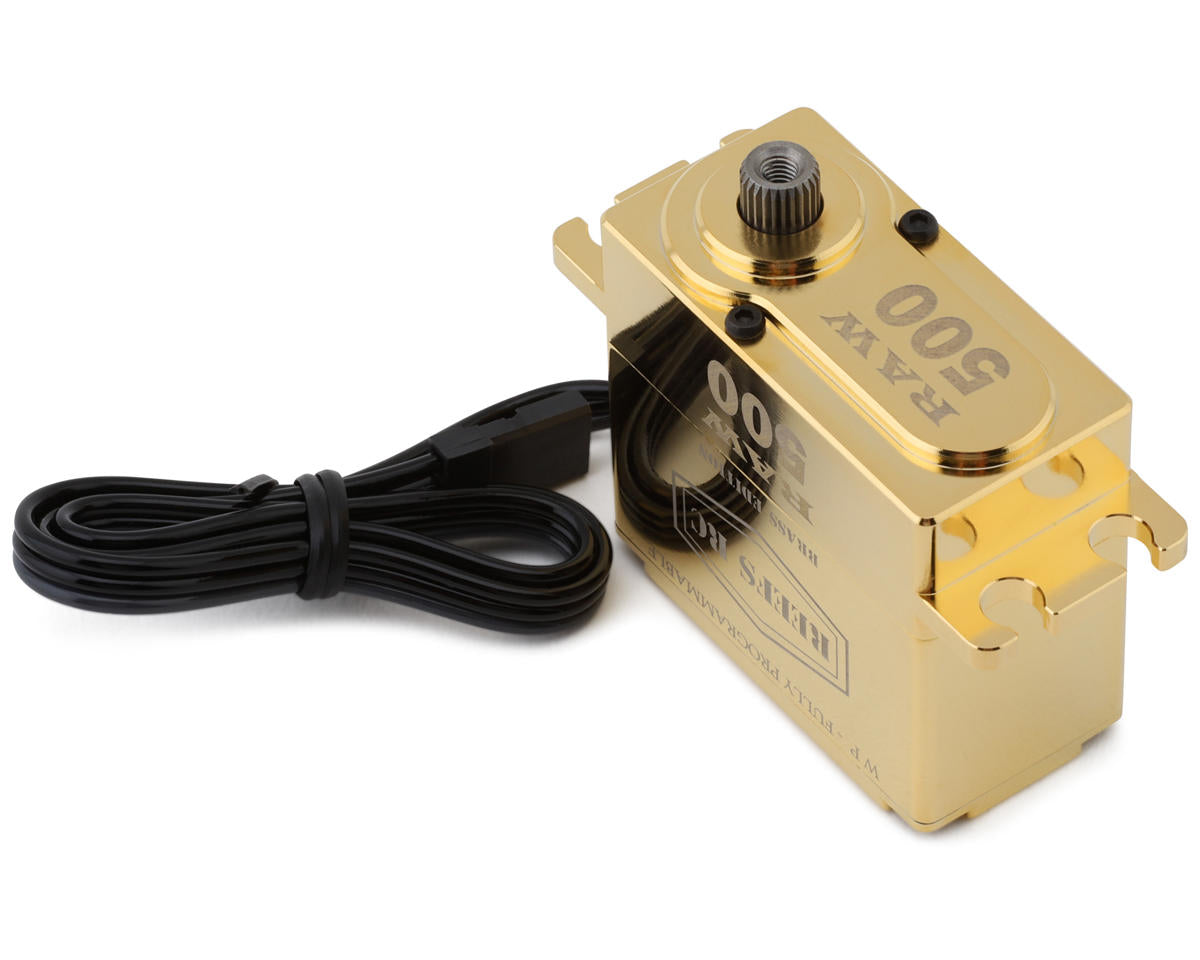

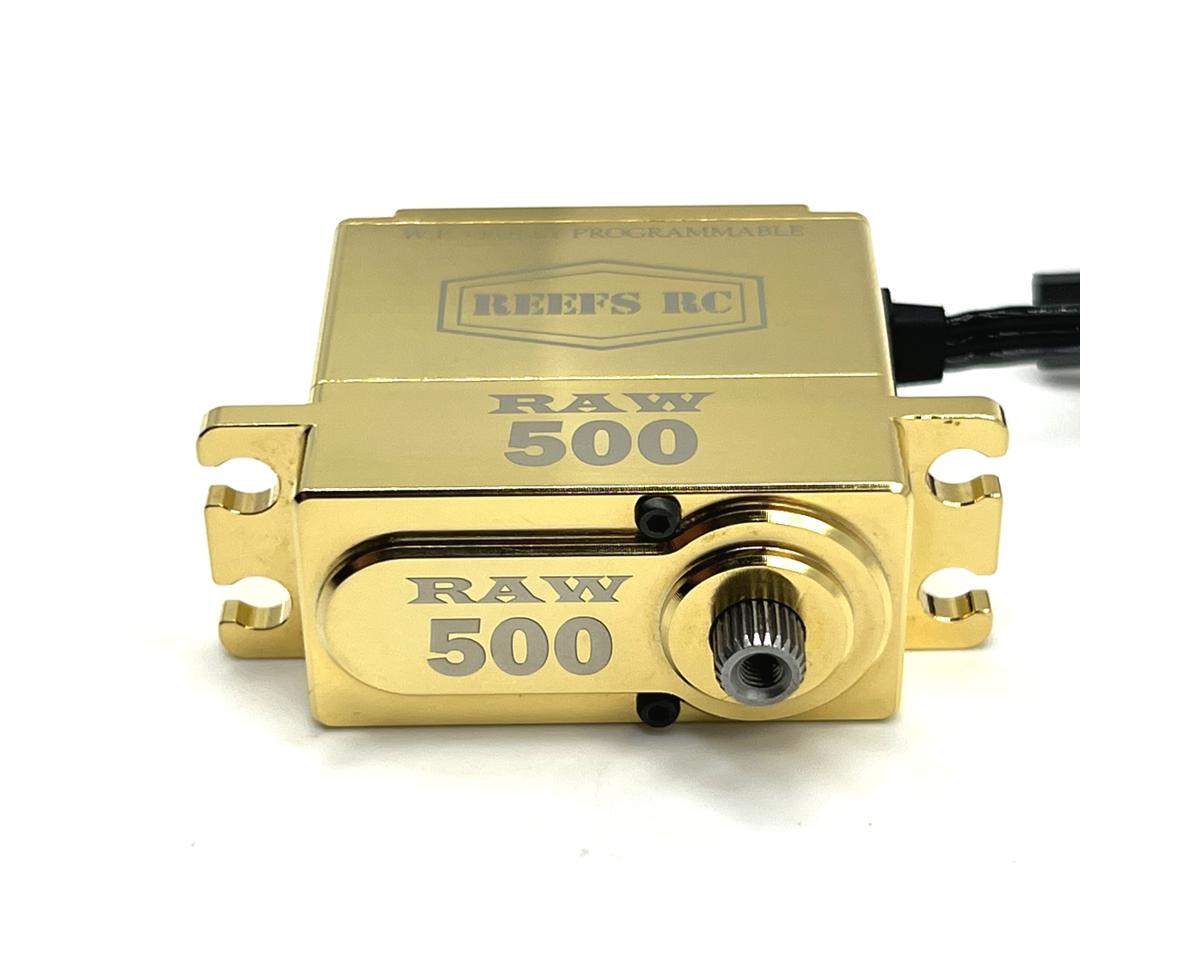

Reefs RC RAW 500 High Torque/Speed Digital Servo (High Voltage) (Brass Edition)

The Reefs RC RAW 500 is a high-torque, high-speed digital brushless servo with a heavy CNC brass casing and high-voltage operation from 5.0V-8.4V. Its 4-pole brushless motor, internal steel gears, magnetic angle sensor, and 7-point "Submarine Waterproof" sealing support demanding RC applications.

Features

• Powerful 4-pole brushless motor
• "Submarine Waterproof" with 7-point seals
• High voltage capable
• Magnetic angle sensor
• Internal steel gears
• Heavy CNC brass casing with "ULTRA" finish
• Fully programmable with REEFS Software

Specifications

• Speed: @6.0V: 0.11sec/60°; @7.4V: 0.09sec/60°; @8.4V: 0.08sec/60°
• Torque: @6.0V: 450oz-in (32.4kg-cm); @7.4V: 500oz-in (36kg-cm); @8.4V: 565oz-in (40.7kg-cm)
• Motor: Brushless
• Operating Voltage: 5.0V-8.4V
• Dimensions (LxWxH): 1.57x.79x1.5in (39.87x20.06x38.1mm)
• Weight: 5.2oz (145.2g)
• Operating Spline: 25T

Includes

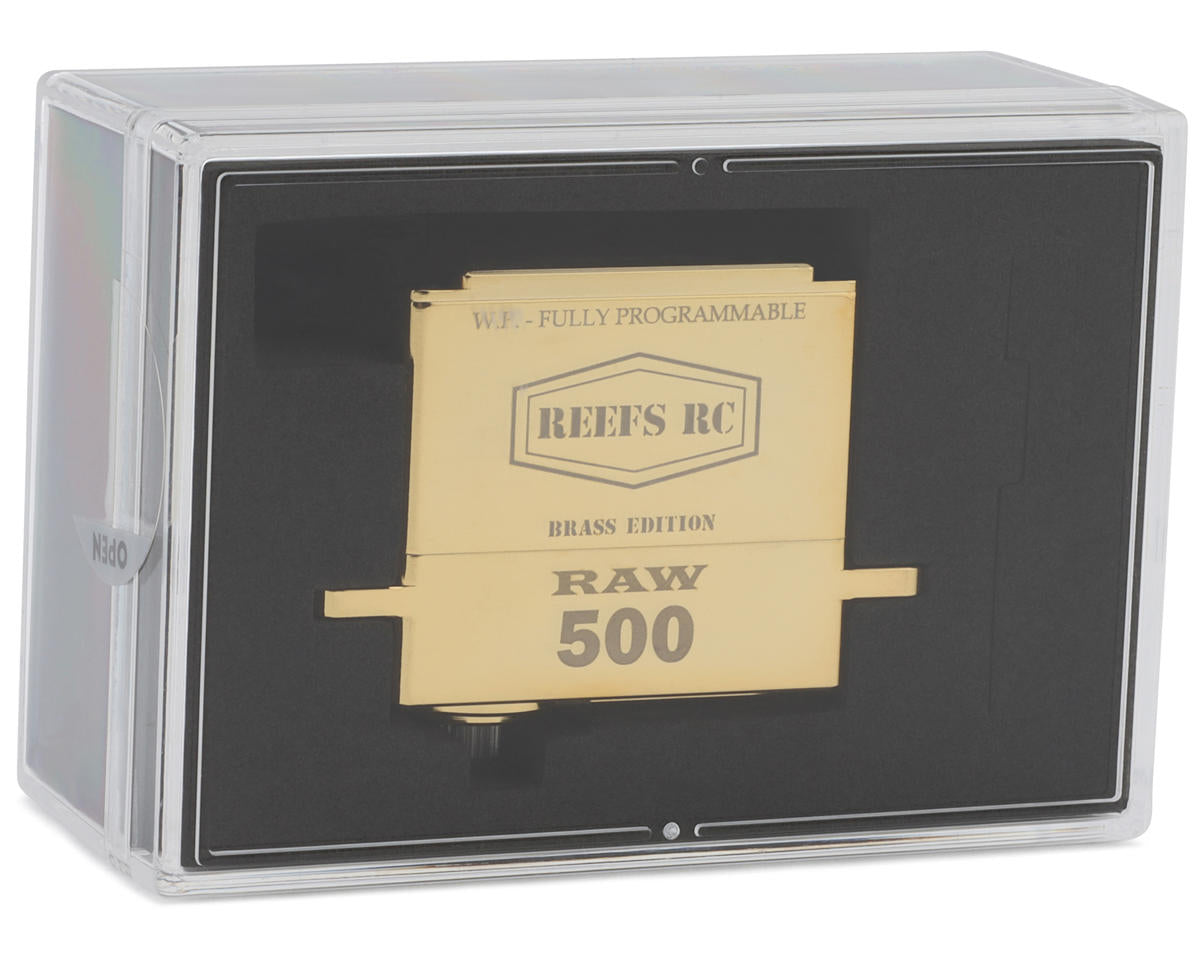

• (1) RAW500 Digital Waterproof Brushless Brass Servo

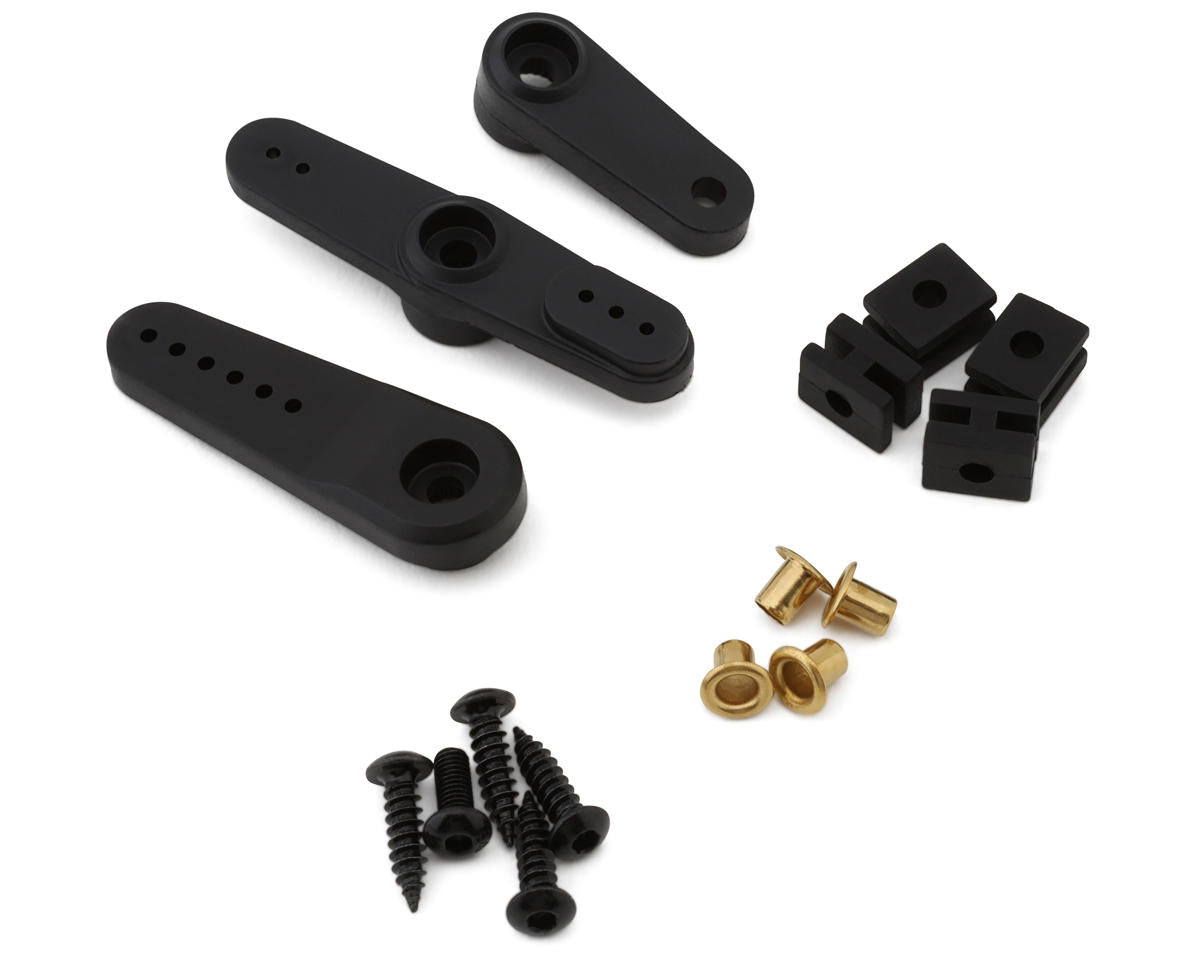

• Assorted Servo Horns and Mounting Hardware
