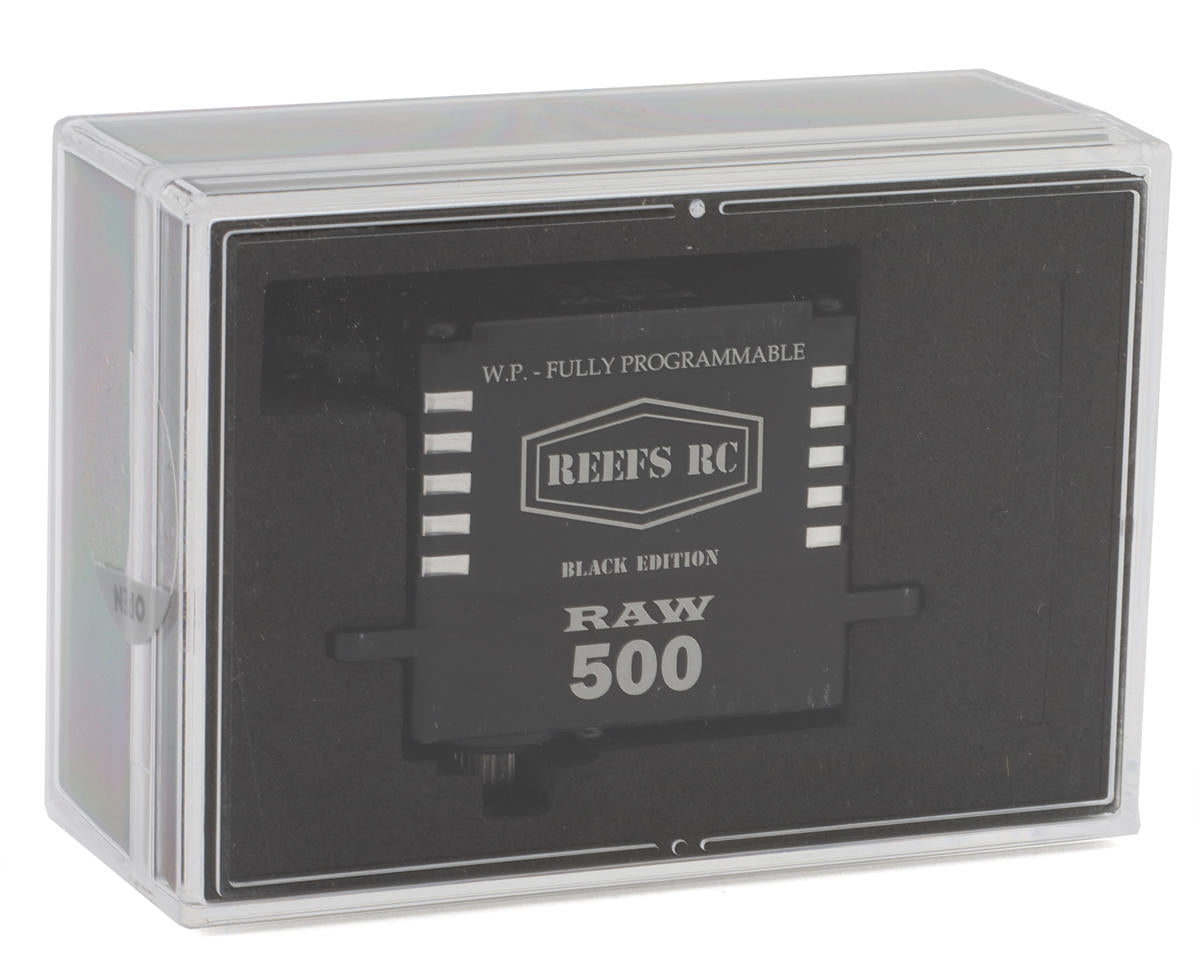

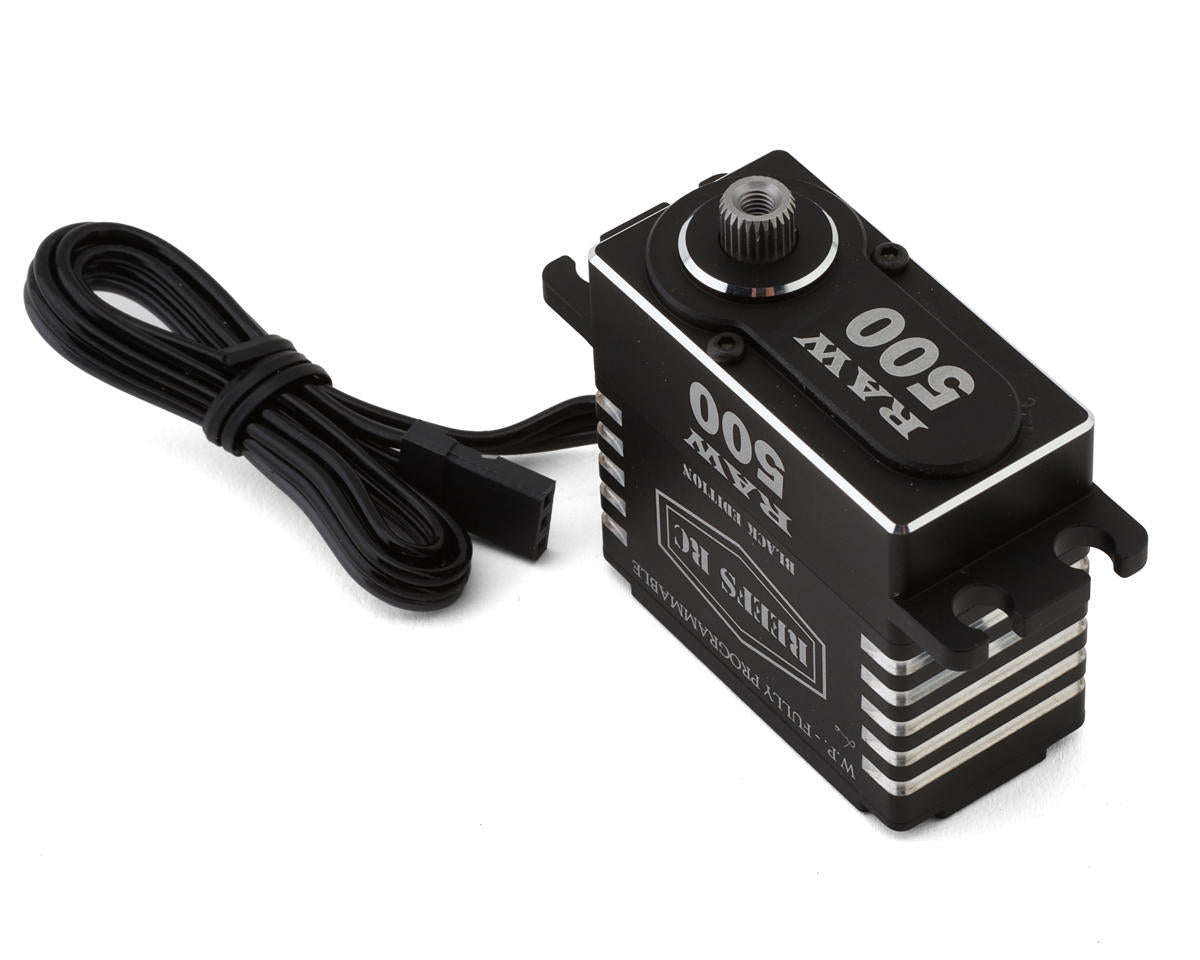

Reefs RC RAW 500 High Torque/Speed Digital Servo (High Voltage) (Black Edition)

The Reefs RC RAW 500 Digital Servo combines a 4-pole brushless motor with high-voltage operation, programmable settings, and a CNC aluminum casing with an "ULTRA" finish. It delivers up to 565oz-in (40.7kg-cm) of torque and 0.08sec/60° speed at 8.4V.

Features

• Powerful 4-pole brushless motor
• "Submarine Waterproof" design with 7-point seals
• High-voltage capable
• Magnetic angle sensor
• Internal steel gears
• CNC aluminum casing with "ULTRA" finish
• Fully programmable with REEFS Software

Specifications

• Speed: @6.0V: 0.11sec/60°; @7.4V: 0.09sec/60°; @8.4V: 0.08sec/60°
• Torque: @6.0V: 450oz-in (32.4kg-cm); @7.4V: 500oz-in (36kg-cm); @8.4V: 565oz-in (40.7kg-cm)
• Motor: Brushless
• Operating Voltage: 5.0V-8.4V
• Dimensions (LxWxH): 1.57x.79x1.5in (39.87x20.06x38.1mm)
• Weight: 2.75oz (77.96g)
• Operating Spline: 25T

Includes

• (1) RAW500 Digital Waterproof Brushless Black Edition Servo

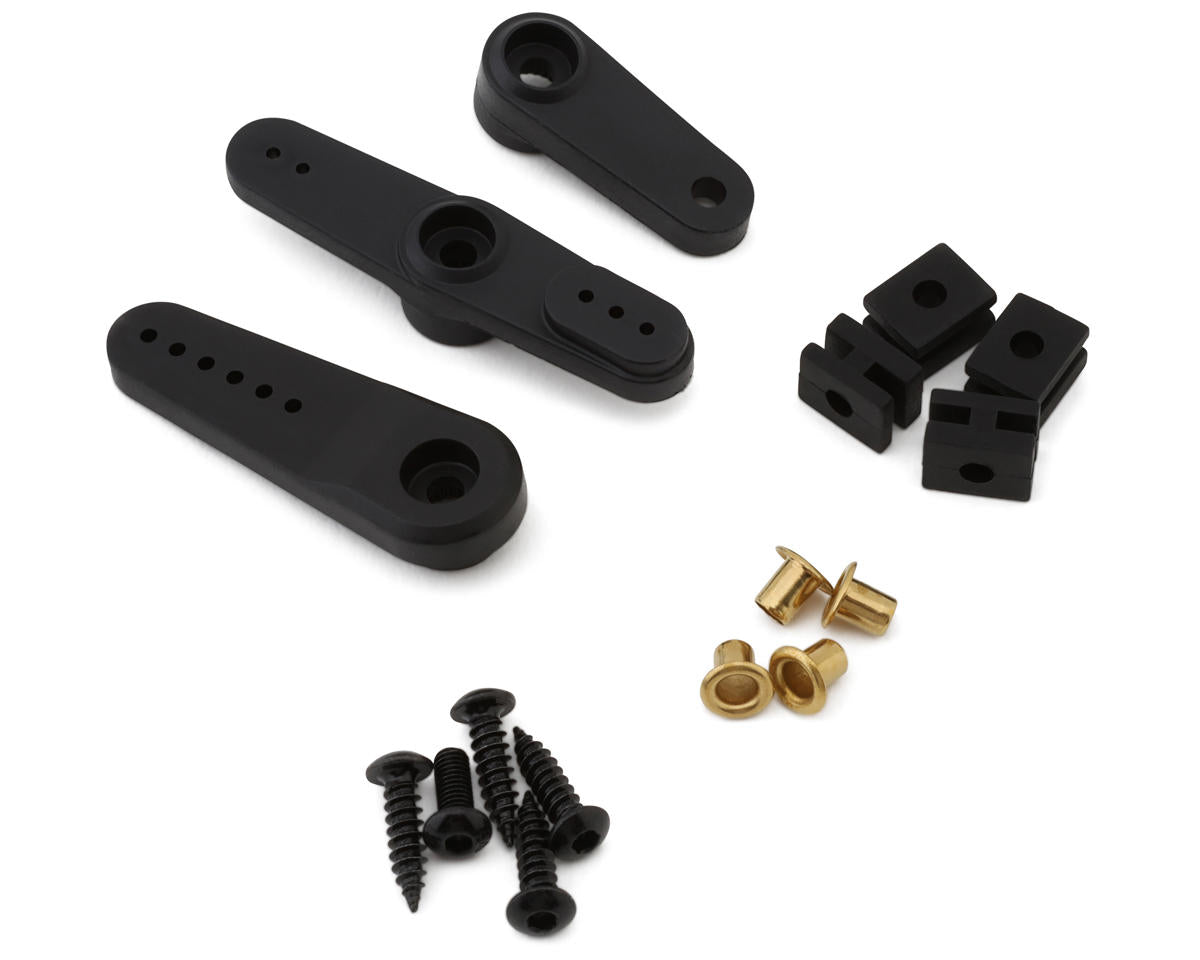

• Assorted Servo Horns and Mounting Hardware
