Reefs RC Beast 2000 Waterproof Digital 1/5 Scale Brushless Servo (High Voltage)

The Reefs RC Beast 2000 is a waterproof digital 1/5 scale brushless servo designed for high-voltage operation. It delivers up to 2000oz-in of torque at 16.8V and features a high-torque, high-speed brushless motor with a magnetic angle sensor.

Features

• Waterproof 16.8V capable design with 7 Point Seal waterproofing
• Pulse width modulation control
• Steel gears and CNC aluminum casing
• 5 Ball Bearing support
• Mechanical angle: No Limit
• 15T spline
• 22AWG wires
• Standard servo connector with ground and signal wire
• JST connector for main power and ground

Specifications

• Voltage: 7.4-16.8V
• Weight: 10oz (285g)
• Dimensions: 2.59x1.18x2.32in (LxWxH)
• Dead Band Width: 2uSec
• Torque: 10V: 1000oz-in; 11.1V: 1250oz-in; 12V: 1450oz-in; 16.8V: 2000oz-in
• Speed: 10V: 0.10/60° sec; 11.1V: 0.11/60° sec; 12V: 0.10/60° sec; 14.4V: 0.09/60° sec; 16V: 0.08/60° sec

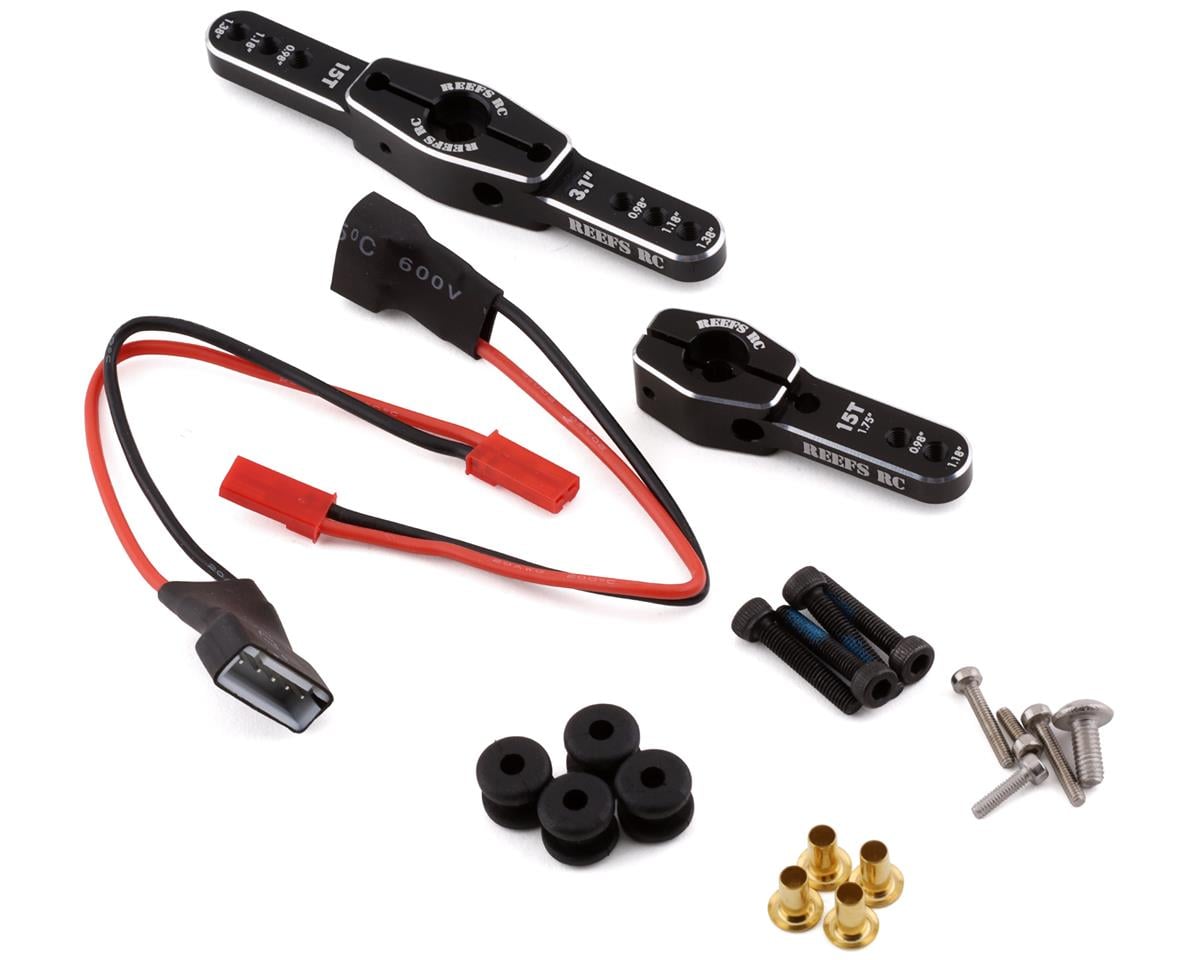

Package Includes

• One servo
• Two power adapters for connecting the JST connector to the balance lead of either a 3S or 4S battery
• Two servo horns
• Hardware
