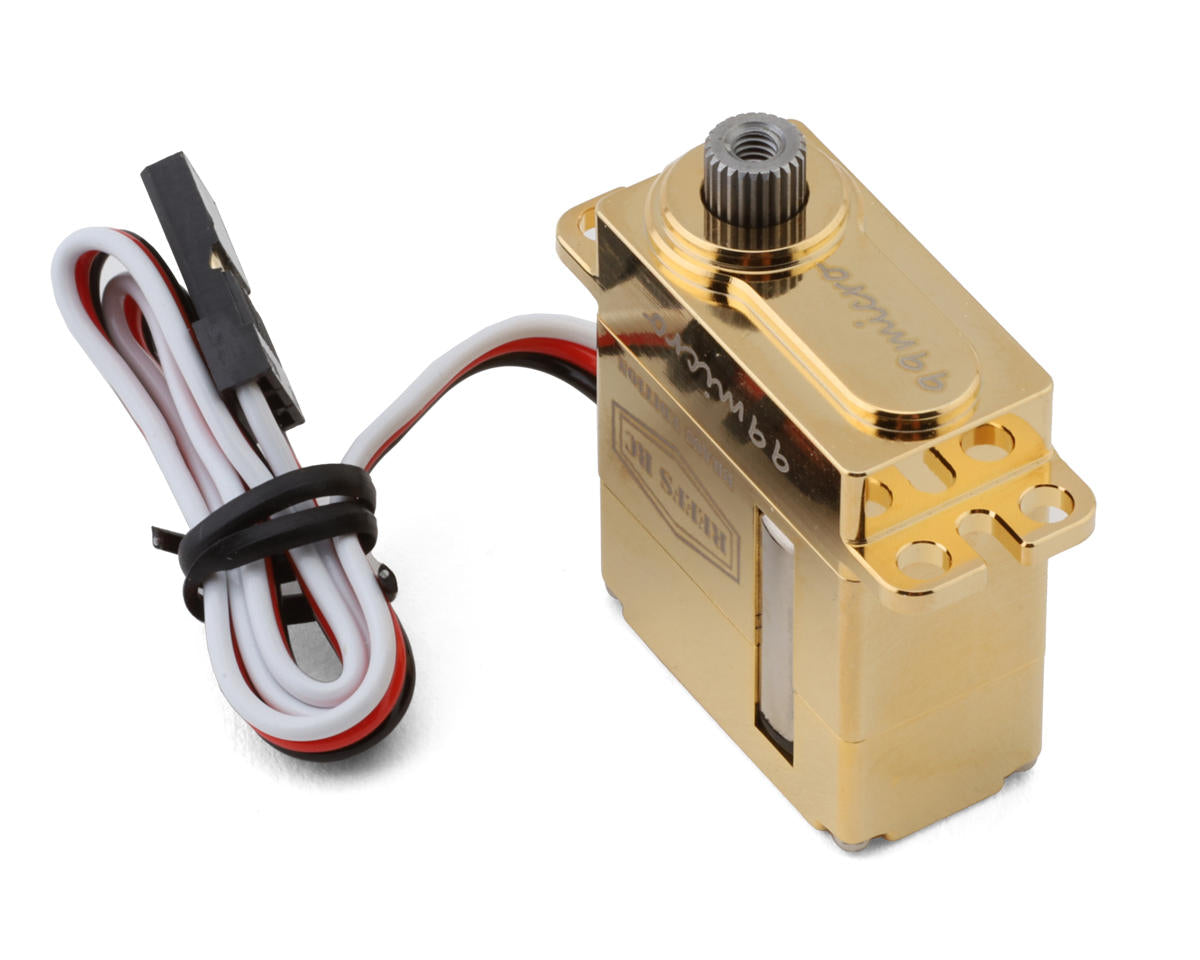

Reefs RC 99micro High Torque Metal Gear Digital Micro Servo (HV) (Brass Edition)

The Reefs RC 99micro Brass Edition is a high-torque, high-voltage digital micro servo with an all CNC-machined brass casing, rubber-sealed water-resistant design, and all-metal gears. Its 36g weight adds unsprung weight for axle-mounted servo applications.

Features

• Designed for micro 1/24 and 1/18 rock crawlers
• Rubber-sealed water-resistant design

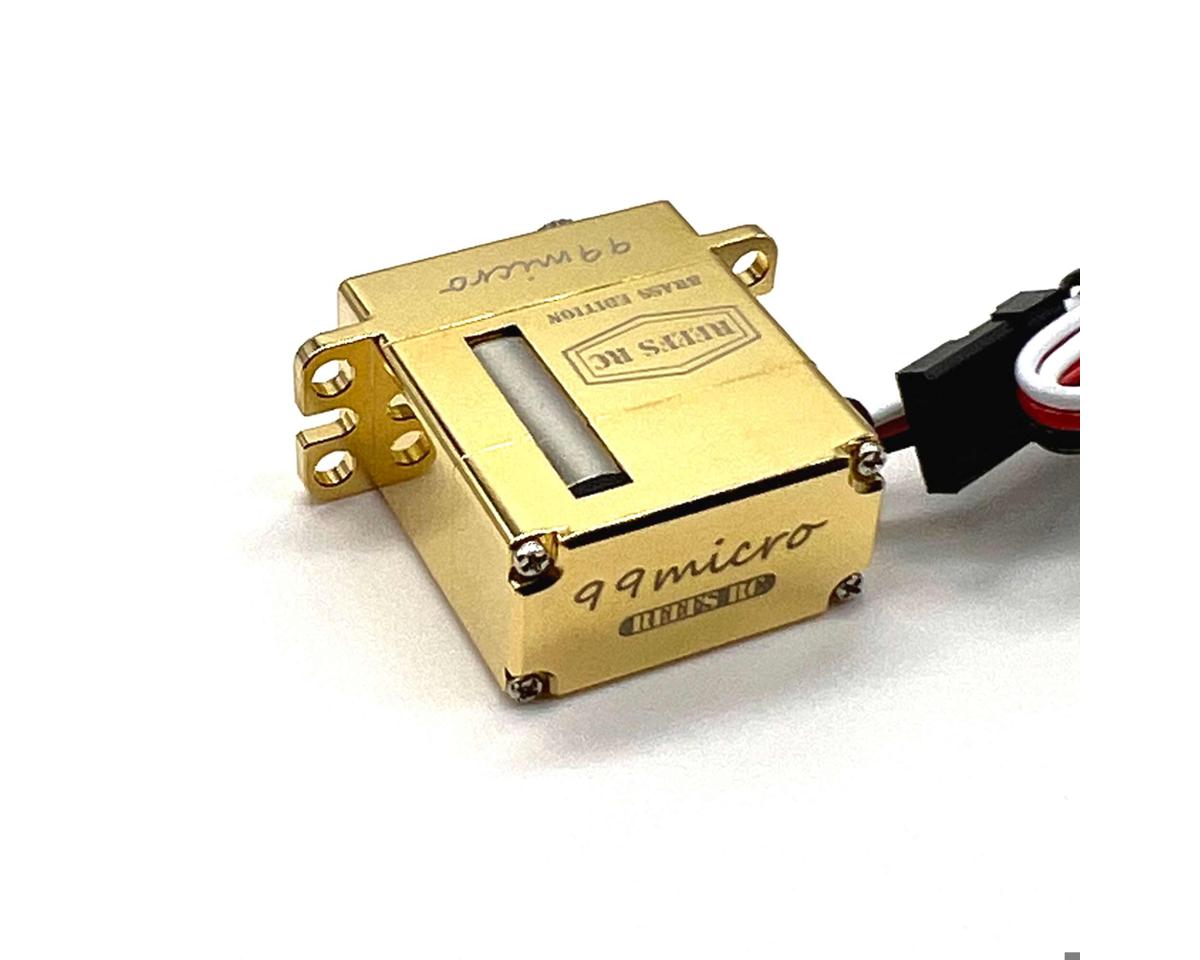

• All CNC-machined brass casing
• Digital coreless motor
• All-metal gears
• High Voltage (HV) operation
• 115oz-in (8.28kg-cm) torque at 8.4V
• Adds 36g of total unsprung weight for axle-mounted servo applications

Specifications

• Operating Voltage: 6.0V-8.4V
• Motor: Digital Coreless
• Speed: @6.0V: 0.11sec/60°; @7.4V: 0.09sec/60°; @8.4V: 0.08sec/60°
• Torque: @6.0V: 89oz-in (6.40kg-cm); @7.4V: 99oz-in (7.13kg-cm); @8.4V: 115oz-in (8.28kg-cm)

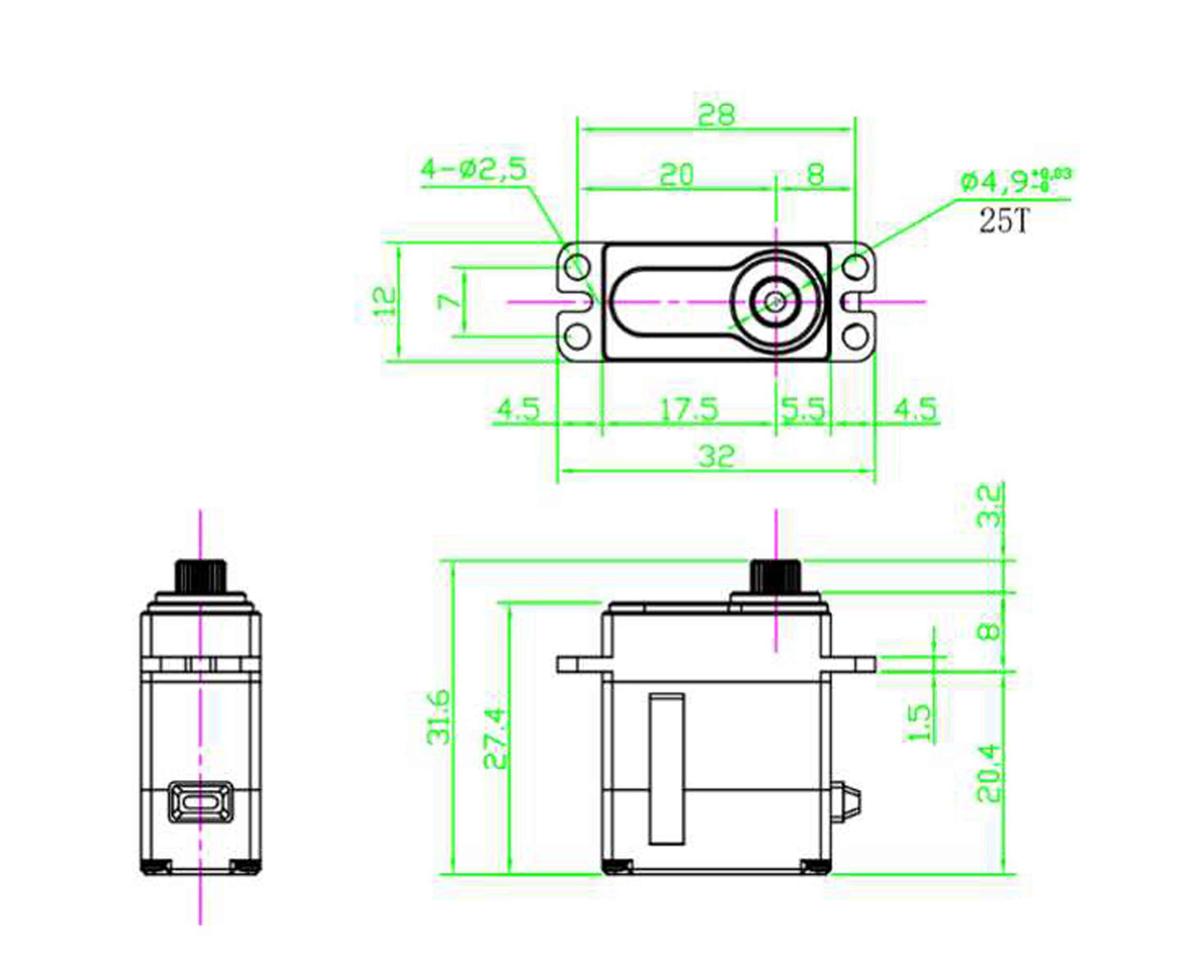

• Dimensions (LxWxH): 0.90"x.47"x1.08" (27.4x22.8x11.9mm)
• Weight: 1.27oz (36g)
• Operating Spline: 25T

Includes

• (1) Brass 99micro High Torque Metal Gear Digital Micro Servo

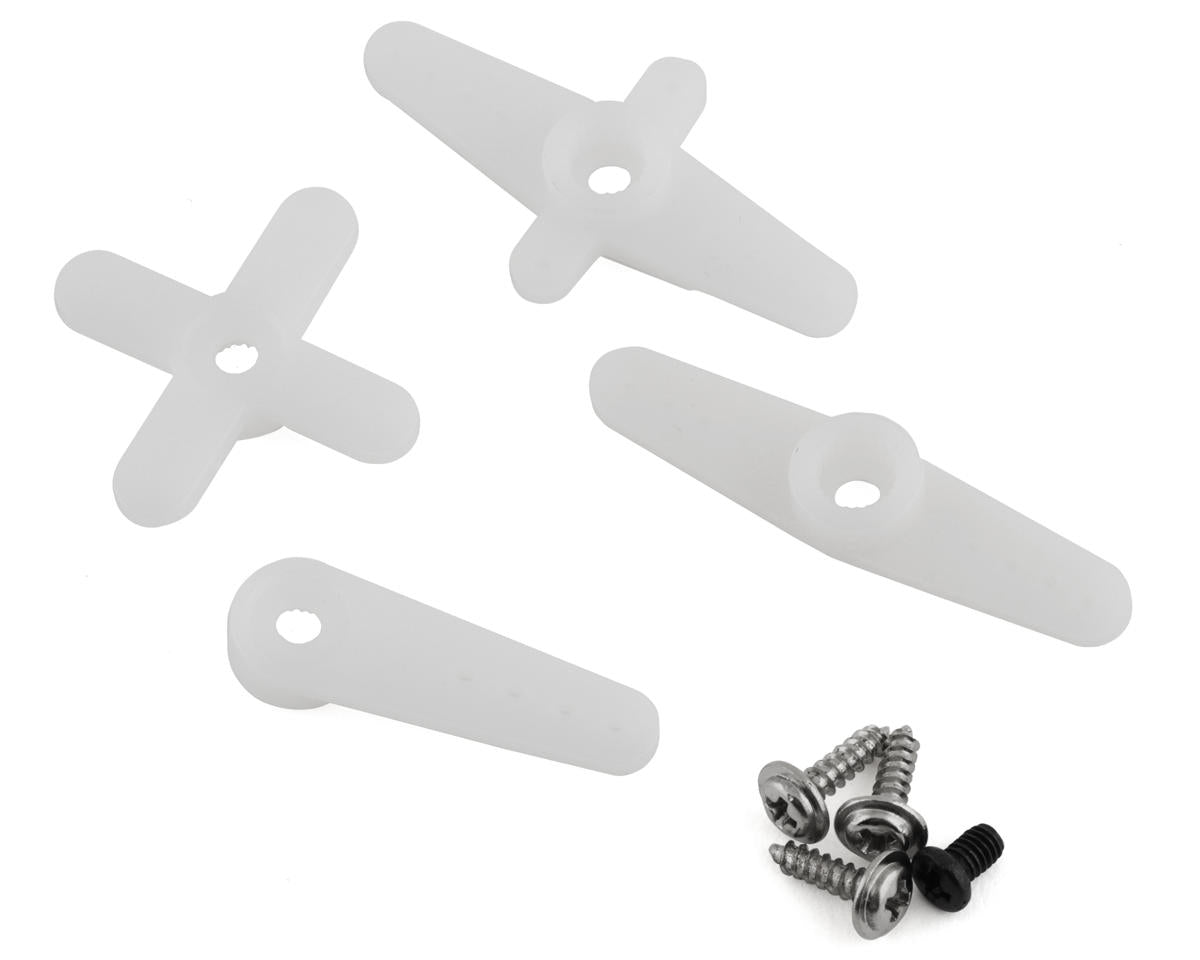

• Servo Horns and Mounting Hardware
