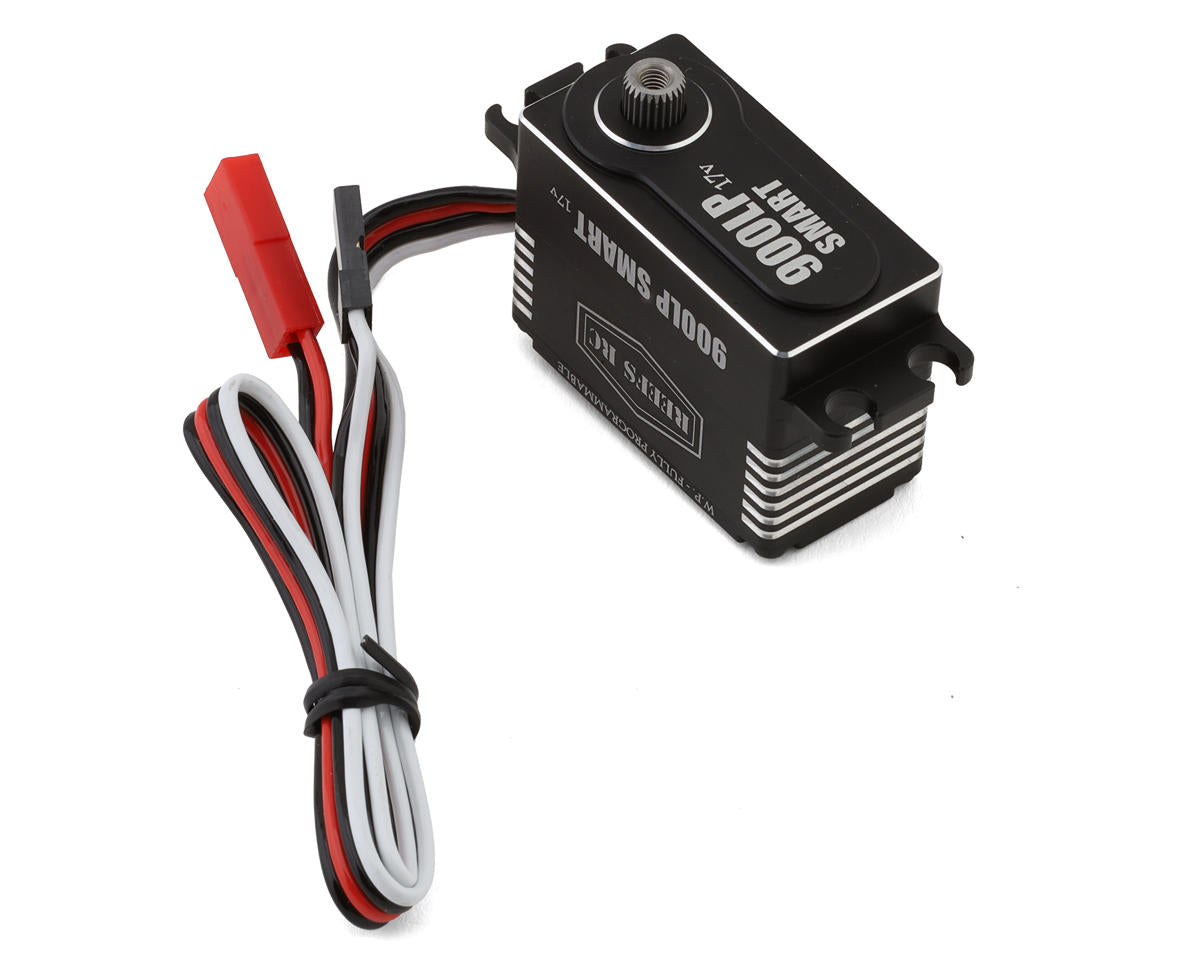

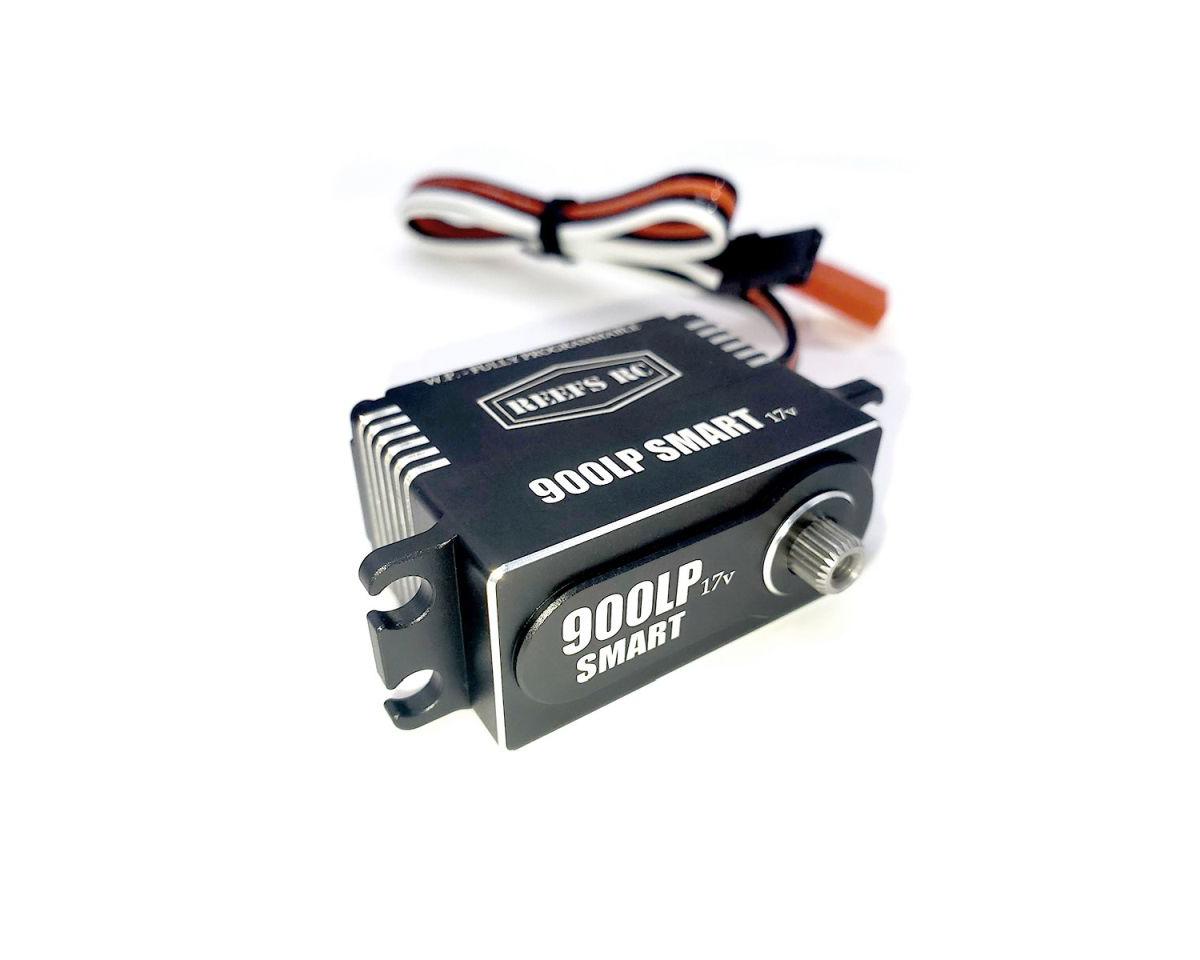

Reefs RC 900LP Smart Low-Profile Brushless Hi-Torque Servo (HV) (Steering/Winch)

The Reefs RC 900LP Smart Low-Profile Brushless Hi-Torque Servo is designed for demanding RC steering and winch applications. It features a 4-pole brushless motor, built-in programmed winch controller, magnetic angle sensor, steel internal gears, and fully programmable operation via REEFS Software.

Its low-profile, lightweight design uses a heavy CNC aluminum casing with an “ULTRA” finish. The servo is described as “Submarine Waterproof” with 7-point seals and comes as a steering servo out of the box.

Features

• Low-profile and lightweight design
• Powerful 4-pole brushless motor
• High voltage capable of up to 17V
• Magnetic angle sensor
• Steel internal gears
• Built-in programmed winch controller
• Fully programmable via REEFS Software
• Usable as a steering servo or winch servo
• “Submarine Waterproof” with 7-point seals
• Heavy CNC aluminum casing with “ULTRA” finish

Specifications

• Speed: @12.6V: .10sec/60°; @14.4V: .09sec/60°; @16.8V: .08sec/60°
• Torque: @12.6V: 710oz-in (51.12kg-cm); @14.4V: 810oz-in (58.32kg-cm); @16.8V: 920oz-in (66.24kg-cm)
• Motor: Brushless
• Operating Voltage: 10V-17V
• Dimensions (LxWxH): 1.6x.79x1.16in (48x20.2x29.5mm)
• Weight: 2.3oz (66g)
• Operating Spline: 25T

Includes

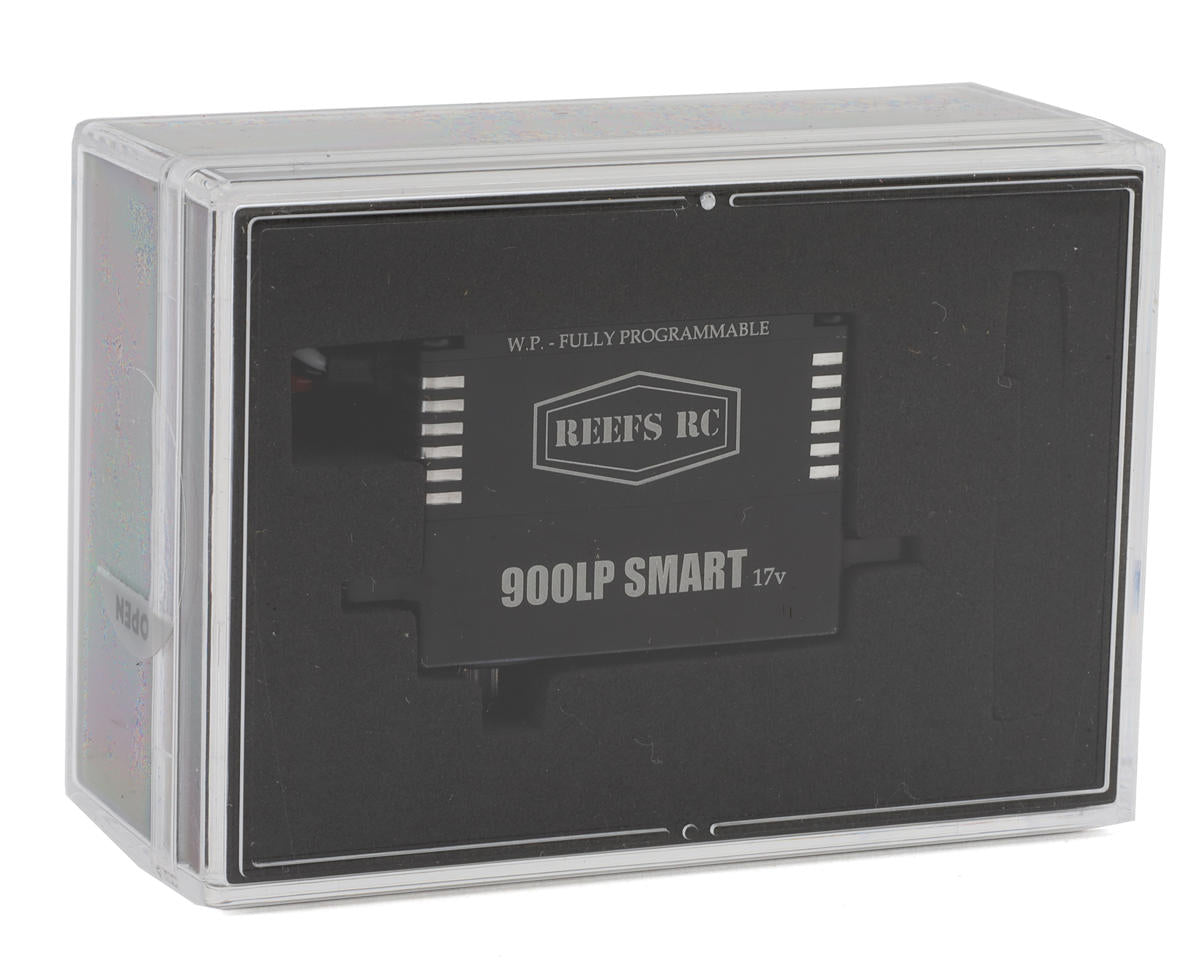

• (1) 900LP Waterproof Brushless Low Profile Smart Servo

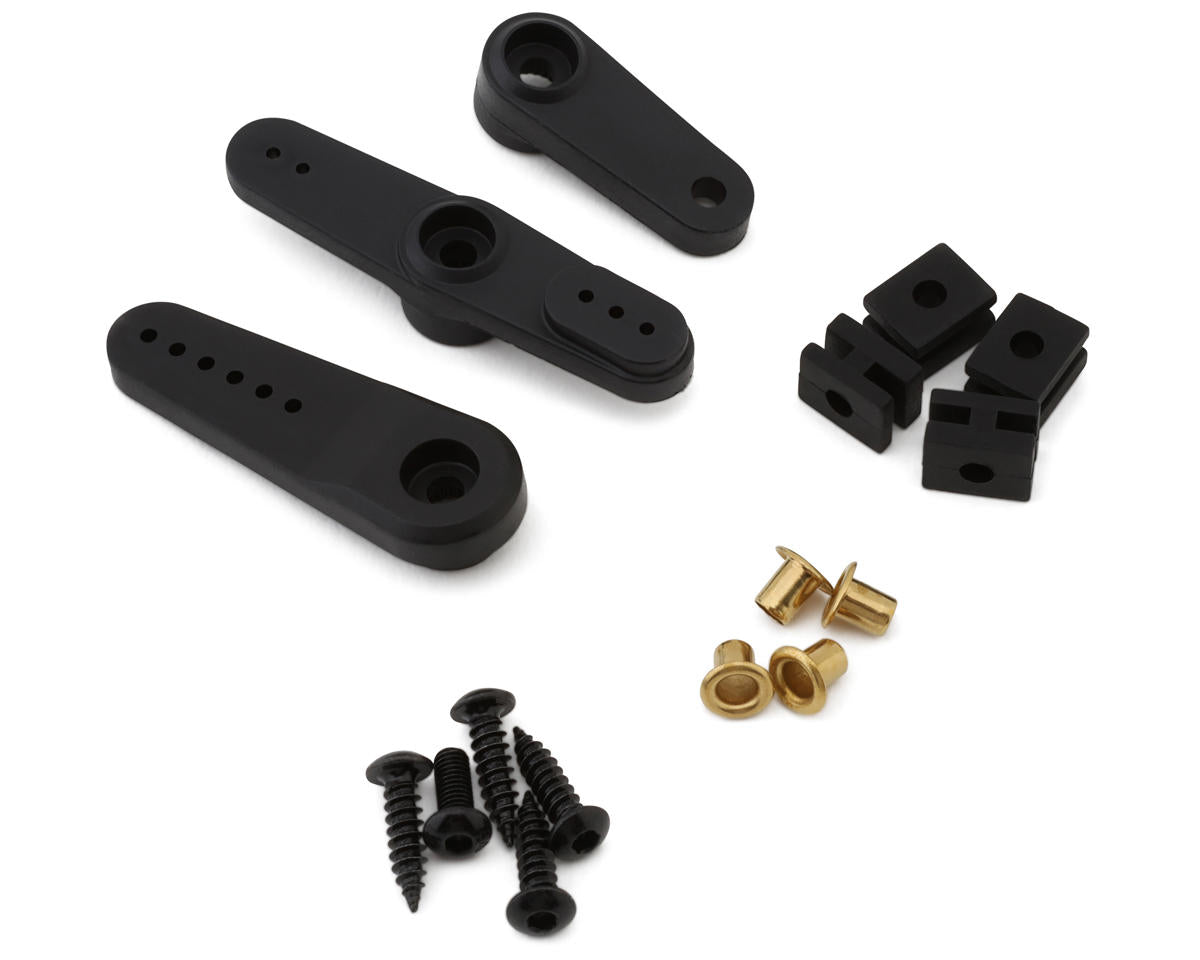

• Assorted Servo Horns and Mounting Hardware

Important Note

This is a direct power servo and does not require a BEC. Do not pair with Rhino ESC Systems or ESCs with built-in BECs. Reefs RC recommends using Holmes or Vt3k ESCs and a 1000mah battery or more, unless you have a Shock Schottky diode.
