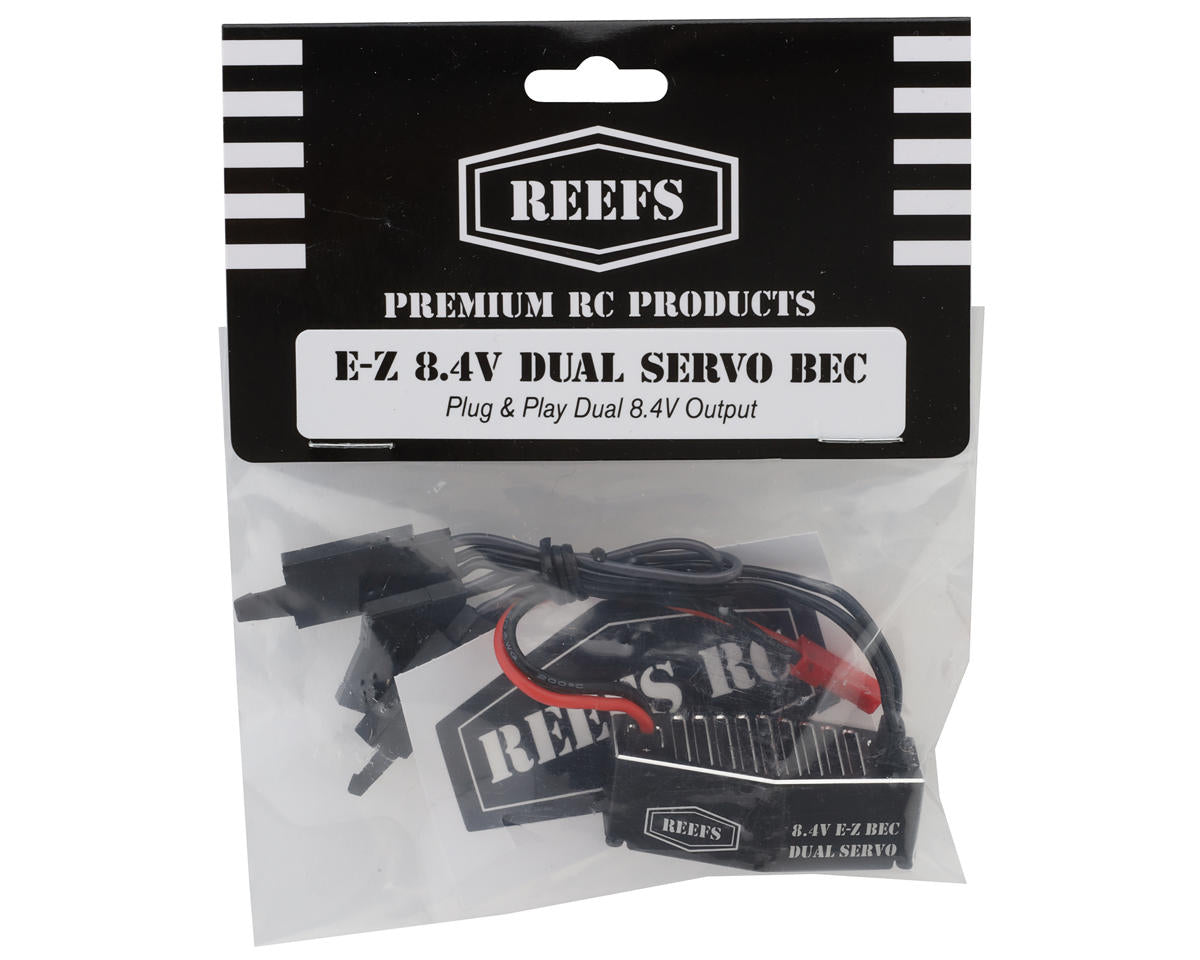

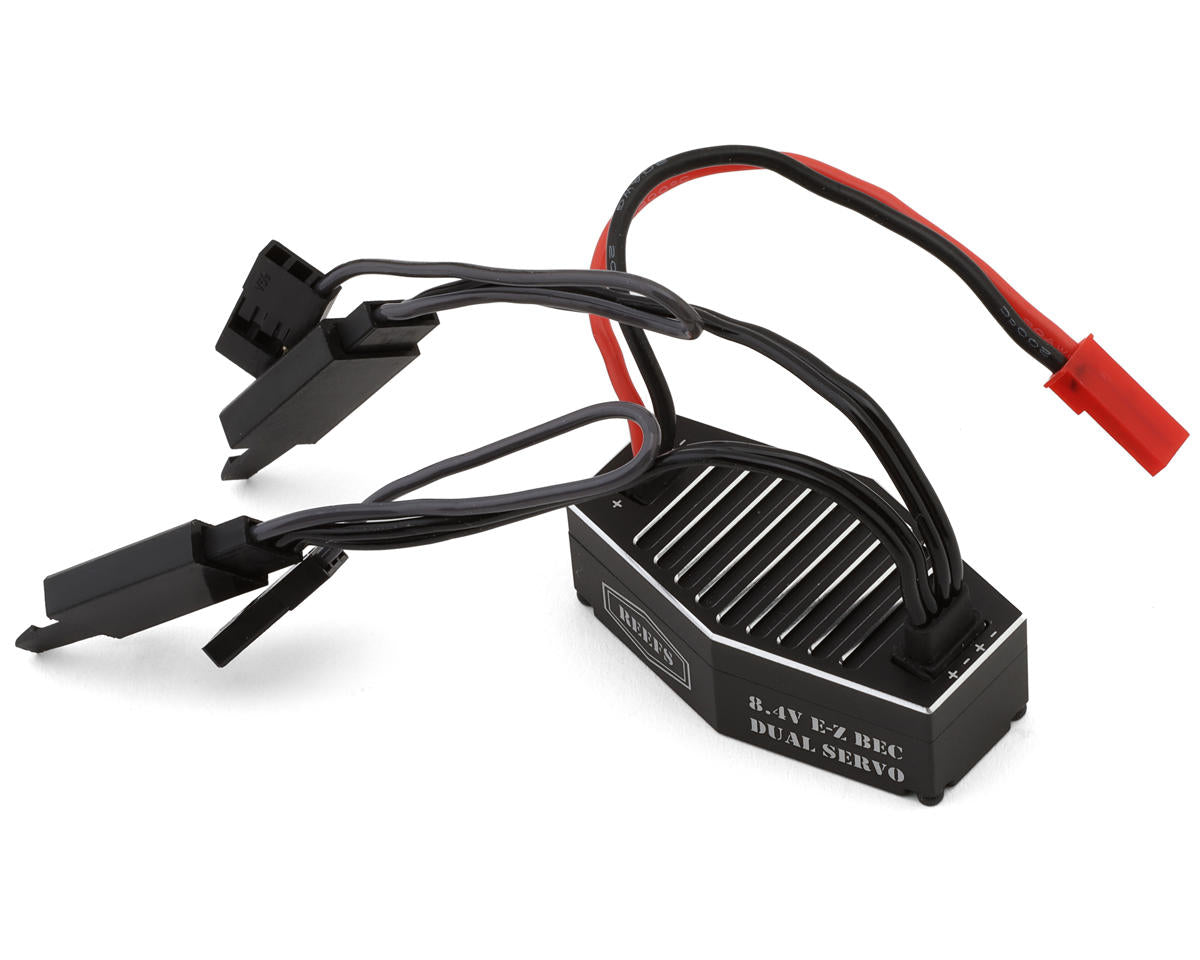

Reefs RC 8.4V EZ Plug-N-Play Dual Servo BEC

The Reefs RC 8.4V EZ Plug-N-Play Dual Servo BEC provides a simple way to power two servos from 2-6S LiPo batteries. Its plug-and-play design uses XT60 or XT90 Dual JST adapters, with no soldering or unpinning required.

A water-resistant CNC machined aluminum housing protects the BEC, while its slightly larger footprint improves accessibility. The unit delivers an 8.4V output when the input voltage is more than 10V.

Features

• Consistent 8.4V power output for high-performance servos
• Plug-and-play installation with XT60 or XT90 Dual JST adapters
• Compatible with 2-6S LiPo batteries
• Water-resistant CNC machined aluminum housing
• No soldering or unpinning required
• Slightly larger footprint for improved accessibility

Specifications

• Input: 2-6S LiPo (7.4-22.2V)
• Output: 8.4V
• Output Current: 10A (Maximum - 15A)
• Dimensions (LxWxH): 1.68x0.94x0.54in (42.6x24x13.6mm)

Tech Note: Input voltage must be more than 10V to provide the 8.4 output voltage. If you are using a 2S LiPo, the output voltage will be 7V.

Includes

• (1) Reefs RC 8.4V EZ Plug-N-Play Dual Servo BEC
