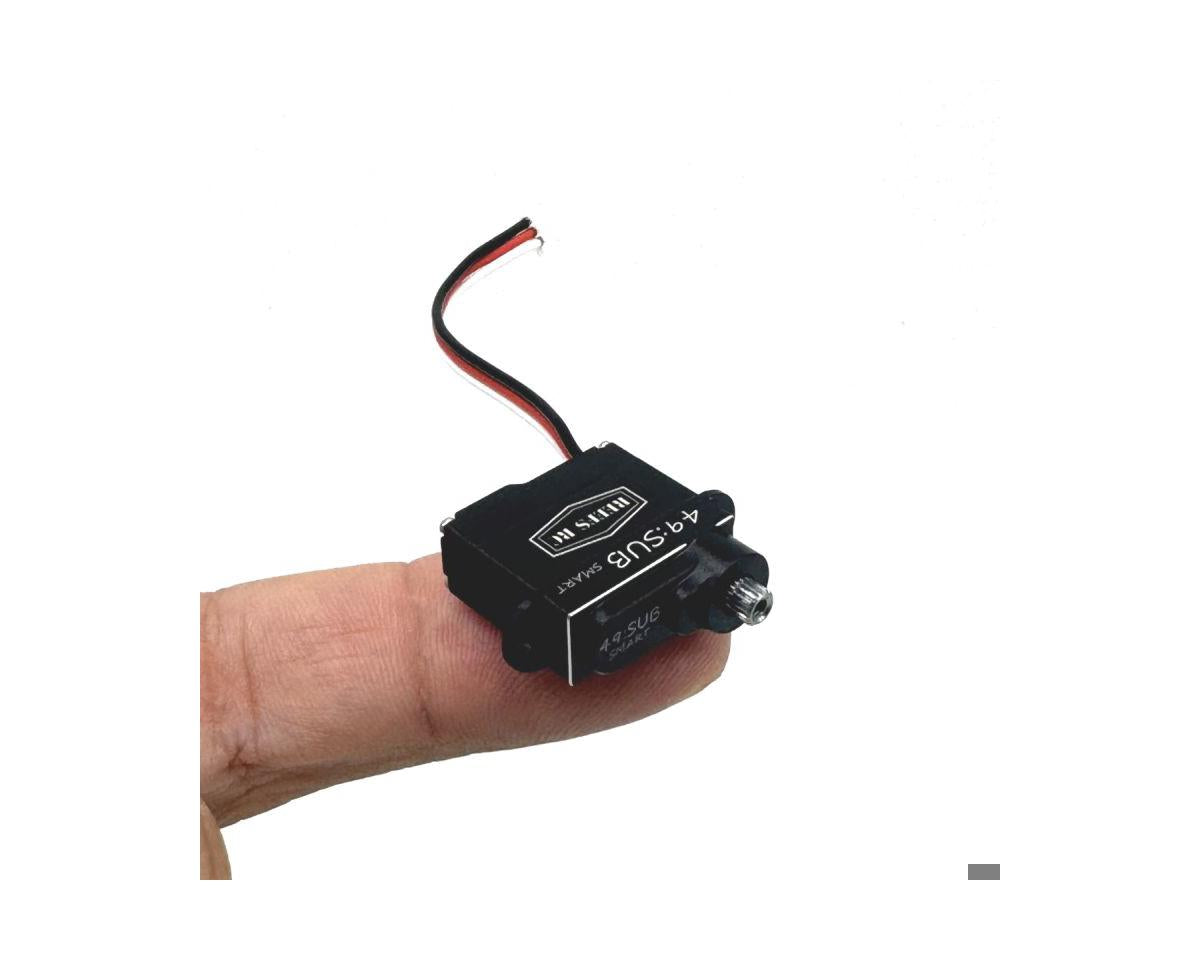

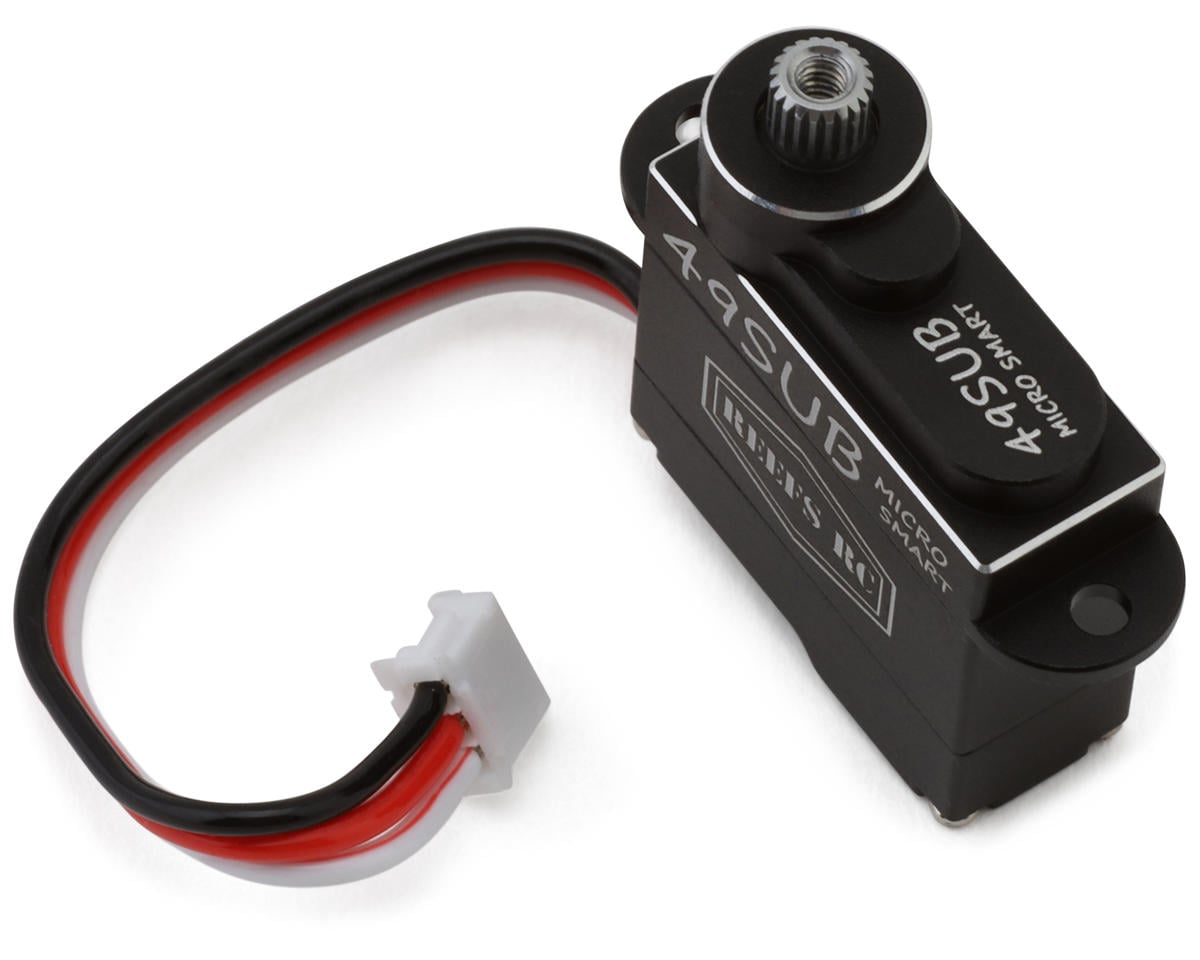

Reefs RC 49 SUB Micro SMART Servo (Servo/Winch) (HV)

The Reefs RC 49 SUB Micro SMART Servo is a programmable high-voltage micro servo designed for use as either a servo or winch. Its compact size makes it a suitable option for micro 1/18 and 1/24 scale rock crawlers.

Features

• Operating voltage of 6-8.4V
• Programmable for servo or winch applications
• Built-in programmed winch controller
• SMART Chip Technology
• Machined steel gears
• High torque and speed
• CNC-machined aluminum case
• Military-grade construction

Specifications

• Application: Rock Crawlers
• Speed: @6.0V: 0.75sec/60°; @7.4V: 0.058sec/60°; @8.4V: 0.05sec/60°
• Torque: @6.0V: 37oz-in (2.66kg-cm); @7.4V: 43oz-in (3.09kg-cm); @8.4V: 49oz-in (3.52kg-cm)
• Dimensions (LxWxH): (20x8x17.8mm)
• Weight: 7g (0.24oz)
• Operating Spline: 20T

Includes

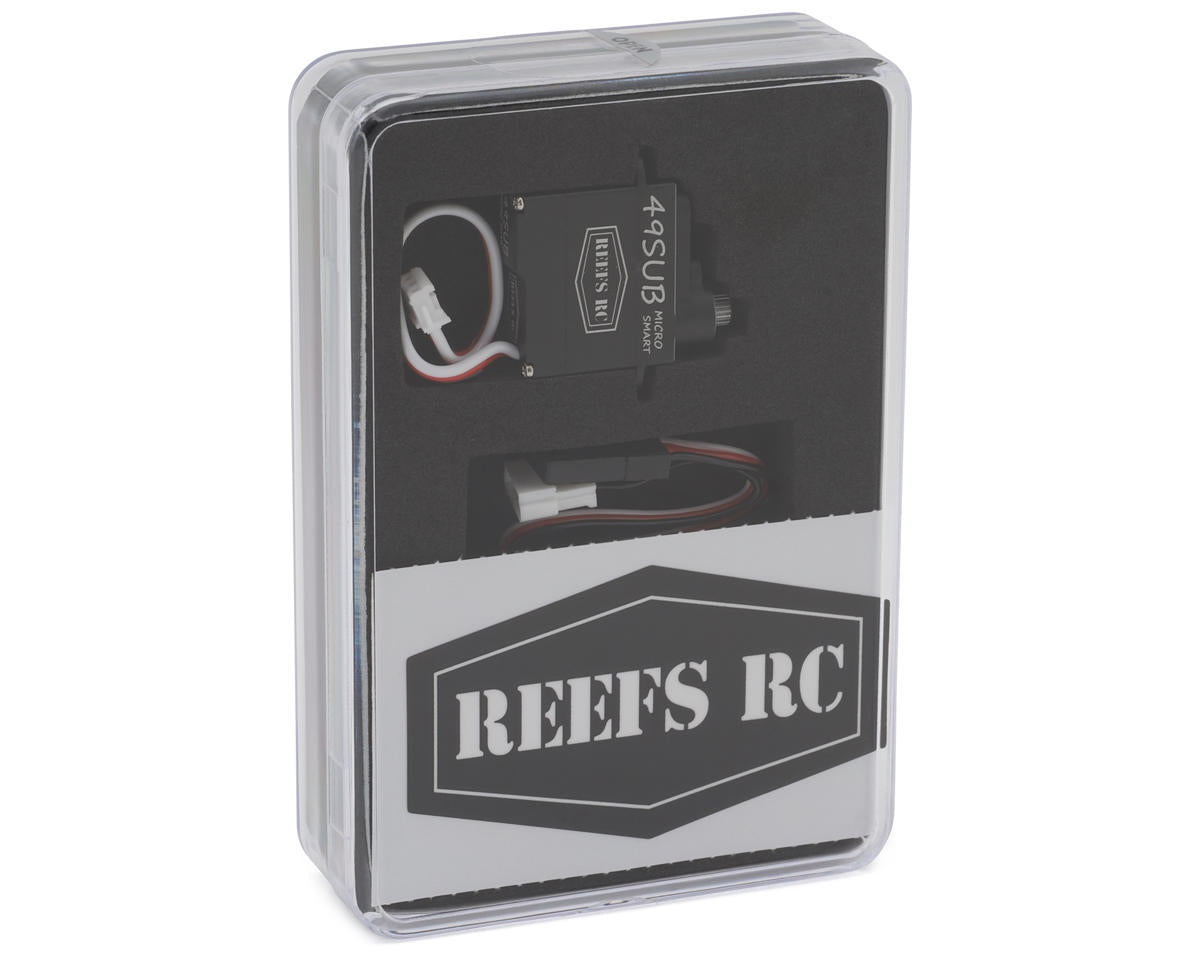

• (1) Reefs RC 49 SUB Micro SMART Servo

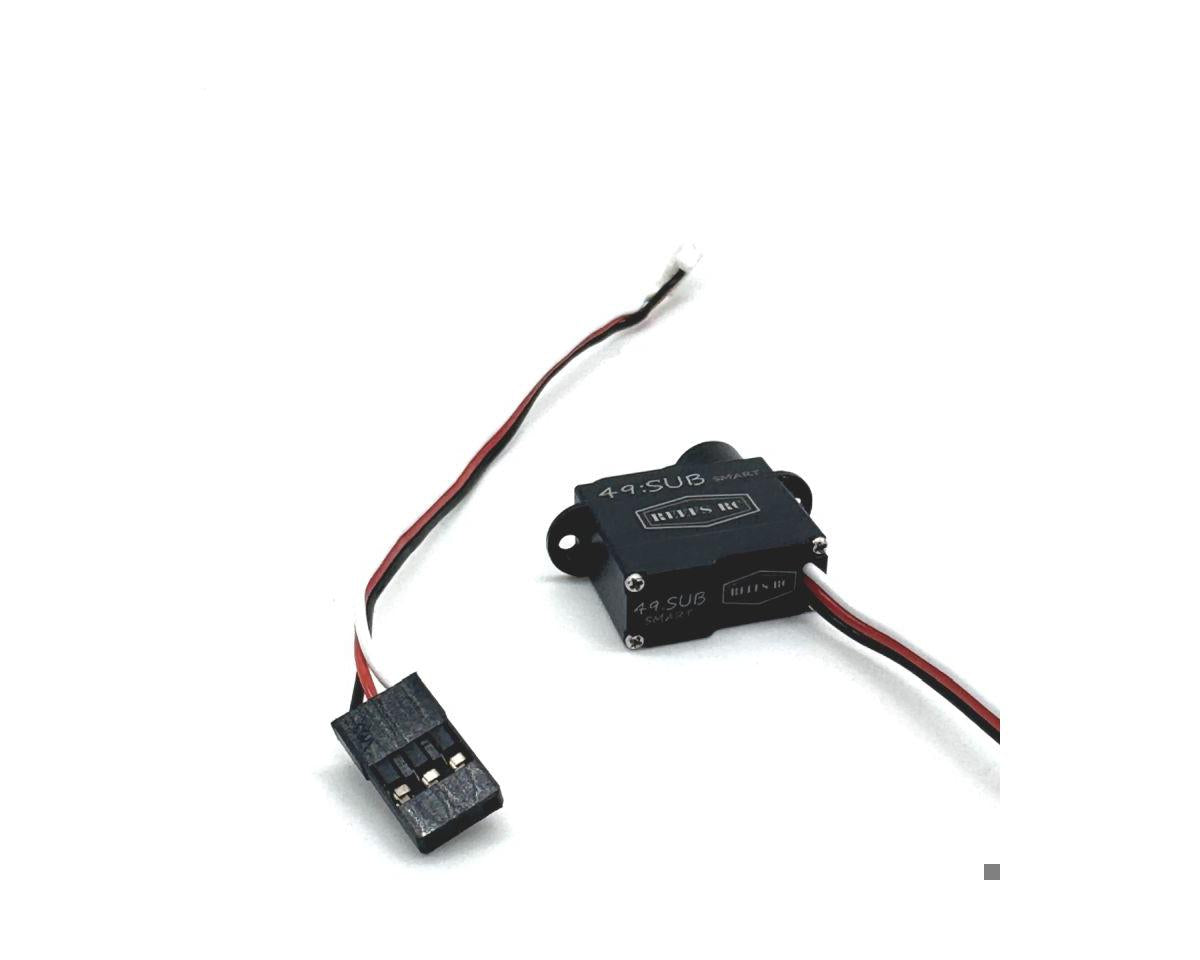

• (1) JST Adaptor
