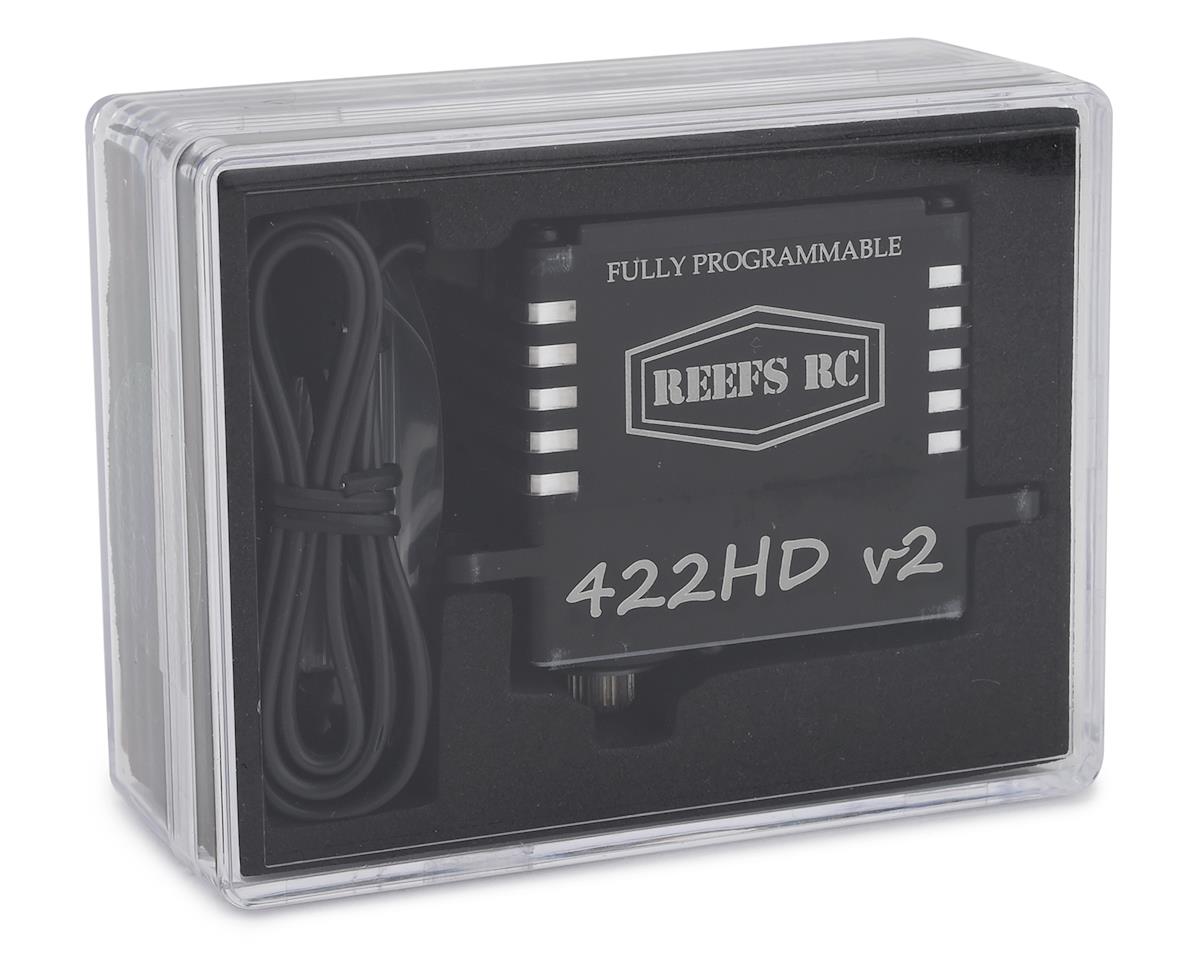

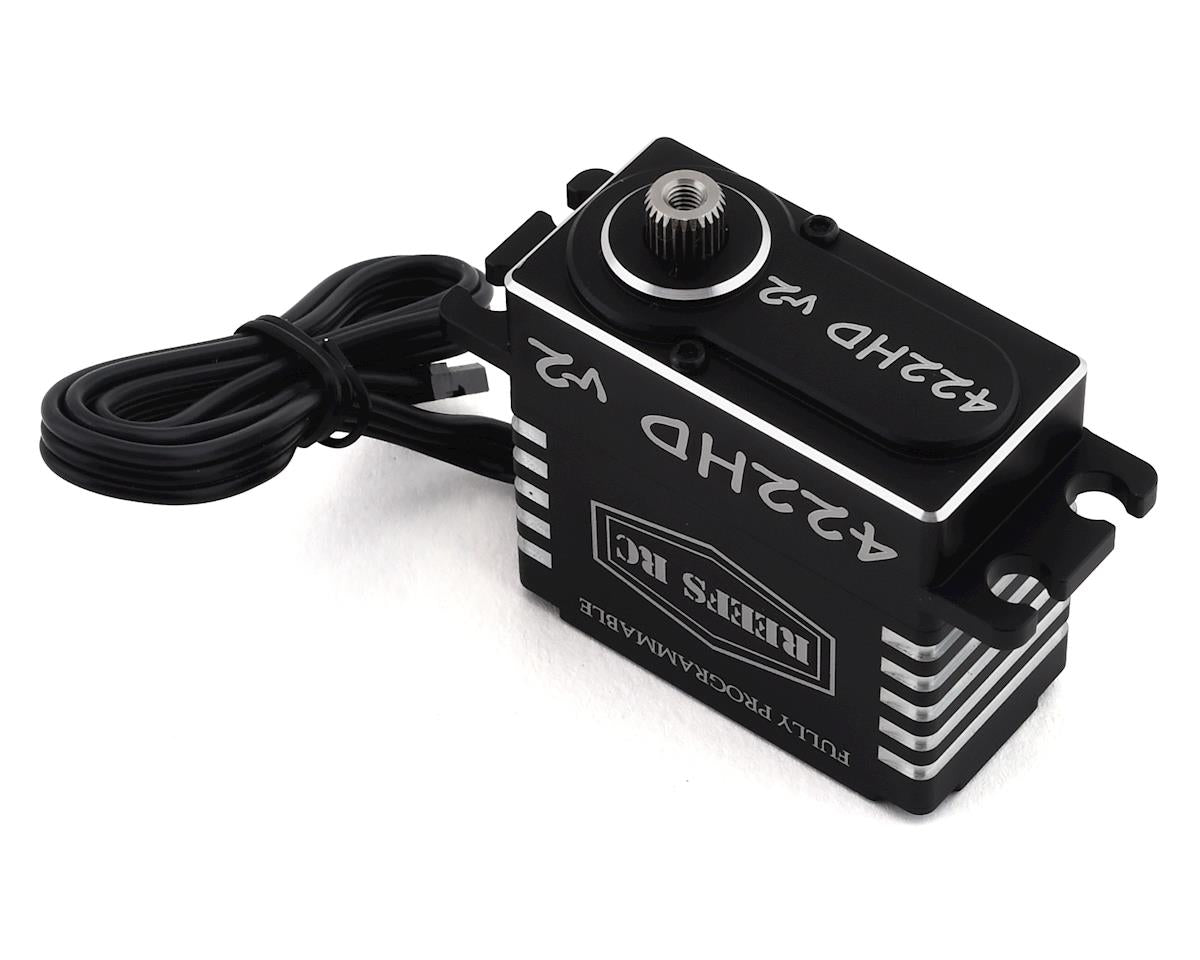

Reefs RC 422HDV2 High Torque Titanium Gear Digital Servo (High Voltage)

The Reefs RC 422HDV2 is a high-voltage, high-torque digital servo with titanium gears, a coreless motor, and a CNC aluminum casing. It features a built-in preprogrammed winch controller, pulse width modulation control, and programmable settings through REEFS Software with REEFS LINK required for programming.

Features

• Submarine waterproof design with 7 point seals
• Steel gears and CNC aluminum casing
• 3 ball bearings
• 7’ silicone coated steel braided line with scale recovery hook
• 25T spline
• 2us dead band width

Specifications

• Voltage: 4.8V - 8.4V
• Weight: 2.85oz
• Dimensions: 1.57x.78x1.5 (LWH)
• Torque: 360oz @ 6.0V / 400oz @ 7.4V / 434oz @ 8.4V
• Speed: .138sec @ 6.0V / .11sec @ 7.4V / .10sec @ 8.4V
