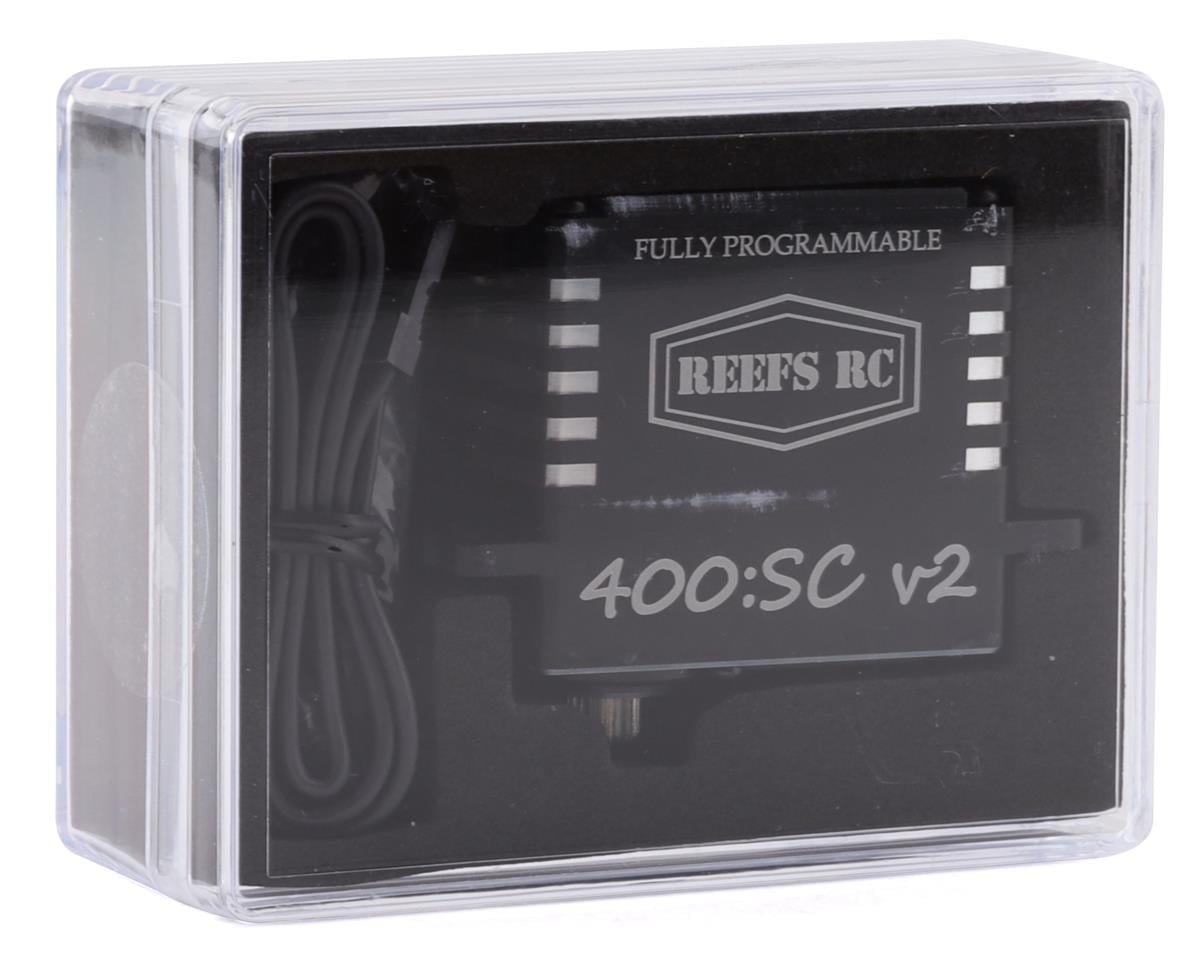

Reefs RC 400:SC V2 High Speed Steel Gear Digital Servo (High Voltage)

The Reefs RC 400:SC V2 is a high-speed, high-voltage digital servo with a full CNC aluminum case, steel gears, and a water-resistant magnetic angle sensor.

Features

• Pulse Width Modulation (PWM) control
• Fully programmable with Reefs software
• Full CNC aluminum case
• Steel gears
• 3 ball bearings
• 25T spline

Specifications

• Voltage: 4.8-8.4V
• Weight: 2.85oz
• Dimensions: 1.57x0.78x1.5" (LWH)
• Torque: 344oz-in at 6.0V; 400oz-in at 7.4V; 427oz-in at 8.4V
• Speed: 0.088 sec/60° at 6.0V; 0.074 sec/60° at 7.4V; 0.070 sec/60° at 8.4V

Package Includes

• One servo
• Two plastic servo horns
• Mounting hardware

A BEC is not required, but is recommended.
