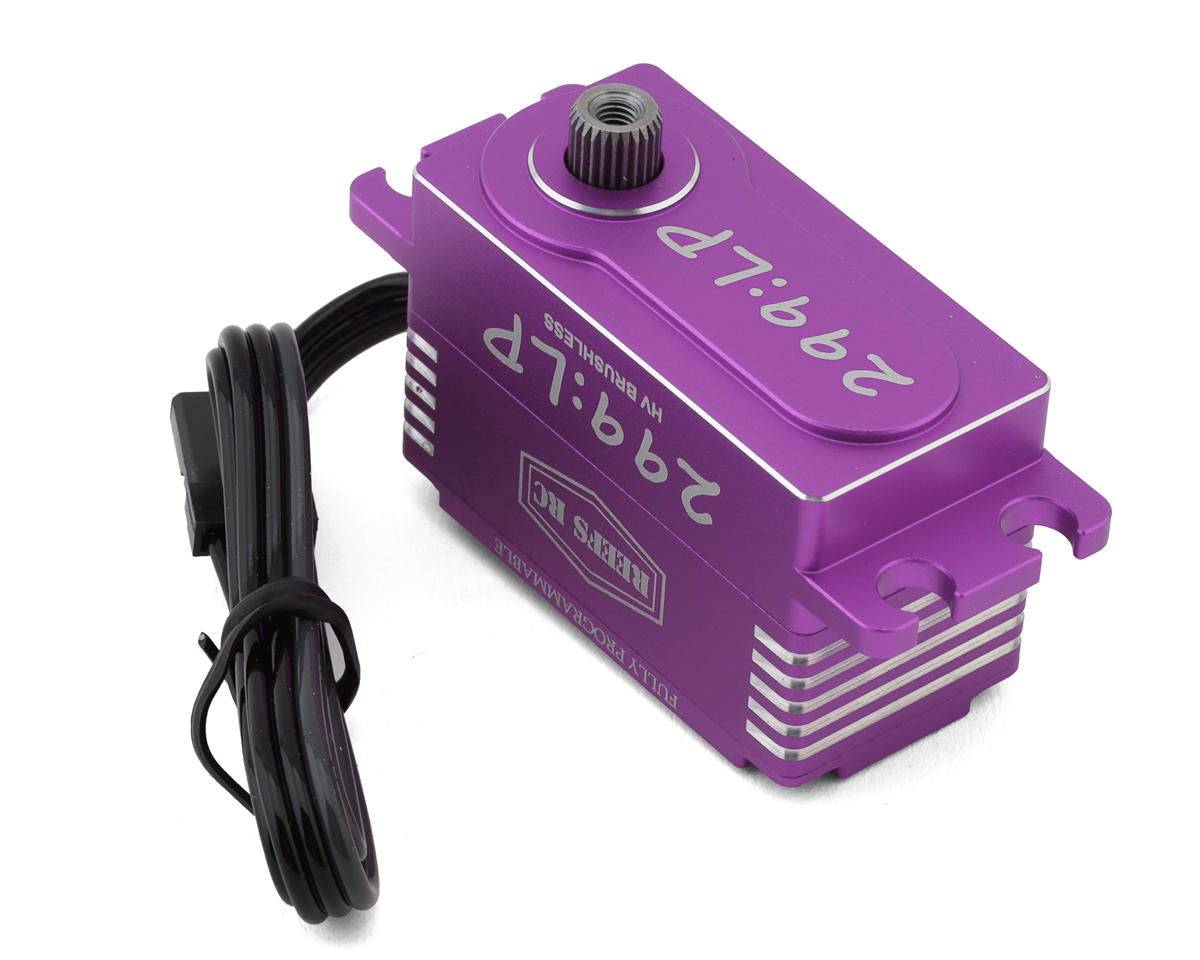

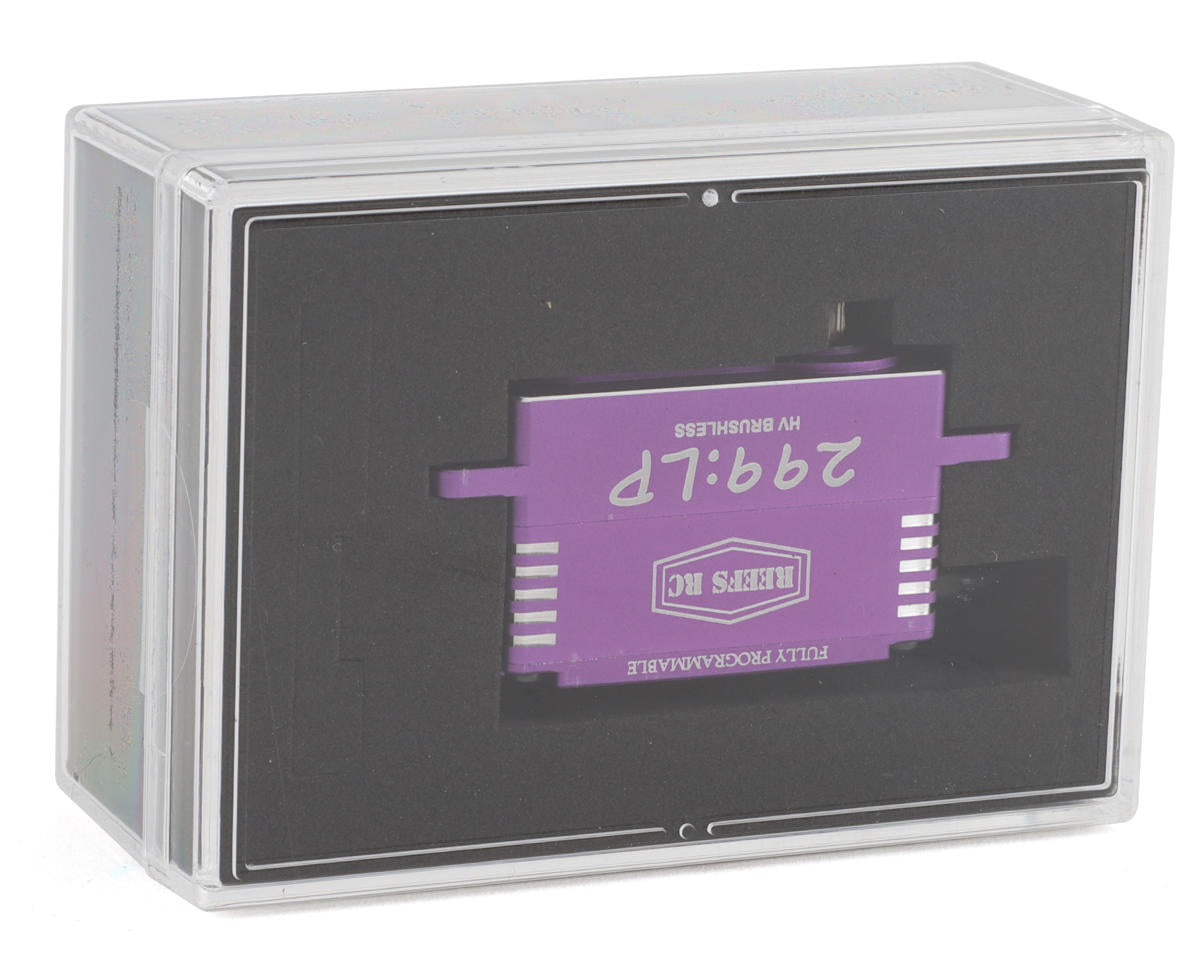

Reefs RC 299LP High Torque/Speed Brushless Low Profile Servo (High Voltage)

The Reefs RC 299LP is a purple, high-voltage low-profile servo with a brushless motor, magnetic angle sensor, and water-resistant design. Its aluminum case includes side fins to maximize heat dissipation, while REEFS software provides full programmability when used with Reefs LINK.

Features

• High-voltage capable
• High-torque, high-speed brushless motor
• Water-resistant low-profile design
• Magnetic angle sensor
• All-aluminum case with side fins
• 25T (ProTek/Futaba) operating spline

Specifications

• Speed: @6.0V: 0.07sec/60°; @7.4V: 0.06sec/60°; @8.4V: 0.05sec/60°
• Torque: @6.0V: 278oz-in (20kg-cm); @7.4V: 299oz-in (21.5kg-cm); @8.4V: 313oz-in (22.5kg-cm)
• Motor: Brushless
• Operating Voltage: 4.8V-8.4V
• Dimensions (LxWxH): 1.6"x0.79"x1.0" (40.8x20.2x26.5mm)
• Weight: 2.0oz (57.2g)

Includes

• (1) 299LP Low-Profile Racing Servo

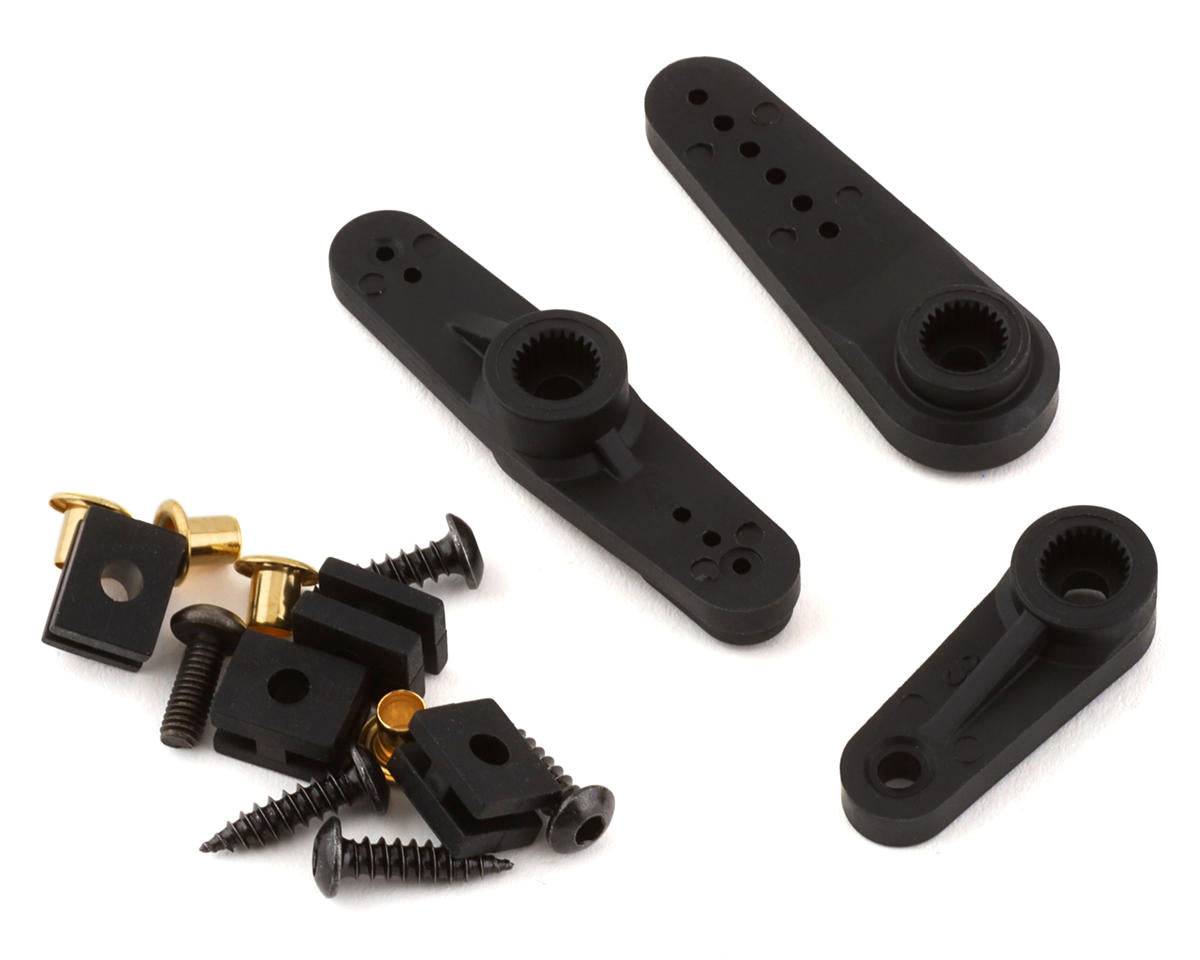

• Servo Horns and Mounting Hardware
