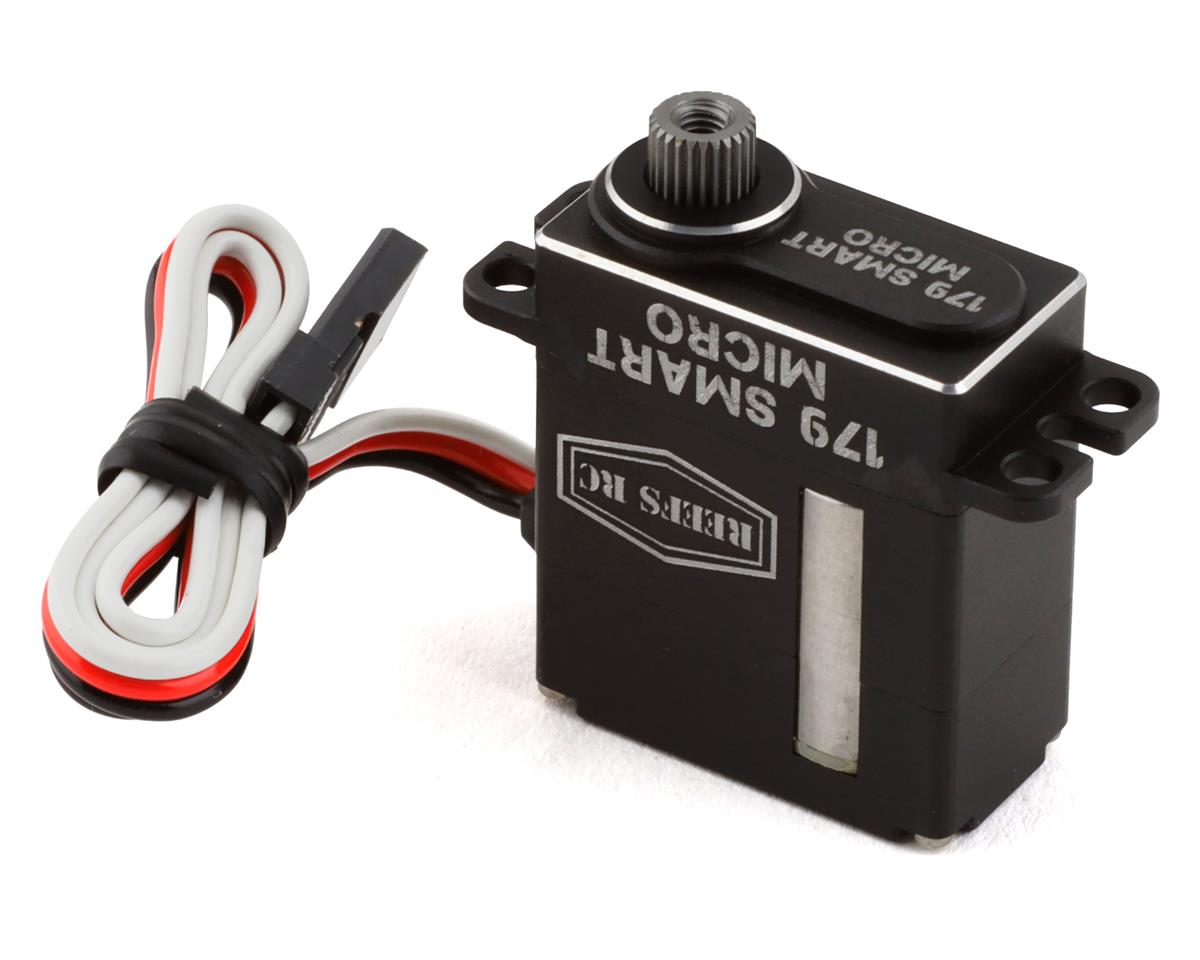

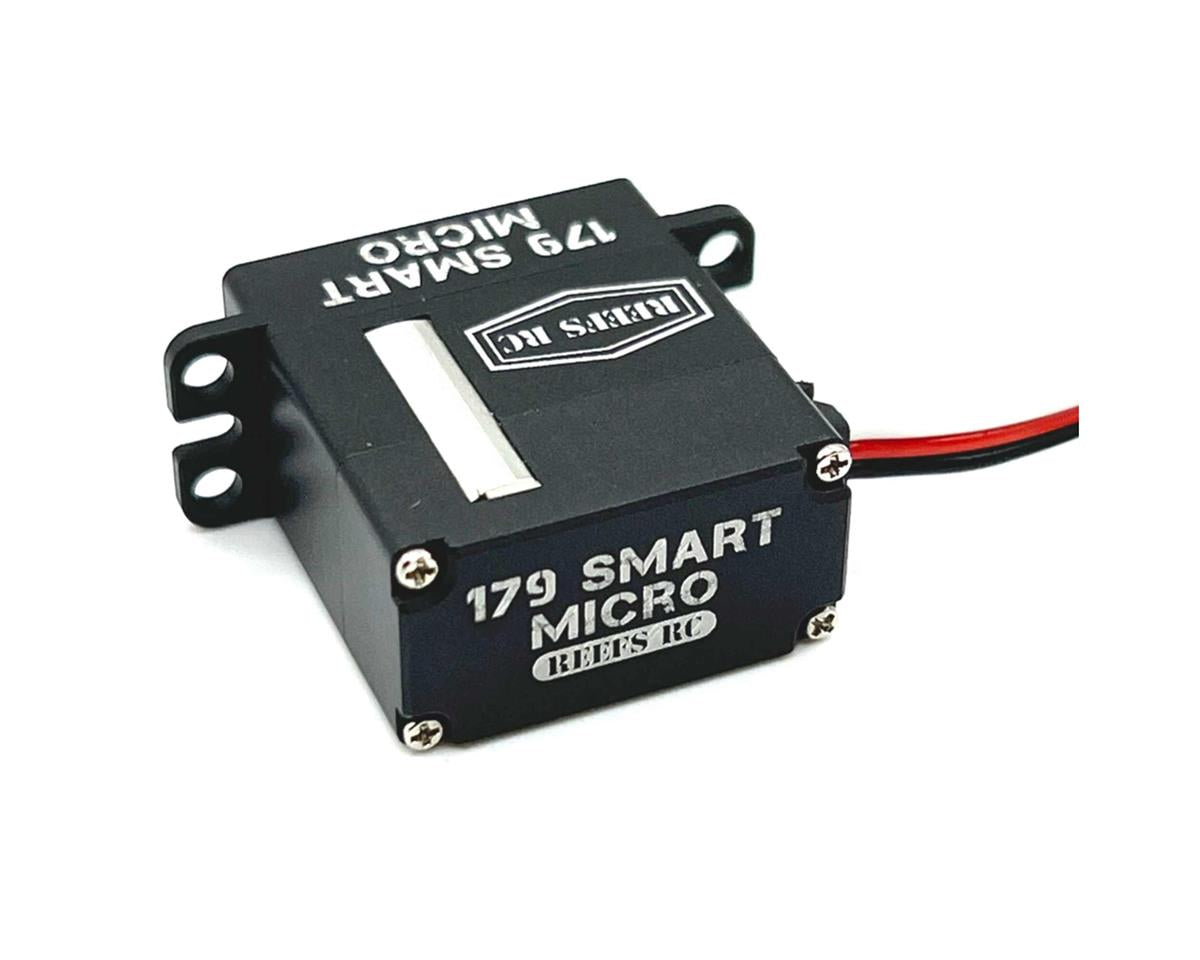

Reefs RC 179 Smart Micro Servo/Winch

The Reefs RC 179 Smart Micro Servo/Winch combines a digital brushless servo with programmable winch functionality for installations where space is limited. It can operate as a traditional servo or be configured for continuous rotation in winch mode.

Features

• Fully programmable with REEFS software; REEFS LINK required for programming
• Built-in preprogrammed winch controller
• Pulse Width Modulation control
• High-torque digital brushless servo

Specifications

• Dimensions: 0.9" length x 0.47" width x 1.08" height (23mm x 12mm x 27mm)
• Weight: .74oz / 21g
• Torque: 6.0V: 135oz; 7.4V: 159oz; 8.4V: 179oz
• Speed: 6.0V: .09sec; 7.4V: .07sec; 8.4V: .06sec
• Servo type: Digital
• Servo size category: Micro
• Programmable: Yes, via optional programmer
• Servo operating voltage: 6.0 - 8.4V (HV)
• Spline count: 25
• Bearing: 2BB
• Deadband: 2uS

Includes

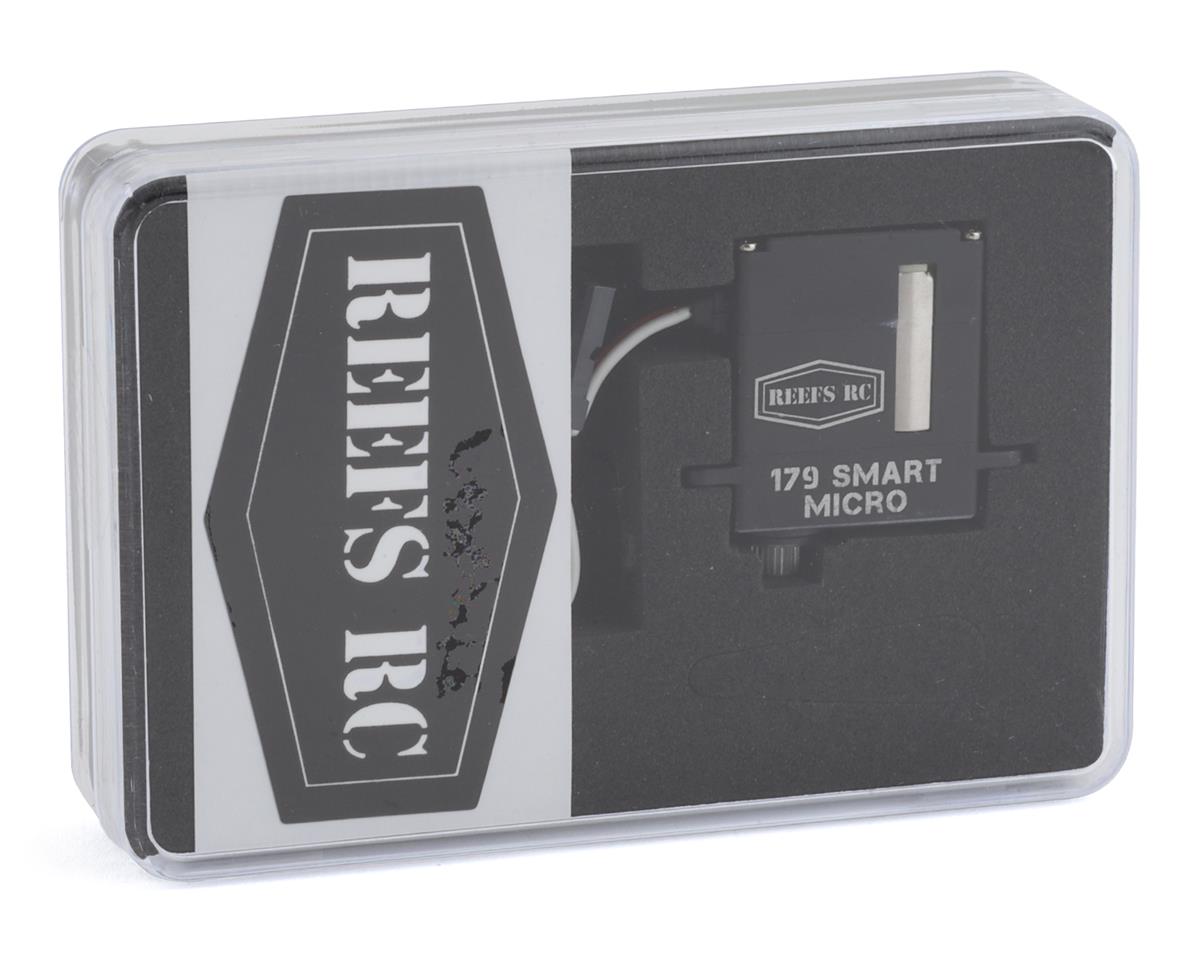

• (1) Reefs RC 179 Smart Micro Servo/Winch

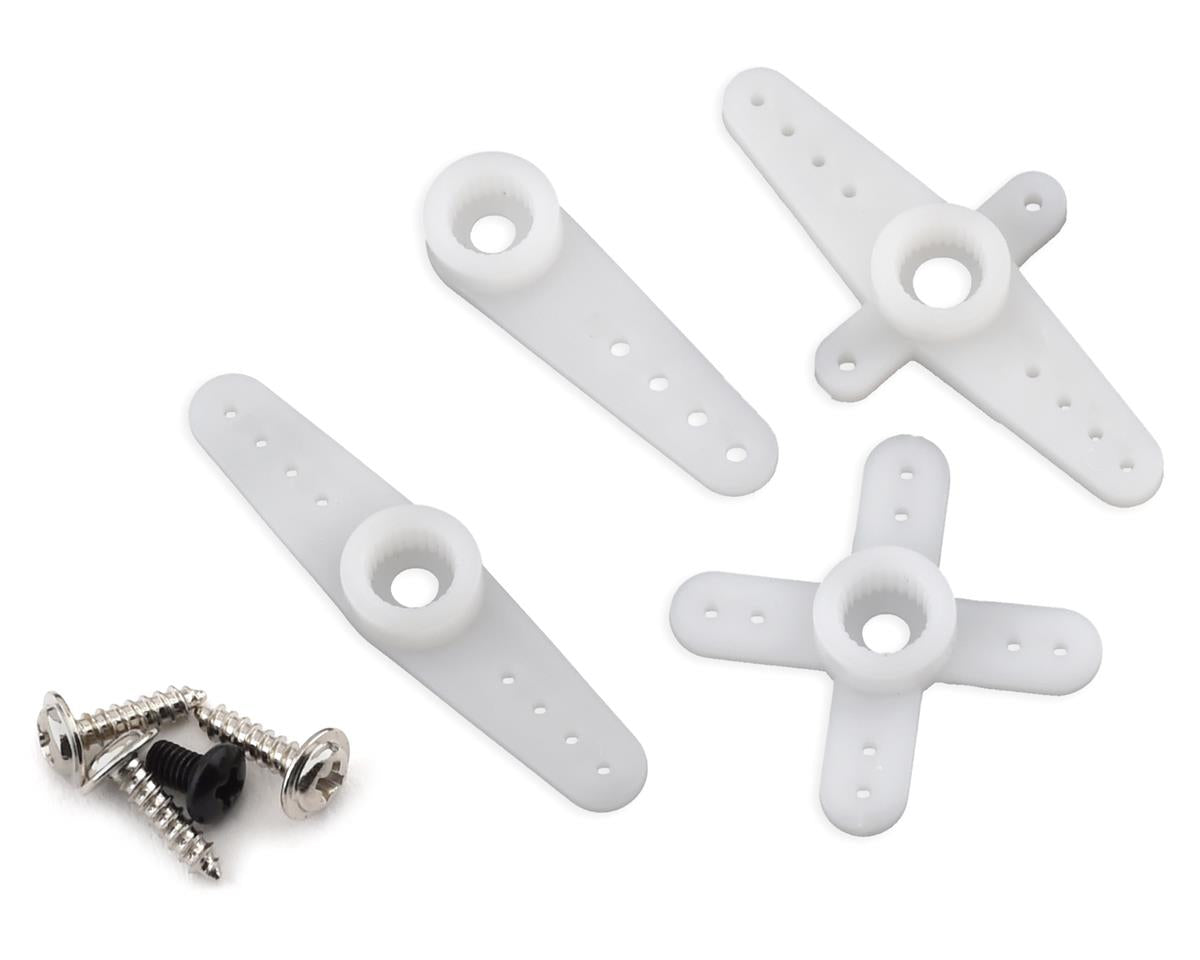

• Servo horn assortment
• Hardware
