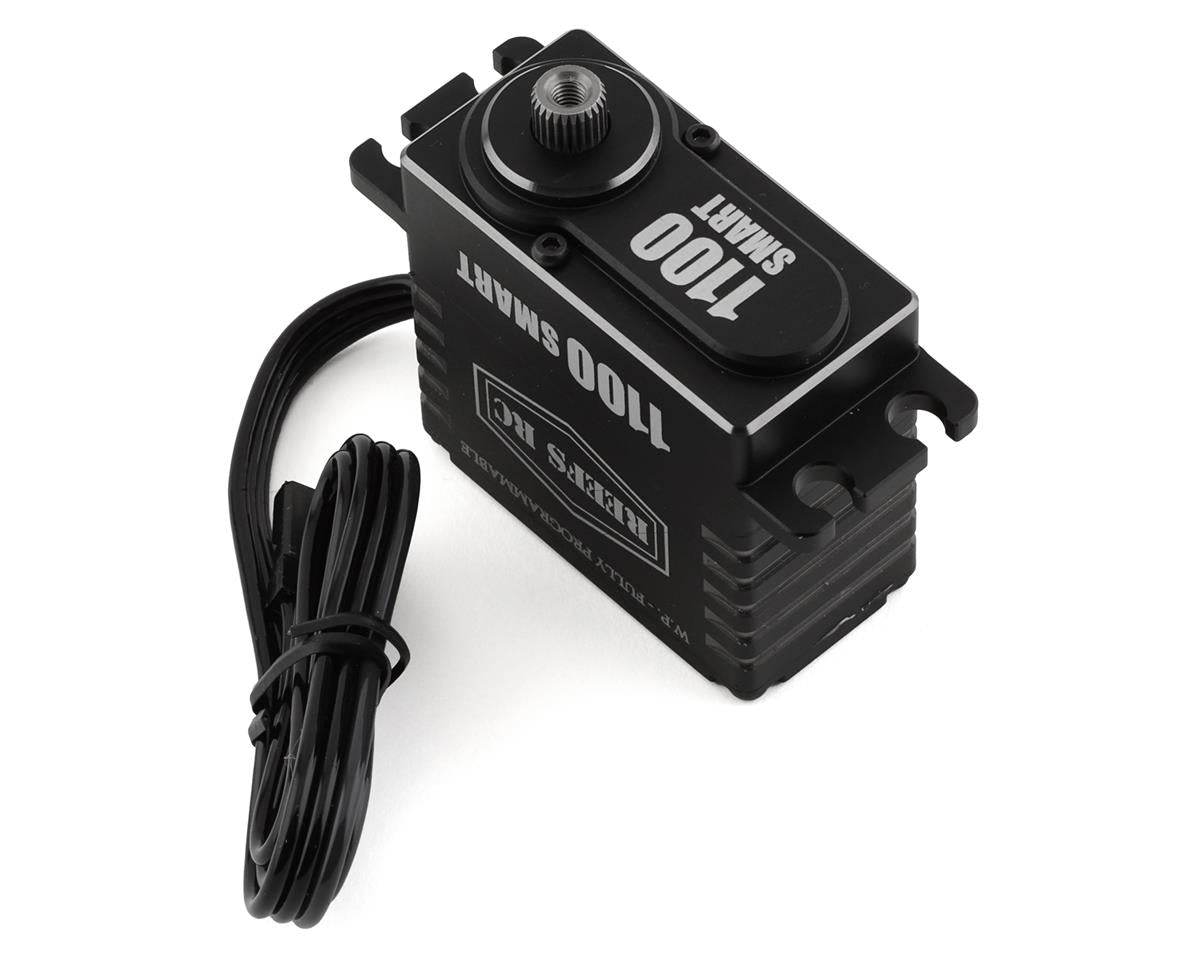

Reefs RC 1100 Smart Servo & Winch

The Reefs RC 1100 Smart Servo & Winch is a high-torque, high-speed brushless unit supplied as a servo and configurable as a winch using REEFS LINK and software. It includes a built-in preprogrammed winch controller, magnetic angle sensor, pulse width modulation control, and a 4-pole brushless motor.

Features

• Submarine waterproof construction with 7 point seals and gray heat sink
• Steel gears and all CNC aluminum casing
• 4 ball bearings
• 25T spline
• REEFS LINK required for programming
• BEC not required

Specifications

• Voltage: 4.8V - 8.4V
• Weight: 2.99oz
• Dimensions: 1.57 x .79 x 1.5 (LWH)
• Torque: 760oz @ 6v / 930oz @7.4v / 1100oz @8.4v
• Speed: .16sec @6v / .13sec @7.4v / .12sec @8.4v
• Unload Current: 460mA @ 4.8V / 500mA @ 6.0V / 540mA @ 7.4V / 580mA @ 8.4V
• Load Current: 5400mA @ 4.8V / 6000mA @ 6.0V / 6800mA @ 7.4V / 7500mA @ 8.4V
