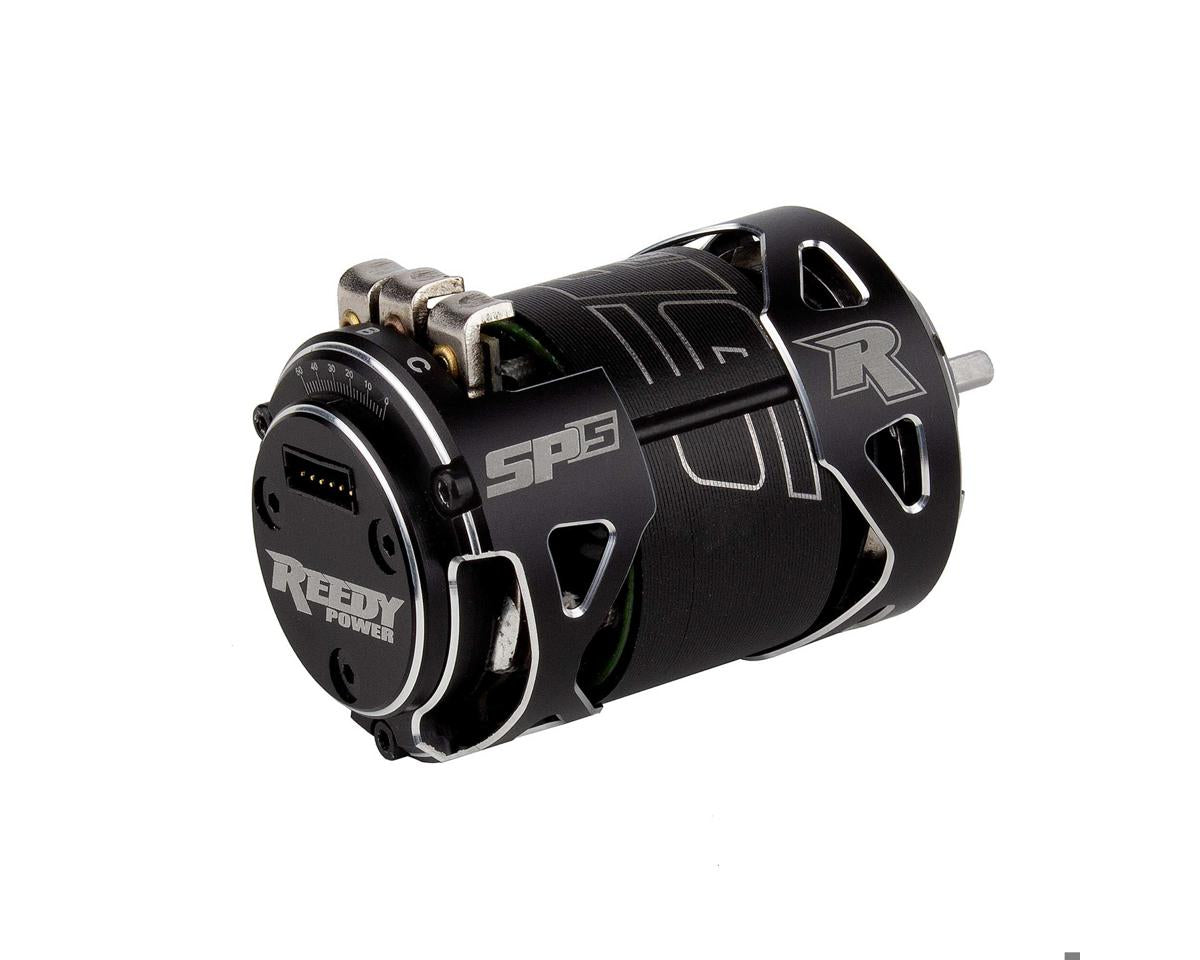

Reedy Sonic 540 SP5 A-Spec Brushless Motor (25.5T)

The Reedy Sonic 540 SP5 A-Spec 25.5T Sensored Brushless Motor is designed for high-performance 25.5T Stock-class racing. It features a custom high-power stator, low-resistance solder tabs and collector ring, optimized air cooling, and a balanced rotor with a high-strength magnet.

A CNC machined aluminum housing and adjustable-timing aluminum end cap allow application-specific setup. Dual precision ball bearings support high-RPM operation, while the completely rebuildable design helps extend service life. The Reedy Sonic SP5 is ROAR-approved.

Features

• CNC machined housing with optimized air cooling
• Custom high-power stator design
• Low-resistance solder tabs and collector ring
• Balanced rotor with high-strength magnet
• Dual precision ball bearings
• Aluminum end cap with adjustable timing
• Completely rebuildable
• Competition proven
• ROAR-approved

Specifications

• Type: Sensored Brushless
• Size: 540
• Diameter: 1.41in (35.9mm)
• Length: 2.06in (52.5mm)
• Shaft Diameter: 0.124in (3.15mm)
• Shaft Length: -
• Input Voltage: 1-2S (3.7-7.4V) LiPo
• Weight: Approx. 5.1-5.3oz (147-151g)

Includes

• (1) Reedy Sonic SP5 25.5T A-Spec Motor
