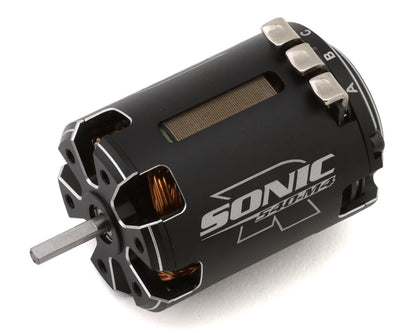

Reedy Sonic 540-M4 Modified Motor 7.0

The Reedy Sonic 540-M4 Modified Motor 7.0 is a 1/12 Modified Brushless Motor designed for 1/12 scale pan car applications. It features a CNC-machined lightweight can, balanced high-strength rotor, adjustable timing, and a completely rebuildable design.

The inner bearing is integrated into the can to more precisely align the rotor within the magnetic field while reducing noise and vibration. The shortened motor design helps centralize chassis weight, while the can improvements reduce weight by 5-10g. Precision stainless steel ball bearings support high RPM loads.

Features

• CNC-machined lightweight can
• Balanced, high-strength rotor
• Low-resistance, silver-plated solder tabs
• Dual precision ball bearings
• High-strength magnet

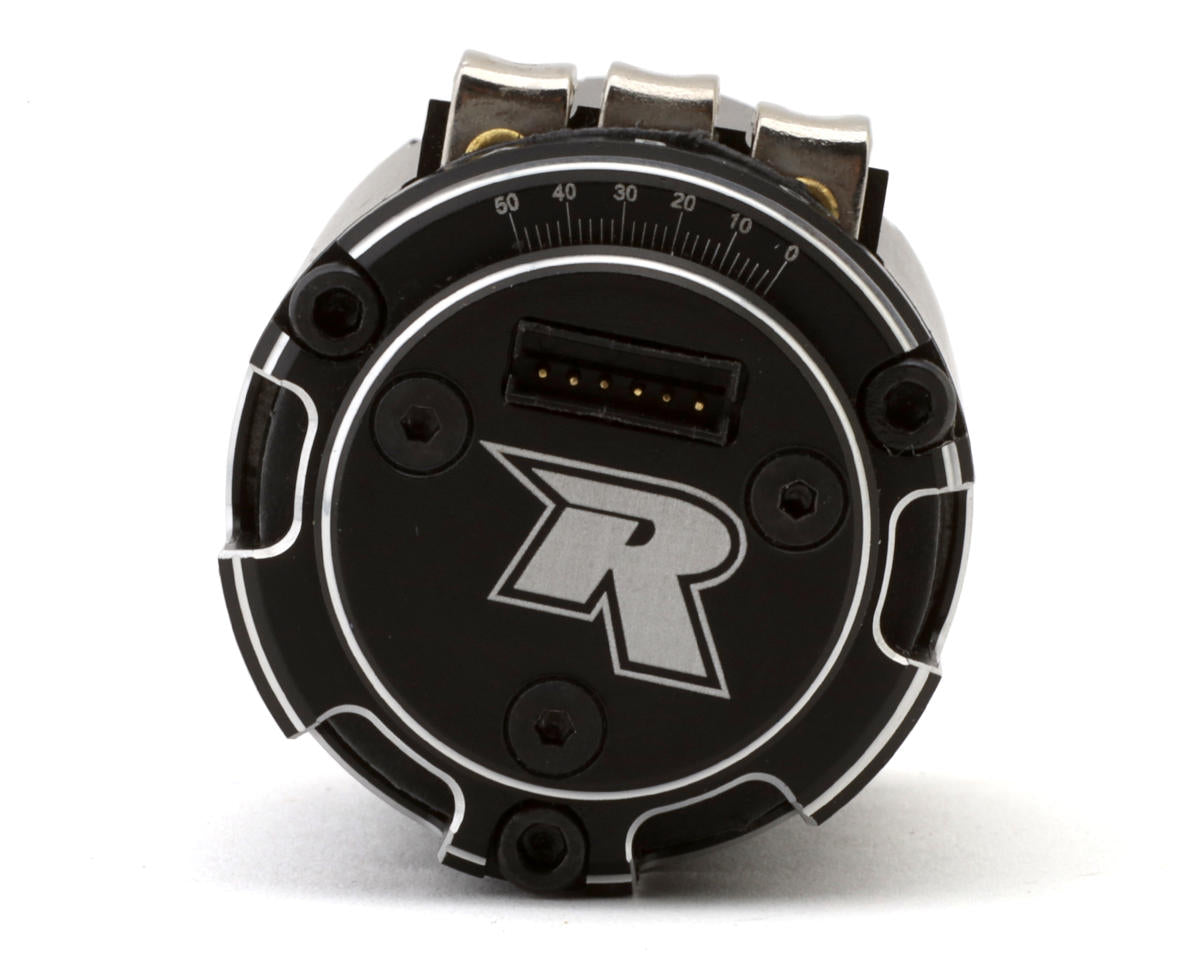

• Adjustable timing
• Competition proven
• Completely rebuildable
• ROAR, EFRA, and IFMAR Approved

Specifications

• Type: Brushless Sensored
• Size: 540
• Turns: 7T
• Input Voltage: 1-2S LiPo
• Diameter: 35.9mm
• Length: 50.3mm
• Shaft Diameter: 3.15mm
• Weight: Approx. 160-170g
• Bearings Size: 1/8x3/8x5/32 & 1/8x5/16x9/64
• ROAR/EFRA/BRCA/IFMAR: Approved

Includes

• (1) Reedy Sonic 540-M4 Motor

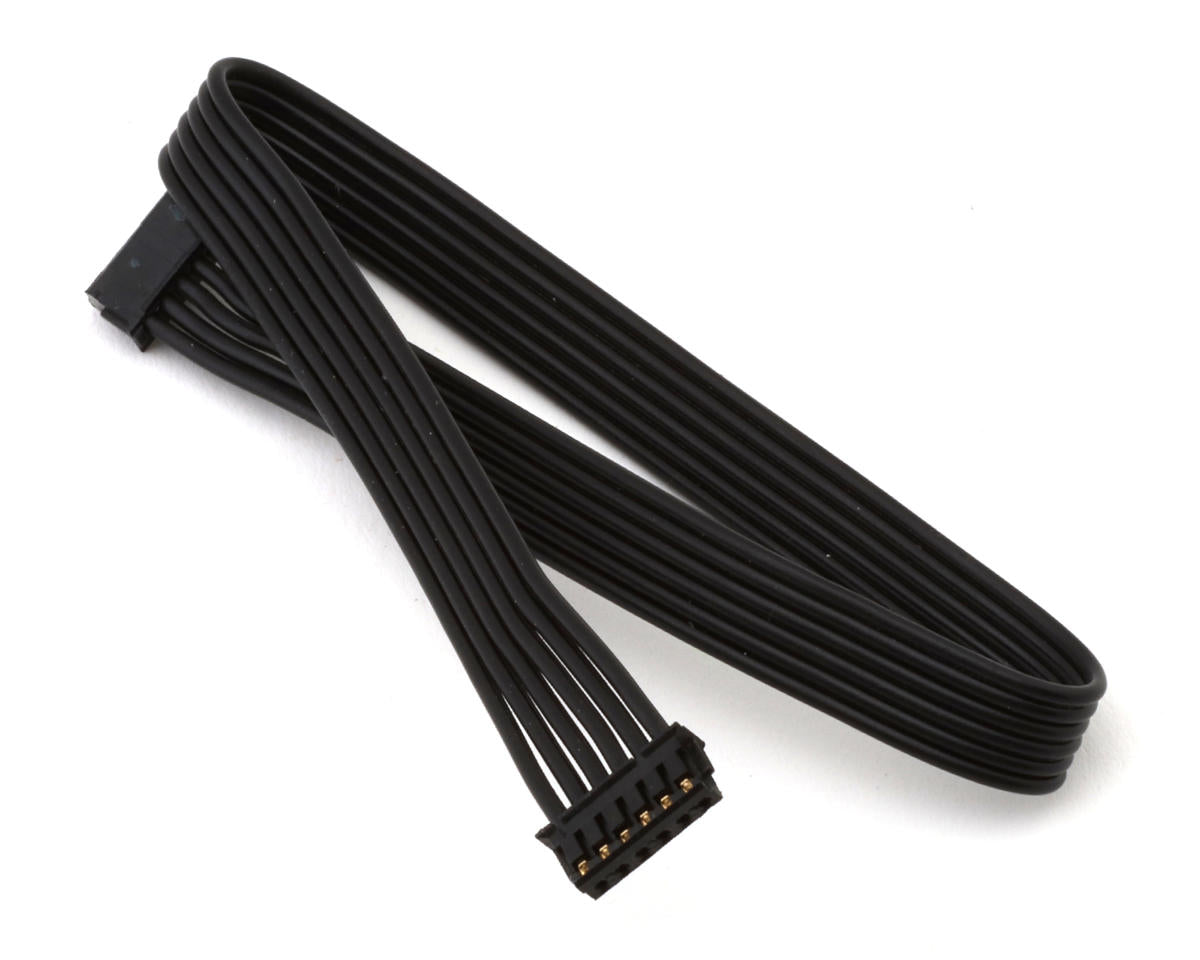

• (1) 200mm sensor wire
