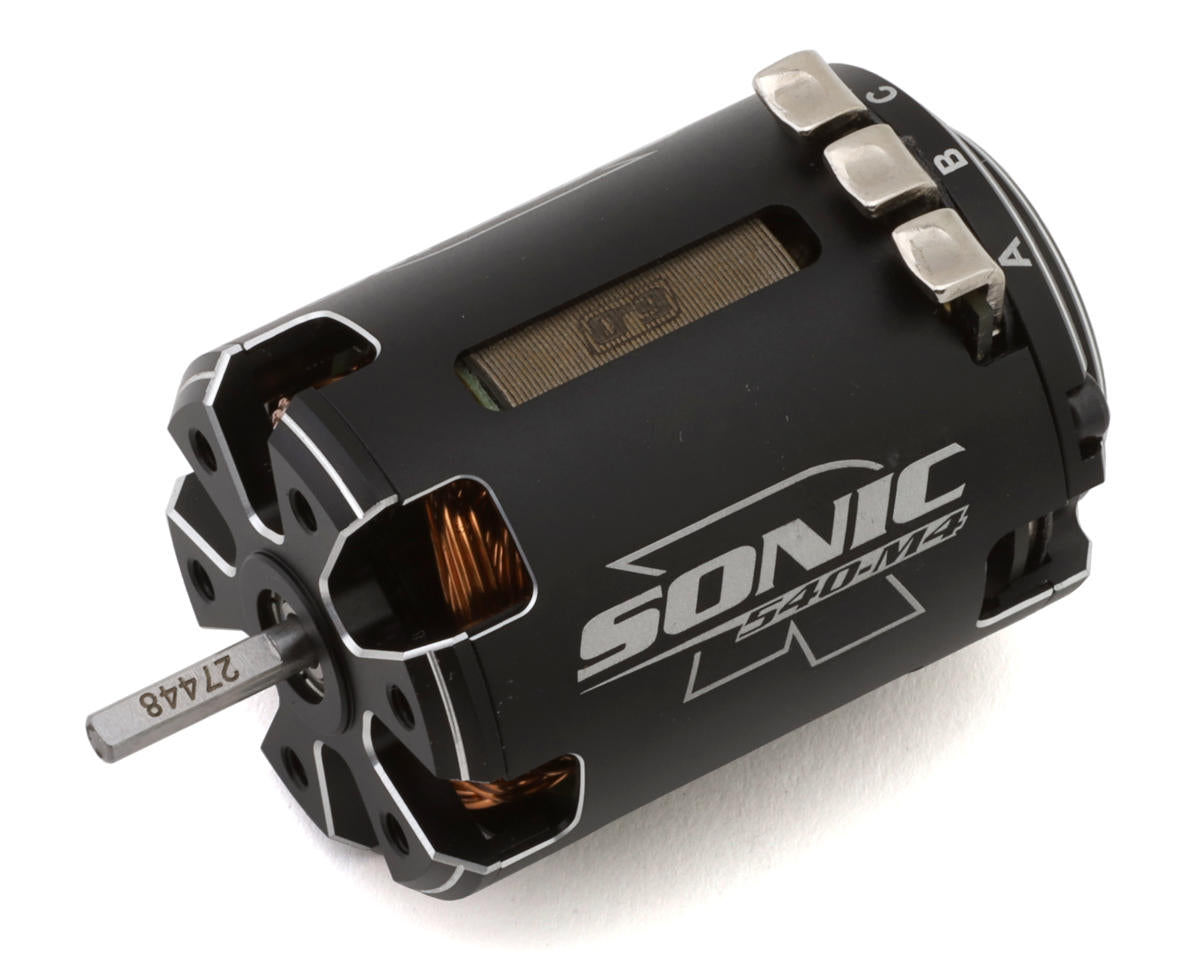

Reedy Sonic 540-M4 Modified Motor 6.0

The Reedy Sonic 540-M4 Modified Motor 6.0 is a 1/12 scale pan car brushless sensored motor with a 6T winding and adjustable timing. Its CNC-machined lightweight can, balanced high-strength rotor, and dual precision ball bearings support a refined motor design for RC competition applications.

The motor features a shortened design, an inner bearing integrated into the can, low-resistance silver-plated solder tabs, and a high-strength magnet. It is completely rebuildable and approved by ROAR, EFRA, BRCA, and IFMAR.

Features

• CNC-machined lightweight can
• Balanced, high-strength rotor
• Low-resistance, silver-plated solder tabs
• Dual precision ball bearings
• High-strength magnet

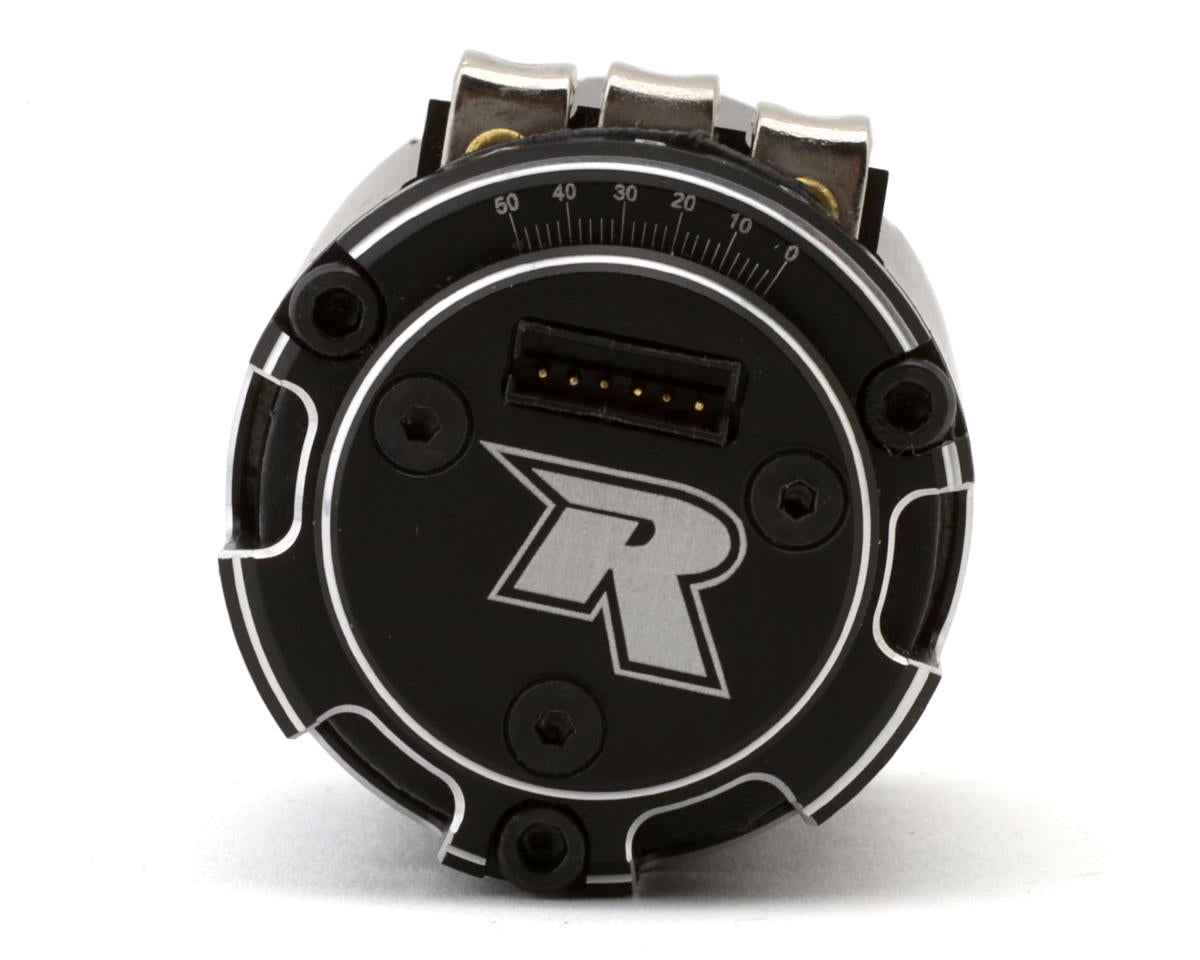

• Adjustable timing
• Competition proven
• Completely rebuildable
• ROAR, EFRA, and IFMAR Approved

Specifications

• Type: Brushless Sensored
• Size: 540
• Turns: 6T
• Input Voltage: 1-2S LiPo
• Diameter: 35.9mm
• Length: 50mm
• Shaft Diameter: 3.15mm
• Weight: Approx. 160-170g
• Bearings Size: 1/8x3/8x5/32 & 1/8x5/16x9/64
• ROAR/EFRA/BRCA/IFMAR: Approved

Includes

• (1) Reedy Sonic 540-M4 Motor

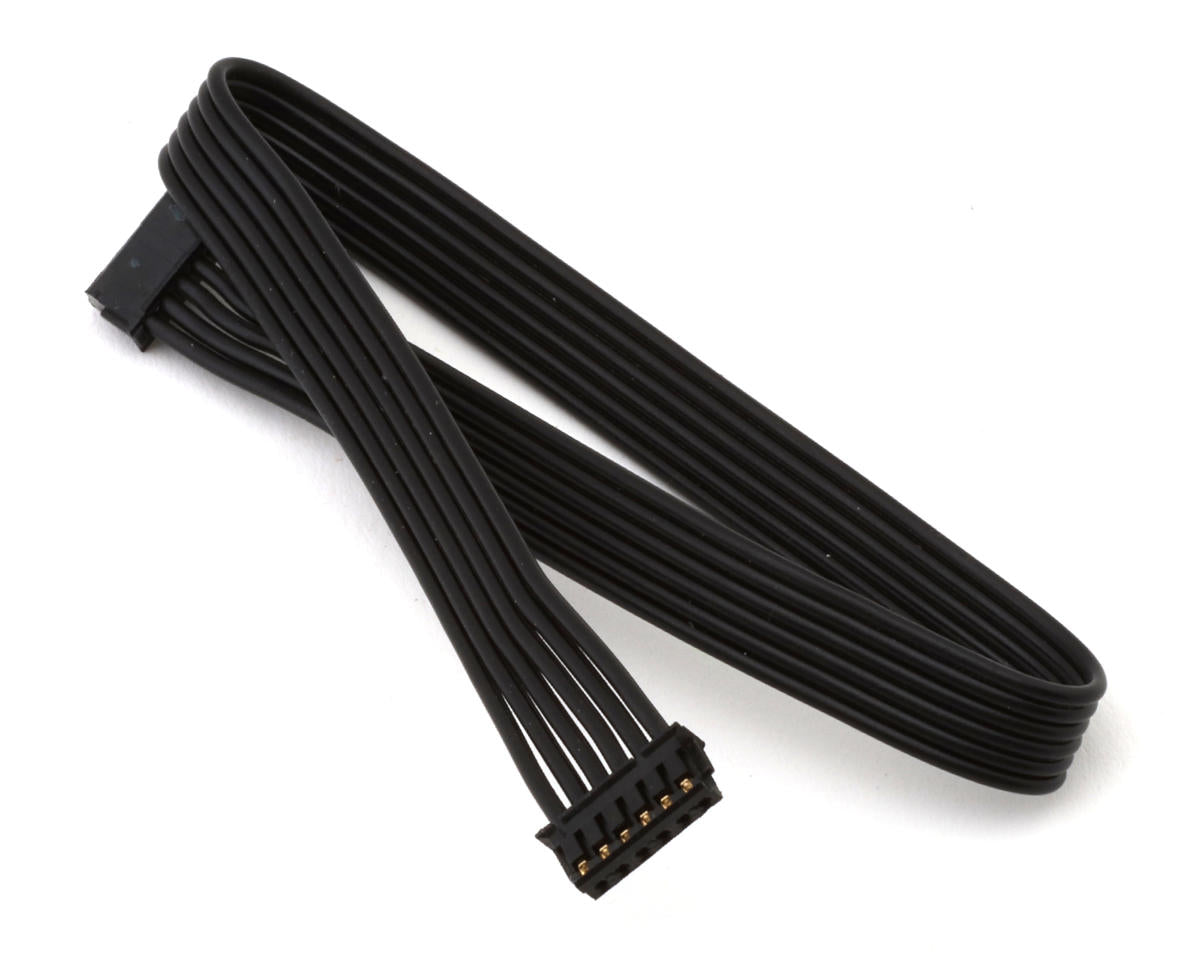

• (1) 200mm sensor wire
